Modul Dynojet Target Tune Touring 21-24

9 580 kr

Dynojet Target Tune-modulkit för Power Vision
Läs mer

10204037 Dynojet
  • Gör att original ECM kan läsa och använda signaler från bredbands-O²-sensorer
  • Använder Delphi ECM:s slutna system och adaptiva bränslereglering med bredbandssensorer (AFR 10:1 till 18:1)
  • Justerar bränsleblandningen i realtid efter höjd, väder och körstil med mål-AFR från mappen
  • Kan dra ifrån 30 % och lägga till 40 % bränsle i mappningen
  • Lär sig och korrigerar VE-tabeller under körning samt aktiverar Autotune
  • Stör inte återförsäljares diagnos- eller serviceverktyg

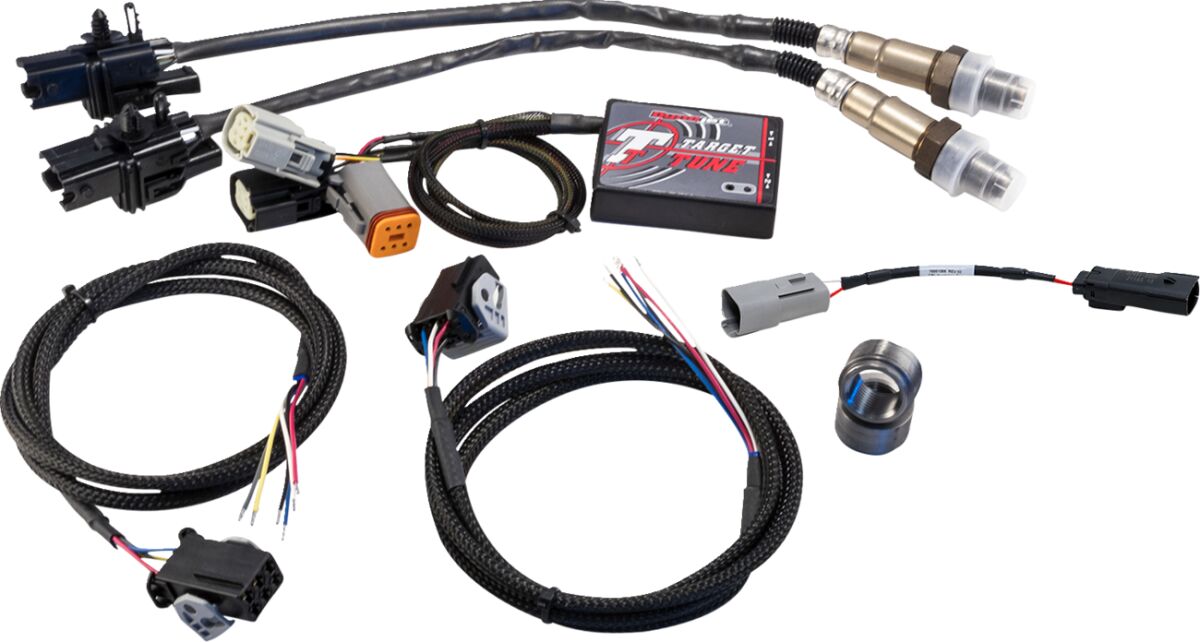

  • Levereras komplett med Target Tune-modul, 2 Bosch bredbandssensorer och kabelhärva med OEM-kontakter
  • Tillverkad i USA

Används tillsammans med Power Vision och OEM ECM samt fungerar med programvaran WinPV. För att systemet ska fungera måste motorcykeln flashas med en anpassad kalibrering, vilket utförs av ett certifierat Power Vision Tuning Center eller en teknisk representant från Dynojet.

Passar: Touring 21-24

Target Tune Module Kit

  • Includes OEM-style connectors for simple installation
  • Allows the factory ECM to interpret and use wideband O² sensor signals
  • Retains OEM closed loop and achieves adaptive fuel control strategy
  • Target fuel table from the calibration is achieved in real time
  • Does not interfere with dealer diagnostic/service tools
  • Learns and uses VE table corrections as you ride
  • Made in the USA
  • Used to run a Power Vision module as a true wide band closed loop set-up
  • You can set air/fuel ratios and the Target Tune, with the included wide band sensors, will automatically real-time adjust to the circumstances (altitude, weather, riding style etc.) that your bike encounters but also hold onto your pre-determent air/fuel ratios that you've programmed in the fuel map
  • It uses the existing closed loop, adaptive fuel control strategy in your Delphi ECM, but with changes made to the calibration to allow your ECM to use wideband sensors with a much wider AFR (10:1 to 18:1) than the stock limited narrow band sensors
  • Target Tune Full Kit comes complete everything needed for installation, it includes the Target Tune module with 2 Bosch wideband AFR / Lambda sensors and appropriate wiring harness cables with stock connectors
  • In order for the system to work, you must have a calibration flashed to your bike with the various edits required to make it work
  • At this time only a Certified Power Vision Tuning Center, or a Dynojet technical representative can make those edits
  • Automatically keeps your air/fuel ratio at your optimal settings
  • Target Tune can subtract 30%, and add 40% fuel to a tune
  • Works with OEM ECU/ECM in combination with Power Vision
  • Works with WinPV software (free for download at Dynojet)
  • All the regular tuning parameters that are exposed to you in WinPV are available
  • Enables Autotune
  • Includes OEM-style connectors for simple installation into factory O2 harness **Dynojet product not available to purchase by Dealers located in the UK**

Fits: 21-24 FLT/Touring (excl. 23-24 CVO, 2024 FLTRX; 2024 FLHX) models with software level 28. For For MT22 ECU 10/10" 4P
