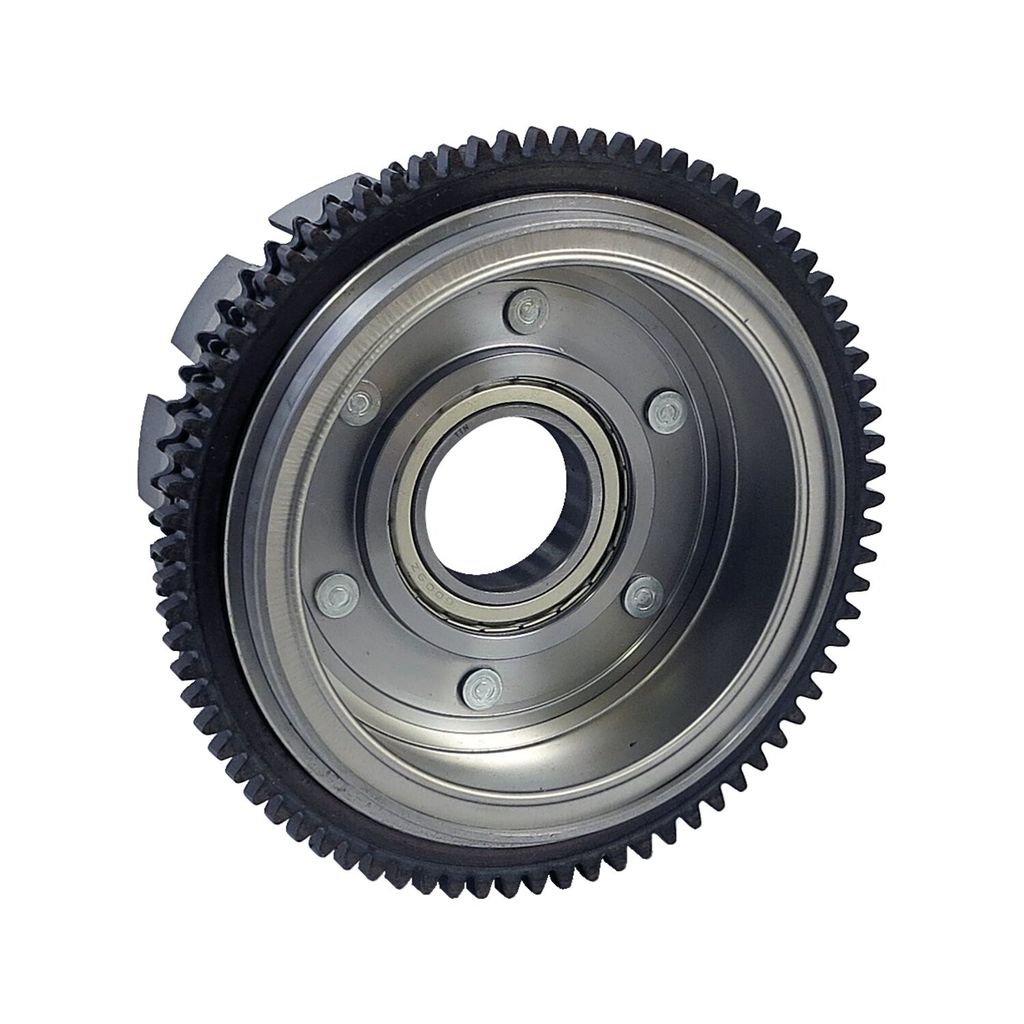

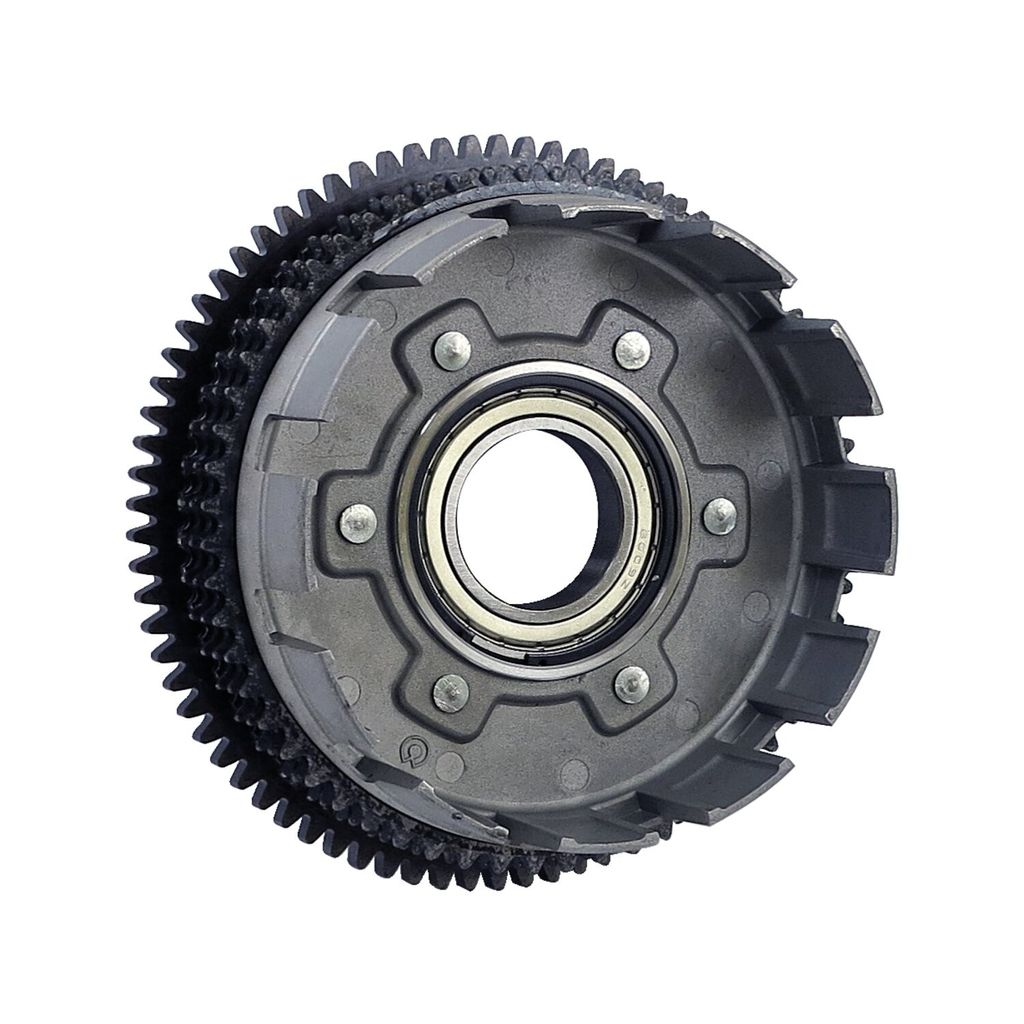

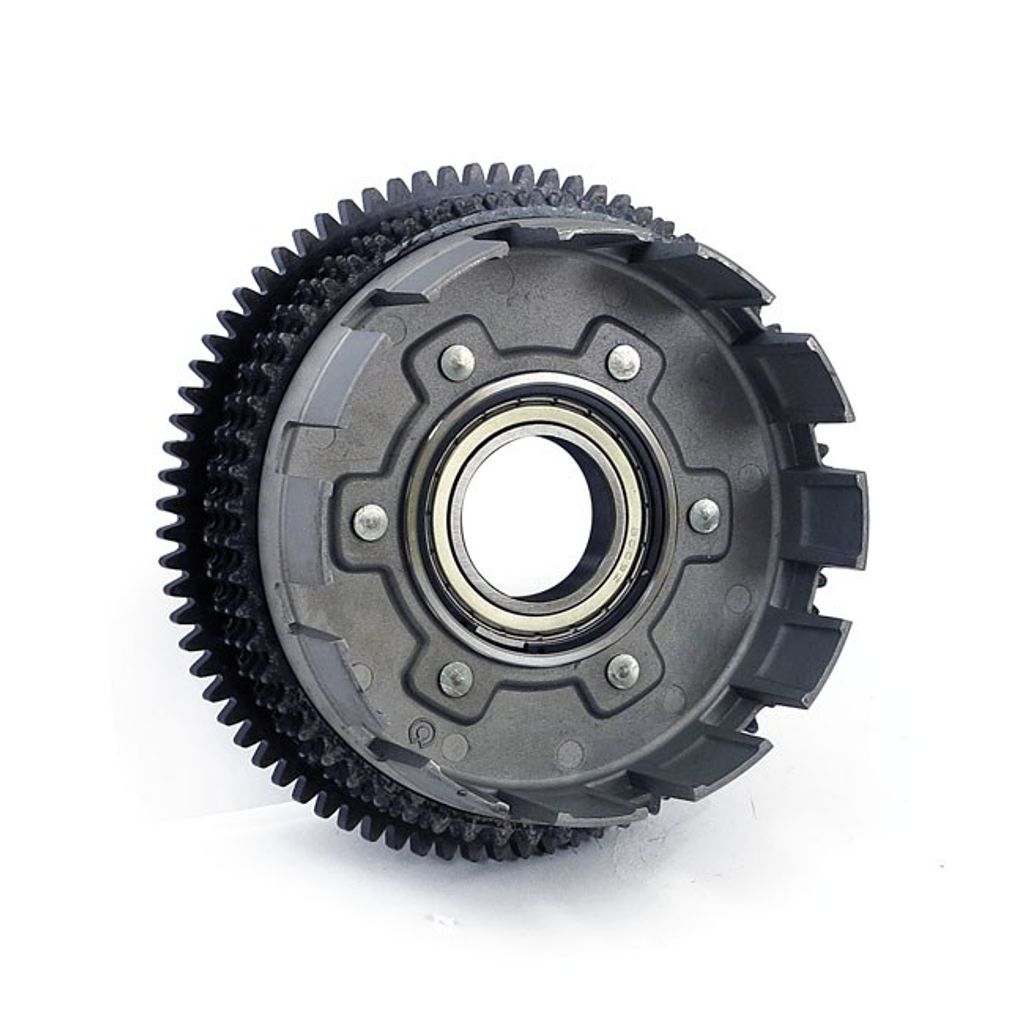

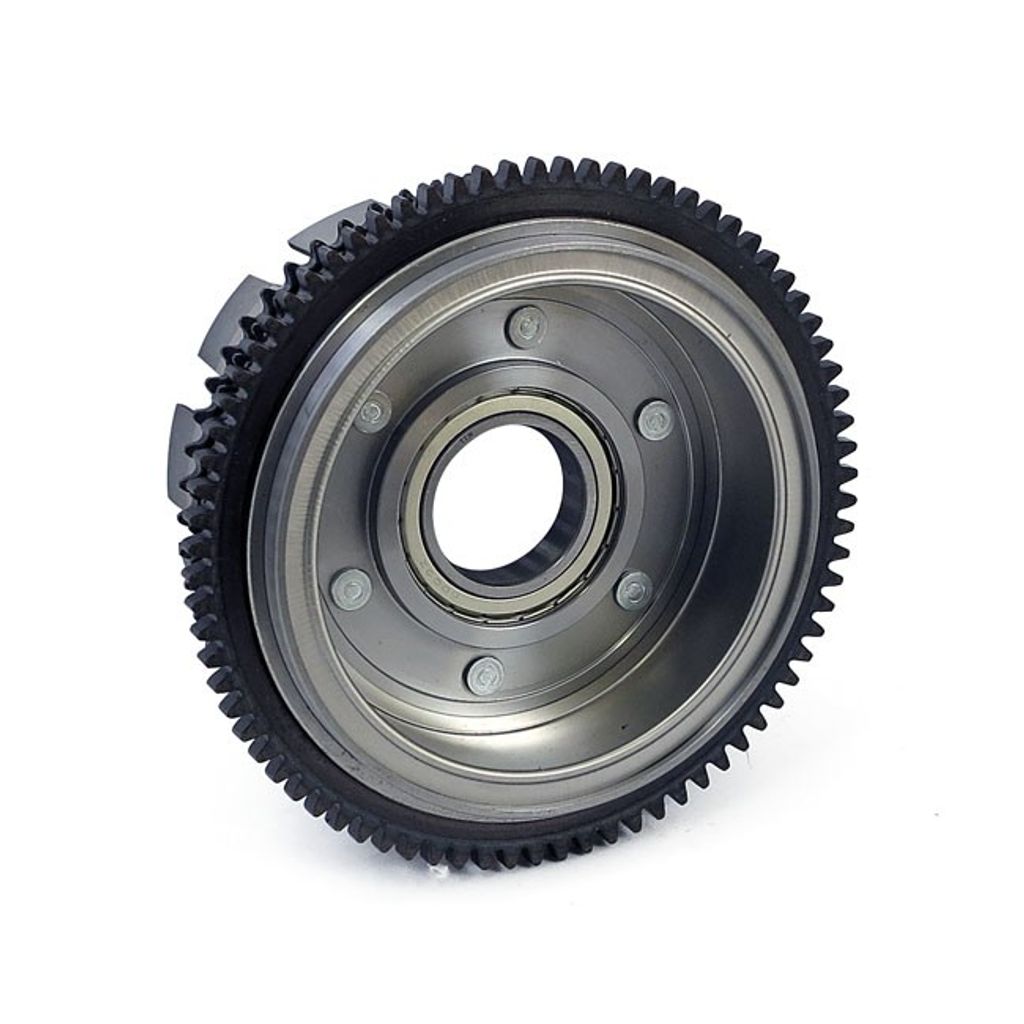

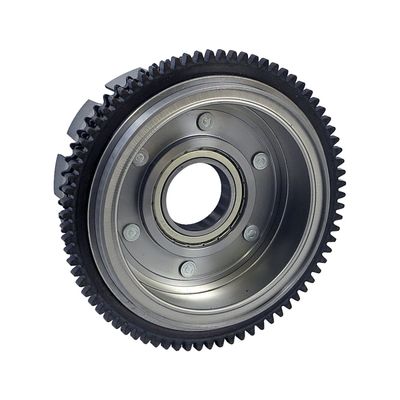

Kopplingskorg med drev och generatorrotor MCS L84-90 4-speed XL Sportster

9 160 kr

Generatorrotor och kopplingskorg med primärkedjedrev
Läs mer

936791
  • Ersättning i OEM-stil av generatorrotor/kopplingskorg och drev för primärkedja
  • Magneterna är inkapslade i ett rostfritt hölje för att förhindra att de lossnar
  • Inklusive kullager

Ersättande kullager till kopplingsnav finns tillgängligt separat som 556626. På L84-90 XL Sportster sitter generatorn på kopplingsnavet, där för stort spel i lagren kan göra att navet lutar och tar i statorn, montering av nya lager rekommenderas för att åtgärda detta.

Passar: L84-90 4-växlad XL Sportster

OEM-nr: 36791-84, 36799-84

Kategori Clutch shells
Produkt-typ Clutch shells
OEM-nr 36791-84

Alternator rotor / clutch shell & sprocket assembly

  • OEM style replacement alternator rotor/clutch shell with primary chain sprocket combo
  • Incl. ball bearing
  • Magnets are encapsulated in a stainless steel shell
  • This will help prevent magnets coming loose, which fequently happens with OEM equipment
  • OEM replacement reference 36791-84
  • Note: Replacement clutch hub ball bearing is separately available as 556626/36799-84
  • TECH TIP: On L84-90 XL Sportster the alternator is installed on the clutch hub
  • This was poor design
  • Excessive clearance between clutch hub bearing, mainshaft ball bearing and needle bearing between the two parts of the transmission shaft allows the clutch hub to cock sideways, enough for contact between stator and clutch hub
  • Grinding stator and/or clutch hub is sometimes done, but not recommended by MCS, to add clearance which reduces output
  • Better is installing new bearings
  • From 1991-on the alternator was moved and the rotor is run on the sprocket shaft
  • This fixed the problem

Fits: L84-90 4-speed XL Sportster (NU)
