Belt drive Belt Drives 3″ 8 mm elstart med låskoppling Softail 86-89
Öppen 3" belt drive med elstart och lockup-koppling från Belt Drives Ltd.
Läs mer
- 3" 8 mm öppet system med utväxling 72-47 för elstart

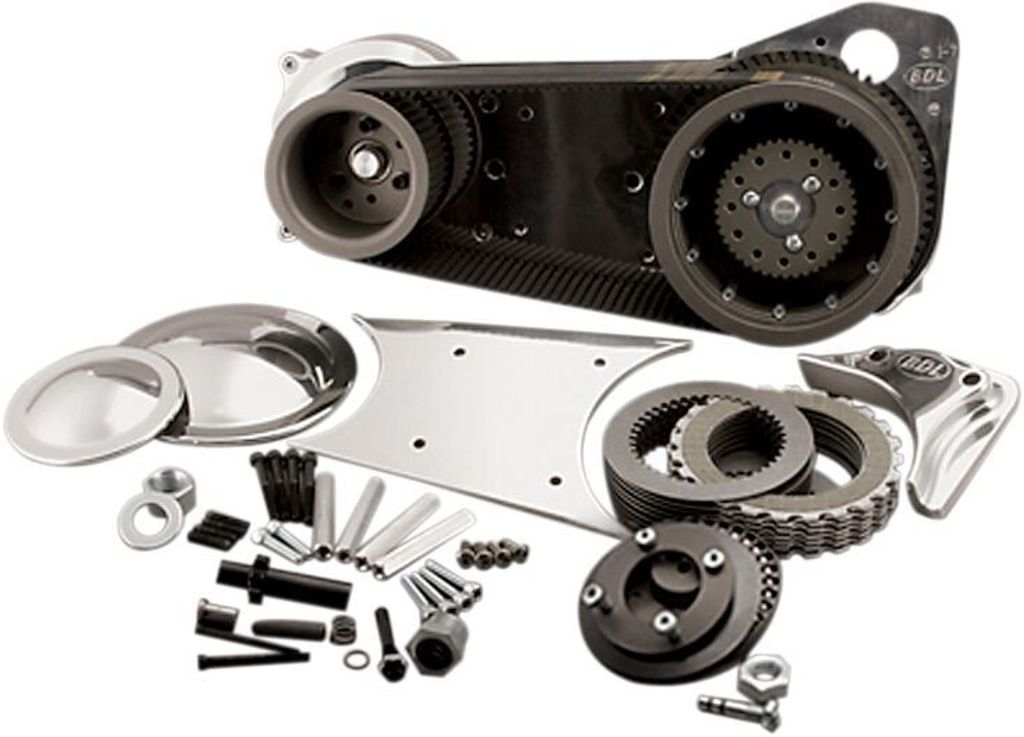

- Satsen innehåller främre remskiva, rem, kopplingsnav, kopplingskorg, motorplatta i 6061-T6 billet, yttre skydd och polerad remskivekåpa
- Komplett aramid-kopplingssats (två halvlameller, fyra hellameller och fem stållameller)
- Bakre remskiva har 40 mm dubbelradigt lager med inre kopplingsnav i stål för extra stöd
- Quiet Clutch med kullagrad lockup-tryckplatta för slirfri koppling utan ökat handtagsmotstånd
- Utan oljefilter
- Tillverkad i USA
Kräver startmotor av 90-06-stil (säljs separat). Passar inte modeller med fotplattor eller offset-primär. På Softail 86-88 med separat solenoid krävs modifiering av transmissionshuset (öppna starthålet till 2-1/8") samt kopplingsarmen för montering av startmotor av 91-93-stil.
Passar: Softail 86-89
| Produkt-typ | Belt Drive Kit |
| Material | 6061 T-6 Billet Aluminum- Kevlar- Steel |
| Tillverkarens Art. Nr. | EVOB-9T |

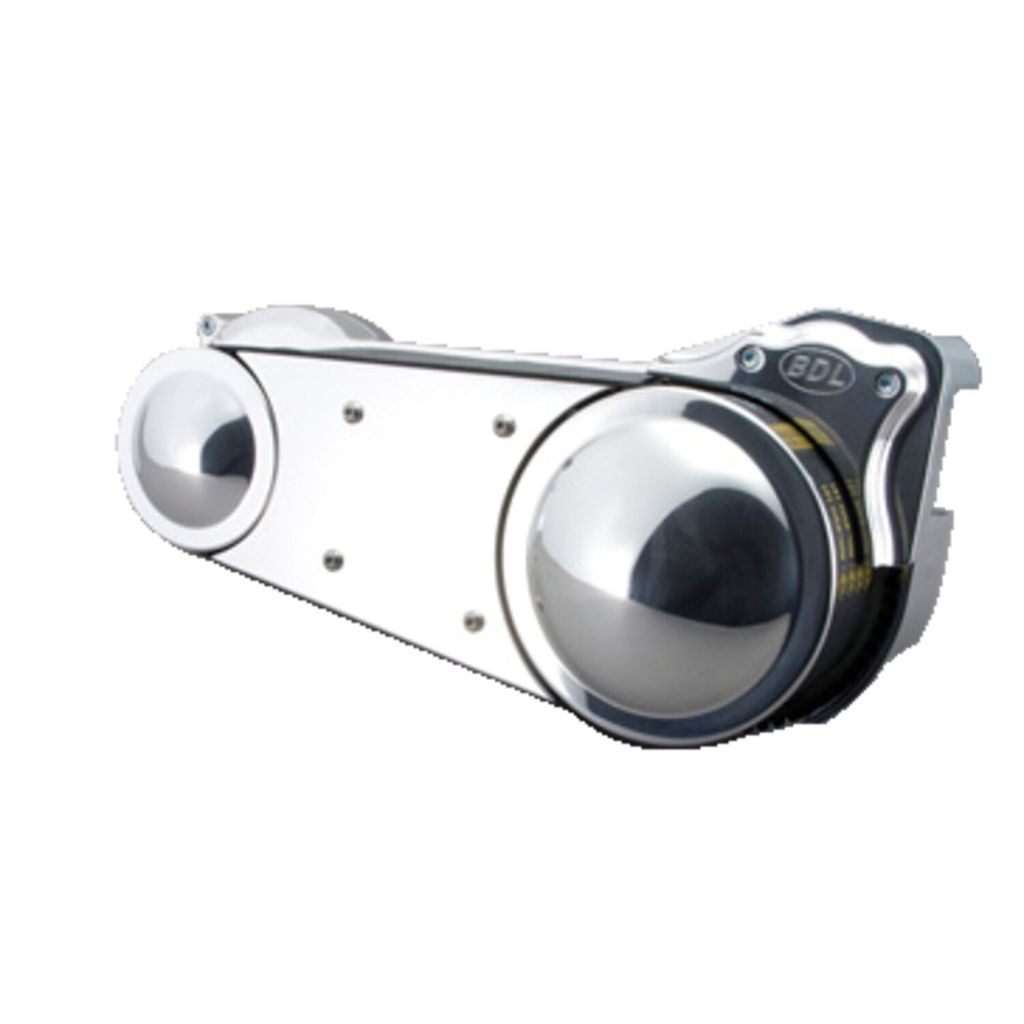

3" Electric Start 8 mm Belt Drive with Lockup Clutch
- 3" electric start 8 mm kit includes front pulley, belt, clutch hub and clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates), 6061-T6 billet motor plate, outside guard and polished pulley cover
- Rear pulley has a 40 mm, double-row bearing with an inner stress-proof steel clutch hub to support the clutch
- Lockup design applies extra pressure to the clutch plates for positive engagement with no clutch slippage
- Comes with the Quiet Clutch and ball-bearing lockup design pressure plate
- No increase in lever pull effort
- Direct bolt-in applications
- Made in the USA
- 3" systems are not designed for use with floorboards.
- Not for use with offset primaries.
- Replacement components available separately.
- With ball bearing lock up clutch
- No oil filter
- The Street Drive is, and has been, the standard in 3" open drives for years
- Complete with the performance proven standard BDL (ETC) clutch
- With 72-47 drive ratio
- Note: On 86-88 Softail models that originally are equipped with the old style 'separate solenoid' starter, modifications are necessary
- These include a transmission housing (opening up the starter hole to 2-1/8") and clutch release arm modification to install the new (91-93) style starter that is needed with this kit
- Note: See 518586 for the replacement 3" wide 141t
- 8mm belt
- BDL Street Drives can come with different clutch set-ups
- All Motorcycle Storehouse Street Drives come with just one clutch type, the reliable performance proven standard BDL 'ETC' clutch
- See our BDL replacement parts section in our catalog for the appropriate replacement parts for your drive
Requires the use of a '90-'06 style starter (sold separately). Some models may require modifications.
Fits: 88-89 Softail
