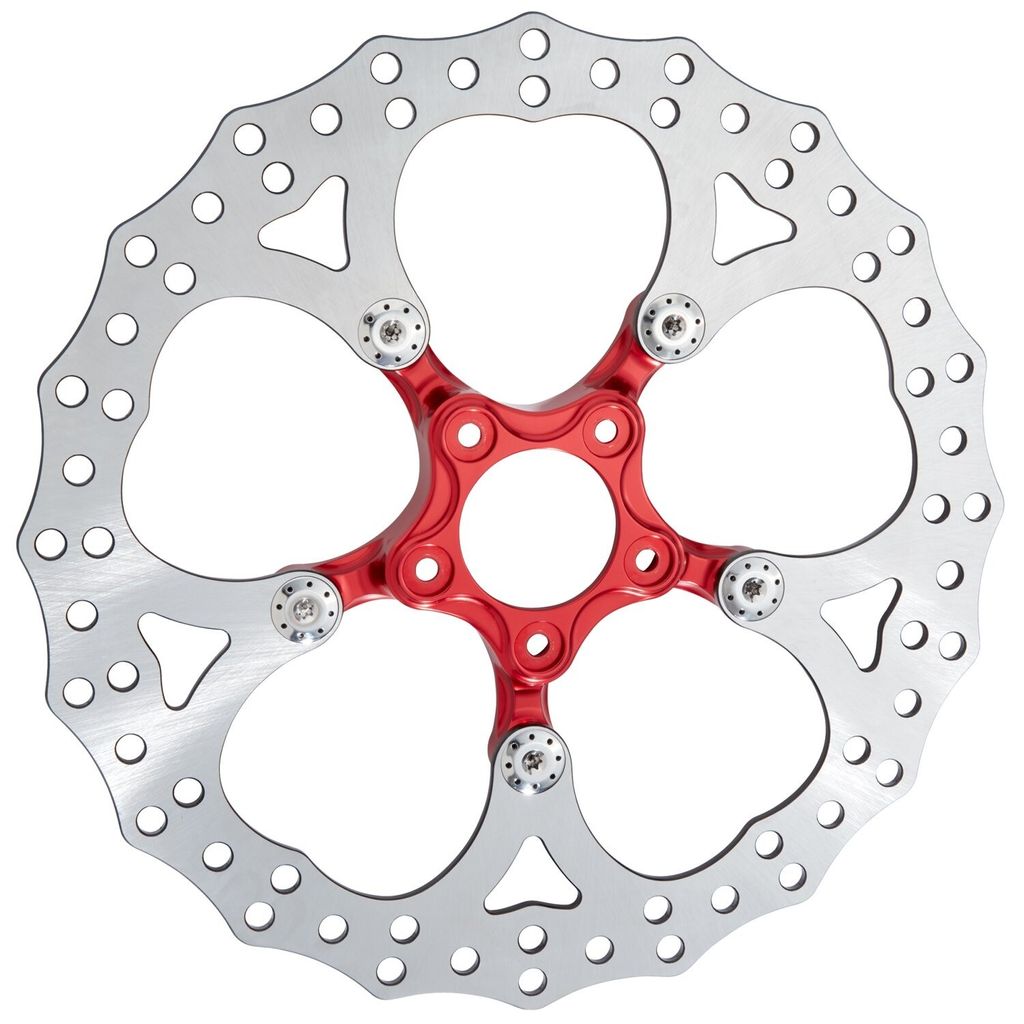

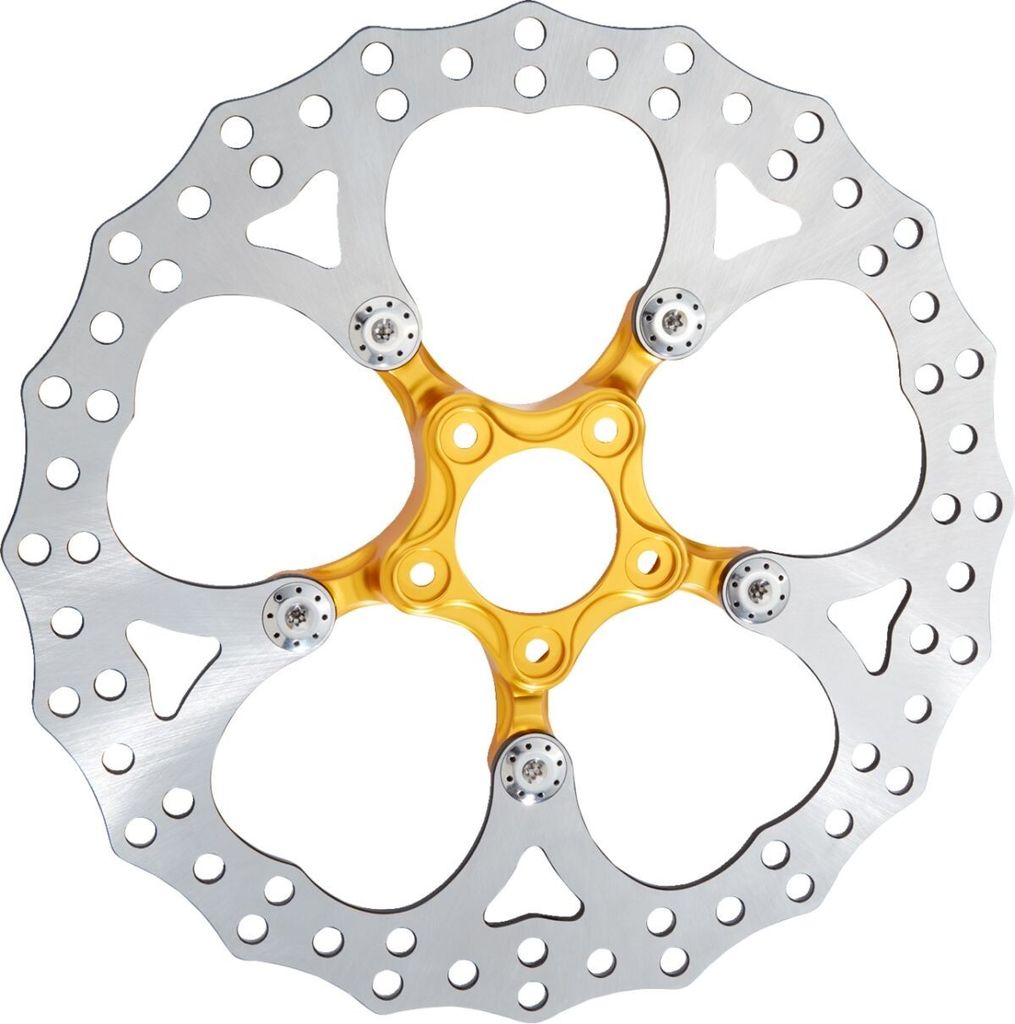

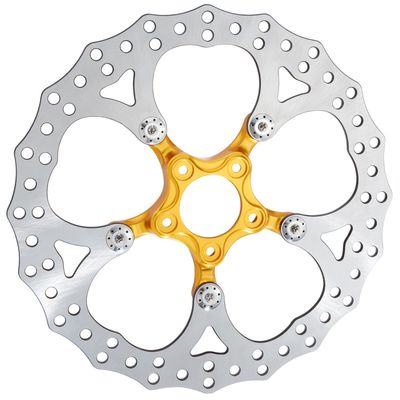

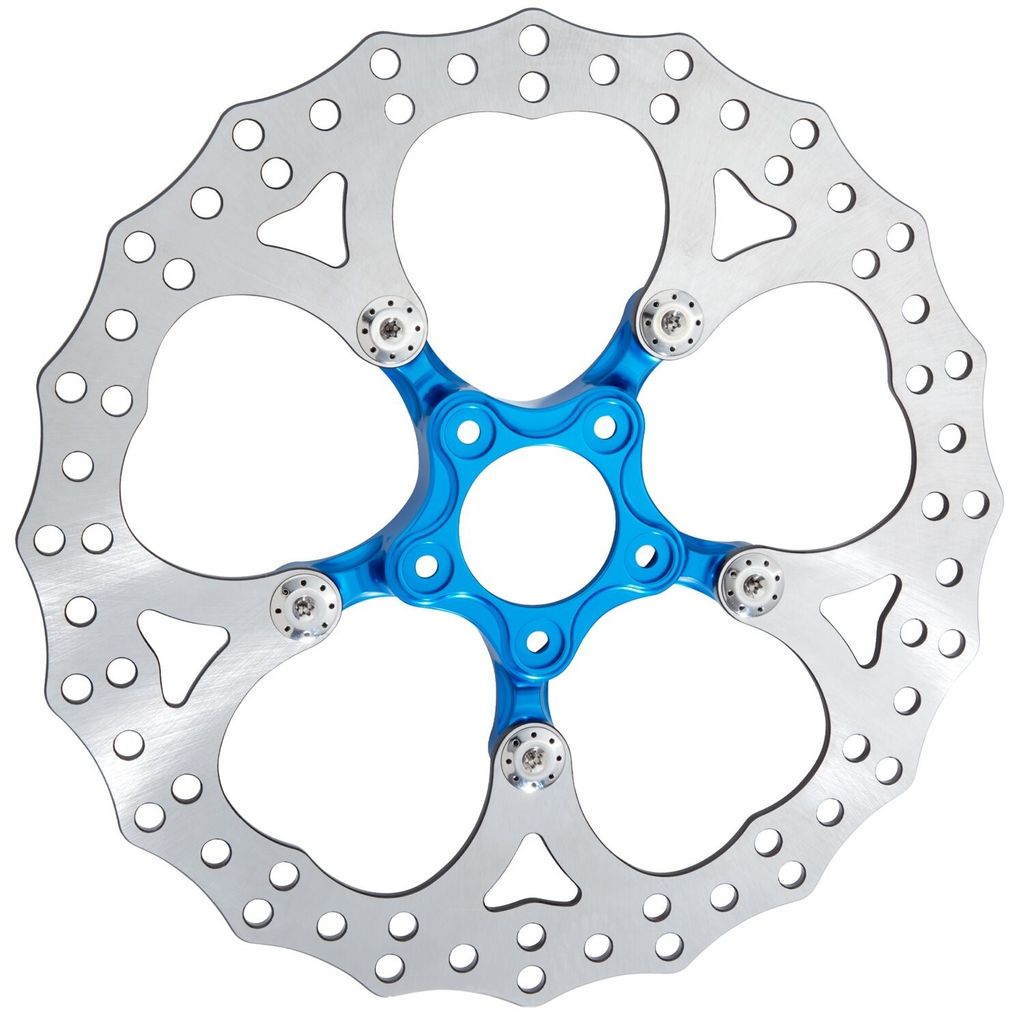

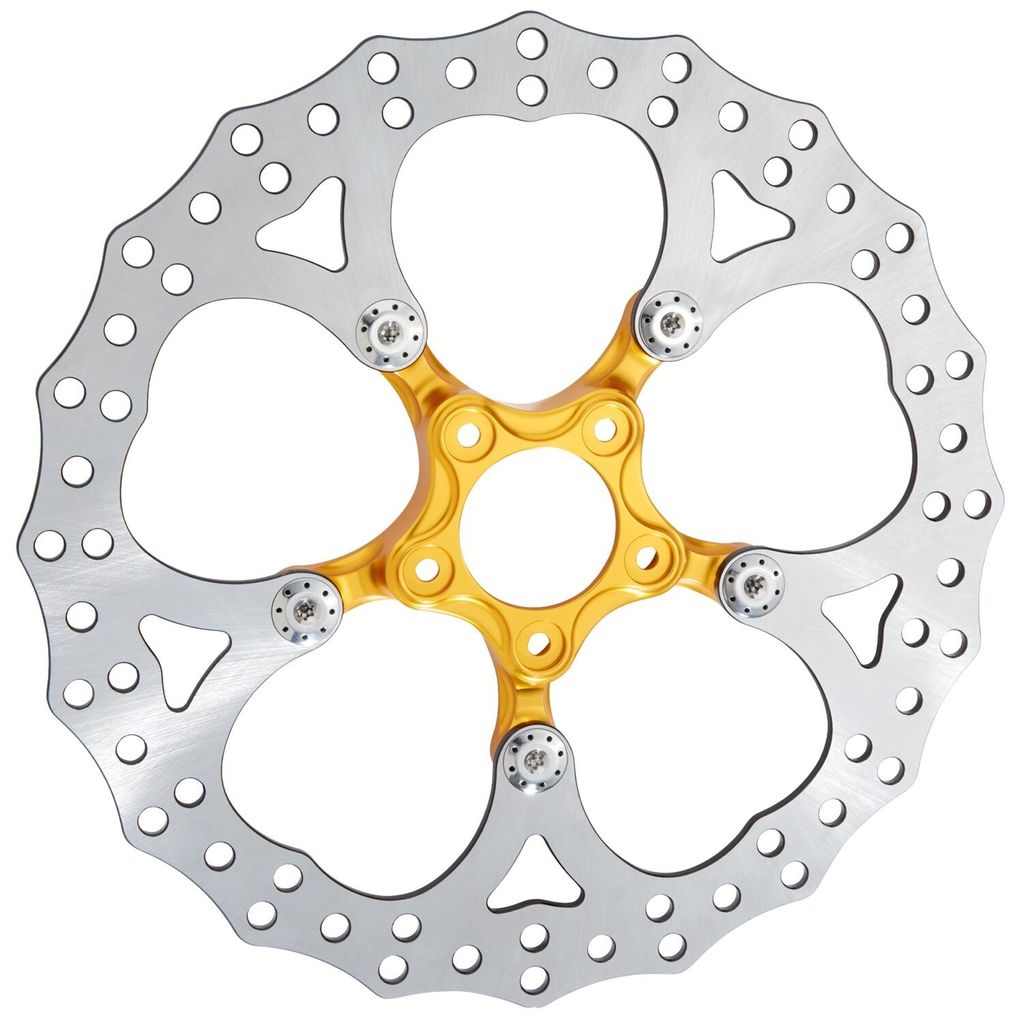

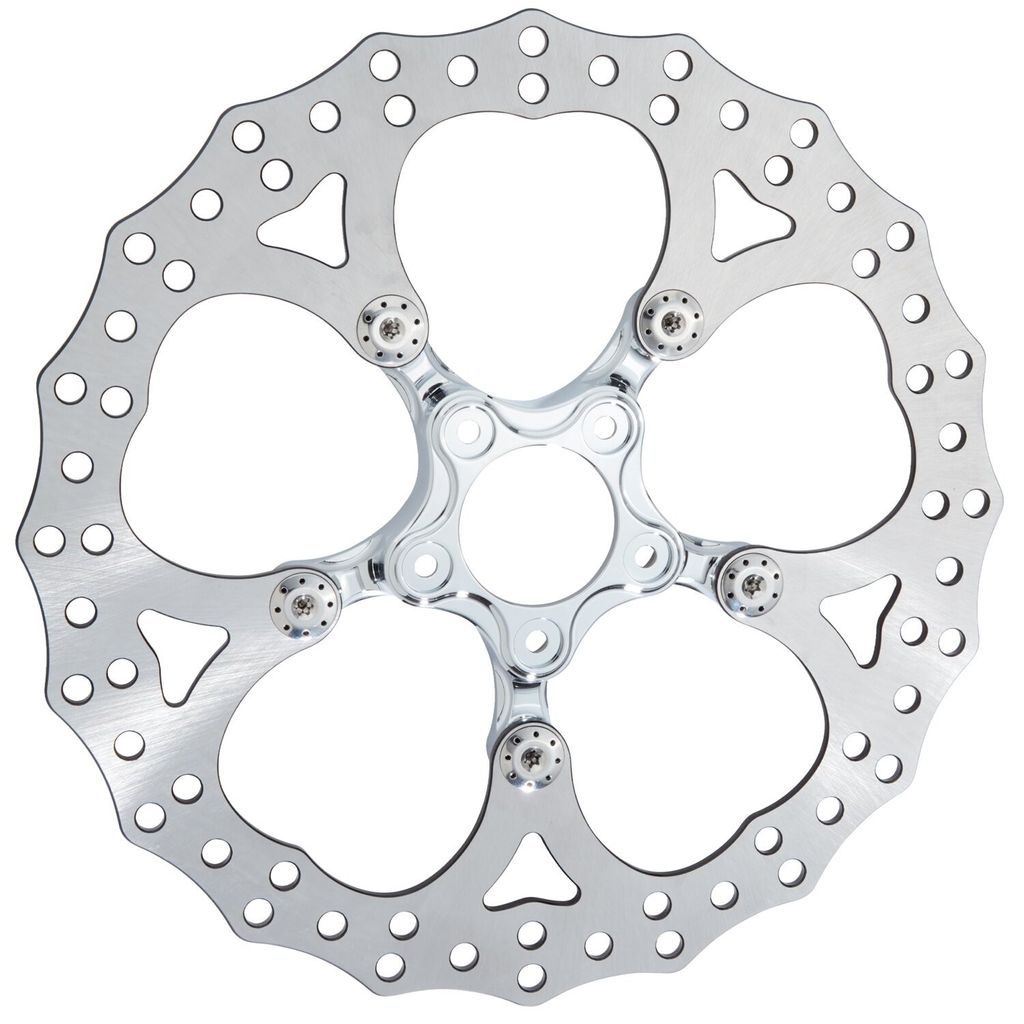

Bromsskiva fram Arlen Ness Spider 14″
Flytande 14" frambromsskiva från Arlen Ness
Läs mer
- Flytande bromsskiva med fästelement i CNC-fräst massiv titan
- Yttre bromsskiva i laserskuren 420 rostfri med hög kolhalt, CNC-bearbetad för en slät känsla
- Centrum i CNC-fräst lättvikts fräst aluminium
- Ytterdiameter: 14" (356 mm)
- Innerdiameter: 56,3 mm med 5/16" (8,7 mm) försänkta monteringshål
- Bultcirkel: Standard H-D 3,25" (48,5 mm centrum till centrum)
- Vågformad ytterkant (jagged)
Passar endast Arlen Ness hjul och nav. Kräver adapterfästen för att kompensera för den större diametern, samt Arlen Ness navkit för modeller med eller utan ABS. Endast kompatibel med motorcyklar som ursprungligen var utrustade med 11.5" främre bromsskivor. Passar inte 23-up CVO med inverterad framgaffel eller Springers.
Passar:00-14 Softail (exkl. Springers), 00-13 XL m.fl.
Spider Rotor
- Spider performance brake rotors feature titanium floating rotor hardware, jagged brake discs & CNC machined lightweight billet carriers
- Outer brake disc is made from high carbon 420 stainless steel, laser cut then CNC machined to remove all hard edges for a smooth feel
- Floating rotor hardware is CNC machined from solid Titanium
- Arlen Ness hub kit required to complete wheel on ABS or non-ABS Harley applications.
- NOTE: Fits only Arlen Ness Wheels and Hubs

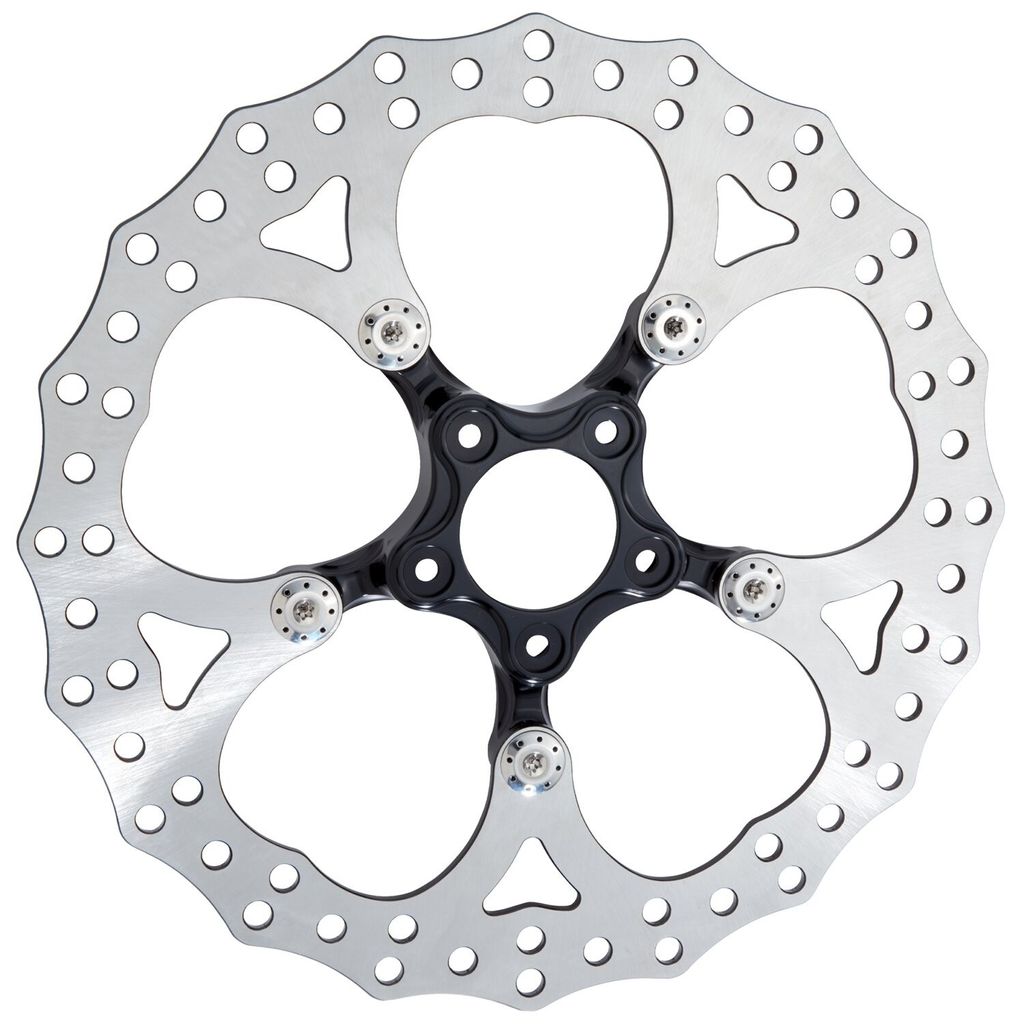

- 'Spider' 14" brake rotor. Front. Black
- The backside of all Arlen Ness Spider brake rotors are recessed and designed to fit the specially shaped Arlen Ness wheel hubs only
- 14"/ 356mm Oversized Outside Diameter
- 56.3mm ID, 5/16" (8.7mm) counterbored mount holes
- Stock H-D 3.25" bolt circle (48.5mm center hole to hole distance)
- Requires adapter brackets to compensate for increased brake rotor diameter
- Compatible with bikes that were originally equipped with 11.5" front brake rotors only

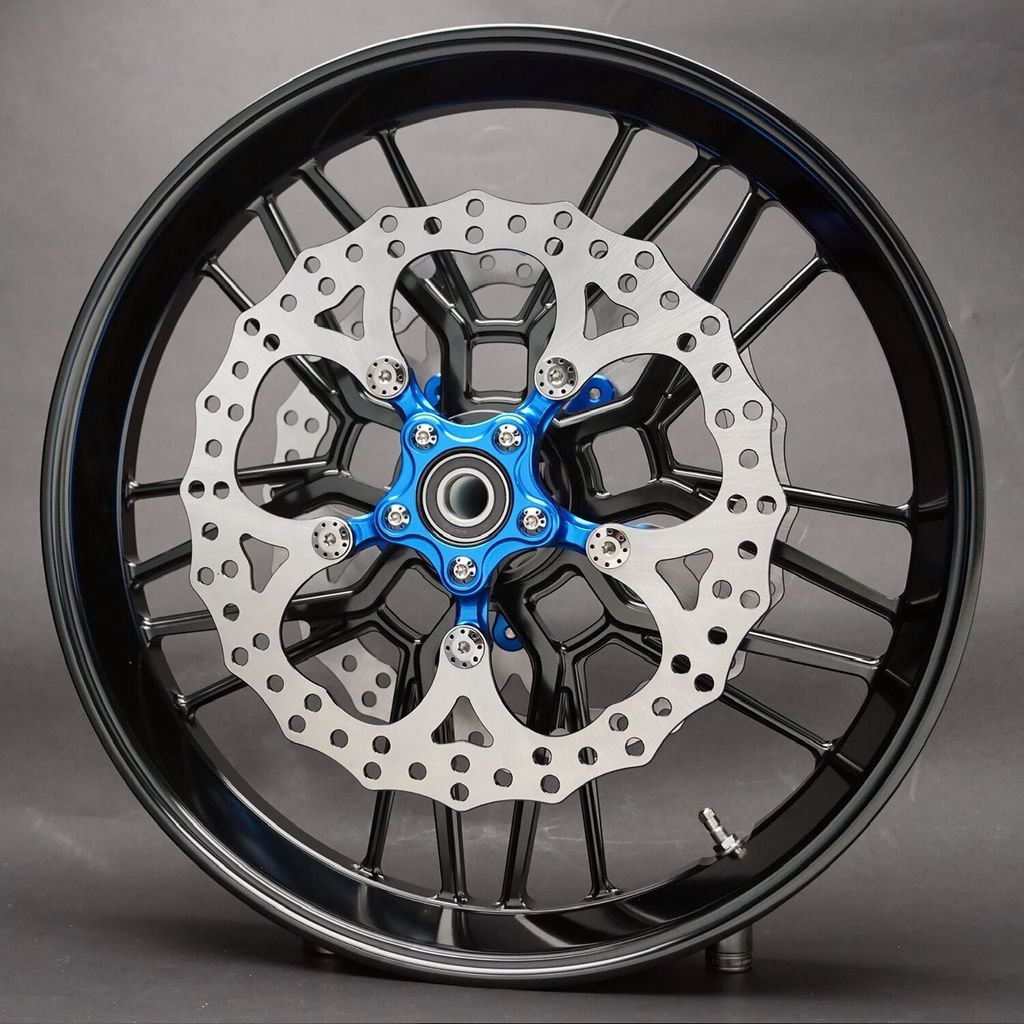

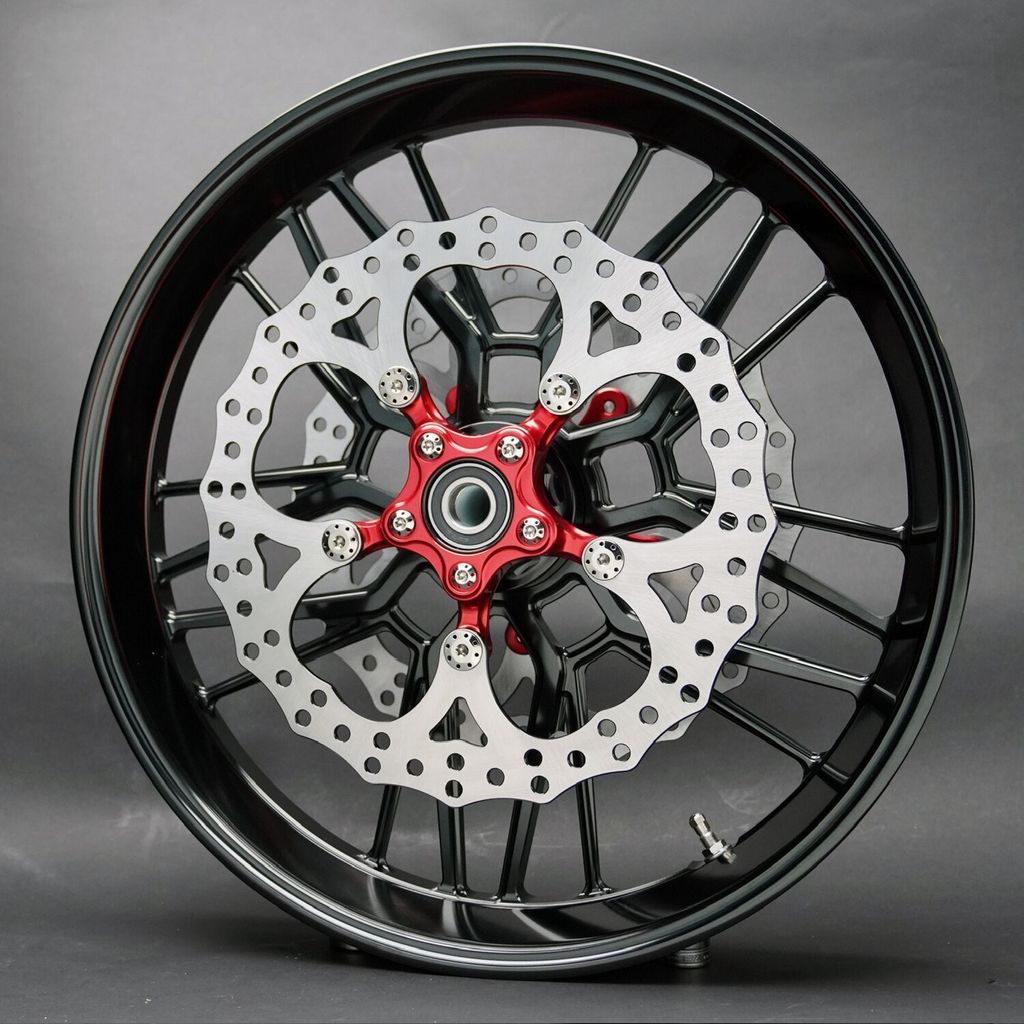

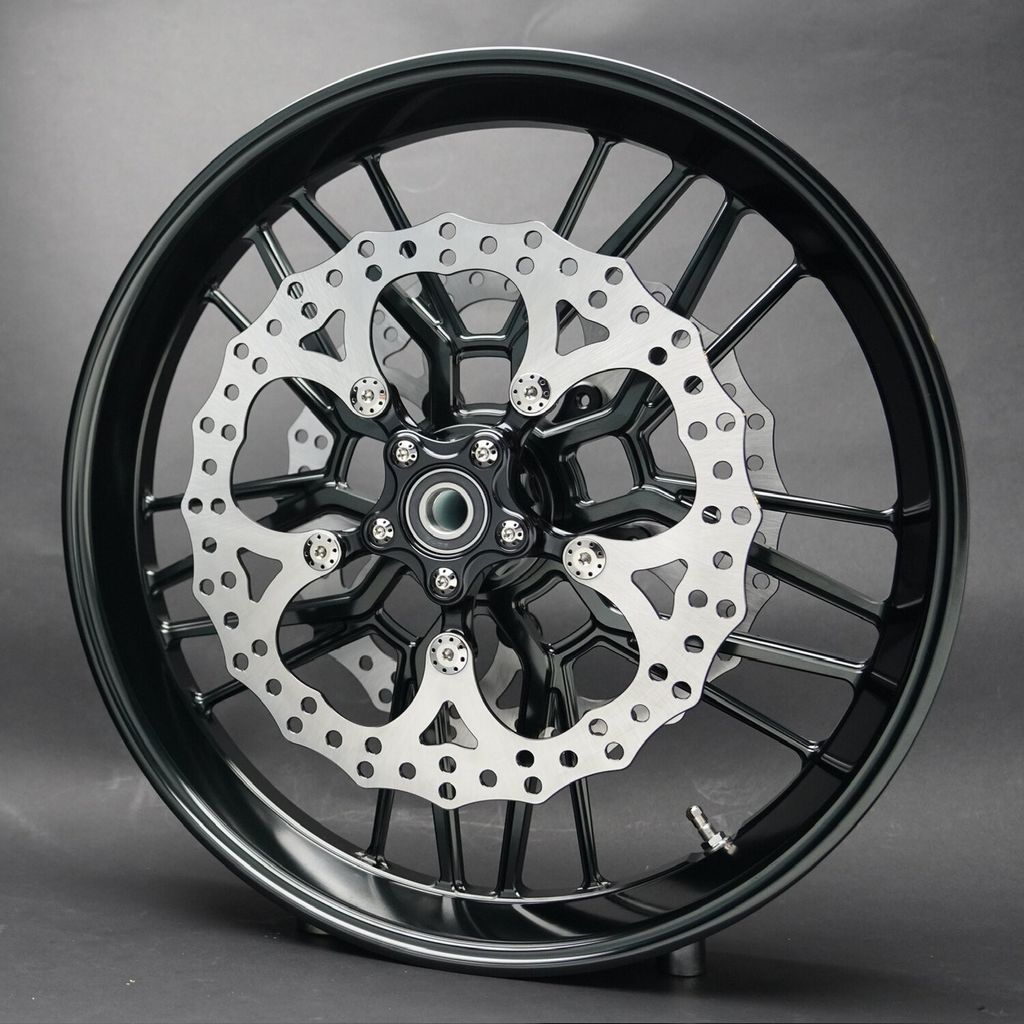

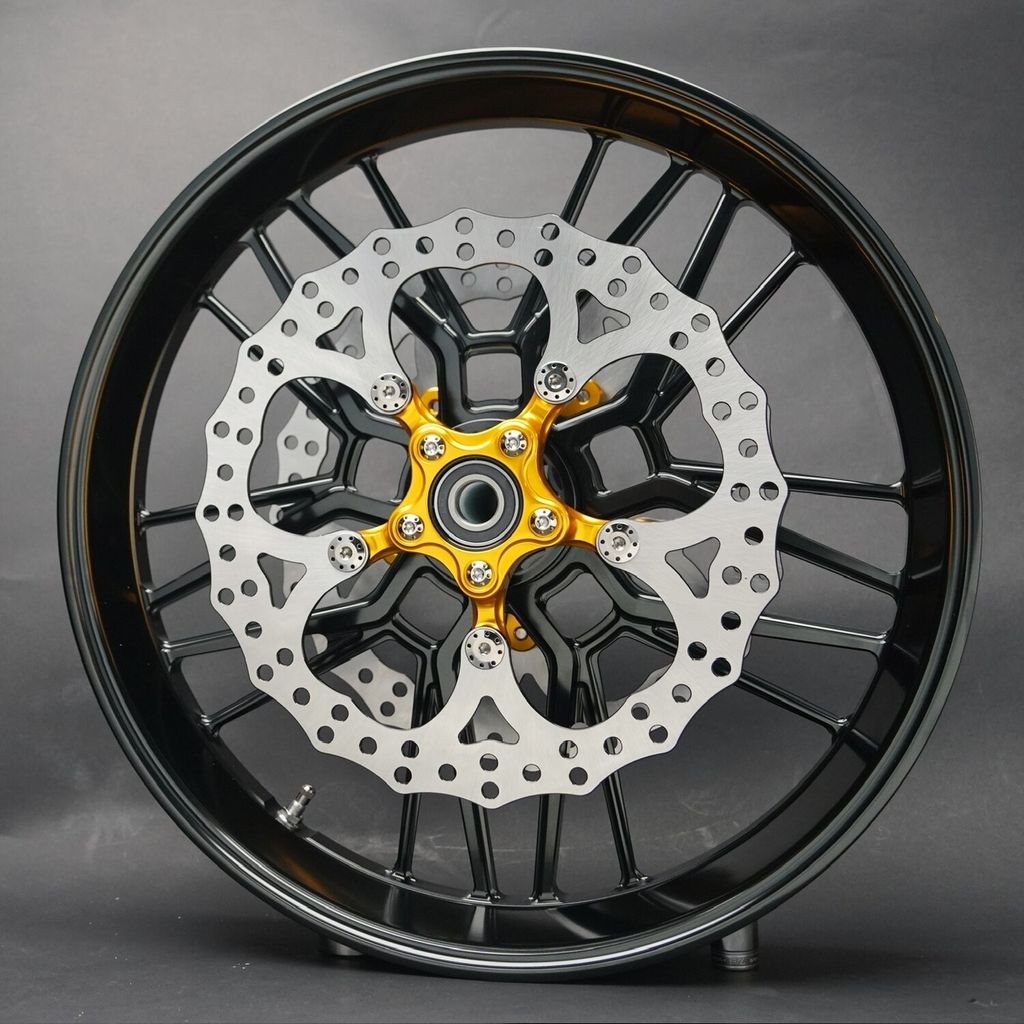

- Awesome looks and a match made in heaven with Arlen Ness wheels and cartridge hubs, to upgrade the look and show more of your wheel pattern
- Manufactured from high carbon 420 stainless steel with a chrome plated or color-anodized billet aluminum carrier
- See wheels chapter for our Arlen Ness wheel section
- 576823 left & 576824 right: 00-07 Touring
- 576825 left & 576826 right: 08-up FLT/Touring (excl
- 23-up CVO with inverted forks); 19-up Trikes
- Springers); 00-13 XL, XR; 00-05 Dyna
Fits: 00-14 Softail (excl. Springers); 00-13 XL, XR; 00-05 Dyna; 00-07 Touring; 08-26 FLT/Touring (excl. 23-26 CVO with inverted forks); 19-26 Trikes. All require model specific 11.5" to 14" adapter bracket Important notice: For use only in combination with Arlen Ness Hubs.
