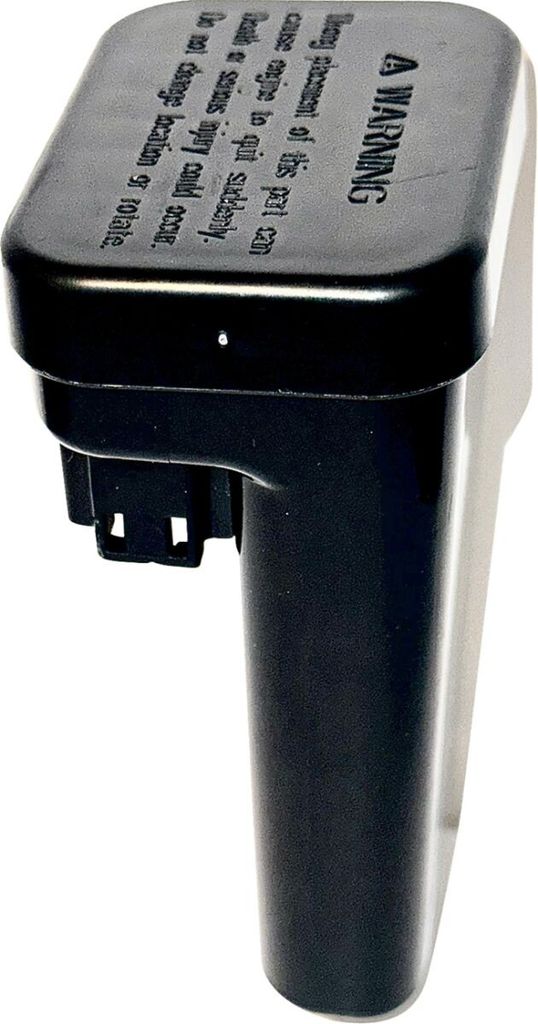

Modul blinkers Custom Dynamics Smart TSM-1 FLT/Touring 00-06
Blinkersmodul från Custom Dynamics
Läs mer
- Direkt plug-and-play-ersättning för original TSM, TSSM och HFSM
- Fungerar enbart som blinkersmodul (TSM), saknar larm- och säkerhetsfunktioner
- Kompatibel med både LED och glödlampor (0,24 A till 6 A maximal belastning per sida)
- Kräver ingen lastutjämnare blinkers vid konvertering till Custom Dynamics LED-blinkers
- Manuell och automatisk avstängning baserat på tid och lutningsvinkel, samt full varningsblinkerfunktion
- Automatisk avstängning om fordonet lutar mer än 45° åt höger eller vänster i 1 sekund eller längre
- Inbyggt kortslutnings- och överbelastningsskydd samt låg strömförbrukning
- Driftspänning: 11 VDC till 15 VDC
Passar inte '00-'01 Touring-modeller med Magneti Marelli EFI, endast kompatibel med Delphi EFI. För vissa modeller är manuell parkoppling möjlig, medan andra kräver TechnoResearch-diagnosverktyg för TSSM-ersättning. Monteringsanvisning ingår, tätningspackning till originalkontakten säljs separat med artikelnummer 709107.
Passar: H-D 96-06
OEM-nr: 68920-01, 68922-00, 68924-00
Turn Signal Module
- Direct OEM TSM, TSSM, and HFSM Plug-and-Play replacement on Harley-Davidson models. Functions as TSM only, no security functions
- Compatible with LED or incandescent bulbs (0.24 A-6 A maximum turn signal load per side), eliminating the need for a load equalizer or signal stabilizer when converting to Custom Dynamics’ LED turn signals
- Simplified marrying procedure for select models and compatible with CanDo and Technoresearch software
- Offers both manual and self-canceling turn signal cancelation functions based on timing and bank angle of the motorcycle; along with full operation of four-way hazards
- Provides automatic shut off parameters when vehicle tilt exceeds 45° right or left for 1 second or more.
- Low current consumption with built-in short circuit & over circuit protection
- Wide operating voltage: 11 VDC to 15 VDC
- This will replace OEM TSM (Turn Signal Module) 68920-01, TSSM (Turn Signal Security Module) 68922-00 (for US models) or TSSM 68924-00 (for HDI/EU models)
- It will not replace the TSSM factory alarm features
- For some models a manual procedure to marry the module to the bike is possible, for all others the TechnoResearch diagnostic tool is required for TSSM module replacement
- Installation instructions are included
- Lighting Compatibility: Works with both LED and incandescent bulbs
- Turn Signal Load Range: Supports 0.24A to 6A per side
- Four-Way Hazard Operation: Smart cancellation based on timing, ignition position, and battery voltage
- Power Efficiency: Designed for low current consumption
- Voltage Range: Operates between 11VDC and 15VDC
- Build Quality: Robust, high-quality components
- Includes installation instructions
- Note: If you want to replace the seal for the stock H-D turn signal module connector, it is available as 709107
Does not fit '00-'01 Touring models with Magneti Marelli EFI. Compatible with Delphi EFI only.
Fits: 00-06 FLT/Touring (excl. 00-01 Touring with Magneti Marelli EFI); 01-03 Dyna; 04-06 XL Sportster (NU)
