Spänningsregulator Cycle Electric 12 V LO svart Big Twin 65-69

10 990 kr

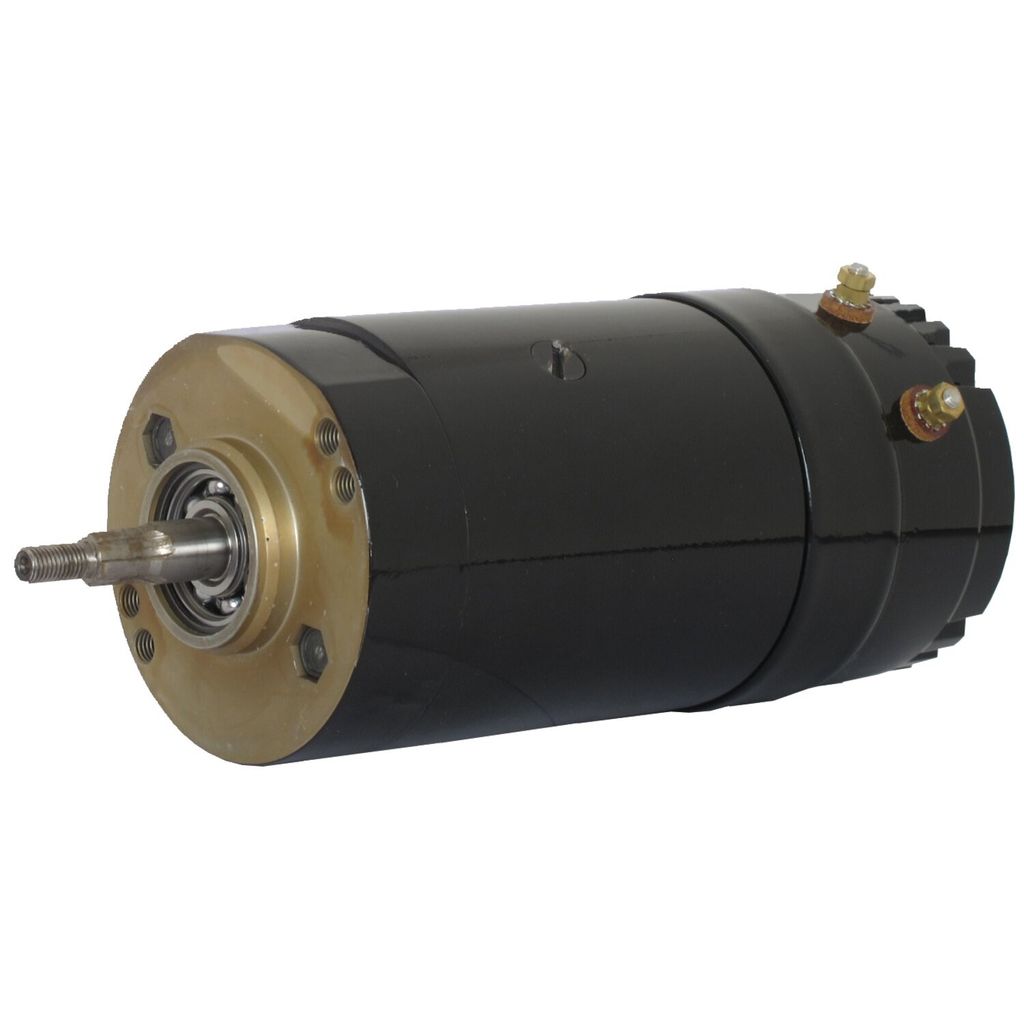

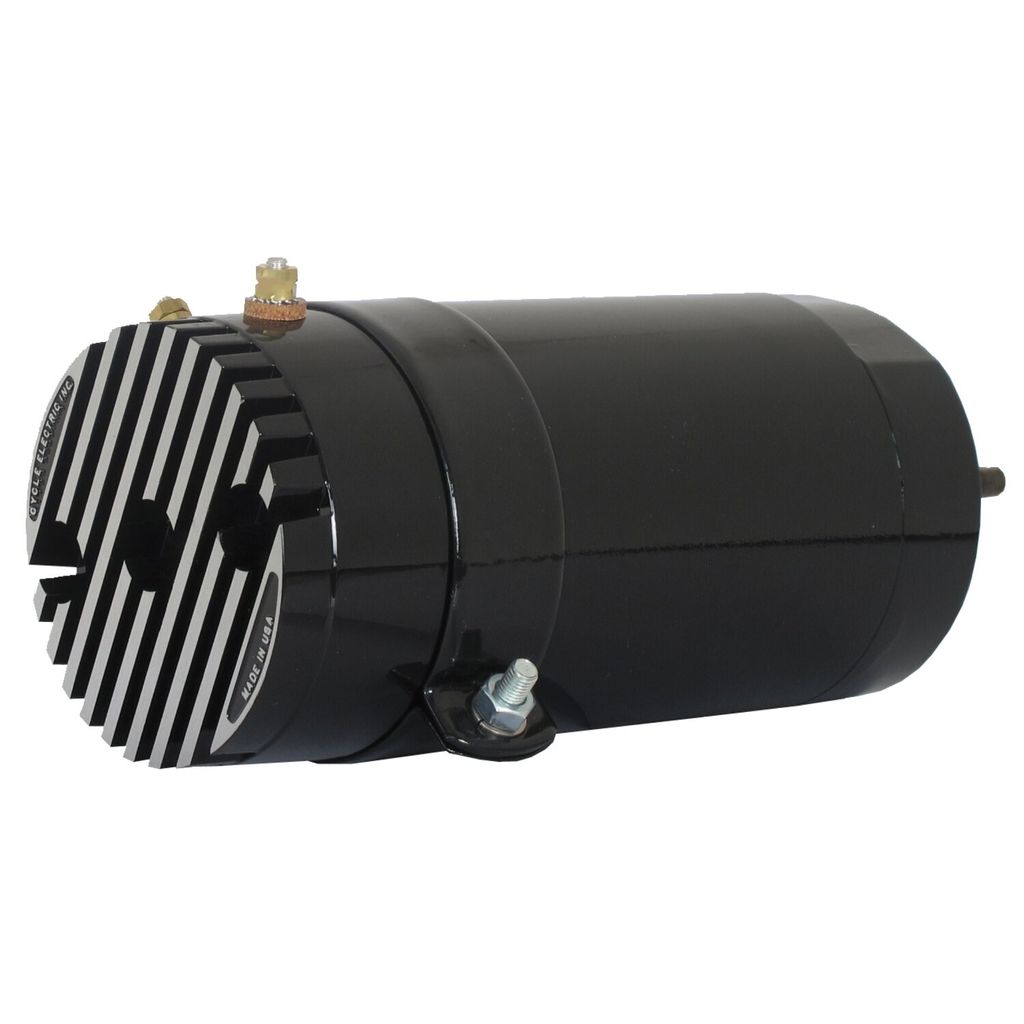

Generator med inbyggd spänningsregulator i Low Output-utförande
Läs mer

926745 Cycle Electric Inc.
  • 12 V Low Output-generator med inbyggd elektronisk spänningsregulator
  • Svart finish
  • Enkel anslutning med två kablar
  • Variabel strömstyrka som ger mer ampere vid kallstart för snabbare laddning
  • Speciell Low Output-version med reducerad laddspänning för modeller med batteriet i oljetanken
  • Förhindrar överladdning och kokande batterier orsakade av hög värme
  • Alla delar är utbytbara mot originaldelar (förutom gavel/spänningsregulator)
  • Tillverkad i USA

Passar även vid konvertering till 12 V på 36-84 H-D. Vid byte av 65B-generator (82-E84 Hitachi) ska oljeavvisare H-D #31035-58 (MCS 555773) monteras. Befintligt drev kan återanvändas och lös spänningsregulator finns under artikelnummer 926727.

Passar: Big Twin 65-69

OEM-nr: 29975-65B, 31035-58

Kategori Generators
Produkt-typ Generators

Variable Amperage Generator with Built-In Regulator

  • Features the unique concept of a built-in regulator and a simple two-wire hookup
  • Regulators have variable amperage output, producing more amps when cold for faster charging
  • All parts are interchangeable with OEM (except end cap/regulator)
  • Made in the USA
  • 12-V LO generator. Built-in regulator. Black
  • Low Output
  • With built-in electronic voltage regulator
  • This is a special Low Output version, that offers reduced charging voltage
  • Designed to be used for models with in-tank (horse shoe) batteries
  • Hot batteries have an increased chemical reaction and therefore draw a higher amperage which, in extreme situations, can cause overcharging and a boiling battery
  • The 926745 low amperage model will help prevent this
  • High quality USA made
  • Custom Low Output replacement for OEM 29975-65B generator
  • Note: See 926727 for replacement Low Output electronic regulator only
  • Note: Will also fit 36-84 H-D when converting to 12 Volt
  • When replacing 65B generator (82-E84 Hitachi), add H-D #31035-58 (MCS 555773) oil deflector
  • Same gear can be re-used
  • Tech tip: Generator polarizing
  • With the motor off connect the 'F' terminal to ground and momentarily flash the 'A' terminal with positive
  • If you have properly installed a working regulator it will turn on and ground the 'F' terminal in which case you will not need to use an external ground
  • Caution!
  • Do not connect the battery to the Field (F terminal) as this will polarize the generator backwards
  • Generators in general don't forget their polarization so it is not necessary to polarize a generator from Cycle Electric Inc. unless it was connected to a battery backwards or inadvertently polarized backwards after it left the factory
  • Only after a long time period generators can struggle to come up and polarization can be a good idea

Fits: 65-69 Big Twin; 65-81 XL Sportster (NU)
