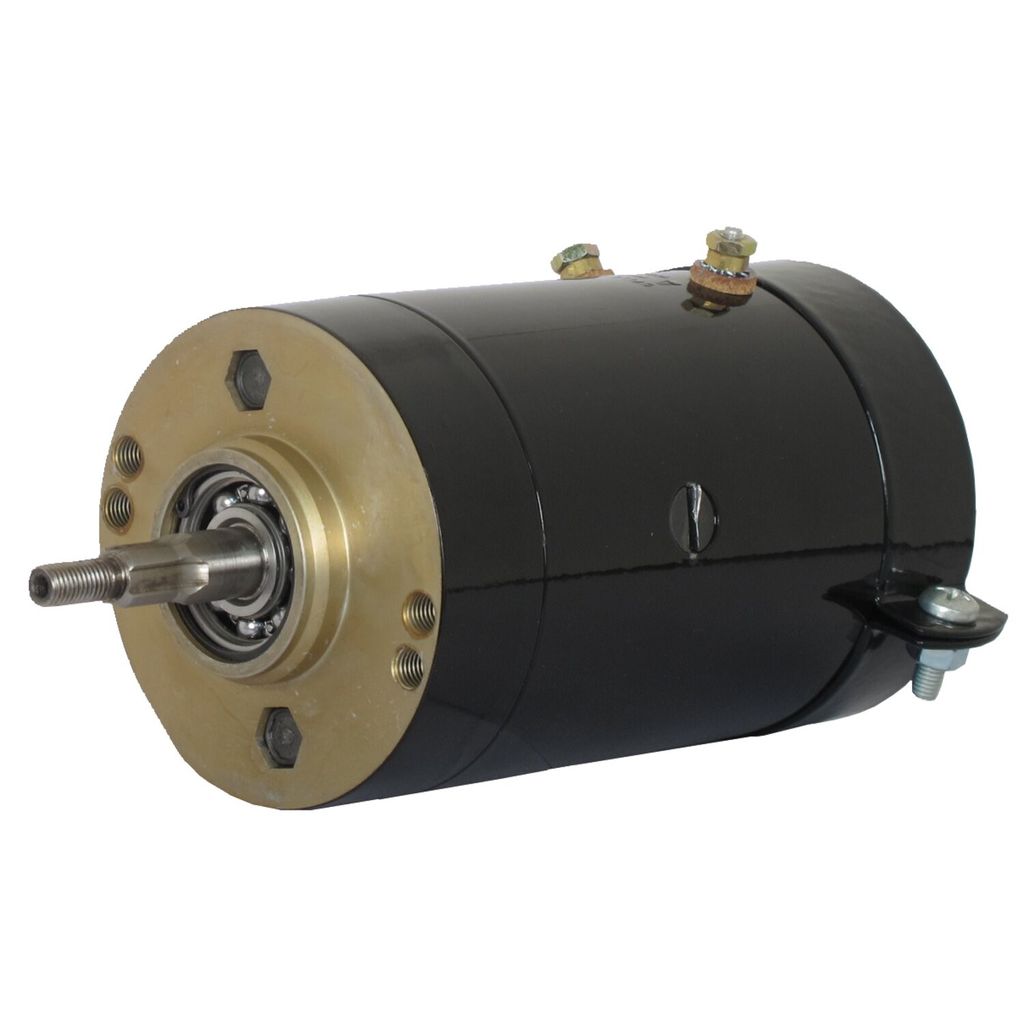

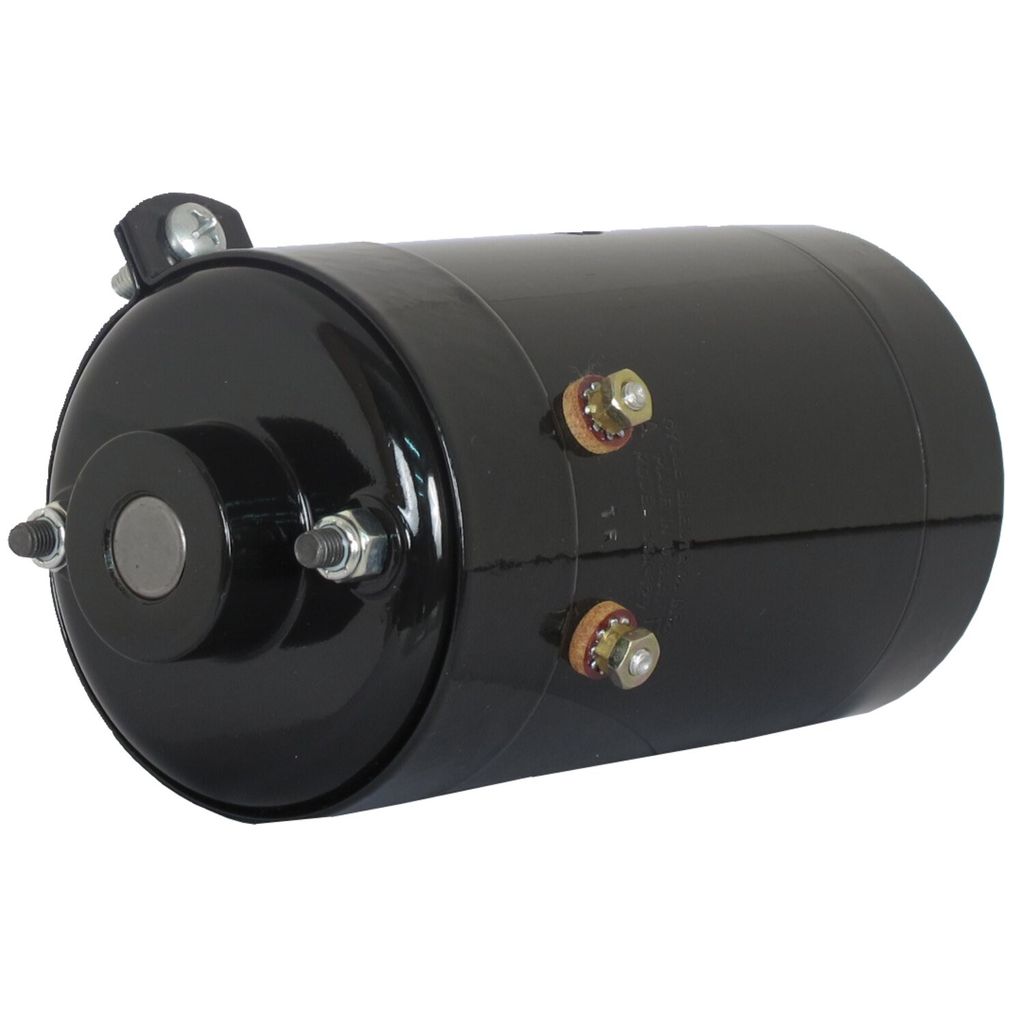

Generator Cycle Electric 12 V svart Big Twin 65-69, XL Sportster 65-81

8 260 kr

12 V generator i OEM-stil från Cycle Electric
Läs mer

926742 Cycle Electric Inc.
  • Högkvalitativ konstruktion och komponenter
  • Balanslindat ankare med epoxibundna trådar sammansmälta med kommutatorn
  • Lindningar säkrade med trådkilar av lönn
  • Svart finish
  • 12 V generator klassad för 10 ampere
  • Kugghjul kan återanvändas
  • Tillverkad i USA

Passar även för konvertering till 12 V på H-D 36-84. Vid byte av 65B-generator (82-84 Hitachi) måste oljeavvisare #31035-58 (MCS 555773) monteras. Regulatorn måste begränsa strömuttaget till 10 ampere för att inte bränna generatorn – kontrollera regulatorn vid montering.

Passar: Big Twin 65-69

OEM-nr: 29975-65B, 31035-58, 29975-65A

Kategori Generators
Produkt-typ Generators

American-Made Generator

  • High-quality construction and components; manufactured by the same company that supplies OEM
  • Armature is balance wound, and the epoxy-bonded wires are fused to the commutator; hard maple wire wedges secure the windings
  • Made in the USA
  • 12-Volt generator. Black
  • OEM style reproduction for stock style restaurations
  • OEM replacement for 29975-65B
  • Will also fit 36-84 H-D when converting to 12 Volt
  • Note: When replacing 65B generator (82-84 Hitachi), add H-D #31035-58 (MCS 555773) oil deflector
  • Same gear can be re-used
  • Tech tip generator polarizing: With the motor off connect the 'F' terminal to ground and momentarily flash the 'A' terminal with positive
  • If you have properly installed a working regulator it will turn on and ground the 'F' terminal in which case you will not need to use an external ground
  • Caution!
  • This will damage the regulator
  • Do not connect the battery to the Field (F terminal) as this will polarize the generator backwards
  • Generators in general don't forget their polarization so it is not necessary to polarize a generator from Cycle Electric Inc. unless it was connected to a battery backwards or inadvertently polarized backwards after it left the factory
  • Only after a long time period generators can struggle to come up and polarization can be a good idea
  • Tech tip maximum generator amperage: The model -65A 12 volt generator is rated at 10 amps
  • It is capable of producing 25 to 30 amps
  • If you draw 20 amps. out of a 10 amp. generator it will burn-up within 20 minutes
  • It is the regulator's job to limit the amps. that are drawn from the generator to 10 amps
  • We recommend testing your regulator when installing a new generator
  • Also, some regulators do not regulate amps
  • These should not be used
  • All Cycle Electric regulators will insure correct amperage regulation

Fits: 65-69 Big Twin; 65-81 XL Sportster (NU)
