Spänningsregulator Cycle Electric 12 Volt svart Big Twin 65-69

10 990 kr

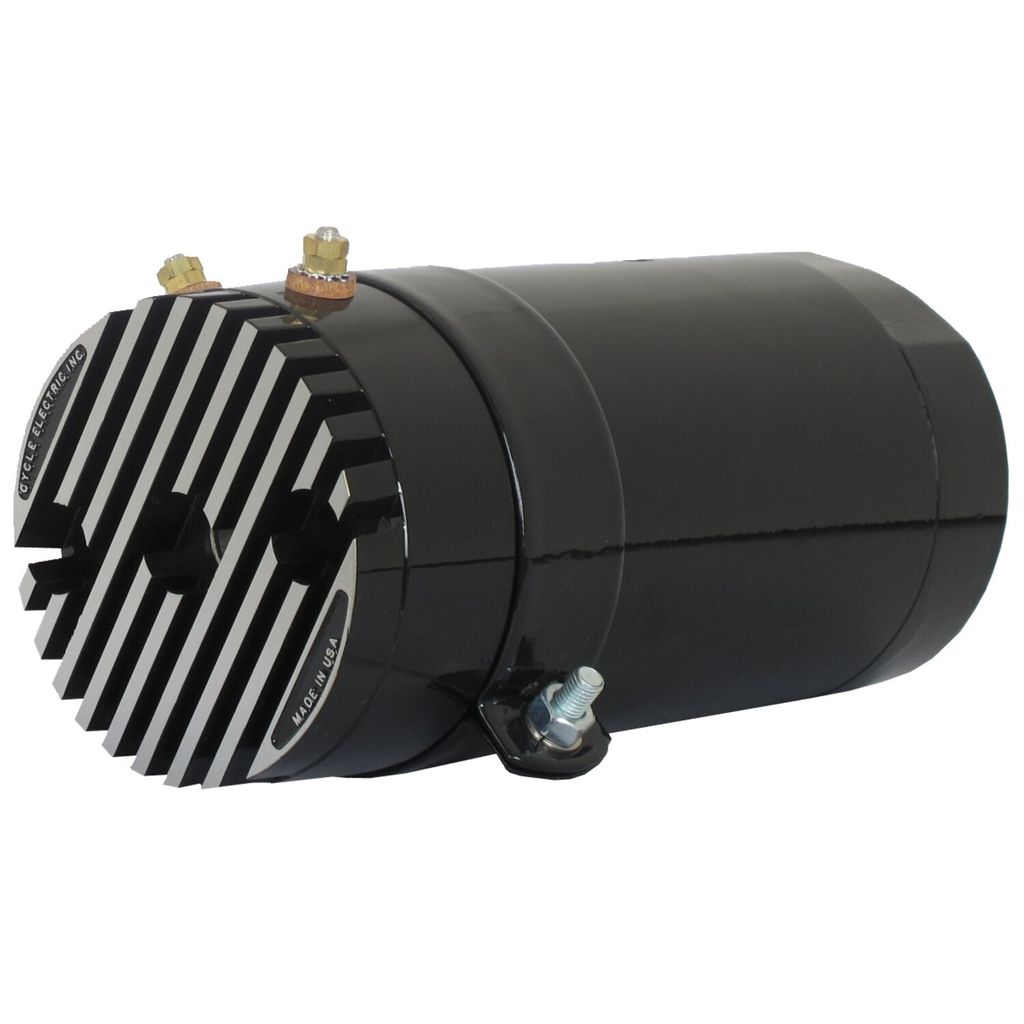

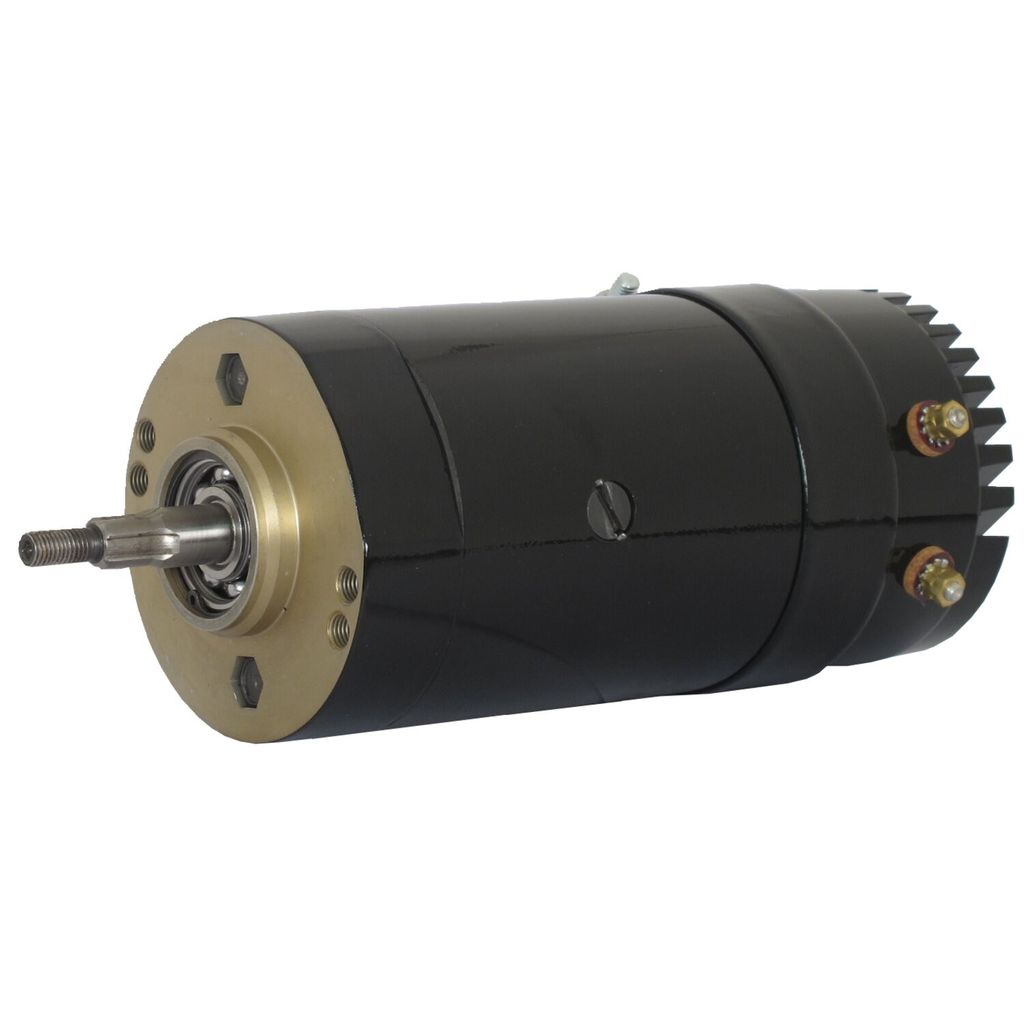

12 V generator med inbyggd spänningsregulator från Cycle Electric
Läs mer

926744 Cycle Electric Inc.
  • 12 V generator med standardeffekt och inbyggd elektronisk spänningsregulator
  • Svart finish
  • Enkel anslutning med två kablar
  • Variabel strömstyrka som ger fler ampere vid kall motor för snabbare laddning
  • Alla delar är utbytbara mot OEM (förutom gavel/spänningsregulator)
  • Befintligt drev kan återanvändas
  • Tillverkad i USA

Passar även 36-84 H-D vid konvertering till 12 V. Vid ersättning av 65B-generator (82-E84 Hitachi) krävs oljeavvisare 31035-58 (MCS 555773). För XL Sportster finns kontaktstycke 926825 (78-81 XL) eller 926826 (82-E84 XL) för att behålla originalkablage, för modeller med batteriet i hästskoformad oljetank rekommenderas lågeffektversionen 926745.

Passar: Big Twin 65-69

OEM-nr: 29975-65B, 31035-58

Kategori Generators
Produkt-typ Generators

Variable Amperage Generator with Built-In Regulator

  • Features the unique concept of a built-in regulator and a simple two-wire hookup
  • Regulators have variable amperage output, producing more amps when cold for faster charging
  • All parts are interchangeable with OEM (except end cap/regulator)
  • Made in the USA
  • 12-Volt generator. Built-in regulator. Black
  • Standard output
  • With built-in electronic voltage regulator
  • High quality USA made
  • Custom replacement for OEM 29975-65B generator
  • Note: See 926825 (78-81 XL) or 926826 (82-E84 XL) for XL Sportster connector plug for electronic regulators
  • Allows retaining stock wiring on XL models
  • Note: Will also fit 36-84 H-D when converting to 12 Volt
  • When replacing 65B generator (82-E84 Hitachi), add H-D #31035-58 (MCS 555773) oil deflector
  • Same gear can be re-used
  • Note: See 926745 for the special Low Output version, designed to help prevent overcharge for models with hot batteries (read: battery mounted in horse shoe oil tank)
  • Tech tip: Generator polarizing
  • With the motor off connect the 'F' terminal to ground and momentarily flash the 'A' terminal with positive
  • If you have properly installed a working regulator it will turn on and ground the 'F' terminal in which case you will not need to use an external ground
  • Caution!
  • This will damage the regulator
  • Do not connect the battery to the Field (F terminal) as this will polarize the generator backwards
  • Generators in general don't forget their polarization so it is not necessary to polarize a generator from Cycle Electric Inc. unless it was connected to a battery backwards or inadvertently polarized backwards after it left the factory
  • Only after a long time period generators can struggle to come up and polarization can be a good idea

Fits: 65-69 Big Twin; 65-84 XL Sportster (NU)
