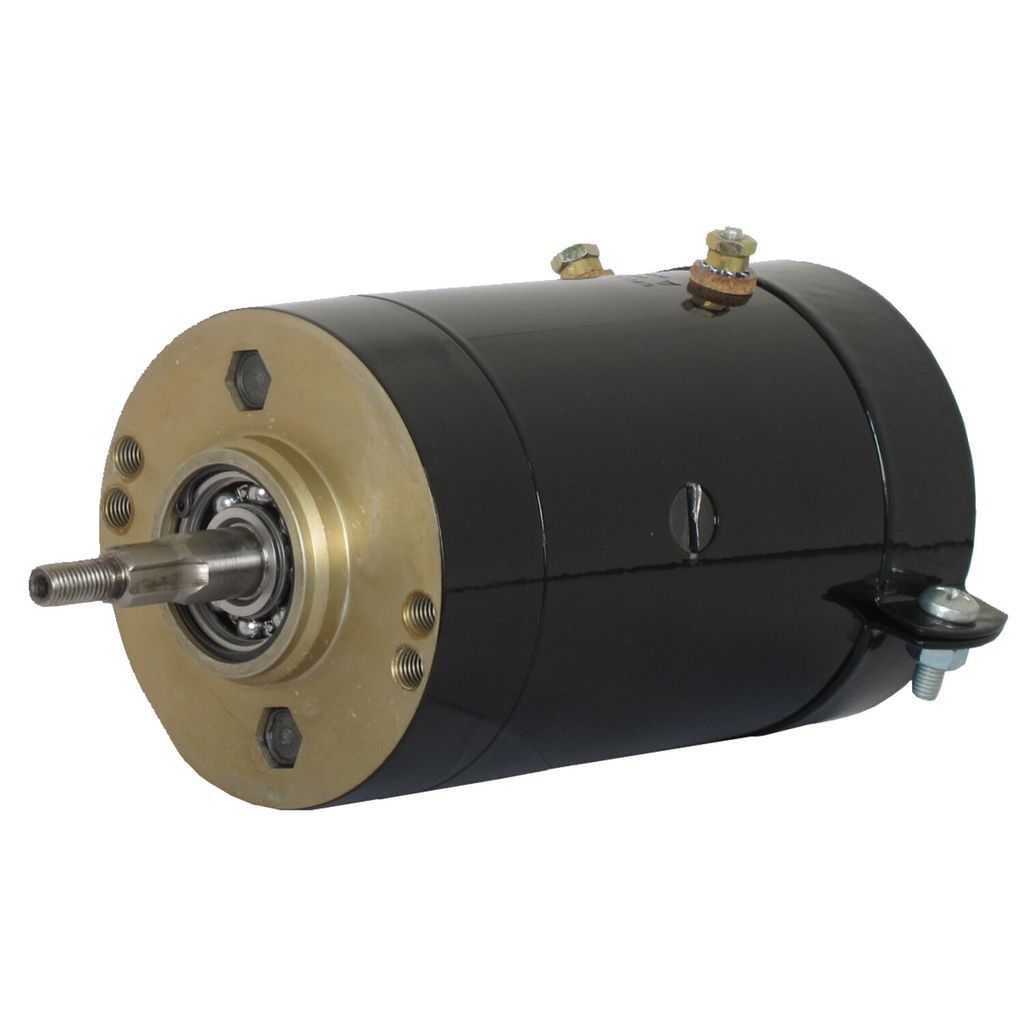

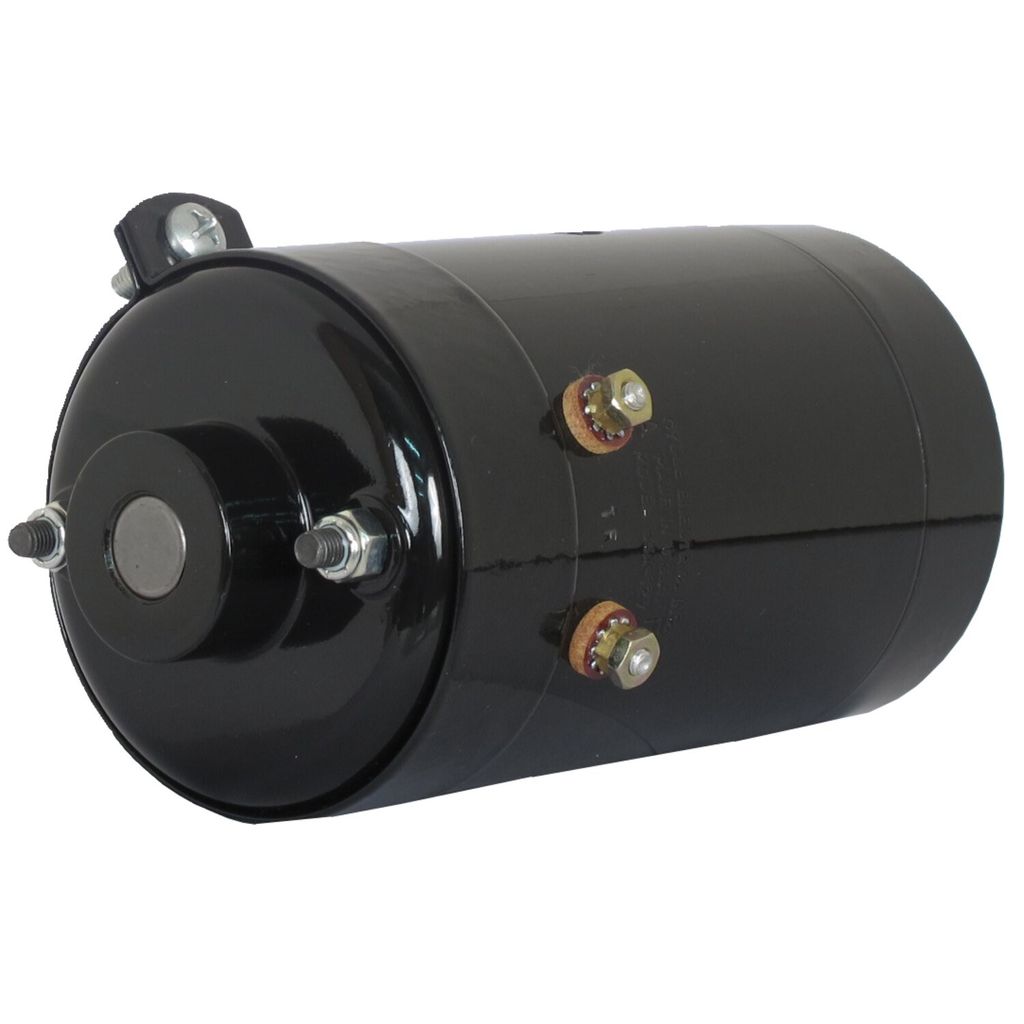

Generator 6 V Cycle Electric svart FL/FX 58-64

8 490 kr

6-volts generator i OEM-utförande från Cycle Electric
Läs mer

926743 Cycle Electric Inc.
  • Högkvalitativ konstruktion och komponenter
  • Tillverkad av samma tillverkare som levererar till OEM
  • Balanslindat ankare med epoxibundna trådar sammansmälta med kommutatorn
  • Trådkilar i lönnträ säkrar lindningarna
  • 6-volts generator med svart finish
  • OEM-reproduktion för originalrenoveringar
  • Tillverkad i USA

Vid byte av 3-borstgeneratorer på 36-64 H-D används oljeavvisare H-D #31035-58 (MCS 555773), varvid fjäder och gammal avvisare kasseras. Generatorn behöver normalt inte polariseras vid leverans, anslut aldrig batteriet till F-terminalen då detta skadar laddningsregulatorn och polariserar generatorn felaktigt.

Passar: H-D 36-64

OEM-nr: 29975-58A, 29975-61, 29975-58B, 31035-58, 29975-61A

Kategori Generators
Produkt-typ Generators

American-Made Generator

  • High-quality construction and components; manufactured by the same company that supplies OEM
  • Armature is balance wound, and the epoxy-bonded wires are fused to the commutator; hard maple wire wedges secure the windings
  • Made in the USA
  • 6-Volt generator. Black
  • OEM reproduction for stock restorations
  • OEM replacement for 29975-58B
  • Will also fit 36-64 H-D, but when replacing 3 brush generators use H-D #31035-58 (MCS 555773) oil deflector and discard spring and old deflector
  • Tech tip: Generator polarizing
  • With the motor off connect the 'F' terminal to ground and momentarily flash the 'A' terminal with positive
  • If you have properly installed a working regulator it will turn on and ground the 'F' terminal in which case you will not need to use an external ground
  • Caution!
  • This will damage the regulator
  • Do not connect the battery to the Field (F terminal) as this will polarize the generator backwards
  • Generators in general don't forget their polarization so it is not necessary to polarize a generator from Cycle Electric Inc. unless it was connected to a battery backwards or inadvertently polarized backwards after it left the factory
  • Only after a long time period generators can struggle to come up and polarization can be a good idea

Fits: 58-64 Big Twin, XL Sportster (NU)
