Spänningsregulator Cycle Electric Variable Amperage H-D 36-64

11 220 kr

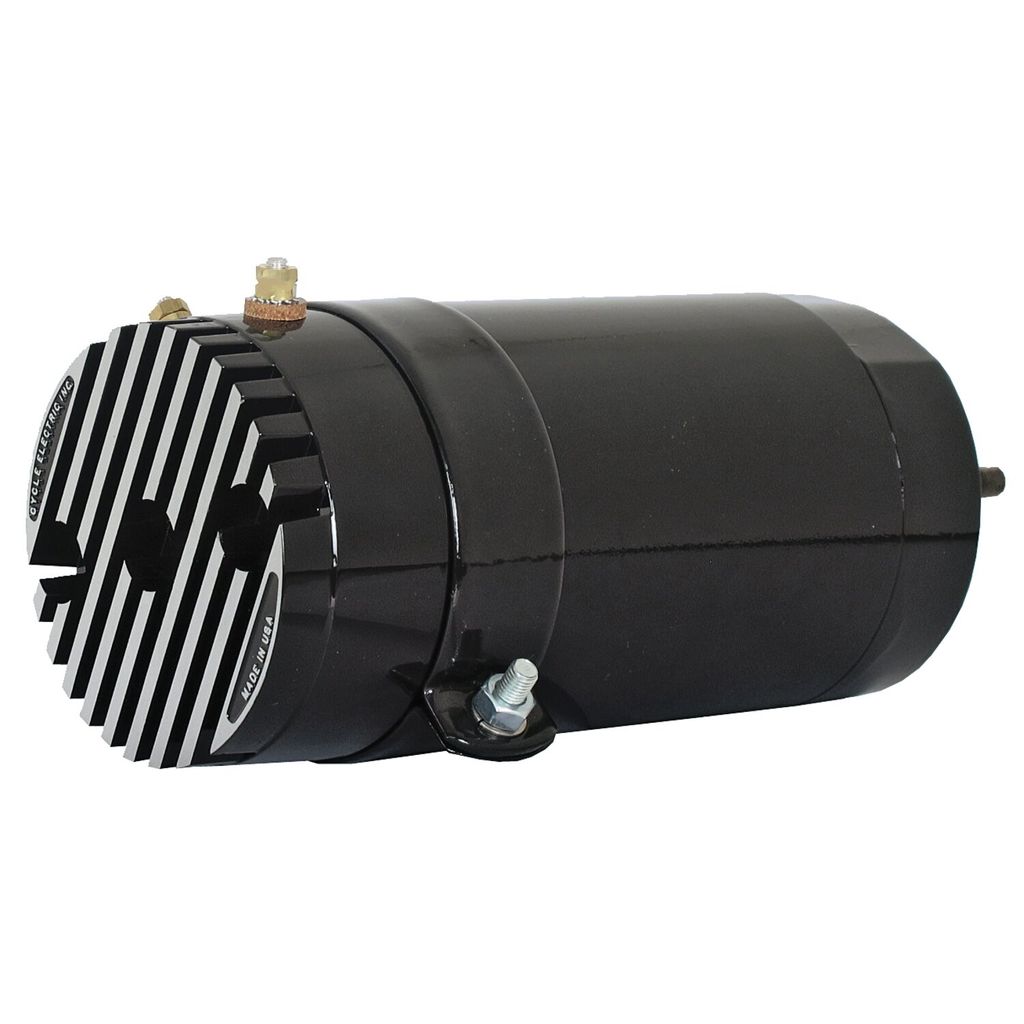

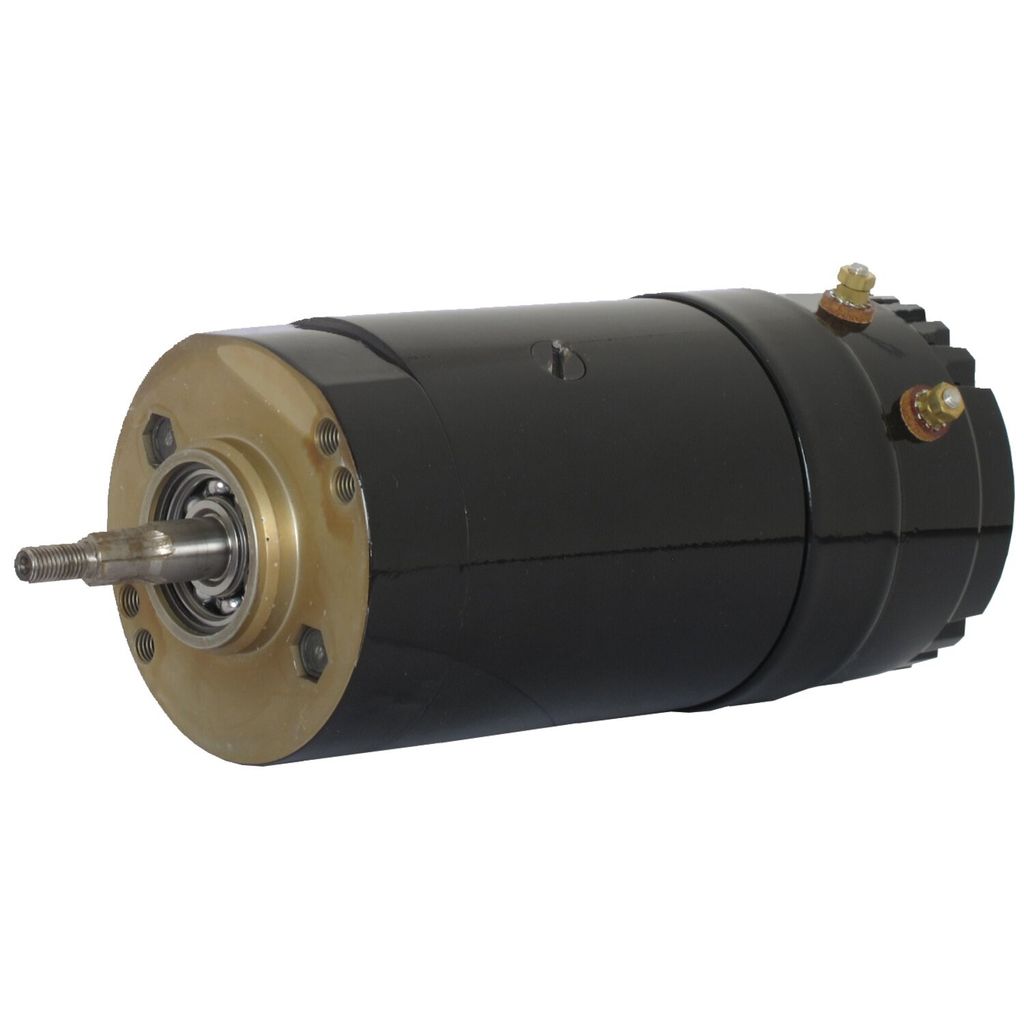

6 V generator med inbyggd spänningsregulator från Cycle Electric
Läs mer

926746 Cycle Electric Inc.
  • 6-Volt generator med inbyggd elektronisk spänningsregulator
  • Svart finish
  • Variabel ampere-effekt som ger högre laddning när den är kall
  • Enkel tvåtrådsanslutning
  • Alla delar är utbytbara mot original förutom gavellock/regulator
  • Total längd (OAL) är 7.58" (193 mm) från packningsytan till flänsarna
  • Tillverkad i USA

Kontrollera frigången på modeller med fotkoppling. Passar även 36-64 H-D, men vid byte av 3-borstars generatorer måste oljeavvisare H-D #31035-58 (MCS 555773) användas samtidigt som fjäder och gammal avvisare kasseras. Se 926728 för lös 6 V elektronisk ersättningsregulator.

Passar: H-D 36-64

OEM-nr: 29975-61, 31035-58

Kategori Generators
Produkt-typ Generators

Variable Amperage Generator with Built-In Regulator

  • Features the unique concept of a built-in regulator and a simple two-wire hookup
  • Regulators have variable amperage output, producing more amps when cold for faster charging
  • All parts are interchangeable with OEM (except end cap/regulator)
  • Made in the USA
  • 6-Volt generator. Built-in regulator. Black
  • Quality OEM style reproduction, fitted with a modern built-in electronic voltage regulator
  • OEM replacement reference 29975-61
  • Note: Will also fit 36-64 H-D, but when replacing 3 brush generators use H-D #31035-58 (MCS 555773) oil deflector and discard spring and old deflector
  • Check clearance on foot clutch models
  • OAL of 926746 is 7.58" (193mm) from gasket surface to fins
  • Note: See 926728 for replacement 6-V electronic regulator only
  • Tech tip: Generator polarizing
  • With the motor off connect the 'F' terminal to ground and momentarily flash the 'A' terminal with positive
  • If you have properly installed a working regulator it will turn on and ground the 'F' terminal in which case you will not need to use an external ground
  • Caution!
  • This will damage the regulator
  • Do not connect the battery to the Field (F terminal) as this will polarize the generator backwards
  • Generators in general don't forget their polarization so it is not necessary to polarize a generator from Cycle Electric Inc. unless it was connected to a battery backwards or inadvertently polarized backwards after it left the factory
  • Only after a long time period generators can struggle to come up and polarization can be a good idea

Fits: 58-64 Big Twin, XL Sportster (NU)
