Verktyg Daytona Twin Tec Scan Analyzer H-D 96-22
Komplett diagnos- och inställningsverktyg från Daytona Twin Tec
Läs mer
- Komplett lösning för tuning och felsökning
- Kommunicerar med ECM och BCM för att läsa och radera felkoder
- Aktiverar ABS-solenoider för korrekt luftning och test av bromsar
- Realtidsvisning av motorns sensorer samt inbyggd dataloggning för upp till en timme
- Två analoga ingångar med 0–21 V eller ±200 V samt tvåkanals oscilloskopfunktion
- Idealiskt inställningsverktyg för Screamin' Eagle Pro Super Tuner, Dynojet Power Commander och Twin Tuner
- Satsen innehåller Twin Scan II ABS (J1850), Twin Scan IV (CAN med 6-polig DLC), WEGO IIID och Twin Scan III probkit
- Levereras även med två Bosch LSU 4.2 bredbandslambdasonder, svetsmuttrar (18 mm x 1.5), pluggar, kabel och programvara
Medföljande PC-mjukvara analyserar loggad data och visar AFR samt nödvändig volymetrisk effektivitet (VE) för främre och bakre cylinder. Kräver PC med Windows 7/8/10/11.
Passar: H-D 96-22
| Produkt-typ | Diagnostic Analyzer |
| Tillverkarens Art. Nr. | 15600 |
Twin Scan Complete Kit
- Complete tuning and diagnostic solution
- Communicates with ECM and BCM to read, then clear diagnostic trouble codes
- Activates ABS solenoids for proper brake bleeding and testing
- Ideal tuning aid for Screamin' Eagle Pro Super Tuner (SEST), Dynojet Power Commander (PC) and Twin Tec Twin Tuner
- Includes all features of the standard twin scan units
- Real-time display of engine sensors along with built-in data logging with capability to store data for up to one hour
- Included PC software analyzes logged data, then displays front and rear cylinder AFR with the required volumetric efficiency (VE) using the same RPM rows and TPS/MAP columns in the Super Tuner tables
- Includes two analog inputs with 0-21 V or ± 200 V range as well as two-channel oscilloscope capability for waveform display
- Analog inputs can also be used for air/flow ratio (AFR)

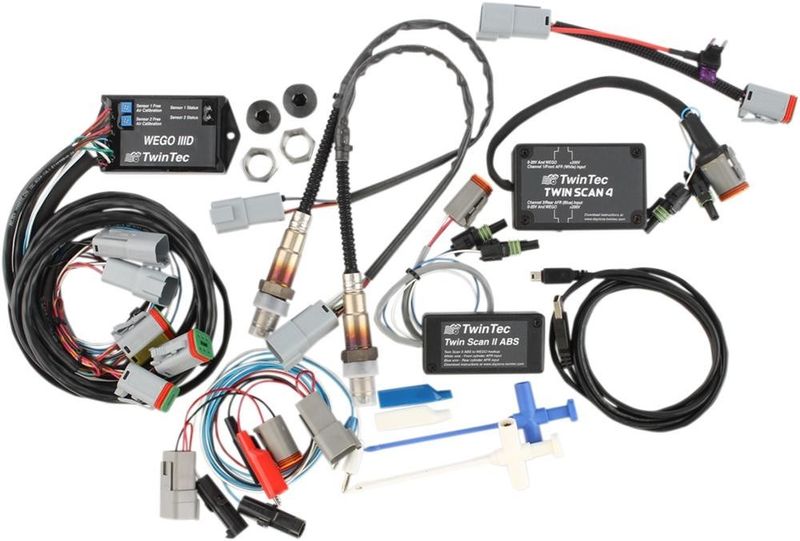

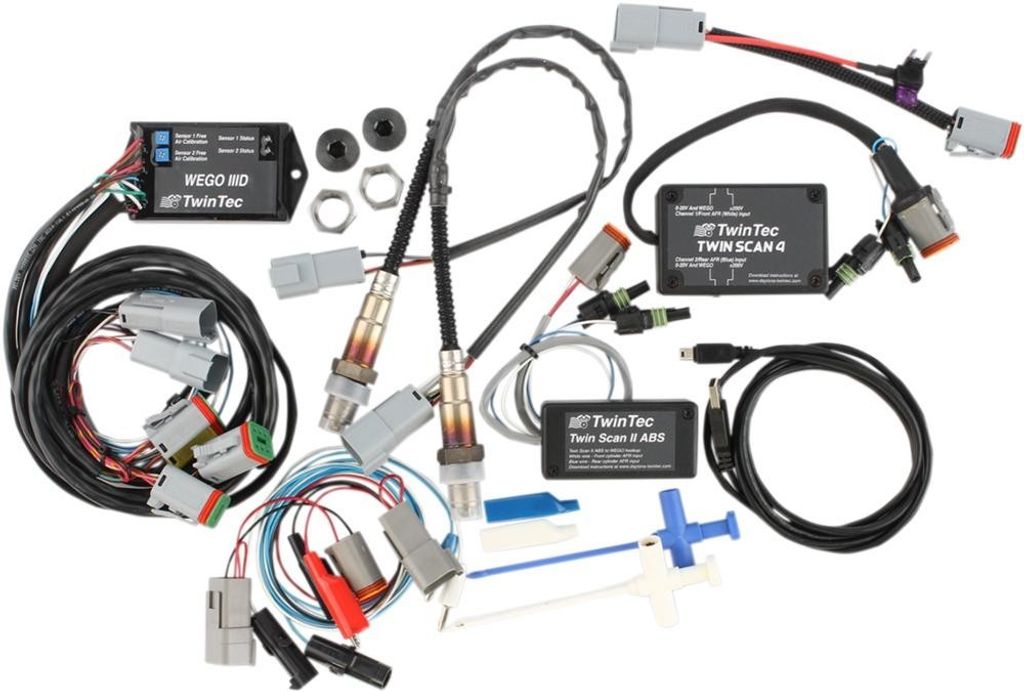

- Complete Kit Includes:
- Twin Scan II ABS for models with J1850 data bus
- Twin Scan IV for models with CAN data bus with six position DLC connector
- WEGO IIID for tuning capability with both twin scan versions
- Twin Scan III probe kit for use with the scopemeter feature of the twin scan
- Two Bosch LSU 4.2 wide-band oxygen sensors
- Two 18 mm x 1.5 weld nuts
- Two 18 mm x 1.5 hex socket plugs
- USB cable
- CD-ROM with software
- Requires use of a PC with Windows 7/8/10/11 for display.
