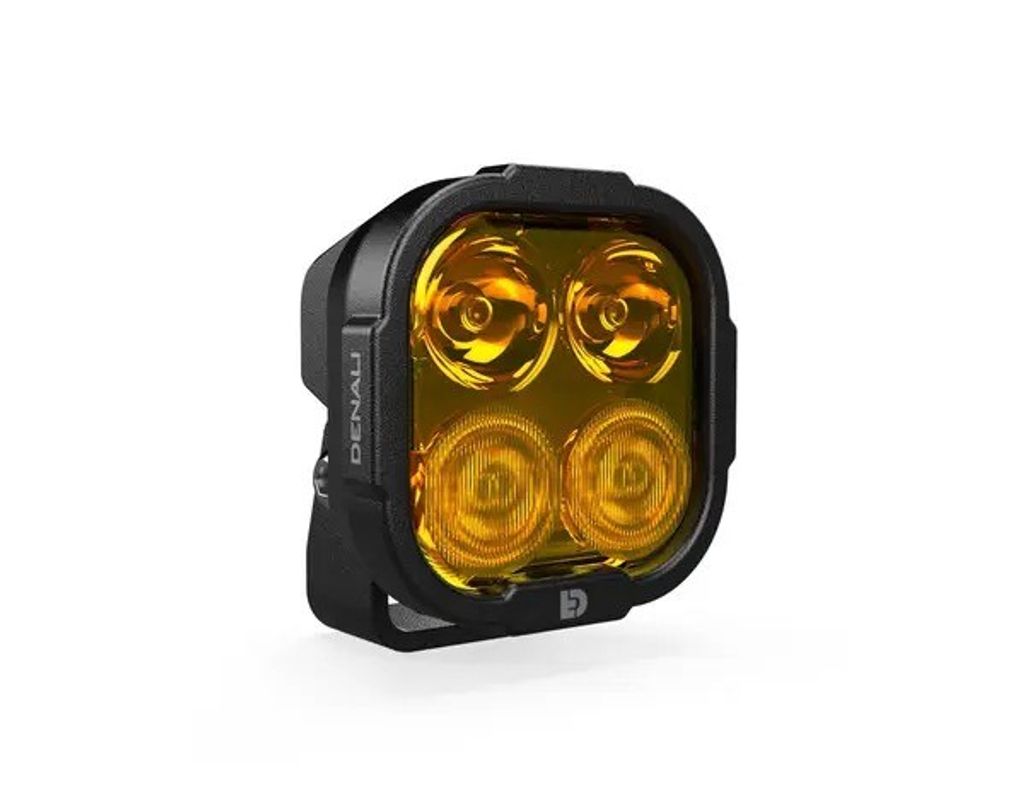

Lampa Denali DL4 Hybrid
Denali DL4 Hybrid Driving LED-extraljus
Läs mer
- HiDrive Cree XPL HI-LED-lampor på 8 watt per styck i fyrkantig 9-LED-enhet
- Ljusflöde: 3 400 lumen (enkel) / 6 800 lumen (par)
- Effekt och strömförbrukning: 32W / 2,7A (enkel), 64W / 5,4A (par) vid 9-32 VDC
- Ljuslängd: 820 fot (250 m) / 1091 fot (333 m), ljusbredd: 157 fot (48 m) / 209 fot (64 m)
- Färgtemperatur 6000K och förstorad TIR-optik för optimerad hybrid-ljusbild
- 100 % vattentät DrySeal-konstruktion med invändig tätning vid kabelingång
- 4 mm pulverlackerade stålfästen, polykarbonatlins med UV-hård beläggning och 21grms vibrationstålighet
- Mått per enhet: 3" x 3" fyrkantig x 2" djup, med DataDim-kompatibel 3-ledars DT-kontakt
ECE-godkänd hybrid-helljusbild för gata inom EU, men gula och orange linser är inte godkända som helljus på gata. Källan anger även OFF ROAD USE ONLY. Plug-and-play-anslutning till Denali DialDim- och CANsmart-kontroller samt kablage.
DL4 Hybrid Driving
- HiDrive LEDs 6,800 Lumens Per Pair – Top-bin CREE LEDs driven at 8 watts each deliver a remarkably powerful beam in a beefy 9-LED square package.
- Oversized TIR Optics - Perfected Hybrid Driving Beam – Our proprietary TIR optics distribute the beam of light more efficiently than traditional reflector optics, giving our driving beam unmatched distance and width from the most compact housing possible.
- DataDim Plug-&-Play Dimming – Our signature 3-wire design uses dedicated dimming wiring for maximum reliability and plug-&-play connection to all DENALI light harnesses, DialDim, and CANsmart Controllers.
- DrySeal Sealed Beam Construction – Our patented technique robotically seals the lens and uses internal potting at the cable entry to guarantee 100% waterproof submersible performance even when connectors are removed.
- Overbuilt Not Overpriced – Our 4mm thick powder-coated steel brackets & robust heatsink enable an impressive 21grms vibration rating, while our Polycarbonate lenses are reinforced with UV hard coating.
- ECE Compliant Driving Beam – Our hybrid driving beam is ECE certified for street-legal use as a primary or auxiliary high beam in the European Union. Yellow and amber lenses are not compliant for street-legal high beam use.
- Specifications (Single | Pair):
- LED's: Cree XPL HI (8W each)
- Watts: 32W | 64W
- Amp Draw: 2.7A | 5.4A
- Raw Lumens: 3,400 | 6,800
- Beam Distance: 820' (250m) | 1091' (333m)
- Beam Width: 157' (48m) | 209' (64m)
- Connector: DataDim Compatible 3-wire DT
- Color Temperature: 6000K
- Operating Voltage: 9-32 VDC
- Pod Size: 3" x 3" Square x 2" Deep
OFF ROAD USE ONLY
