Tändning Dynatek Dyna Tower 3 12V dubbel Big Twin 65-99

3 400 kr

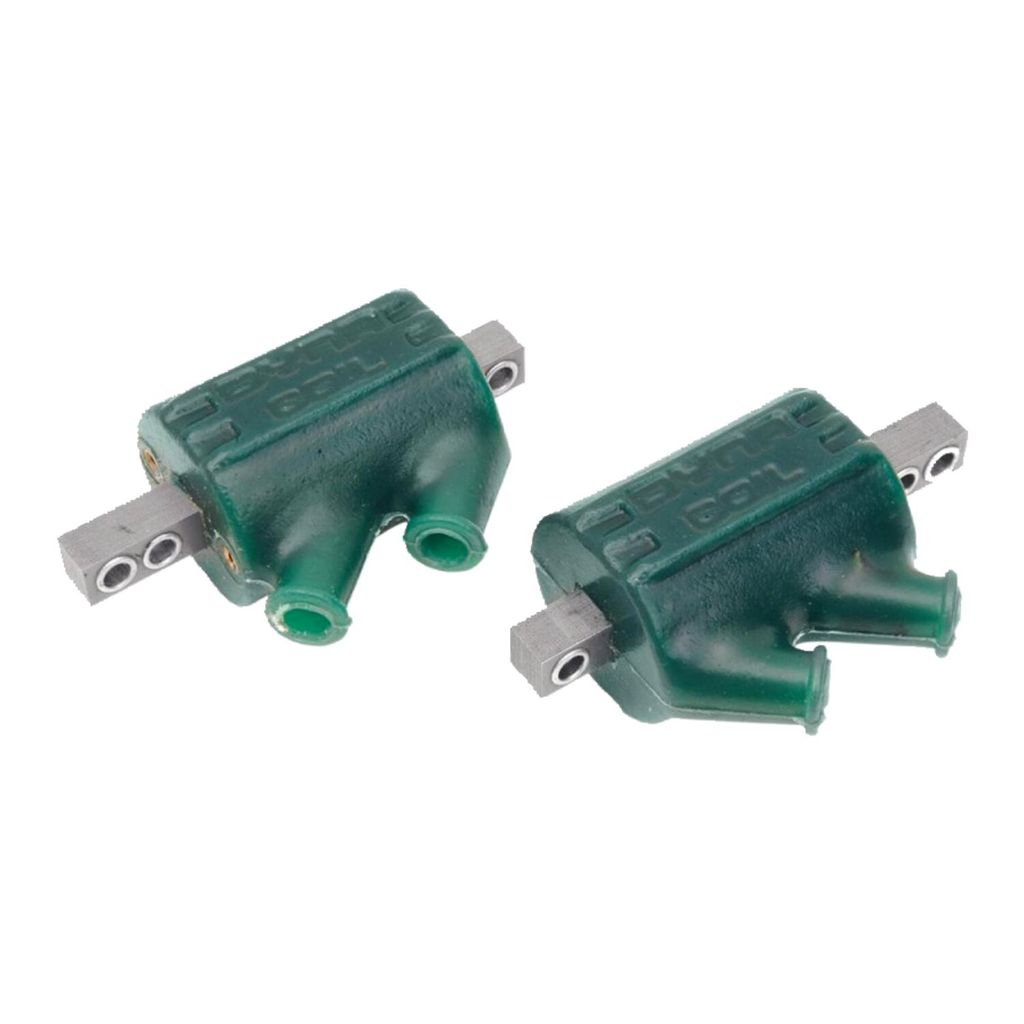

Dynatek 12 V tändspole (3 ohm, grön)
Läs mer

902520
  • Dyna dubbel tower tändspole med 12 V och 3 ohm motstånd
  • Producerar över 30 000–35 000 volt gnistenergi
  • Grön finish
  • Utvecklad för att fungera med Dyna tändsystem
  • Kan monteras med 3 1/2" eller 4" centrumavstånd
  • Skruvsats/hårdvara för primäranslutning ingår
  • Tillverkad i USA

Avsedd för custombyggen där två spolar används på motorer med dubbelstiftstoppar (totalt 4 tändstift) som kör med single fire elektronisk tändning. Passar inte Twin Cam och kräver specialtillverkade fästen eller eftermarknadsfästen. Rekommenderas att använda tändmodul och tändspolar från samma tillverkare för att undvika förtida fel.

Passar: Big Twin 65-99

Kategori Coils
Produkt-typ Coils

12 V Ignition Coil

  • The industry standard with 35,000 V spark energies
  • Designed to work with any Dyna ignition system
  • Made in the USA
  • Not for Twin Cam applications.
  • Dyna Dual Tower ignition coils. 12V, 3 ohm
  • Green
  • Designed for use in custom applications where 2 of these coils are used for bikes with dual plugged heads (4 spark plugs in total) that run a single fire electronic ignition system
  • Note: It is recommended to use ignition modules & coils of the same manufacturer
  • Intermixing different brands may cause premature failure
  • This is the way the earlier, pre-Twin Cam, engines work
  • This is the simplest system
  • The 'wasted' spark is sometimes said to be horsepower robbing
  • Two separate coils will fire the spark plugs independently and only the spark plug of the cylinder that is on compression stroke will be fired
  • It is said that these engines vibrate less and can improve power
  • The effects will become more pronounced with hotter cams and higher RPM
  • Ignition coils for big twin & sportster
  • End mount style coils produce in excess of 30,000 volts for crisper throttle response
  • Can be mounted on 3 1 / 2 " centers or 4" centers, and will require custom fabricated or aftermarket coil mounting brackets
  • Includes primary winding terminal hardware
  • Note: Verify ignition requirements before ordering
  • Coils – 3 Green DC1-1 to length for exact fitment

Fits: 65-99 Big Twin; 65-03 XL Sportster. For electronic ignition (Excl. Twin Cam & other single fire applications) in custom applications. (Custom single fire, carbureted models)
