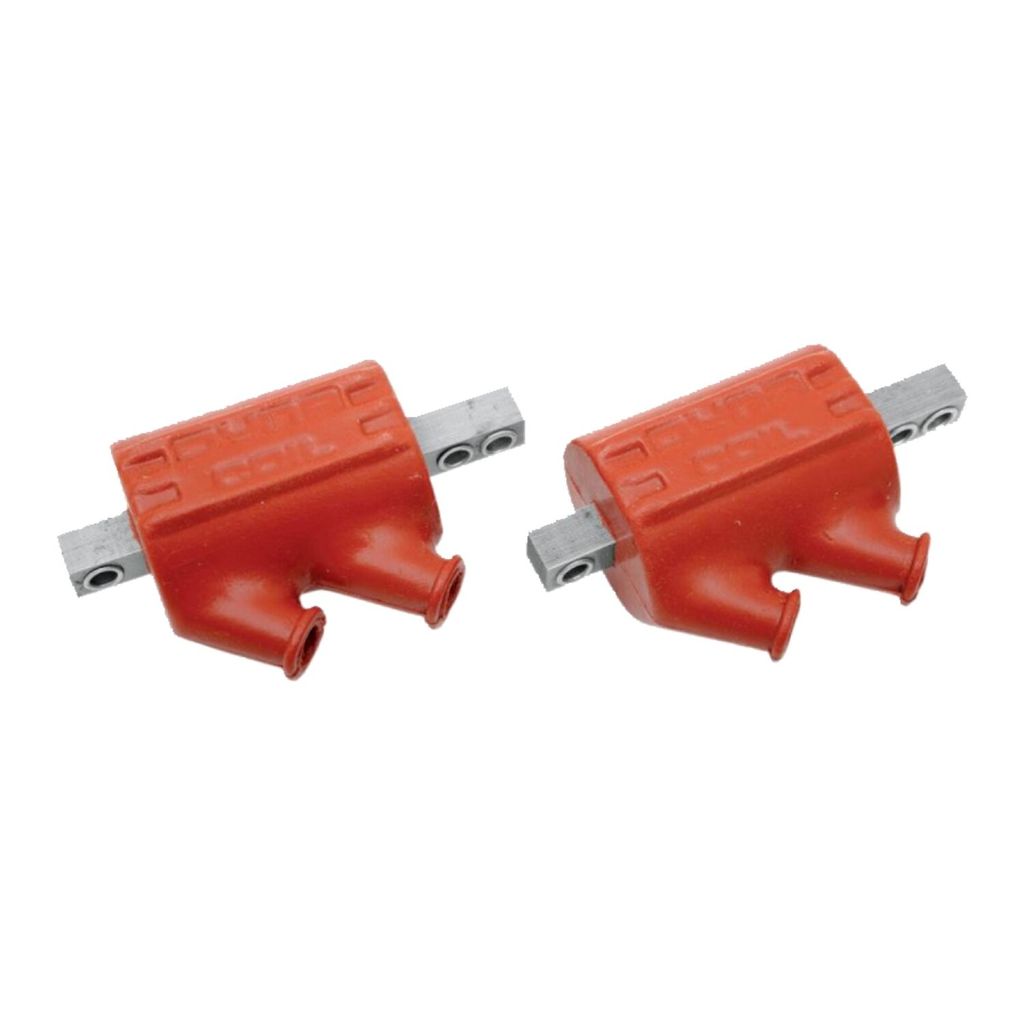

Dynatek, Dyna Dual Tower dual fire. 6V, 1.5 ohm

3 010 kr

Dynatek Dyna Dual Tower tändspole, 6 volt, 1,5 ohm
Läs mer

902515 Dynatek
  • Dual Fire-tändspole med dubbla utgångar (Dual Tower)
  • Färg: orange/brun
  • Spänning och resistans: 6 volt, 1,5 ohm
  • Ger över 30 000 volt för snabbare gasrespons
  • Kan monteras med 3-1/2" eller 4" centrumavstånd
  • Skruvar och tillbehör för primäranslutning ingår

Avsedd för 12-volts custom-byggen där 2 spolar seriekopplas för motorer med dubbeltändstift (totalt 4 tändstift) och Dual Fire elektroniskt tändsystem, för att uppnå 12 volt och 3 ohm primärresistans. Kräver specialtillverkade fästen eller eftermarknadsfästen. Rekommenderas att kombineras med tändmodul från samma tillverkare, kontrollera tändsystemets krav före beställning.

Passar: Big Twin 65-99

Dyna Dual Tower dual fire. 6V, 1.5 ohm

  • Orange/brown
  • Designed for use in custom 12 volt applications where 2 of these coils are used for bikes with dual plugged heads (4 spark plugs in total) that run a dual fire electronic ignition system
  • Note: Coils are 6V, 1.5 ohm each and must be wired in series to achieve the required 12V voltage and 3 ohm primary resistance
  • Note: It is recommended to use ignition modules & coils of the same manufacturer
  • Intermixing different brands may cause premature failure
  • Note: Difference between Single & Dual Fire:
  • This is the way the earlier, pre-Twin Cam, engines work
  • A single coil is used and both spark plugs fire simultaneously
  • This is the simplest system
  • The 'wasted' spark is sometimes said to be horsepower robbing
  • Two separate coils will fire the spark plugs independently and only the spark plug of the cylinder that is on compression stroke will be fired
  • It is said that these engines vibrate less and can improve power
  • The effects will become more pronounced with hotter cams and higher RPM
  • Ignition coils for big twin & sportster
  • End mount style coils produce in excess of 30,000 volts for crisper throttle response
  • Can be mounted on 3 1 / 2 " centers or 4" centers, and will require custom fabricated or aftermarket coil mounting brackets
  • Includes primary winding terminal hardware
  • Note: Verify ignition requirements before ordering

Fits: 65-99 Big Twin; 65-03 XL Sportster. For electronic ignition (Excl. Twin Cam & other single fire applications) in custom applications. (Custom dual fire, carbureted models)
