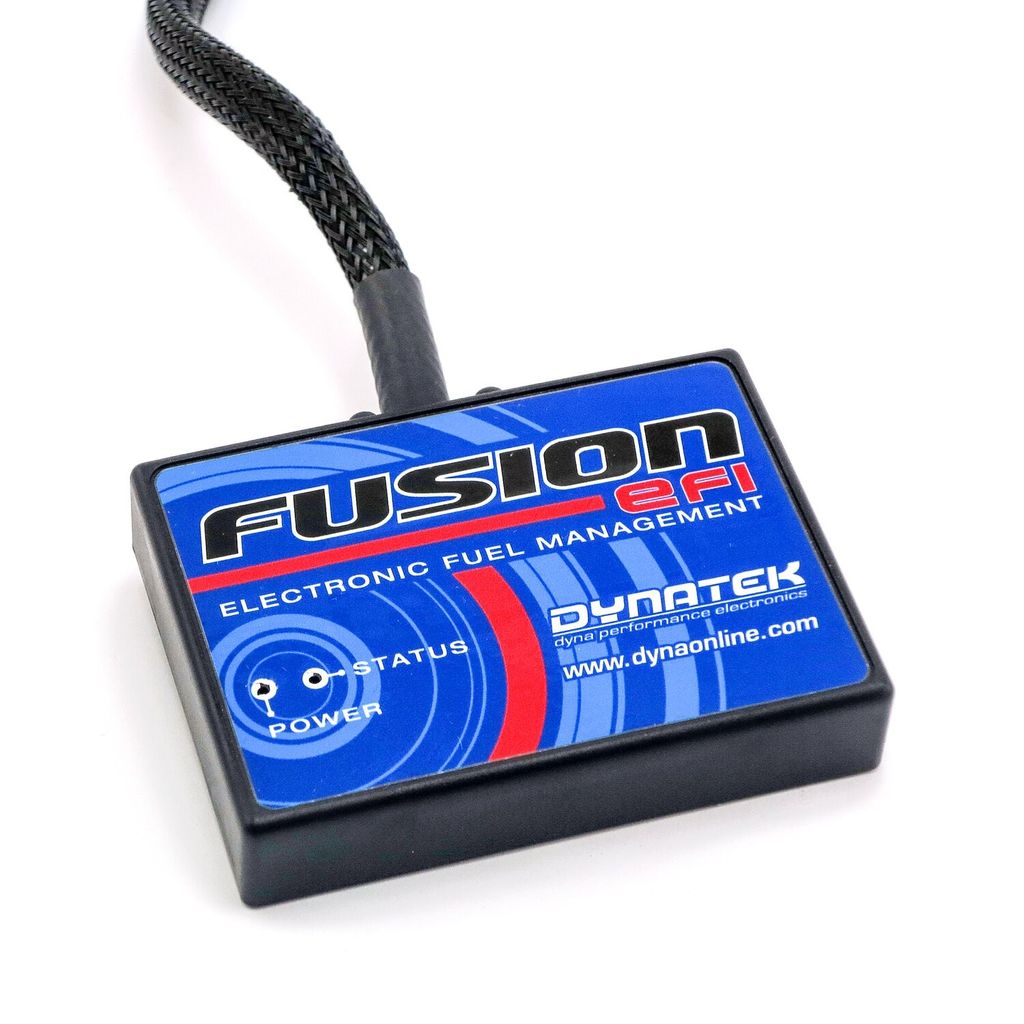

Dynatek, Fusion EFI
Dynatek Fusion EFI bränsle- och tändningsstyrning
Läs mer
- Styr både bränsleinsprutning och tändning
- Kopplas direkt in i original-ECU utan ändringar i kablage, bränsle- eller tändsystem
- Individuell mappning per cylinder med 640 punkter för bränsle och 640 för tändning
- Tändningsjustering +/-20 grader samt möjlighet att justera per cylinder
- Justerar tändning baserat på ingångar för temperatur, laddtryck och växelläge
- Inbyggd Launch Limiter, Pit Lane Limiter och Boost/Nitrous Retard Timing
- Växling under körning mellan 2 mappar (race/tour)
- Analog 0–5 V ingång och USB-strömförsörjning från dator
Mjukvara och färdiga mappar laddas ner från Dynateks webbplats. Kompatibel med Dynatek DynaTune för autotuning under körning. Två av funktionerna Map Switch, Quick Shifter, Pit Lane Speed Limiter och Launch Control kan användas samtidigt. Knapp för kartväxling (map switch) ingår ej.
Passar: 2018 Softail
Fusion EFI
- Controls both ignition and fuel injection, plugs in to stock ECU unit without any changes to wiring, fuel or ignition
- RPM and throttle position inputs are used for fuel adjustments
- The 250 rpm resolution and 10 throttle position columns provide 640 mapping points for fuel and another 640 for ignition timing, offering great adjustability
- Software for tuning and ready made maps can be downloaded from the Dynatek website
- Note: Compatible with the Dynatek DynaTune for on the fly Auto Tune options
- Allows +/-20 degrees of timing adjustment
- Adjust timing per cylinder
- Raise your Rev Limit (only available on select models)
- Adjust timing based on temperature or boost inputs
- Built In Launch Limiter
- Gear Position Timing
- Boost/Nitrous Retard Timing
- Pit Lane Limiter
- Additional inputs as cylinder head or water temperature, gear position and boost
- Individual cylinder mapping
- 2 position race/tour map switching on the fly (map switch not included)
- Analog input, allowing the use of any 0-5 volt sensor and build an adjustment table based on its input such as boost
- Two of these features can be used at the same time: Map Switch, Quick Shifter, Pit Lane Speed Limiter, and Launch Control
- USB powered from computer
Fits: 2018 Softail (NU)
