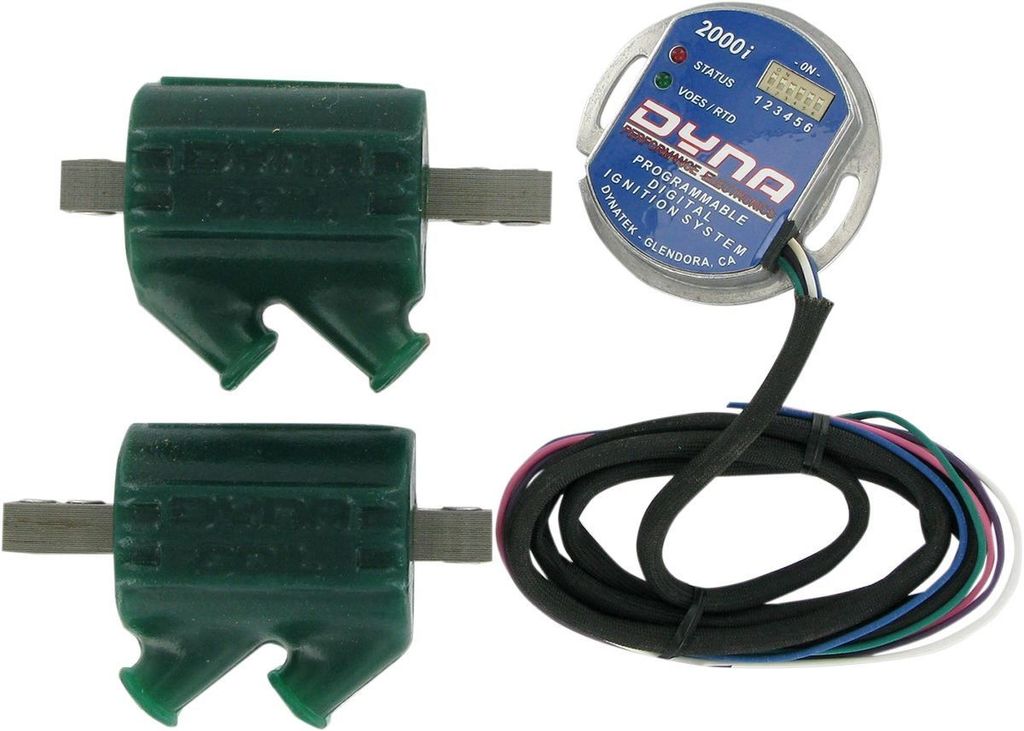

Tändning Dynatek 2000I Programmable 2X Single-fire/dual-plug H-D 70-03
Programmerbar elektronisk tändning 2000i från Dynatek
Läs mer
- Helt fristående enhet som monteras dolt under kamkåpan
- Fungerar för single-fire och dual-fire med enkla eller dubbla tändstift per topp
- Single-fire ända ner till 0 rpm för enklare elstart och kickstart
- Tio förinställda tändkurvor samt justerbar varvtalsbegränsare från 6000 till 7500 rpm
- Justerbar tändningsretard för lustgas- och turboapplikationer
- PC-programmering via medföljande anslutningskabel som sitter kvar på motorcykeln
- Inbyggd dataloggning av bland annat motortimmar, tid vid fullgas och maxvarv
- Tillverkad i USA
Passar inte modeller med bränsleinsprutning. Separat programmeringskit (med cd, kablar och instruktioner) krävs för pc-programmering och nedladdning av data, men behövs inte för att använda tändningens manuellt valbara grundfunktioner.
Passar: H-D 70-03
| Produkt-typ | Ignition Kit |
| Tillverkarens Art. Nr. | D2KI-3P |
-
Hämta21010029_D2KI-3P.pdf183.61 KB
2000I PC Programmable Electronic Ignition Kit
- Completely self-contained so entire unit hides under the cam cover for a clean look on custom bikes
- Single-fire operation down to zero rpm for easier cranking and kicking
- Will operate in all combinations of single-fire or dual-fire with single-plug or dual-plug heads
- Ten advance curves cover a broad range of engine builds and riding styles
- Engine over-rev protection, adjustable from 6000 to 7500 rpm
- Adjustable timing retard for nitrous and turbo applications
- VOES indicator lets you monitor VOES switch at a glance
- Built-in tach driver can be used to activate shift lights, auto-shifters and other accessories
- Easy static timing with built-in timing indicator
- Intelligent over-current/short-circuit protection
- Active dwell control
- Over-voltage protected against momentary spikes
- Data recording includes total engine hours, time wide-open throttle, longest time operating at wide-open throttle, max rpm, seconds near rev limit and number of engine starts
- PC programmability makes possible an eight-point, fully definable, wide-open throttle curve and a fully definable part throttle curve, rev limit programmable in 50 rpm steps, programmable dead-cranking revs 0-5, rear cylinder offset, total of +/- 10°, programmable rev limiter, security lock out (pin # activated), single or dual fire
- Programming and downloading data and graphs from module requires proper programming kit (includes CD, cables and instructions)
- Pigtail connector enables the user to connect the ignition to a PC to either download recorded info from the ignition or program their own power curves, rev limits, dead revs or rear cylinder off-set timing; connector remains on bike
- Made in the USA
- Not for fuel-injected models
- Programming kit is not necessary to use all selectable functions of the current ignition.
