Modul Dynojet Vision 4
Dynojet Power Vision 4 bränsleinsprutningsstyrenhet
Läs mer
- Flash-tuna direkt till din ECU via mobilapp och Bluetooth utan krånglig installation
- Säkerhetskopierar originalmappen till molnet och telefonen för enkel återställning
- Läs, granska, radera och dela felkoder (DTC) med beskrivningar
- Tillgång till Dynojets molndatabas med förprogrammerade mappar
- Logga motordata i realtid och visa i WinPEP 8 Data Center
- Stöd för Quick-tune samt tre Autotune-lägen: Basic, Pro och TT
- Basic-läge använder original smalbandssensorer

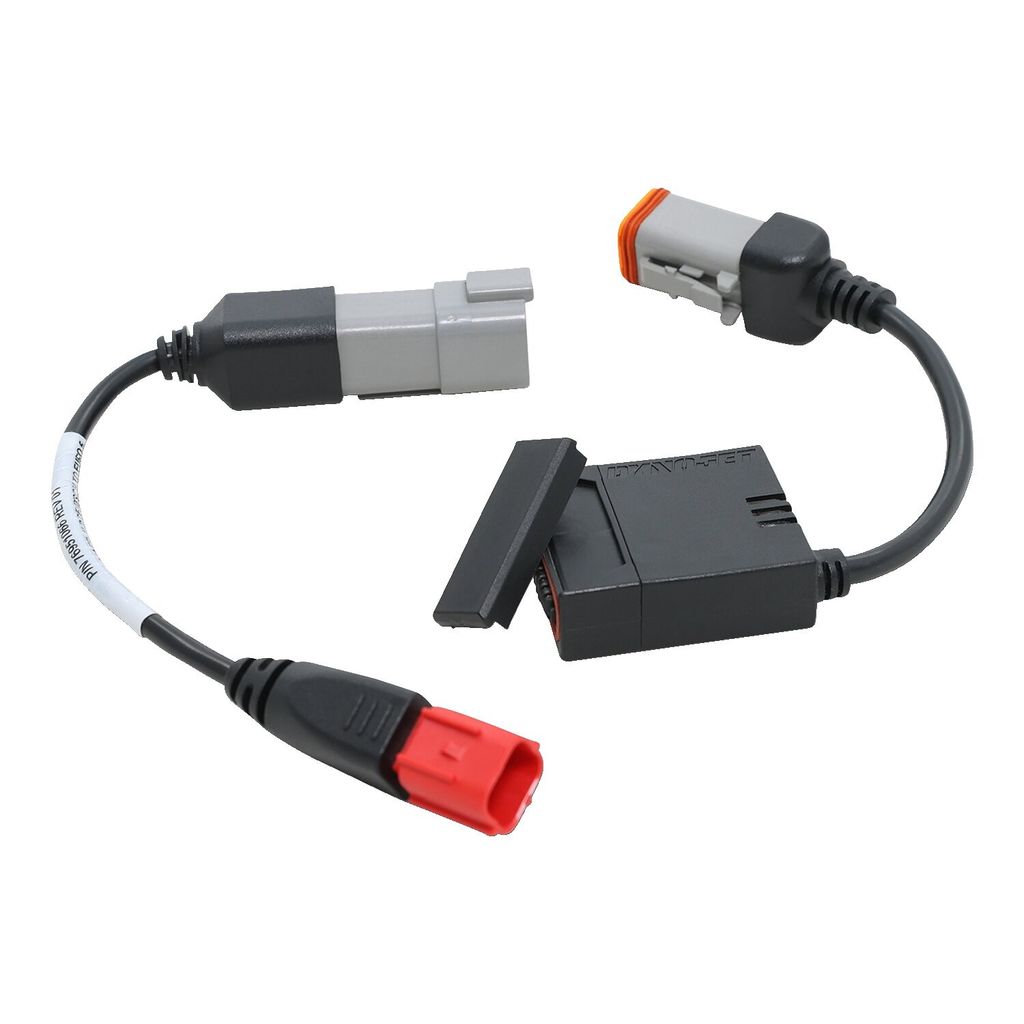

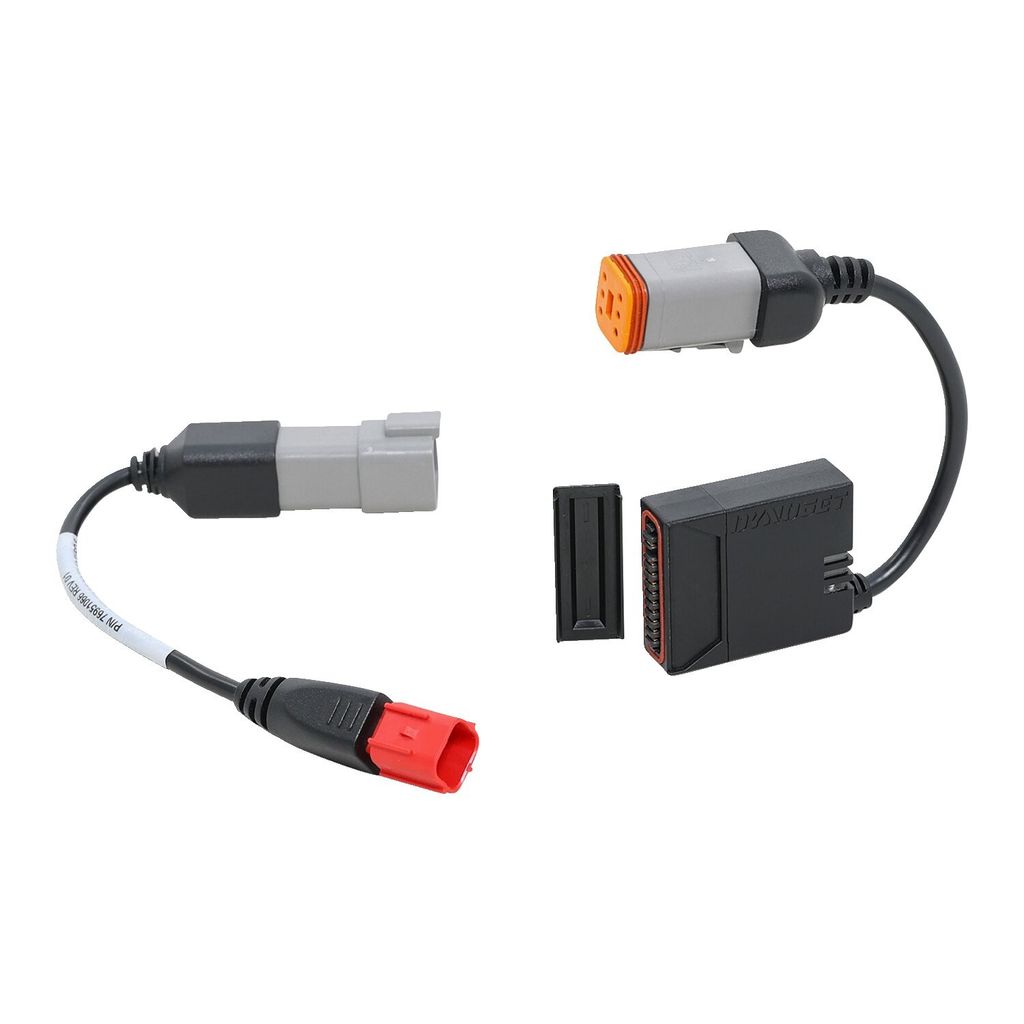

- Plug & Play-installation med 8-pinnars Molex-kontakt till diagnosuttaget
- Tillverkad i USA
För Euro 5-modeller från 2021 och framåt med CAN-bus och MT22 ECU med 8-pinnars Molex-kontakt. En enhetslicens ingår och binds till fordonets ECU vid användning, men ytterligare fordonslicenser kan köpas till. Autotune Pro kräver Autotune Wideband O2 Module eller Target Tune Wideband O2 Module (säljs separat).
Passar: H-D 21-24
-
Hämta10203987_PV4-15-03.pdf1.60 MB
Power Vision 4 Fuel Injection Controller
- Flash tunes to your ECU - no setup required, just create an account, select your tune, flash, and enjoy the ultimate ride
- Return to stock at any time - your original, factory tune is safely backed up on the cloud and on your phone
- Read, review, clear, and share diagnostic trouble codes (DTC's) with built-in descriptions
- Easily download and manage pre-loaded tunes for different configurations
- Access to vast database of pre-loaded tunes for different configurations
- Record real-time engine data and display in WinPEP 8 Data Center
- Optimized for remote-tuning
- Supports licensing additional vehicles
- Made in the USA
- All Power Vision returns and/or adjustments must be made directly with Dynojet Research.
- The Power Vision may be used on any bike to read and clean trouble codes.
- Power from the cloud for CAN-bus ECM/ECU equipped H-D models, with MT22 ECU with 8-pin Molex connector/diagnostic port

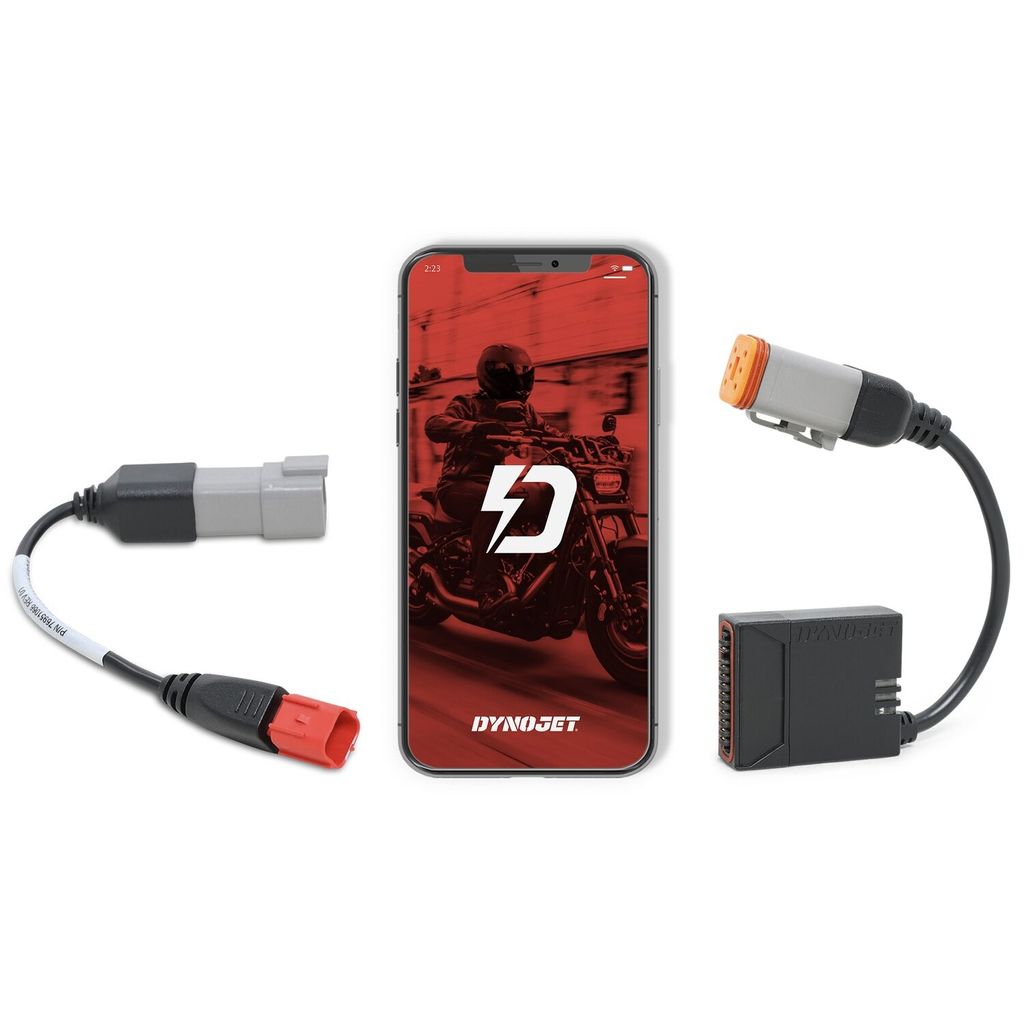

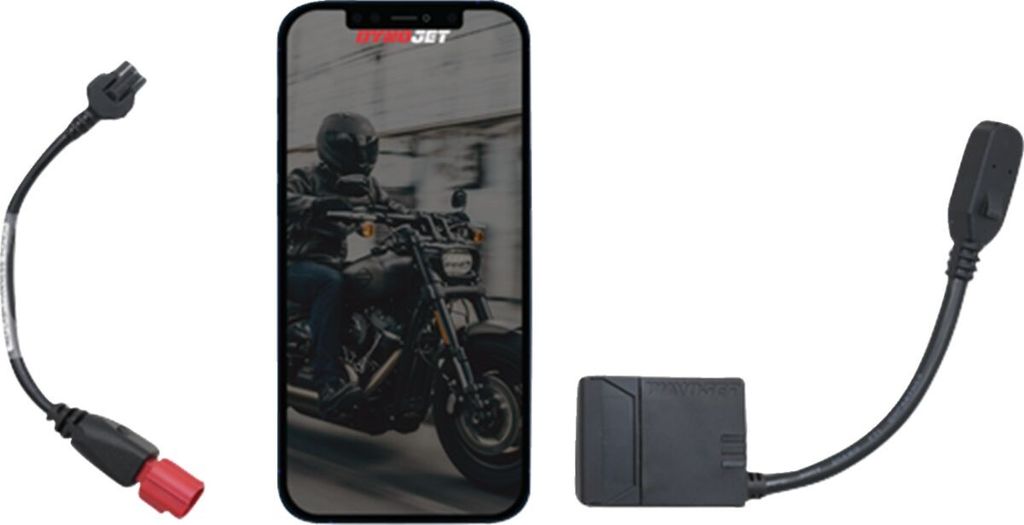

- The Power Vision 4 offers the first Dynojet app-based Bluetooth flash tuning solution with your phone and allows you to gain access all Dynojet’s cloud database for hundreds of different Dynojet created tunes for various aftermarket components, just flash tune any of them to your bike’s ECU
- The original, factory tune is backed up to the cloud and on your phone, so a safe reset is always available
- Plug & Play installation
- Autotune & Quick-tune capable
- Tuning of downloaded maps not possible
- Note: Once a Power Vision is used on a bike, it comes with one license, it is 'mated' to that specific ECU
- Licenses purchased for the original Power Vision can be transferred and used with the Power Vision 4 allowing the user to go wireless
- Note: With the PV4 it is now possible to Auto tune or write your own tunes
- Now, you can effortlessly select and enable 3 different Autotune learning modes; Basic, Pro, or TT
- Each mode is designed to effectively correct and refine your ECU’s VE tables to ensure accurate air-to-fuel ratios
- Hardware Compatibility: Enable Basic mode utilizing your stock narrow band sensors
- To leverage Autotune Pro, ensure you pair your PV4 with either an Autotune Wideband O2 Module or the more advanced Target Tune Wideband O2 Module tailored for your specific Harley-Davidson model
- Simplified Process: With just a few taps, activate Autotune and fine-tune your bike’s air-fuel ratio (AFR) efficiently
- All tuning, logging, and adjustments are managed by the PV4 and your smartphone, eliminating the need for a computer
- Quick Tune: This update adds a Quicktune menu, putting you in complete command
- Effortlessly control key features of your tune with a simple tap of the screen
- Note: Connect to Dynojet Dyno via Power Core, Use as a live diagnostic tool as you ride to gather datalogs. **Dynojet product not available to purchase by Dealers located in the UK**
Fits: 21-24 Softail; 21-24 Touring (excl. 23-24 CVO; 2024 FLHX, FLTRX); 21-23 Pan America, RH Sportster models (models MT22 ECU with 8-pin Molex connector). Verified not to work on: 2023.5-2025 CVO Models 2024-2025 Touring 117" Models; 2024-2025 Touring 121" Models; 2024-2025 Pan America Models; 2024-2025 Nightster Models; 2024-2025 Sportster S Models; 2025 Softail Models;
