Luftfiltersats Feuling Parts 5523 BA svart H-D 17-24

10 860 kr

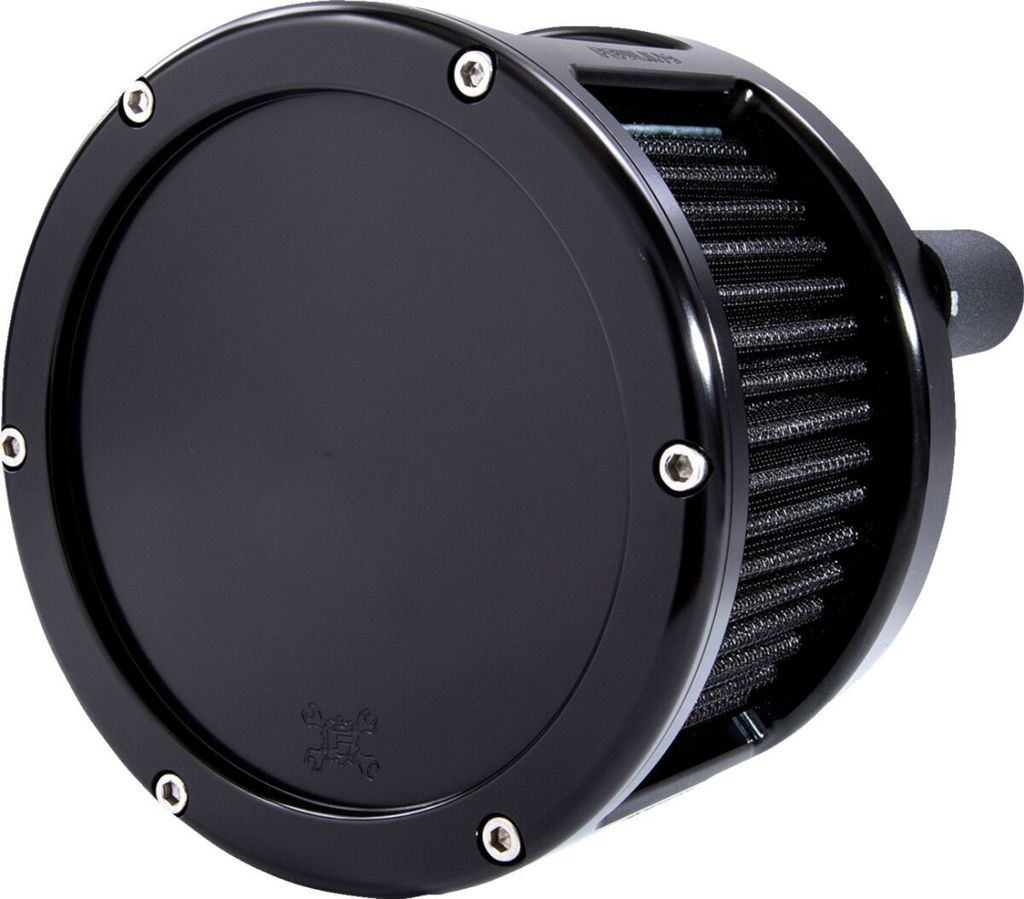

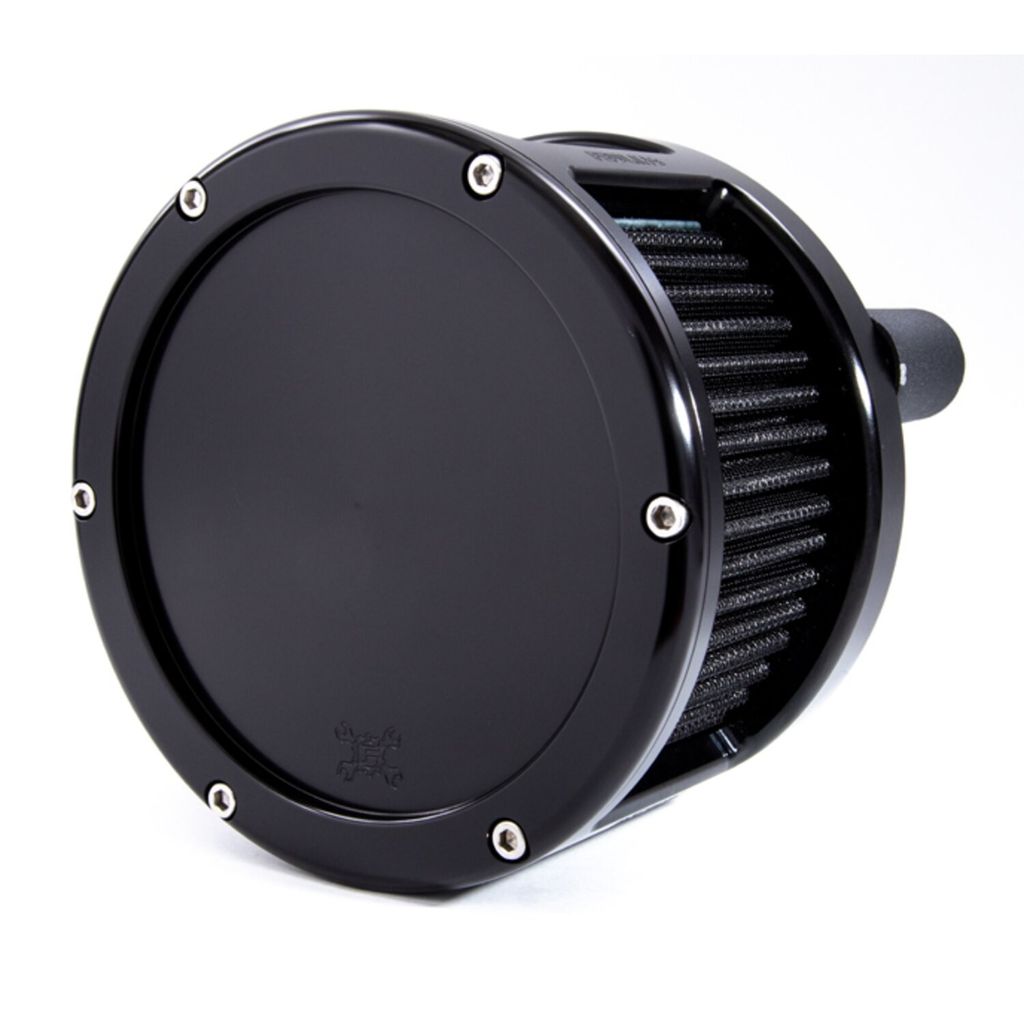

Feuling BA Race Series luftfiltersats med heltäckande kåpa
Läs mer

10103149 Feuling
  • BA Race Series är knappt 1" högre och har 33 % större filteryta än standard-BA
  • Flödar 595 CFM vid 28" (SuperFlow SF600)
  • Helgjuten konstruktion i fräst aluminium som förenklar montering
  • Integrerad velocity stack med optimerad öppning, diameter, ytterläpp och avsmalning
  • OEM-liknande vevhusventilation genom topplock direkt in i insuget
  • Tvättbar och återanvändbar 3,335" högflödes luftfilterinsats med bur i fräst aluminium
  • Svart utförande med heltäckande kåpa (solid cover)
  • Tillverkad i USA

Kräver mittreglage för frigång vid benen. Kompatibel med original 55 mm spjällhus, Screamin' Eagle 64 mm samt HPI 58 mm och 62 mm. Extern vevhusventilation för banbruk kan ordnas med separat vevhusventilationssats (Feuling 707101).

Passar: Softail 18-24

BA Race Series Air Cleaner Kit

  • Originally designed for our 130 Bagger GP race engine, our Race Series (RS) BA air cleaner, comes in just under an inch taller and boasts an impressive 33% increase in filter size over our standard fit BA air cleaner
  • Impressive horsepower and torque gains on any engine and exceptional gains seen on engines running modified and/or ported cylinder heads along with intakes and larger throttle bodies
  • The Feuling BA Air Cleaner lengthens the intake runners and increases air velocity, delivering added volume for balanced dynamic flow
  • The one piece design, creates a clean look and eases installation when compared to the industry standard multi stack up construction
  • Set up with OEM-style cylinder head breathing, routing into the intake with optimized vent hole locations
  • Features a high flow velocity stack with optimal opening diameter, outer lip and internal (ID) taper
  • High flow washable/reusable 3.335" with air filter with one piece billet cage
  • New bolt-on air cleaner design for Harley-Davidson motorcycles
  • Made in the USA
  • BA Race Series air cleaner. Black. Solid cover
  • Black filter element
  • Tall cage & extra wide for ultimate flow
  • 595 CFM@28
  • Compatible with standard throttle body fitment (OEM H-D: 55mm
  • Screamin' Eagle: 64mm
  • HPI: 58mm and 62mm)
  • External Race Only venting to atmosphere available with separate purchase of Feuling 707101 external breather kit which includes fittings, vent line and breather element
  • The backing plate is engraved with both 'Made in USA' and 'Feuling' logos
  • A lot of meticulous testing and tweaking went into the design of the bolt-on BA (Billet Aluminum air cleaner), to create excellent performance (+500 to 595 CFM@28 on a SuperFlow SF600), all paired with the smallest possible dimensions
  • This simple construction gives a very clean look and easy installation when compared to many others
  • The velocity stack is used to lengthen the intake track and increase intake velocity to improve cylinder fill especially midrange performance, where most riding is done, and up
  • Comes with a reusable high flow cotton based red pre-oiled air filter element
  • Note: Optional covers are available in raw polished, hard anodized black and chrome plated in a solid or clear (see-through) acrylic outer cover
  • With years of experience designing improved cylinder heads, combustion chambers and intake manifolds, FEULING brings light to a new bolt-on air cleaner design for Harley-Davidson motorcycles
  • With performance in mind, we created a convertible backing plate offering optional cylinder head venting
  • Developed and designed on the flow bench, dyno tested and track proven
  • Note: Special Order Product only
  • To order please contact your MCS sales representative

Use of this air cleaner kit will require mid foot controls for leg clearance. Fits '17-'24 FLHT/FLHR/FLHX/FLTRX/FLTRU/H-D Trike and '18-'24 Softails with mid controls. Fits standard OEM 55 mm, 64 mm Screamin Eagle, 58 mm and 62 mm HPI throttle bodies.

Fits: 18-24 Softail; 17-25 FLT/Touring (excl. 24-25 FLHX 117; 2025 FLHXU; 24-25 FLTRX 117; 23-25 CVO Touring); 17-25 Trikes. Models with or converted to mid-controls (NU)
