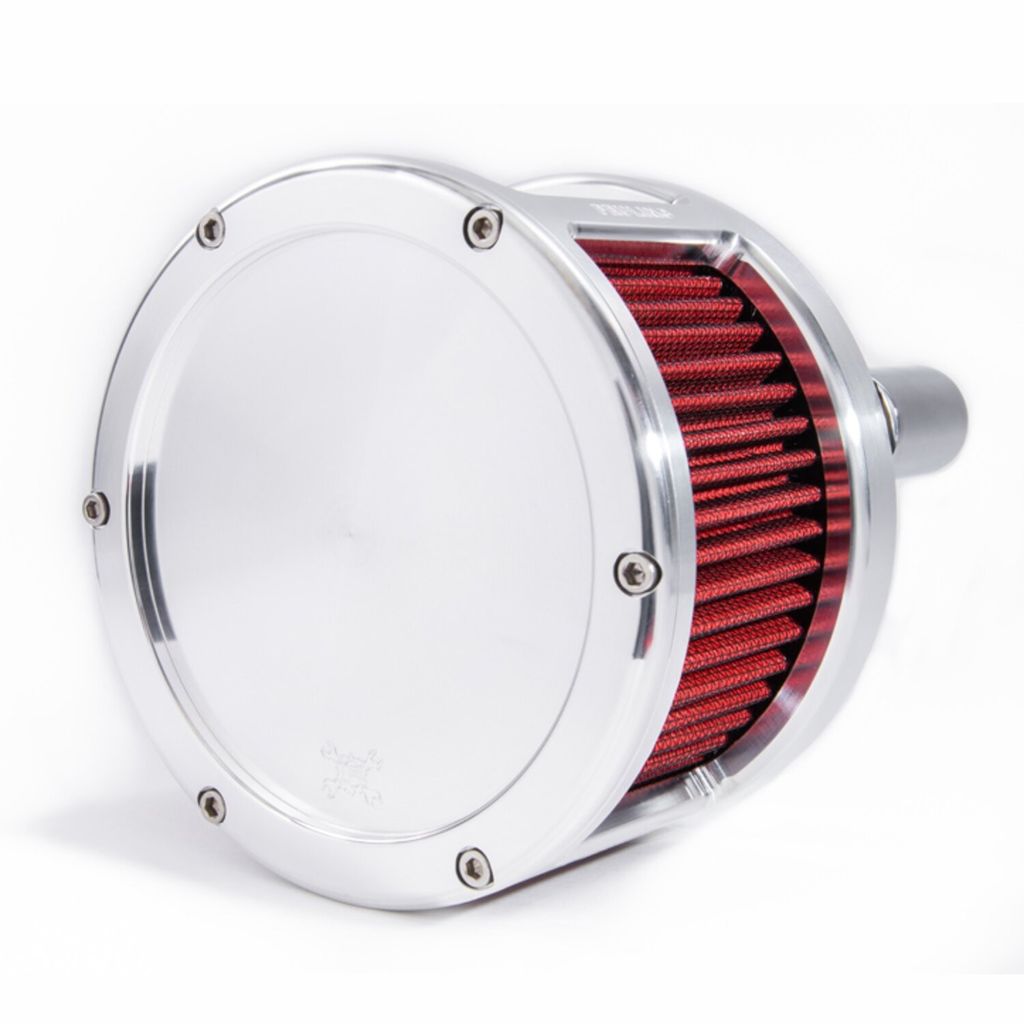

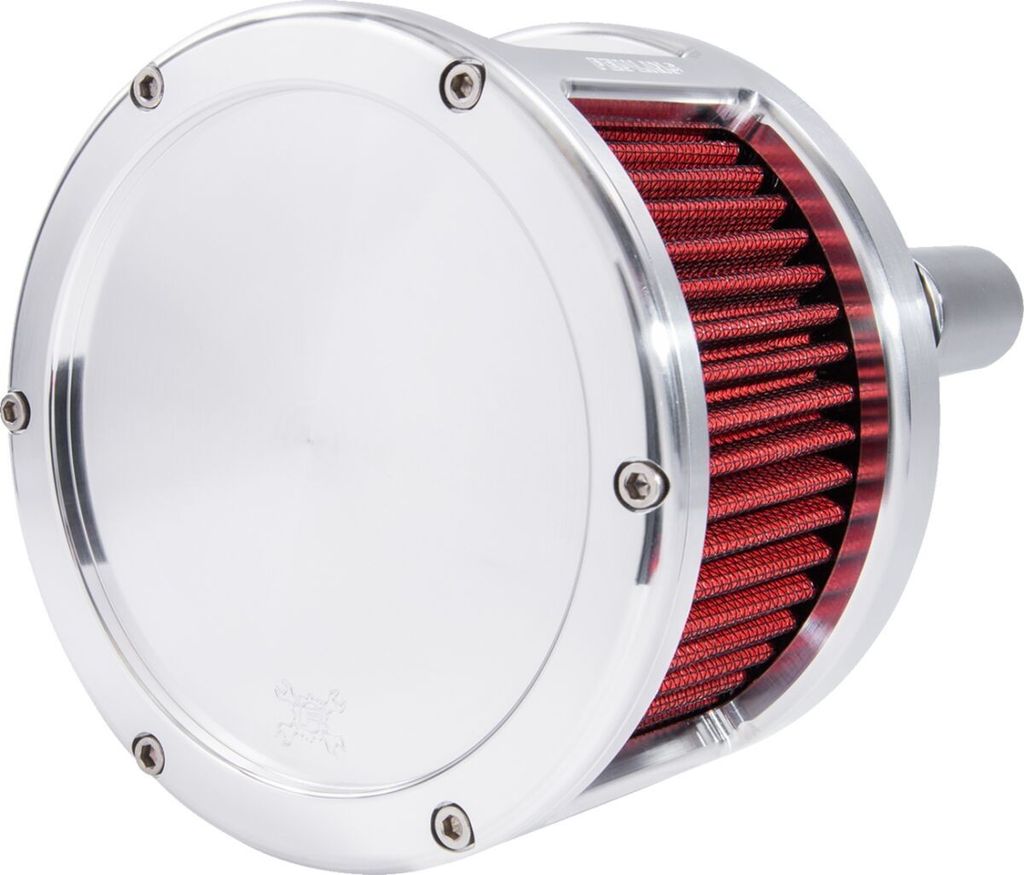

Luftfiltersats Feuling Parts 5421 BA obehandlad röd H-D 17-24
Feuling BA Race Series luftfiltersats i rå aluminium med heltäckande kåpa
Läs mer
- Race Series-modell med 33 % större filteryta än standard BA
- Flödar 595 CFM vid 28" (SuperFlow SF600)
- Högflödande tratt (velocity stack) förlänger insugskanalen och ökar lufthastigheten
- Helgjuten konstruktion i fräst aluminium (billet aluminum) för enkel montering
- Tvättbart och återanvändbart rött luftfilter med 3,335" bredd och helfräst korg
- Vevhusventilation i OEM-stil dragen till insuget via optimerade ventilationskanaler
- Fästplatta graverad med Feuling och Made in USA
- Rå finish (raw) med heltäckande ytterkåpa (solid cover)
Kräver mittreglage (mid controls) för benutrymme. Kompatibel med standard 55 mm spjällhus (OEM H-D), 64 mm Screamin' Eagle samt 58 mm och 62 mm HPI. Extern vevhusventilation för banbruk finns som tillval via separat vevhusventilationssats (Feuling 707101).
Passar: Softail 18-24
BA Race Series Air Cleaner Kit
- Originally designed for our 130 Bagger GP race engine, our Race Series (RS) BA air cleaner, comes in just under an inch taller and boasts an impressive 33% increase in filter size over our standard fit BA air cleaner
- Impressive horsepower and torque gains on any engine and exceptional gains seen on engines running modified and/or ported cylinder heads along with intakes and larger throttle bodies
- The Feuling BA Air Cleaner lengthens the intake runners and increases air velocity, delivering added volume for balanced dynamic flow
- The one piece design, creates a clean look and eases installation when compared to the industry standard multi stack up construction
- Set up with OEM-style cylinder head breathing, routing into the intake with optimized vent hole locations
- Features a high flow velocity stack with optimal opening diameter, outer lip and internal (ID) taper
- High flow washable/reusable 3.335" with air filter with one piece billet cage
- New bolt-on air cleaner design for Harley-Davidson motorcycles
- Made in the USA
- BA Race Series air cleaner. Raw. Solid cover
- Red filter
- Tall cage & extra (3.335") wide for ultimate flow
- 595 CFM@28
- Compatible with standard throttle body fitment (OEM H-D: 55mm
- Screamin' Eagle: 64mm
- HPI: 58mm and 62mm)
- External Race Only venting to atmosphere available with separate purchase of Feuling 707101 external breather kit which includes fittings, vent line and breather element
- The backing plate is engraved with both 'Made in USA' and 'Feuling' logos
- A lot of meticulous testing and tweaking went into the design of the bolt-on BA (Billet Aluminum air cleaner), to create excellent performance (+500 to 595 CFM@28 on a SuperFlow SF600), all paired with the smallest possible dimensions
- This simple construction gives a very clean look and easy installation when compared to many others
- The velocity stack is used to lengthen the intake track and increase intake velocity to improve cylinder fill especially midrange performance, where most riding is done, and up
- Note: Optional covers are available in raw polished, hard anodized black and chrome plated in a solid or clear (see-through) acrylic outer cover
- With years of experience designing improved cylinder heads, combustion chambers and intake manifolds, FEULING brings light to a new bolt-on air cleaner design for Harley-Davidson motorcycles
- With performance in mind, we created a convertible backing plate offering optional cylinder head venting
- Developed and designed on the flow bench, dyno tested and track proven
- Note: Special Order Product only
- To order please contact your MCS sales representative
Use of this air cleaner kit will require mid foot controls for leg clearance. Fits '17-'24 FLHT/FLHR/FLHX/FLTRX/FLTRU/H-D Trike and '18-'24 Softails with mid controls. Fits standard OEM 55 mm, 64 mm Screamin Eagle, 58 mm and 62 mm HPI throttle bodies.
Fits: 18-24 Softail; 17-25 FLT/Touring (excl. 24-25 FLHX 117; 2025 FLHXU; 24-25 FLTRX 117; 23-25 CVO Touring); 17-25 Trikes. Models with or converted to mid-controls (NU)
