Topplocksventilation Feuling billet M8
Topplocksventilation i billetfräst aluminium från Feuling
Läs mer
- Maskinbearbetade i 6061 billet-aluminium med plana ytor för tätning mot paraplyventiler
- Längre utloppsnipplar med dubbla O-ringar för förbättrad tätning av vevhusventilationen
- Optimerad placering och storlek på inloppen för optimal motorventilation
- Maximerad invändig volym och konstruktion som underlättar service
- Fem dräneringsportar i botten med fasad innerdiameter och raka utlopp mot stänkolja
- Satsen innehåller: ventilationshus, lock, filterelement, paraplyventiler samt skruv och monteringsdetaljer
Passar inte '23-'24-modeller med 121" VVT-motorer.
Passar: H-D 17-upp
Cylinder Head Breathers
- Machined from billet 6061 aluminum with square surfaces, promoting excellent umbrella valve sealing, longer main breather exit nipples with dual O-rings to promote better breather system sealing
- Properly sized breather inlets and location for optimum engine breathing
- Unique design maximizes breather volume and allows for easy servicing
- Breather bodies have five drain ports located on the inside floor, they are chamfered on inner diameter to allow easy drainage yet squared off on exits to prevent filling from splash oil
- Feuling cylinder head breathers work, seal and you will find they hold an engine vacuum
- Testing shown on a healthy engine will see 3-4 oz of oil in the sump and once the dipstick is removed another 3-4 oz will drain
- Note: Factory plastic OEM breathers can be problematic, material easily distorts, especially after seeing excessive heat then the internal umbrella valve struggles to seal, causing oil carry over
- Another issue found with the OEM breathers is cracked and or broken exit nipples which can be caused by heat distortion and or improper fit and poor installation
- This can cause the oil filled air to bypass the stock breather entirely
- Note that this test procedure can only be performed with a sealed engine meaning no external venting via dipstick or trans top cover

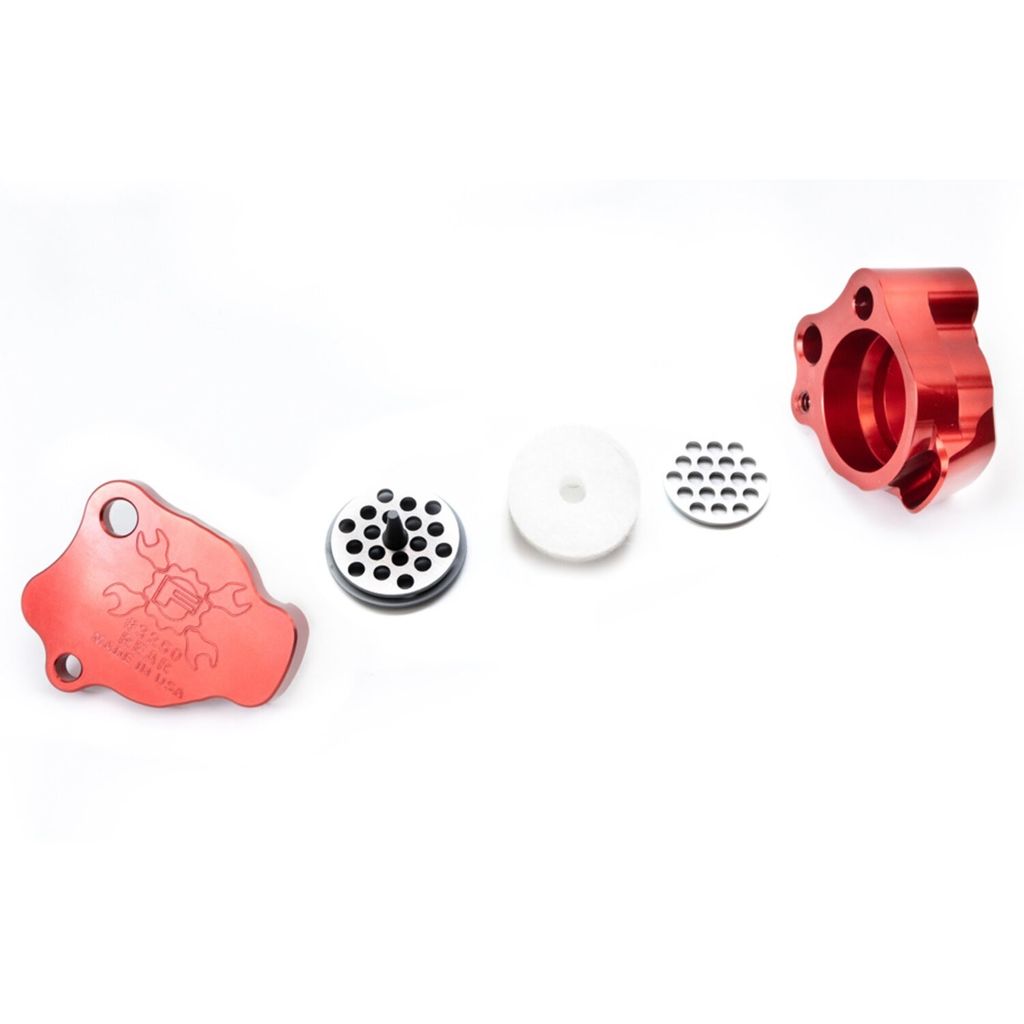

Not for '23-'24 models with 121" VVT motors. Kit Includes: • Billet Breather Housings • Billet Covers • Breather Filter Elements • Umbrella Valves • Hardware
Fits: 17-25 M8 models (excl. 2025 Softail; 23-25 FLTRXSE; 24-25 FLTRXSTSE; 23-25 FLHXSE; 24-25 FLHX; 2025 FLHXU; 24-25 FLTRX); 17-25 Trikes
