Kamaxelsats Feuling O 114″ 21.5 kort M8 '17-'24 Except VVT oil
Feuling Race Series Kamaxelsats med 508 Reaper-kam och Short Travel-lyftare
Läs mer
- Komplett kamkåpssats för M-Eight Oil-Cooled-motorer
- Reaper 508-kamaxel ger aggressiv effekt, snabbare varvvillighet och hårt drag
- Oljepump i 7075 billet-aluminium med magneter för ökat skydd
- Race Series hydrauliska Short Travel-lyftare med 0.115" slaglängd minskar ventilsläpp vid höga varvtal
- Ökar oljetrycket med 10–30 psi samt sänker motor- och oljetemperaturer med 15°–30°
- Ger 27 % mer tryck- och returvolym samt 68 % mer oljevolym till vevaxel och vevstakslager
- Satsen innehåller oljepump, kamplatta, 508-kamaxel, lyftare, stötstänger, lager, bultar, packningar och tillbehör
- Tillverkad i USA
Passar M-Eight oljekylda motorer (passar inte '23-'26-modeller med 121" VVT-motor). High Lift-ventilfjädrar krävs på originaltopplock (se Feuling Beehive #1107 eller #1108). För optimal prestanda rekommenderas ett högflödes avgassystem och luftfilter.
Passar: M8 '17-'24 utom VVT olje-
Race Series Camchest Kit with Short Travel Lifters
- Billet 7075 aluminum oil pump, which is 50% harder and stronger than the factory pump, holding tighter tolerances under temperature
- Short travel hydraulic lifters have 0.115" of total travel and will increase rpm by decreasing valve float and valve-train harmonics while maintaining a quiet engine
- Deeper scavenge kidney ports over the HP+ series for even more scavenge flow volume
- 30% more pressure gear volume over stock for M-Eight Twin-Cooled motors
- 53% more scavenge gear volume over stock for M-Eight Twin-Cooled motors
- 27% more pressure and scavenge gear volume over stock for M-Eight Oil-Cooled motors
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case for M-Eight Twin-Cooled motors and M-Eight Oil-Cooled motors
- 68% more oil volume to the crankshaft and connecting rod bearing for M-Eight Twin-Cooled motors and M-Eight Oil-Cooled motors
- 15°-25° cooler engine temperatures for M-Eight Twin-Cooled motors and M-Eight Oil-Cooled motors
- 15°-30° cooler oil temperatures for M-Eight Twin-Cooled motors and M-Eight Oil-Cooled motors
- 10-30 more psi of oil pressure for M-Eight Twin-Cooled motors and M-Eight Oil-Cooled motors
- Increases oil pressure, scavenge volume and engine oil flow
- Reduces wet sumping, blowby and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- Test results show 2 hp gain and 2 ft/lb of TQ gain to the rear wheel on M-Eight
- Feuling test results show a 50% reduction of engine sump oil level

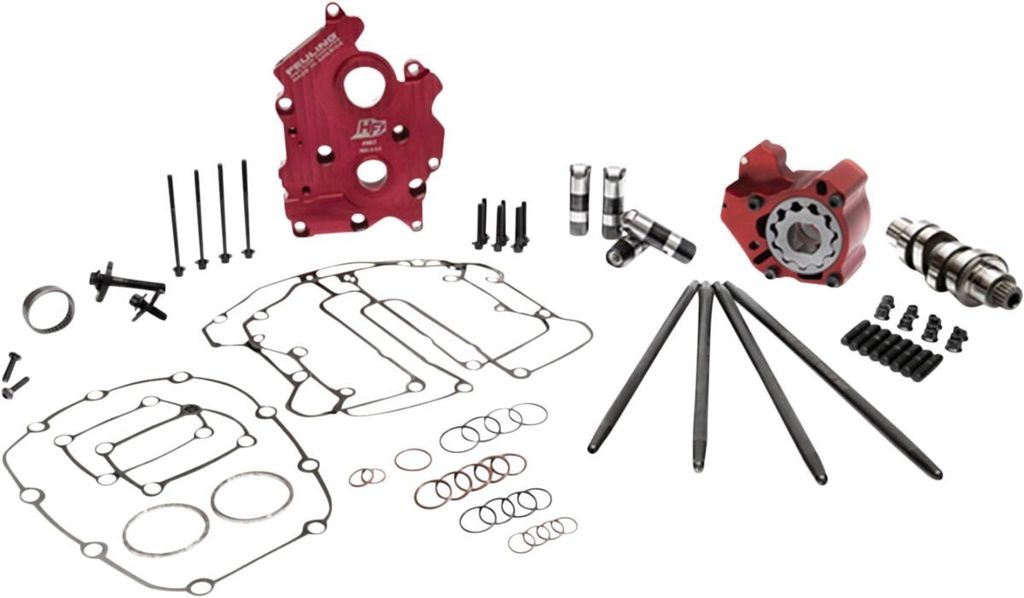

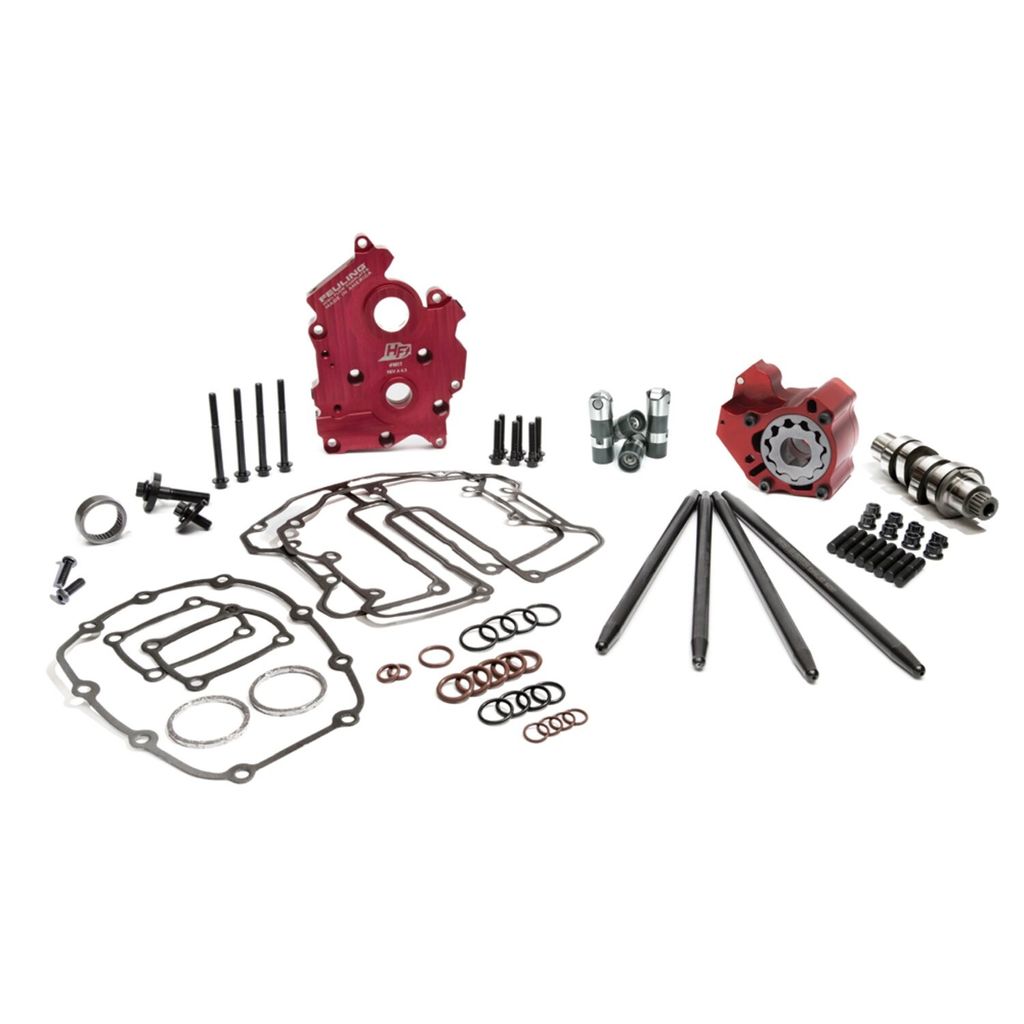

- Kit includes: Race Series high volume oil pump, High Flow billet camplate, Reaper Series camshaft, Race Series short hydraulic roller lifters, one piece pushrods, Timken/ Koyo cam bearings, rocker arm studs/ nuts, gaskets, O-rings, ARP cam/ crank fasteners, washers, moly paste and Loctite
- Made in the USA
- Not for '23-'26 models with 121" VVT motor.
- FEULING M8 OIL COOLED camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #
- These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony
- These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable
- Quieter and smoother engine operation
- 508 CAM - 'The Grim Reaper' Aggressive pulling power with a "nasty" sound
- This camshaft revs up faster than the 521 grind, sounds nastier and pulls harder but is more difficult to tune
- The REAPER 508 grind will shine in 114" and larger cubic inch engines with added compression ratio
- Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range
- The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers
- A high flow exhaust system and air cleaner is highly recommended for optimal performance
- NOTE: High Lift valve springs are required on stock cylinder heads, see FEULING BEEHIVE valve spring kit #1107 or #1108
- Heavy Duty one piece pushrods are also highly recommended see #4087
- Due to the mass call volume & inquires with requests for the M8 oil pump back cover O-ring/seal groove, we’ve added the groove! (5/11/21)
- Although Feulings in house testing on healthy engines did not show a benefit
- The O-ring may have potential benefits in certain circumstances such as engines with higher cylinder leak down, poor subseal O-ring seal, raised sump hole & or sump plug (see M8 PRO TIP below) & looser lifter to lifter bore clearances
- 5,900
- RACE SERIES hydraulic lifters have a full .200" of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the M8 front exhaust camshaft lobe flange
- DO NOT OVERFILL OIL TANK It is important to get the correct hot oil level in your bike
- Feuling recommends running the oil level 90%-99% full when hot
- Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank
- We recommend the following steps to achieve proper oil level: 1
- Check cold oil level
- Ride the bike until operating temperature is reached
- 3
- Shut the bike off while still in the upright position. (This insures an accurate reading) 4
- Add or remove oil as needed
- RS camchest kit Fits: M8 Oil Cooled Engines Feuling dOEs not recommend tuning beyond stock emissions standards
- Note: Special Order Product only
- To order please contact your MCS sales representative
Requires high lift valve springs. Includes: • Race Series High Volume Oil Pump • High Flow Billet Camplate • Reaper Series 508 Camshaft • Race Series Short Travel Lifters • One Piece Pushrods • Timken/Koyo Cam Bearing • Rocker Arm Studs and Nuts • Gaskets • O-Rings • ARP Cam/Crank Fasteners • Washers • Moly Lube • Loctite
Fits: M8 '17-'24 Except VVT oil cooled, Chain Drive, Includes 508 Reaper Camshafts #1349, Cam Install kit #2030, RACE SERIES Short Travel Lifters #4017ST, one piece pushrods #4088, RACE SERIES oil pump #7020, HIGH FLOW camplate #8017, and ARP Rocker studs and nuts, Camplate/Oil Pump Fasteners.
