Kamaxelsats Feuling Parts Drive 538 H-D 17-upp

12 910 kr

Feuling Race Series 538 kedjedriven kamaxelsats
Läs mer

09251374 Feuling

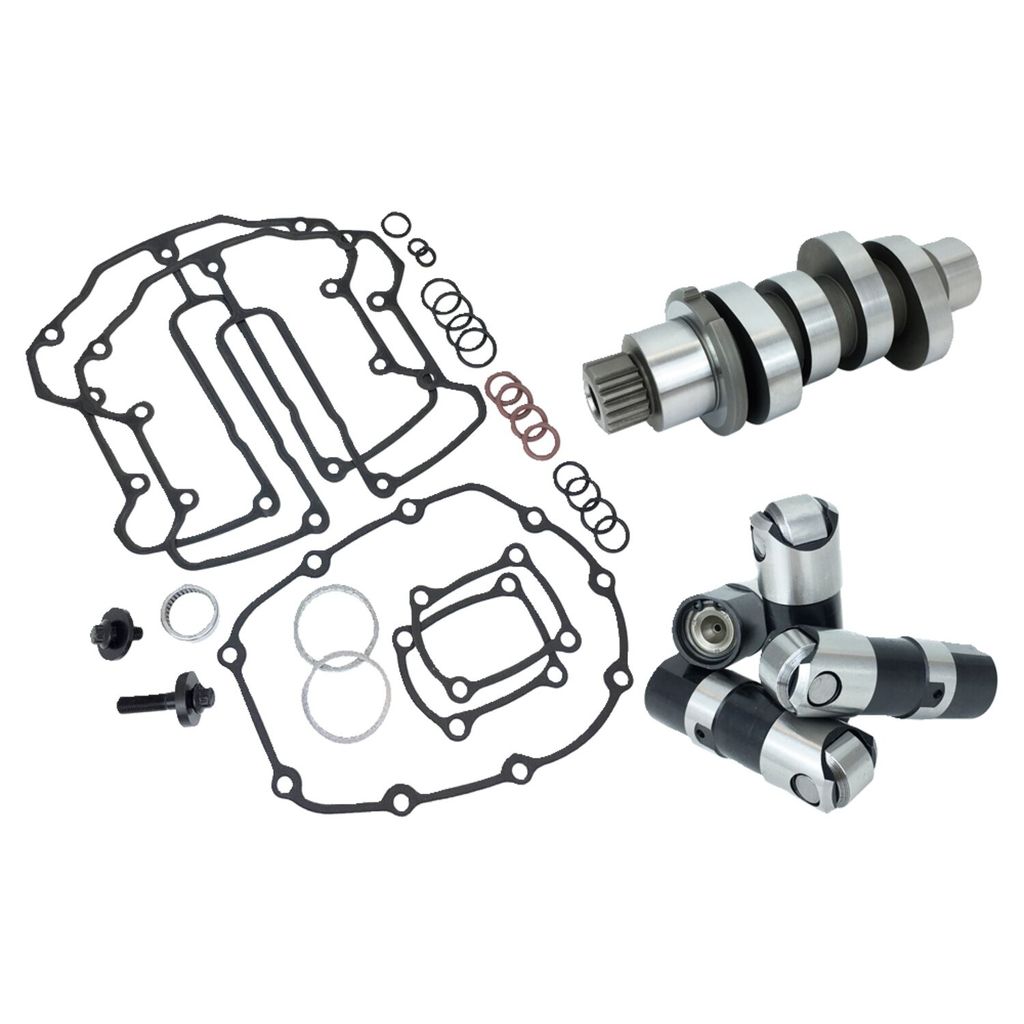

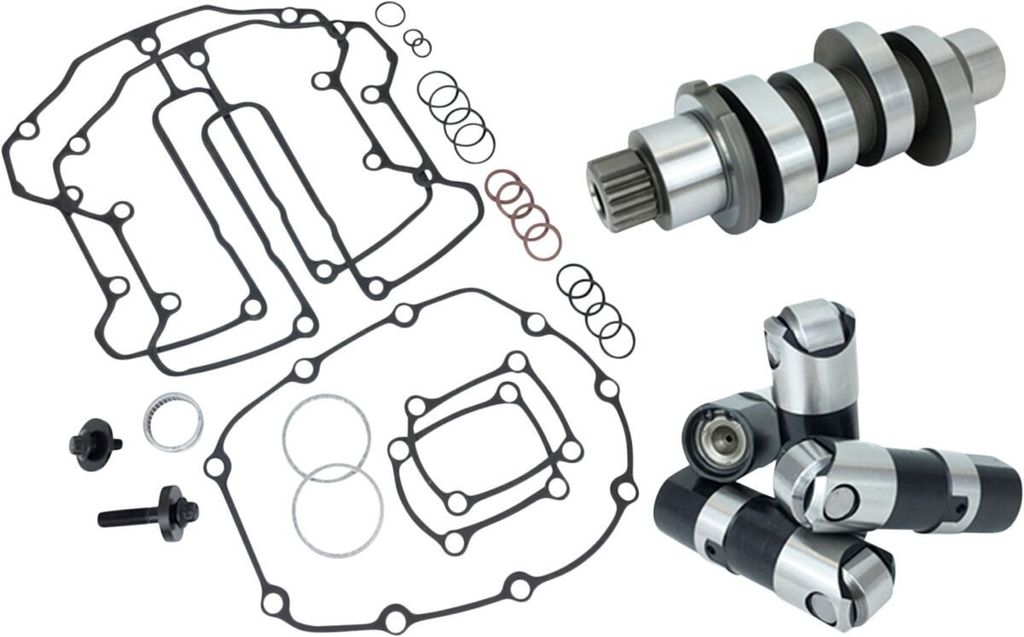

  • Satsen innehåller Reaper 538-kamaxel, Race Series hydrauliska lyftare, packnings-/o-ringssats, ARP kam-/vevbultar och monteringssats
  • Varvtalsområde: 2 350–5 975 RPM
  • Race Series hydrauliska lyftare har 0,200" total slaglängd och långsammare avluftning för höga ventiltryck och varvtal
  • Kamaxelprofil: Insug .538" lyft, 239° duration / Avgas .542" lyft, 246° duration (38° overlap)
  • Packnings-/o-ringssats anpassad för Feuling kraftiga HP+ stötstänger eller original i en del
  • Tillverkad i USA

Passar inte '23-'24-modeller med 121" VVT-motorer. Ventilfjädrar för högt lyft krävs på original Gen 1 topplock. Feuling rekommenderar stötstänger i en del samt bultsats för vipparmsaxlar för att förhindra sprickor i topplocket.

Passar: Softail 18-26

Race Series Chain Drive Camshaft Kit

  • Kit includes Reaper camshaft, Racer Series full travel hydraulic lifters with 0.200" total travel, gasket/o-ring kit that allows installation of Feuling heavy-duty HP+ 0.0165" wall one-piece pushrods or factory one-piece pushrods, ARP cam/crank fasteners and cam instal kit
  • Made in the USA
  • Due to the unstable nature of 4-valve engine design with one rocker arm activating two valve springs, Feuling recommends running one-piece pushrods over quick-install adjustable pushrods to maintain maximum cam/valve lift and reduce valvetrain harmonics and associated hydraulic lifter issues.
  • Feuling fastener kit is recommended to help prevent cylinder head cracking; kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress of the rocker shaft standoffs.
  • Race Series lifters have a slower bleed down rate to handle steep ramped cam and heavy valvesprings, designed to increase engine RPM before valve float.
  • Screamin' Eagle cylinder heads have high lift valve springs but will need to be verified.
  • Not for '23-'24 models with 121" VVT motors.
  • High lift valve springs are required on stock Gen 1 cylinder heads.
  • Note: Special Order Product only
  • To order please contact your MCS sales representative
  • 538 CAM
  • Aggressive camshaft with a "nasty" sound
  • This camshaft revs up fast and pulls hard in engines with big bore cylinders, modified cylinder heads, intake, compression and exhaust
  • The REAPER 538 grind will shine in 124" and larger cubic inch engines with added compression ratio
  • Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range
  • The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers
  • A high flow exhaust system and air cleaner is highly recommended for optimal performance
  • Heavy Duty one piece pushrods are also highly recommended, like Feuling's 993528 pushrod kit
  • RPM range 2,350
  • 5,975
  • Grind: 538 ..................Valve Lift Open Close Duration @ 50" lift @ TDC Lobe Centerline Intake .538 20.5 BTDC 38.5 ABDC 239 .180 99 Exhaust .542 48 BBDC 18 ATDC 246 .157 105 Overlap: 38 Race Series hydraulic lifters have a full .200" of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the M8 front exhaust camshaft lobe flange. *Cam specs measured on the lifter @ 0.050" lift with 1.61 rocker arm ratio DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE Feuling does not recommend tuning beyond stock emissions standards

RPM Range: 2350-5975. Overlap: 38.

Fits: 18-26 Softail; 17-26 FLT/Touring (excl. 23-26 VVT); 17-26 Trikes
