Kamkåpssats Feuling Race Series ST 594 kedjedrift konvertering H-D 96-06

38 210 kr

Feuling Race Series kamkåpssats för konvertering till hydrauliska spännare
Läs mer

09251401 Feuling
  • Konverterar från äldre mekaniska kamaxlar och spännare till hydrauliskt system
  • Eliminerar wet-sumping, vevhusventileringsproblem och oljiga luftfilter
  • Sänker motortemperaturen med 25°–35° och oljetemperaturen med 15°–30°
  • Ger 15 lb–30 lb oljetryck
  • Satsen innehåller Feuling Race Series oljepump med hög volym och High Flow kamplatta
  • Innehåller Reaper Series 594 konverteringskamaxlar och justerbara Quick Install-stötstänger
  • Inkluderar Race Series hydrauliska rulllyftare med kort fjädringsväg och stötstångsrör i krom
  • Levereras komplett med kedjespännare, kedjehjul, kamkedjor, Timken-lager, ARP-bultar och packningar
  • Tillverkad i USA

Passar inte '06 Dyna. 594-kamaxlar kräver högpresterande ventilfjädrar, stötstänger, lyftare, modifiering av förgasare/spjällhus samt uppgraderat avgassystem, insug och koppling. Större cylindervolym svarar bra på ökat kompressionsförhållande, och för mindre cylindervolym är det ett krav.

Passar: Twin Cam 99-06

Race Series Conversion Chain Drive Camchest Kit

  • Updates old mechanical style cams and tensioners to new hydraulic tensioner system
  • Eliminate wet sumping, blowby and oily air cleaners
  • All parts work and function together in total harmony
  • 25°-35° cooler engine temperatures
  • 15°-30° cooler oil temperatures
  • 15 lb - 30 lb of oil pressure
  • Kit includes Feuling Race Series high volume oil pump, high flow camplate, REAPER Series conversion camshafts, Race Series hydraulic roller lifters, Quick install adjustable pushrods, sprockets, hydraulic tensioners pads and housings, chains, spacers, Timken bearings, gaskets, O-rings, hardware, ARP fasteners, washers, moly lube and Loctite
  • Made in the USA
  • Does not fit '06 Dyna.
  • '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals allowing the use of the '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation.
  • FOR HYDRAULIC CHAIN TENSIONER CONVERSION UPGRADE FEULING complete camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #
  • These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony
  • These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable
  • Fitments available for '99-'17 Twin Cam engines
  • Fiercely performing camshaft for an array of engines sizes, large displacement 103", 110" & 124" engines looking for a superior torque band with excellent horsepower gains in heavy bikes (RPM 2,200
  • 6,250.) Smaller high revving displacement 95" style engines in lighter bikes looking to twist the throttle and tap into some horsepower (RPM 2,500
  • 6,800)
  • Large displacements respond well to increased compression ratio and smaller displacements will require it
  • 594 cams require high performance valve springs, pushrods, lifters, carburetor and or throttle body work, performance exhaust, intake and clutch
  • Note: Special Order Product only
  • To order please contact your MCS sales representative

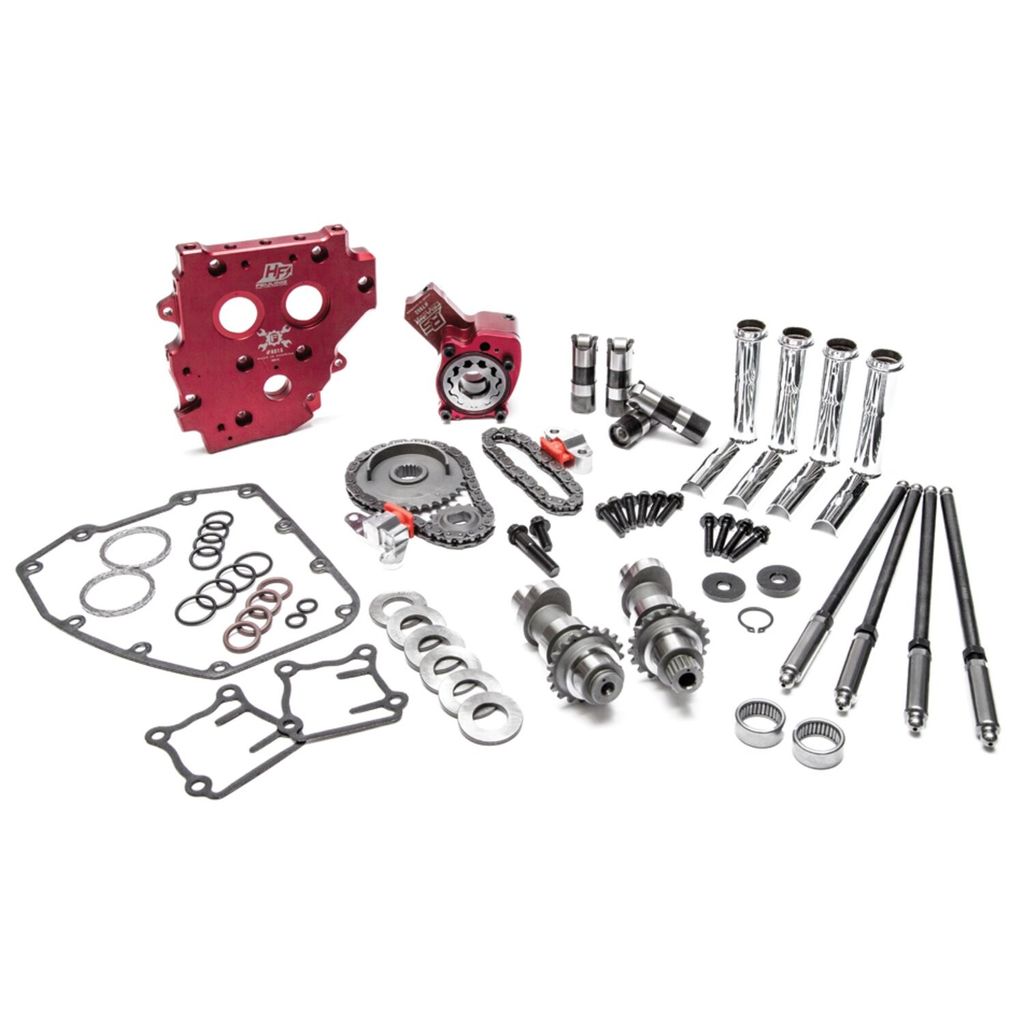

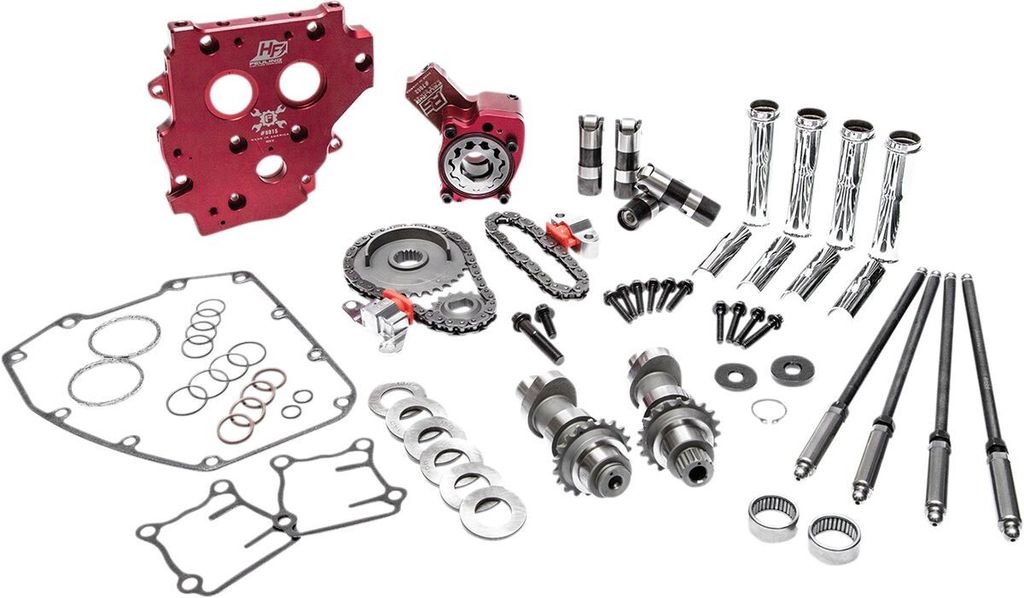

Includes: • Race Series High Volume Oil Pump • High Flow Camplate • Reaper Series 594 Conversion Camshaft • Race Series Short Travel Hydraulic Roller Lifters • Quick Install Adjustable Pushrods • Chrome Pushrod Tubes • Outer Tensioner Pad and Housing • Inner Tensioner Pad and Housing • Crank Sprocket • Cam Sprocket with Timing Tab • ARP Camplate/Oil Pump Fasteners • Sprocket Spacers • Inner Cam Chain • Outer Cam Chain

Fits: 99-06 Twin Cam (Excl. 2006 Dyna), Conversion chain drive cams, 594 Reaper camshafts #1019, Crank sprocket #1091, Cam sprocket with timing tab #1094, Cam install kit #2063, RACE SERIES Short Travel Lifters #4050ST,Quick Install Adjustable Pushrods #4096, Chrome pushrod tubes #4095, RACE SERIES oil pump #7062, High Flow camplate #8015, ARP Camplate/Oil Pump Fasteners #8020, Sprocket spacers #8041, Inner cam chain #8060, Outer cam chain #8061, Outer tensioner pad and housing #8075, Inner tensioner pad and housing #8076.
