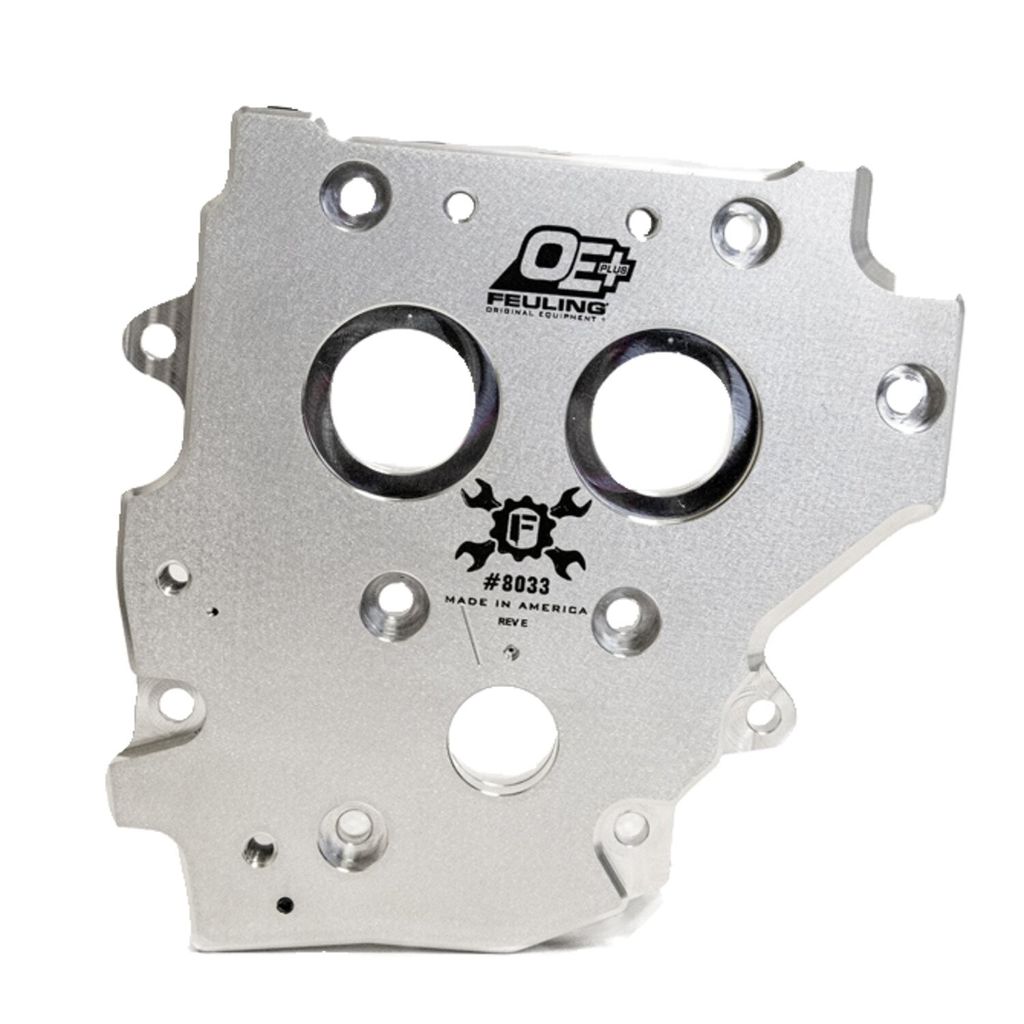

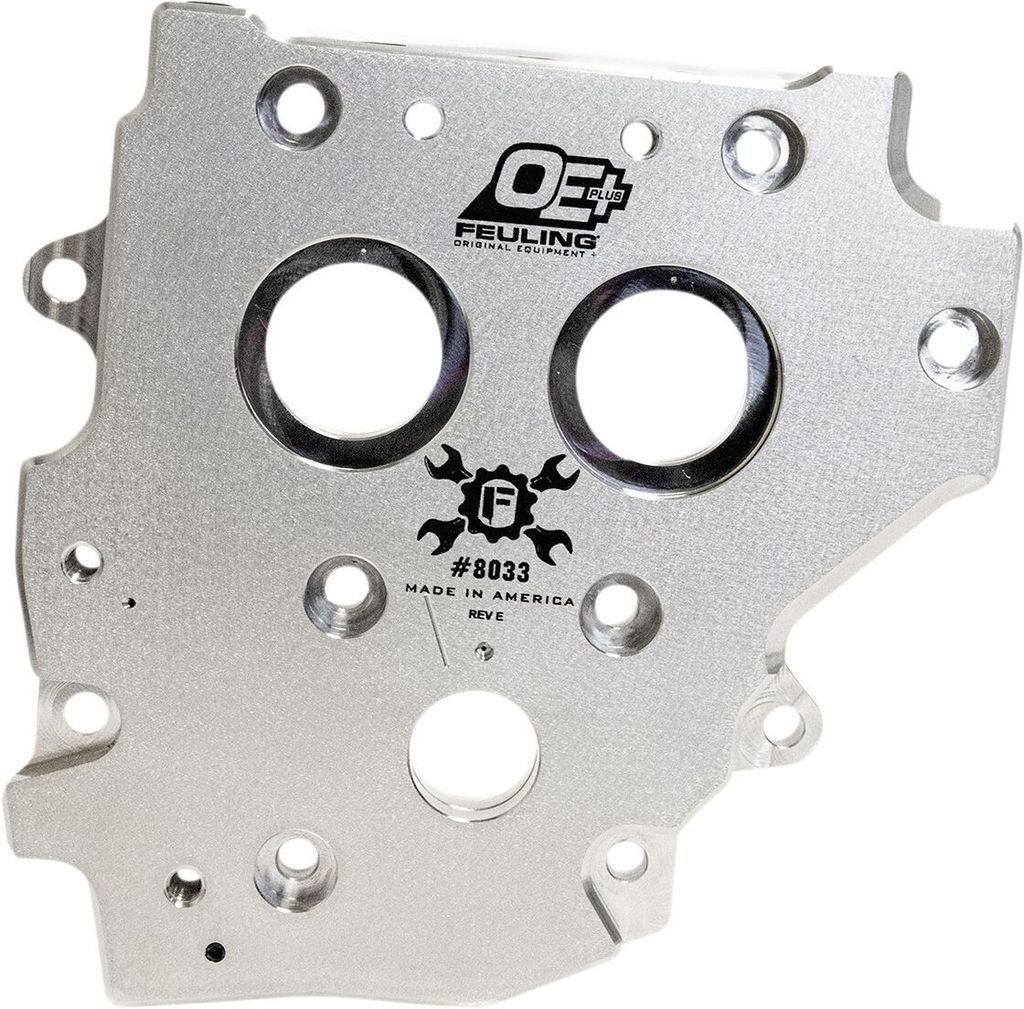

Kamplatta Feuling OE+ kugghjuls- eller kedjedrift H-D 06-17

4 210 kr

Kamplatta i 6061-aluminium från Feuling Parts
Läs mer

09250842 Feuling
  • Tillverkad i billetfräst 6061-aluminium för ökad styvhet
  • Direkt ersättning för original med snävare tolerans i kamlagringarna
  • Förinställd övertrycksventil och fjäder med öppningstryck på 50-60 psi
  • Extra oljespår och oljehål fram och bak vid kamlagringarna för bättre smörjning vid kallstart och minskat axialslitage
  • Utformad för original kedjesträckarsystem med kamaxlar av 99-06 Twin Cam-typ
  • Fungerar med både original kedjedrivning och eftermarknadskuggdrivning
  • Passar med original oljepump med 07-17 bultmönster samt Feuling oljepumpar: 707380, 566076, 707384 (0932-0090, 0932-0023, 0932-0026)
  • Inkluderar lagerhållarplatta och monteringshårdvara, tillverkad i USA

Kuggdrivna kamsystem kräver täckplattor (se Feuling 566113).

Passar: H-D 06-17

OEM-nr: 25355-06

Material Aluminum
Färg Aluminum
Produkt-typ Cam Plate
Tillverkarens Art. Nr. 8033

OE+ Camplate

  • FEULING OE+ stock replacement billet camplates are manufactured from 6061 aluminum, providing increased rigidity and machined to FEULING's high tolerance standards
  • Pressure relief valve and spring are pre-set, matched and seated by FEULING with a full pop-off pressure of 50-60 psi
  • Designed to use the factory tensioner system with the original '99-'06 Twin Cam style camshafts
  • Added cam journal oil groove for cold start up protection and increased cam journal lubrication
  • OE+ camplates are a direct bolt-in replacement and will accept the factory oil pump
  • Added oil pressure feed holes to front and back of cam
  • Camplate includes bearing retainer plate and hardware
  • Made in the USA
  • OEM replacement reference 25355-06
  • For both stock chain and aftermarket gear drive for use with stock 07-17 style oil pumps, and Feuling oil pumps: 707380, 566076, 707384
  • Note: Gear drive cam systems require block off plates - see Feuling 566113
  • As with all Feuling components, the competitively priced OE+ cam plates are designed and manufactured to the highest standard of quality with proven Feuling performance
  • Added oil pressure feed holes to front and back of cam journals to prevent excessive thrusting wear

Gear drive cams requires block off plates. Has a tighter cam journal bore tolerance for improved fitment. For use with factory and or any Twin Cam oil pump with '07-'17 bolt pattern. Compatible with Feuling oil pump: 0932-0090, 0932-0023, 0932-0026.

Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
