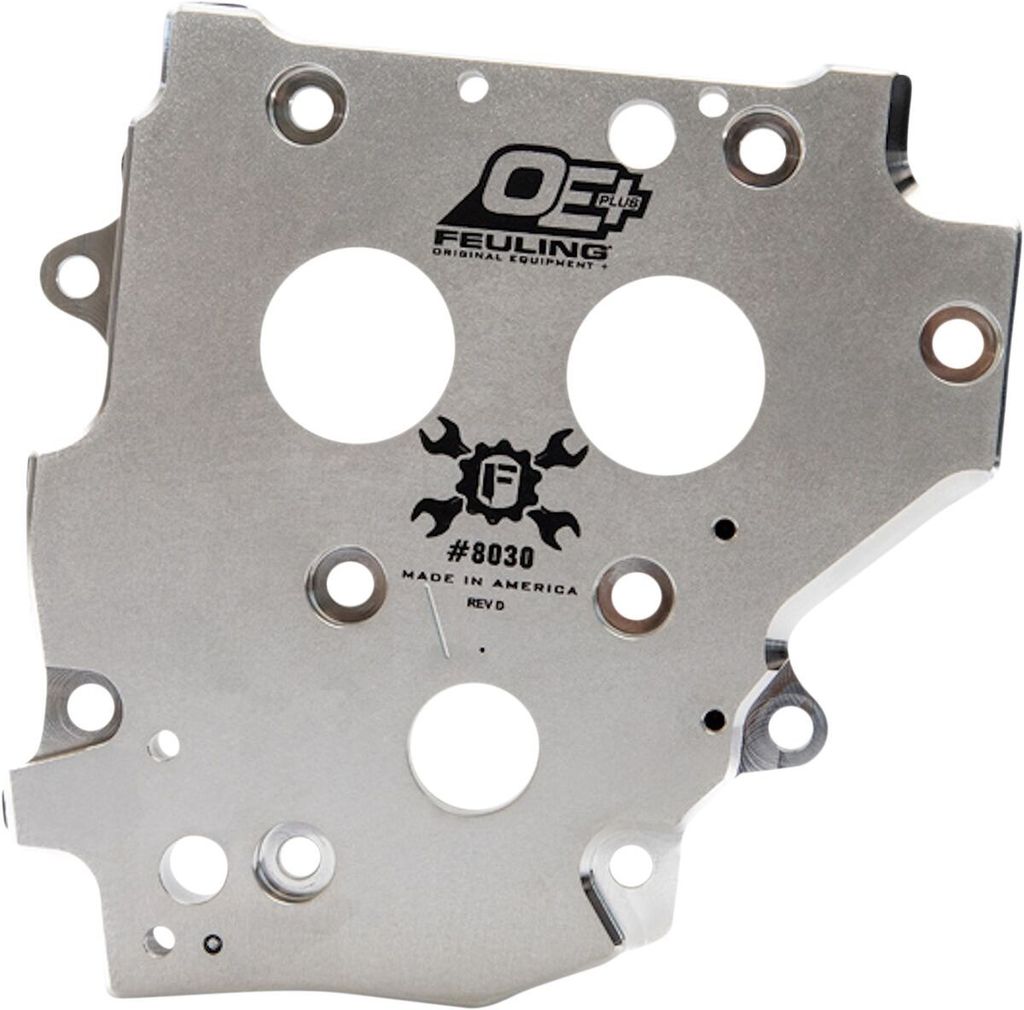

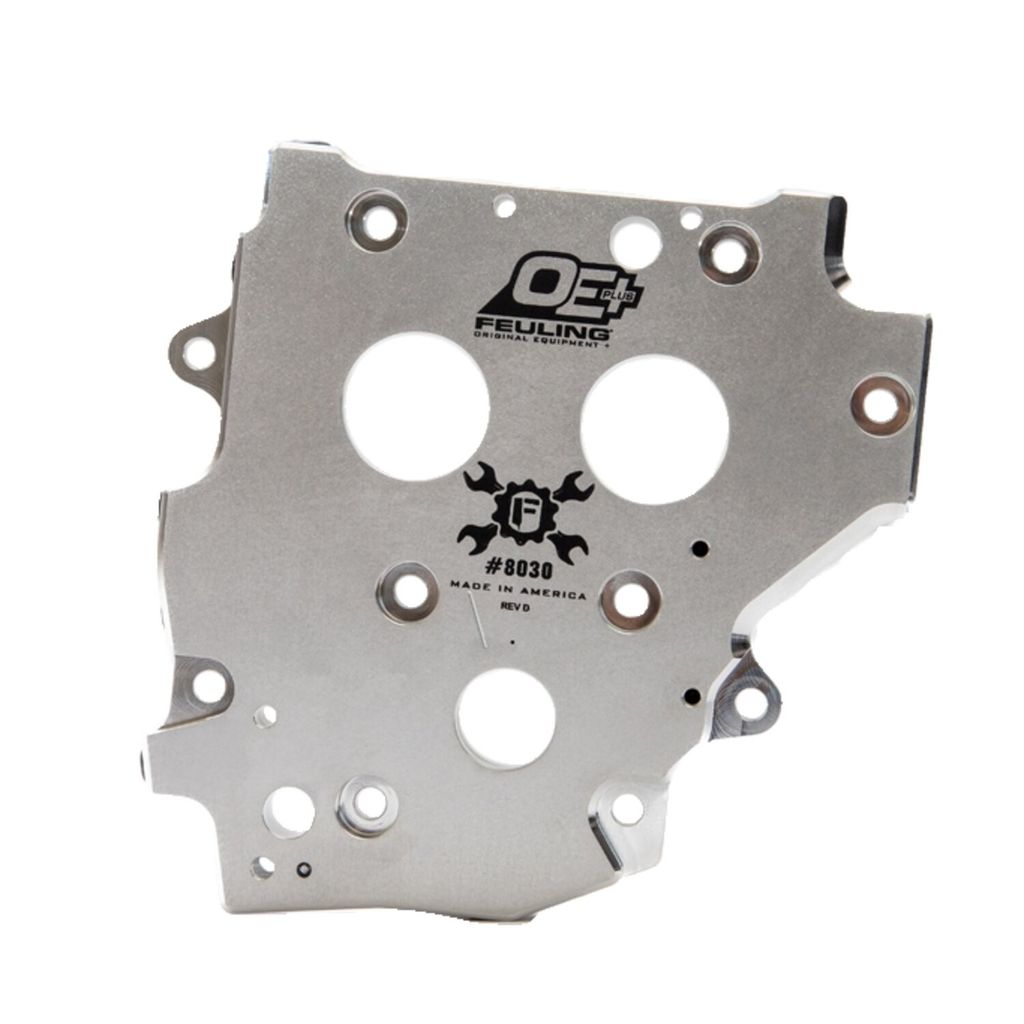

Kamplatta Feuling OE+ kugghjulsdrift H-D 99-06

4 210 kr

Feuling Parts OE+ kamstödsplatta för drevdrivning
Läs mer

09250839 Feuling
  • Tillverkad i billetfräst 6061-aluminium för ökad styvhet och med snäva toleranser
  • Tätare tolerans för kamlagrets hål för förbättrad presspassning
  • Förinställd och matchad övertrycksventil och fjäder med fullt öppningstryck på 50–60 psi
  • Extra oljespår vid kamtapparna för ökad smörjning och skydd vid kallstart
  • Extra matningshål för oljetryck på fram- och baksida av kammen
  • Direkt ersättning för original som fungerar med originaloljepump
  • Levereras med kamstödsplatta, lagerhållarplatta och monteringshårdvara
  • Tillverkad i USA

Passar inte '06 Dyna. Avsedd för användning med fabriksoljepump eller valfri Twin Cam-oljepump med '99-'06 bultmönster. Kompatibel med Feuling oljepumpar: 566075, 707377, 707381 (0932-0018, 0932-0089, 0932-0020).

Passar: H-D 99-06

OEM-nr: 24607-99

Färg Silver
Material Aluminum
Tillverkarens Art. Nr. 8030
Produkt-typ Cam Plate

OE+ Camplate

  • FEULING OE+ stock replacement billet camplates are manufactured from 6061 aluminum, providing increased rigidity and machined to FEULING's high tolerance standards
  • Pressure relief valve and spring are pre-set, matched and seated by FEULING with a full pop-off pressure of 50-60 psi
  • Designed to use the factory tensioner system with the original '99-'06 Twin Cam style camshafts
  • Added cam journal oil groove for cold start up protection and increased cam journal lubrication
  • OE+ camplates are a direct bolt-in replacement and will accept the factory oil pump
  • Added oil pressure feed holes to front and back of cam
  • Camplate includes bearing retainer plate and hardware
  • Made in the USA
  • OE+ cam support plate. Gear Drive
  • As with all FEULING components, the competitively priced OE+ cam plates are designed and manufactured to the highest standard of quality with proven FEULING performance
  • Compatible Feuling oil pumps: 566075, 707377, 707381

Not for '06 Dyna. Has a tighter cam bearing bore tolerance for improved press fit. For use with factory or any Twin Cam oil pump with the '99-'06 bolt pattern. Compatible with Feuling oil pumps: 0932-0018, 0932-0089 and 0932-0020. Includes: • Camplate • Plate Bearing Retainer • Hardware

Fits: 99-06 Twin Cam (excl. 2006 Dyna) with aftermarket gear drive cams (NU)
