Kamaxel Feuling Parts Reaper 594 H-D 06-17 1304

6 830 kr

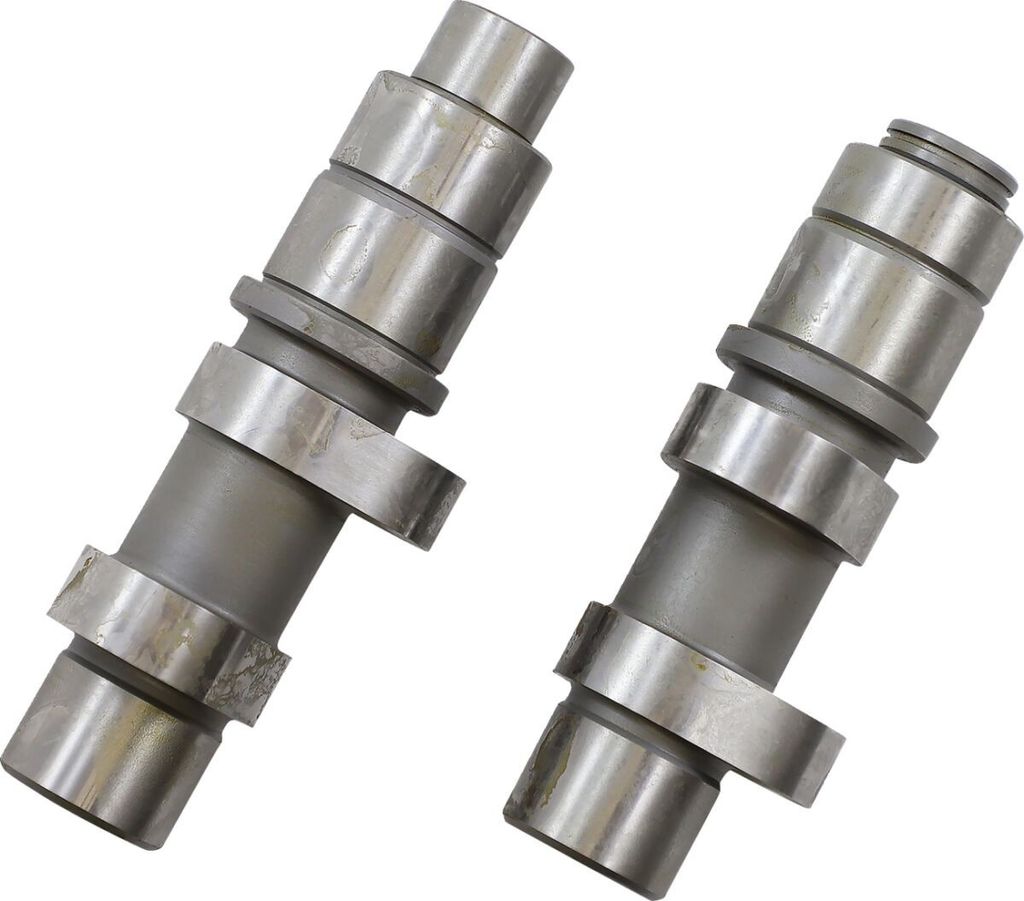

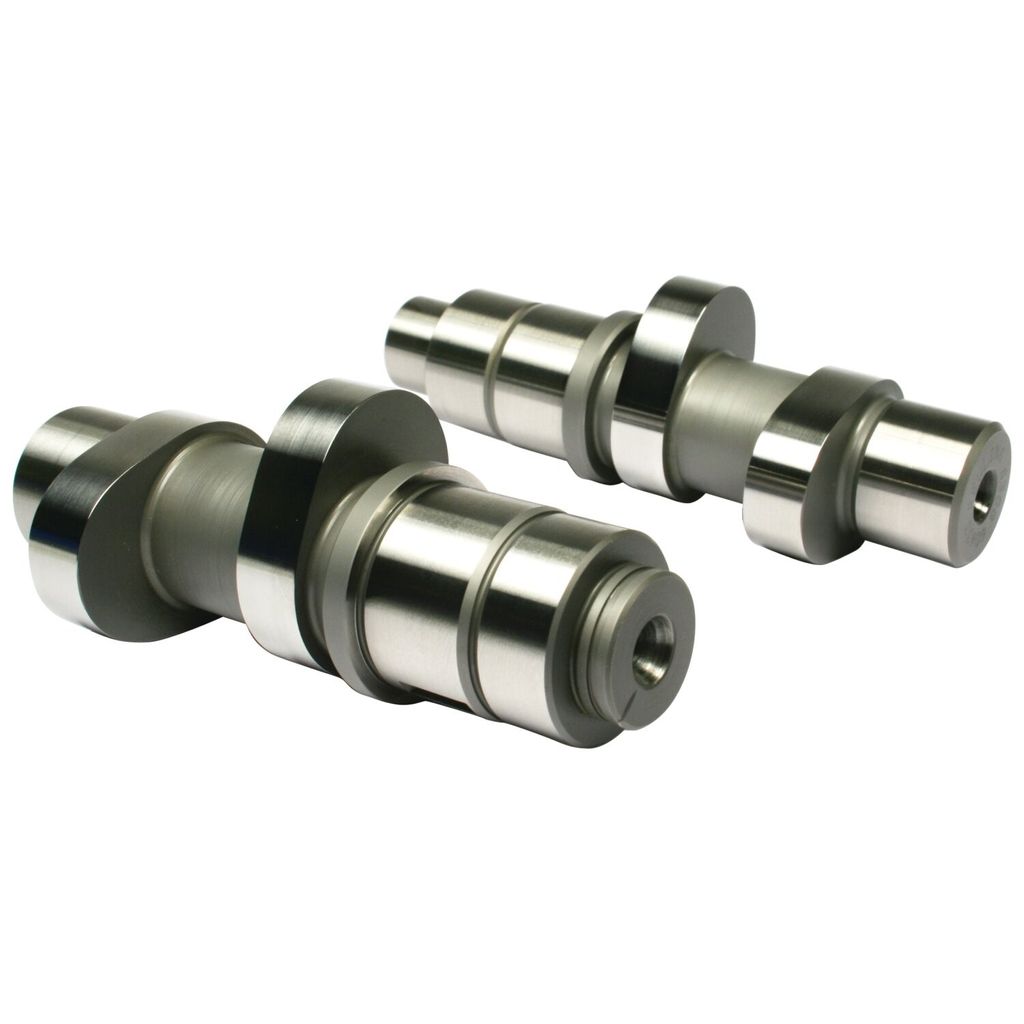

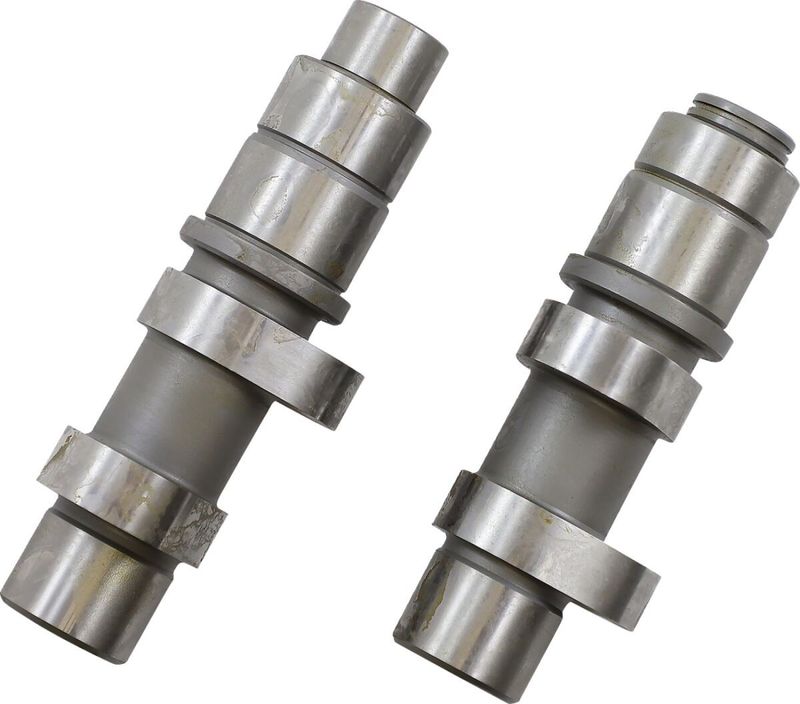

Feuling Reaper 594G kugghjulsdrivet kamaxelkit
Läs mer

09250728 Feuling
  • Reaper 594G kamaxelkit för kugghjulsdrift (gear drive)
  • Effektregister 2200–6250 rpm för större cylindervolym (103", 110" och 124")
  • Effektregister 2500–6800 rpm för mindre, mer högvarviga motorer runt 95"
  • Levereras utan inre och yttre drev
  • Enkel presspassningsmontering
  • Tillverkat i USA

Kräver högprestandaventilfjädrar, justerbara stötstänger, lyftare, modifierad förgasare/spjällhus, prestandaavgassystem, insug och koppling. Större motorer svarar bra på högre kompressionsförhållande, medan mindre motorer kräver det. Drev köps separat (drev från befintlig installation, Andrews eller S&S kan återanvändas, alternativt köps S&S 531264) samt täckplattor 566113 för att plugga oljehål från hydrauliska kedjesträckare.

Passar: H-D 06-17

Produkt-typ Camshaft
Tillverkarens Art. Nr. 1304

Reaper 594 Cam

  • Fierce performing camshaft for an array of engine sizes, large displacement 103", 110" and 124" engines looking for a superior torque band with excellent horsepower gains in heavy bikes (2200-6250 rpm)
  • Smaller high-revving displacement 95" style engines in lighter bikes looking to twist the throttle and tap into some horsepower (2500-6800 RPM)
  • Large displacements respond well to increased compression ratio and smaller displacements will require it
  • 594 cams require high-performance valve springs, pushrods, lifters, carburetor or throttle body work, performance exhaust, intake and clutch
  • Made in the USA
  • Reaper gear driven 594G camshaft set
  • Camshafts come without inner & outer drive gears
  • Note: These high lift cams come with smaller base circles and will therefore require adjustable pushrods to compensate for the additional length required
  • Note: Gears must be purchased separately
  • Installation is a simple press-on installation
  • If you have gears from your current, Andrews or S&S gear drive cam, these can be re-used or a new S&S set (531264) purchased
  • Note: Block-off plates 566113 are sold separately
  • These are required to block-off oil holes for hydraulic chain tensioners when gear driven cams are installed

Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
