Kamplatta Feuling High Flow kedjedrift H-D 99-06

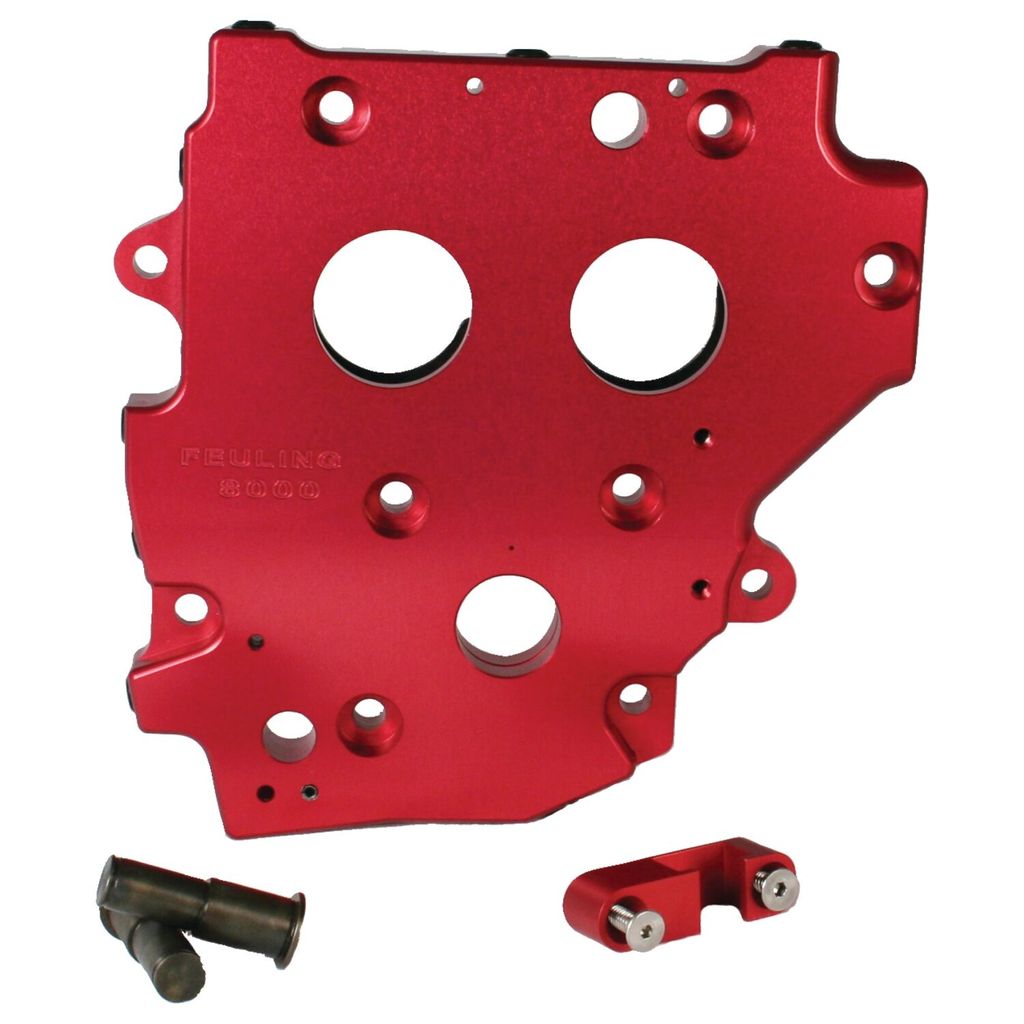

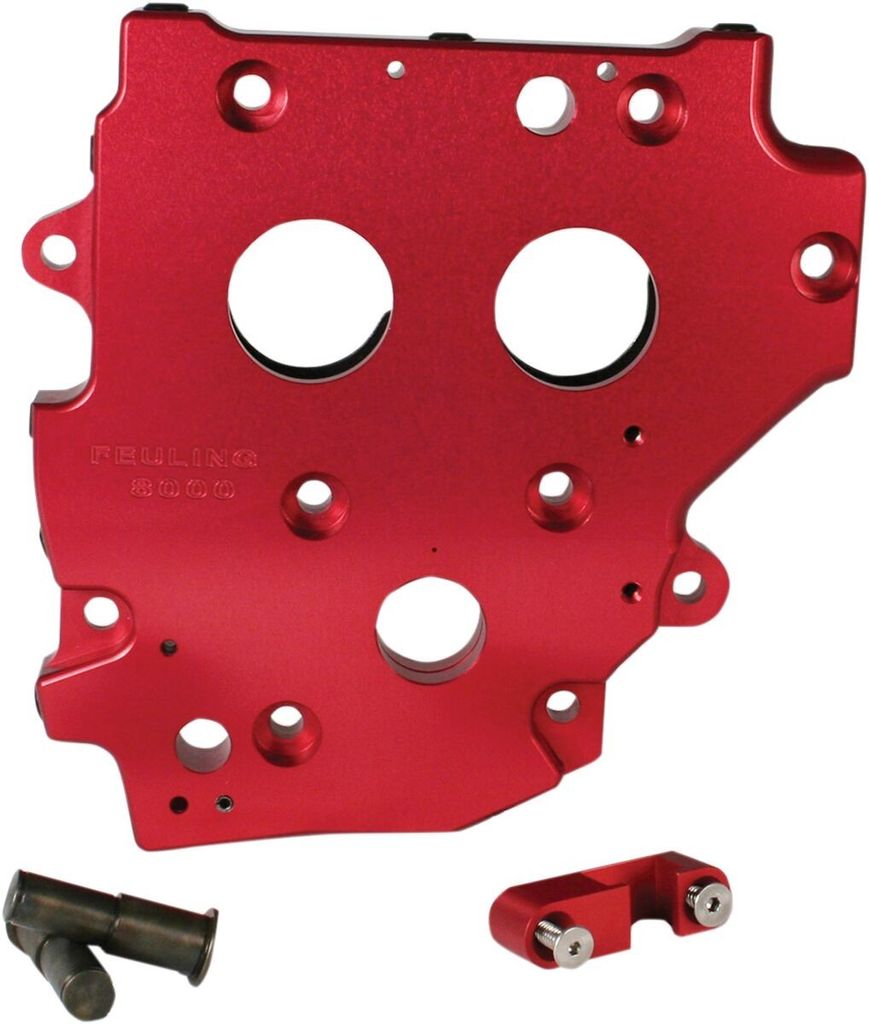

Feuling High Flow kamstödsplatta för original kedjedrivna kamaxlar
Läs mer
- Tillverkad i USA av 7075 fräst aluminium som är 50 % hårdare och starkare än original
- Ökar oljeflöde och volym genom förstorade oljereservoarer och kritiska oljekanaler
- Sänker motortemperaturen med 25°–35° och oljetemperaturen med 20°–30°
- Trycktestad med övertrycksventil inställd på att öppna vid 55–60 psi
- Extra oljespår och tryckmatningshål vid kamtapparna för bättre smörjning och minskat slitage
- Tätare toleranser för kamlagrens passning (Twin Cam 99–06)
- Monteringsdetaljer för lager och fästplatta samt spännarstift och styrningsdetaljer (566108) ingår
Passar endast med Feuling oljepump (HP+ 566075 eller Race Series i 99–06-utförande), passar inte med originalpump eller pumpar från andra tillverkare. Utformad för original kedjesträckarsystem och kamaxlar i original Twin Cam 99–06-stil. Ej för 06 Dyna.
Passar: H-D 99-06
| Material | Aluminum |
| Färg | Red |
| Produkt-typ | Support Plate |
| Tillverkarens Art. Nr. | 8010 |
High Flow Camplate
- Camplate matches the oil portholes throughout the camplate to the port holes in the engine case increasing engine oil flow throughout the engine
- Camplates are pressure tested and pressure relief valve is seated, sealed and set to pop off at 55-60 psi
- Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages
- 25°-35° cooler engine temperatures and 20°-30° cooler oil temperatures
- When matched with the Feuling Race Series oil pump rear wheel power gains of 3 horsepower and 4ft/lbs of torque can be achieved
- Added cam journal oil groove for cold start up protection and increased cam journal lubrication
- Oil pressure feed holes to front and back of cam journals to prevent excessive thrusting wear
- Bearing and retainer plate hardware is included
- Made in the USA
- For use only with Feuling oil pumps.
- For stock chain drive camshafts
- Must be used with 566075 Feuling HP+ oil pump
- Enlarged oil pump reservoir, critical oil passages and precision matched oil port holes increase oil flow to lifters, piston cooling jets, crank shaft and connecting rod bearings
- Made from 7075 billet aluminum, which is 50% harder & stronger than the Factory cam support plate
- Will fit not stock or other manufacturers pumps
- Note: Includes 566108 Feuling cam chain guide tower & tensioner pin kit
Camplates for '99-'06 Twin Cam (except 06 Dyna) have tighter cam bearing bore tolerances for improved press fit. Requires the use of '99-'06 style Feuling HP+ or Race Series oil pump. Includes tensioner pins and guide hardware. Camplate is designed to use factory tensioner system with original '99-'06 Twin Cam style camshafts. Not for '06 Dyna.
Fits: 99-06 Twin Cam (Excl. 2006 Dyna) (NU)
