Konverteringssats hydrauliska kedjespännare kamplatta Feuling OE+ H-D 99-01
OE+ konverteringssats för hydraulisk kamkedjespännare från Feuling Parts
Läs mer
- Konverteringssats för montering eller byte till hydrauliska kamkedjespännare
- Tillverkad i USA

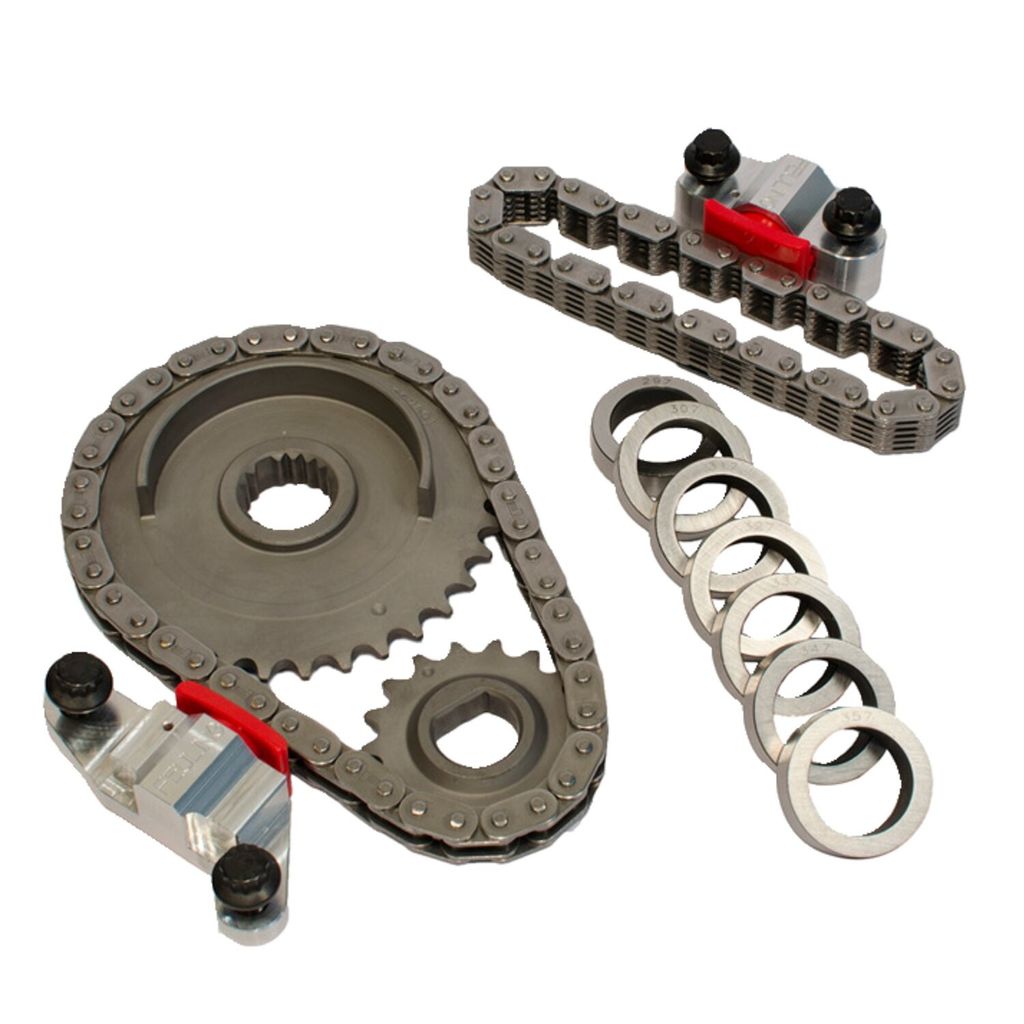

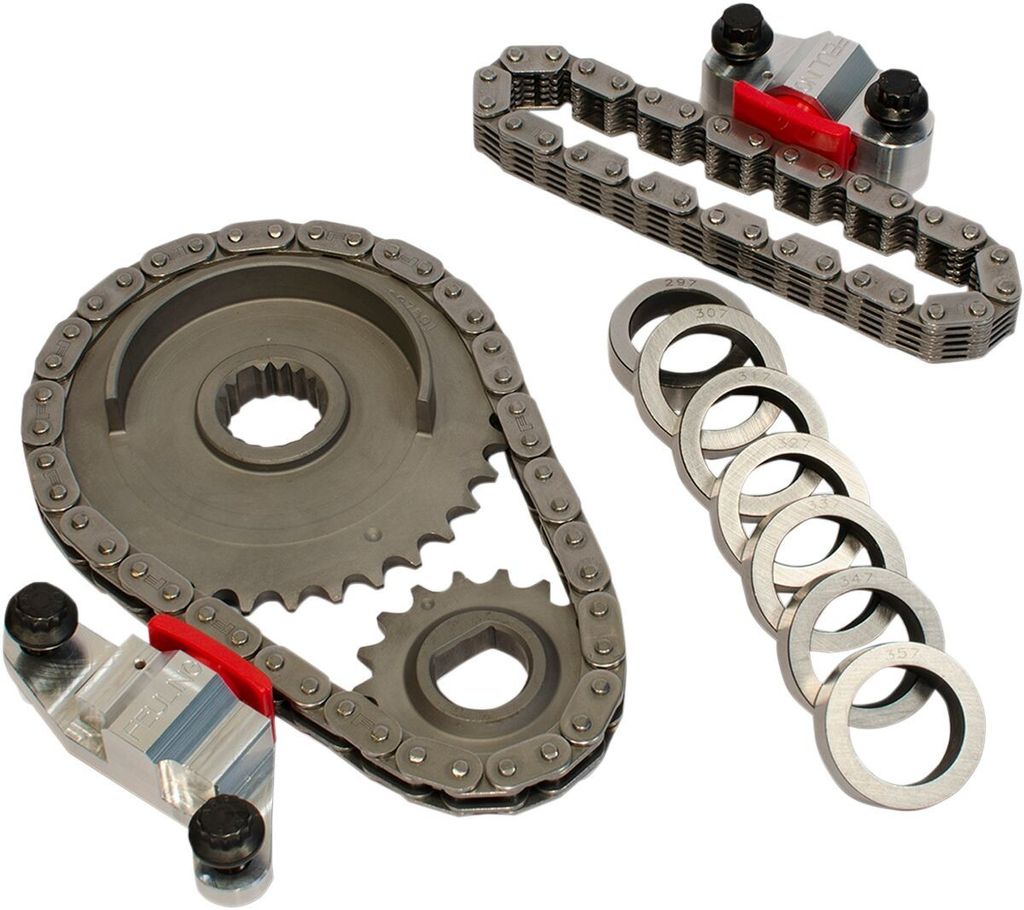

- Satsen innehåller inre och yttre kamkedjor samt inre och yttre hydrauliska spännarenheter
- Innehåller yttre vevaxeldrev (17 tänder) och yttre kamaxeldrev (34 tänder med timing-flik)
- Inkluderar distanssats för inriktning av kamaxel (0.297", 0.307", 0.317", 0.327", 0.337", 0.347" och 0.357")
- Kompatibel med Feuling OE+ (0932-0094/707401), HP+ (0932-0071/566085) och Race Series (0932-0072/707396) konverteringskamplatta/oljesystem
Avsedd för modeller med Magneti Marelli-tändsystem samt förgasarförsedda Twin Cam-motorer med kamlägessensor (cam position sensor), splinesförsedda kamaxlar av originalstil och konverteringskamplatta. Fungerar inte med kamaxlar med kilspår (keyway).
Passar: H-D 99-01
OEM-nr: 25284-11, 25675-06, 25607-99, 25673-06, 39968-06, 39969-06, 25285-08
| Produkt-typ | Tensioner Conversion Kit |
| Tillverkarens Art. Nr. | 8082 |
OE+ Hydraulic Cam Chain Tensioner Conversion Kit
- This kit is designed for installing or replacing hydraulic cam chain tensioners on stock '07-'17 Twin Cam, including '06 Dyna and '99-'06 camchest kits using conversion cam or conversion camplates
- Whether using a Feuling camchest kit with conversion camshafts, Feuling conversion camplate oiling system with stock style '99-'06 camshafts and or conversion camshafts with a combination of factory, SE, Delkron or S&S oiling systems, this kit offers endless combinations
- Kit includes cam and crank sprockets, sprocket alignment spacers, inner and outer cam chains, inner and outer hydraulic tensioner assemblies
- Made in the USA
- Designed to work with OE+ conversion camplate oiling systems: Part OE+ 0932-0094, Race Series 0932-0072, and HP+ 0932-0071. Screamin' Eagle conversion camplate oiling system: OEM 25284-11.
- Will not work on keyway camshafts.
- Compatible with Feuling OE+ 707401, HP+ 566085 and Race Series 707396 conversion cam plate oiling systems, allows installation of Feuling's conversion camshafts
- For use on 99-01 Magneti Marelli equipped ignition system and 99-00 carbureted Twin Cam engines w/cam position sensor, stock style splined camshafts and Conversion Cam plate which allows use of hydraulic tensioner system Kit is designed to work with: FEULING conversion cam (99-01plate oiling systems: OE+ 707401, HP+ 566085, RS #707396 Note: Will NOT work on keyway camshafts Note: See conversion style camshafts Feuling 707505, 707506 Feuling Part #707251 Includes the following Feuling components: 1 -# 8061 Outer chain 'New style' (H-D 25675-06) 1- # 8062 Inner chain 'Old Style' (H-D 25607-99) 1 -# 1091 Outer crank sprocket 17 tooth (H-D 25673-06) 1- # 1094 Outer cam sprocket 34 tooth *Special sprocket with timing tab 1 - # 8075 Outer hydraulic tensioner unit (H-D 39968-06) 1 - # 8076 Inner hydraulic tensioner unit (H-D 39969-06) 1 - #8040 Cam spacer kit, thicknesses: 0.297", 0.307", 0.317", 0.327", 0.337", 0.347", 0.357". (HD #25285-08)
For use with original '99-'06 cams and conversion camplate on '99-'01 models with cam position sensor. Includes: • 1x Outer Chain • 1x Inner Chain • 1x Outer Crank Sprocket 17 Tooth • 1x Outer Cam Sprocket 34 Tooth (Special Sprocket with Timing Tab) • 1x Outer Hydraulic Tensioner Unit • 1x Inner Hydraulic Tensioner Unit • 1x Spacer Kit Includes: • 1x 0.297" Spacer for Cam Alignment (use as required) • 1x 0.307" Spacer for Cam Alignment (use as required) • 1x 0.317" Spacer for Cam Alignment (use as required) • 1x 0.327" Spacer for Cam Alignment (use as required) • 1x 0.337" Spacer for Cam Alignment (use as required) • 1x 0.347" Spacer for Cam Alignment (use as required) • 1x 0.357" Spacer for Cam Alignment (use as required)
Fits: 99-00 Twin Cam; 2001 FLT (NU)
