Olja Feuling Parts H-D 06-17
Komplett högprestandakit för oljesystem från Feuling
Läs mer

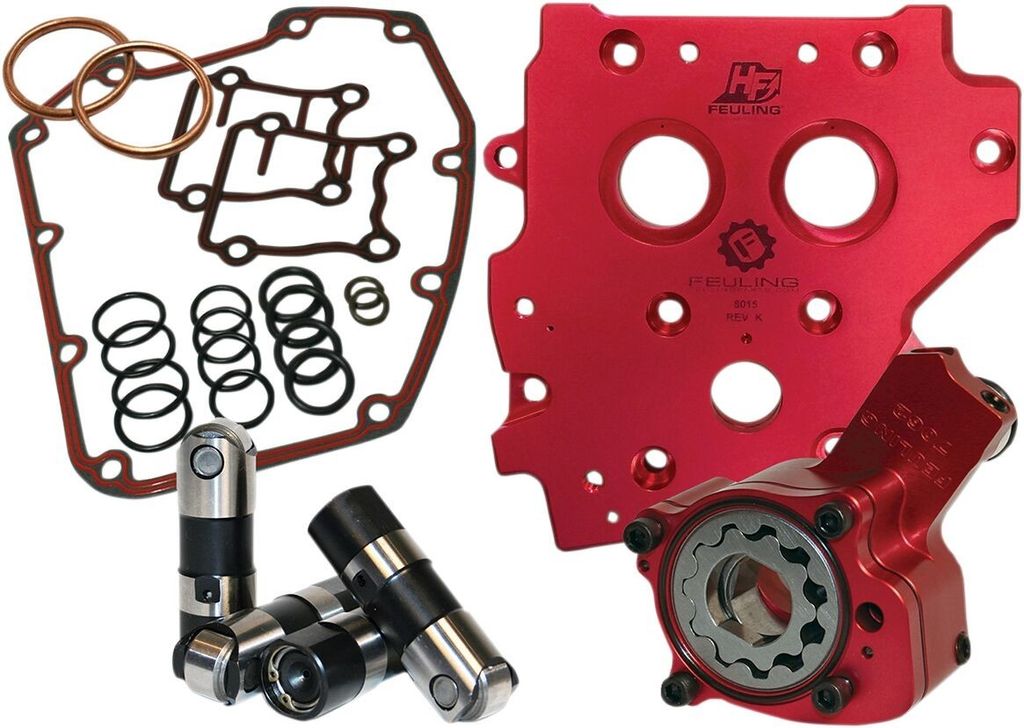

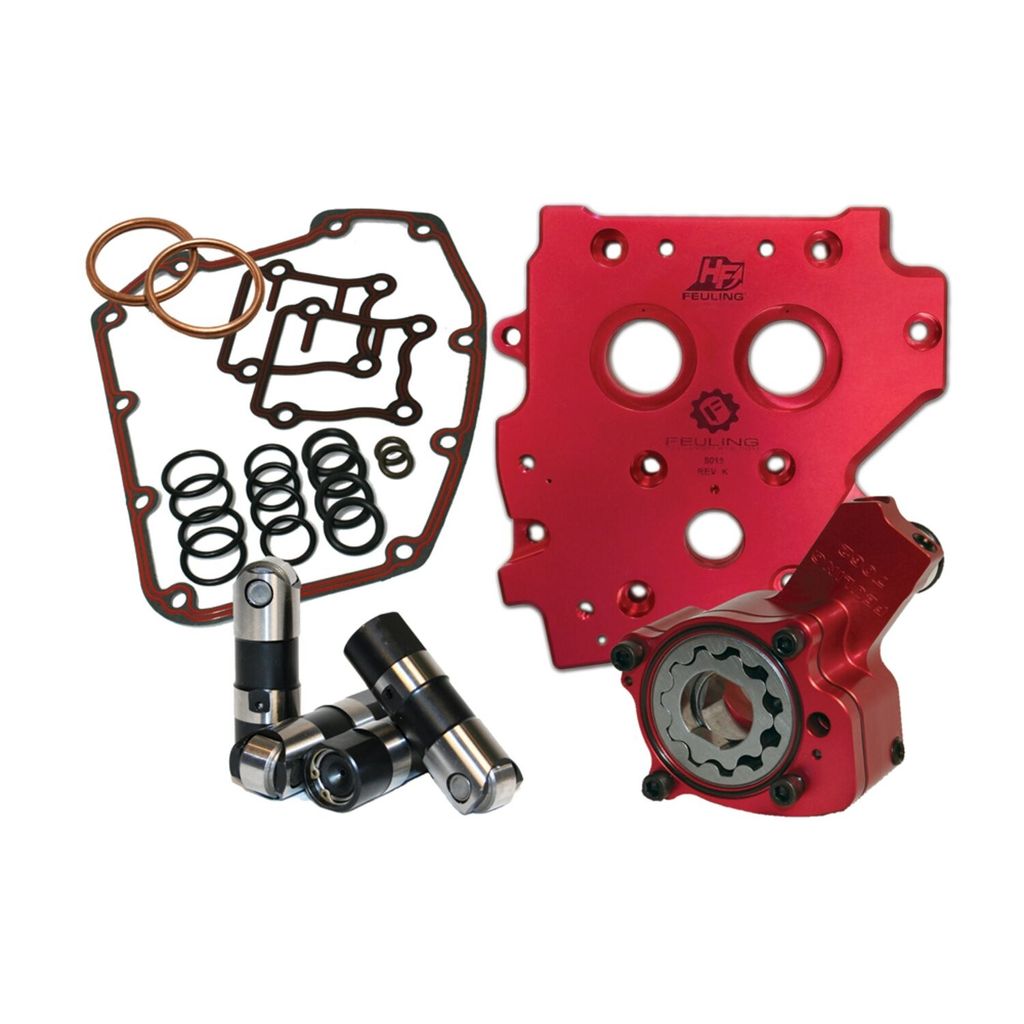

- Innehåller oljepump, kamplatta, hydrauliska lyftare samt packningssats och O-ringssats
- Oljepump tillverkad i hårdanodiserad billet 7075-aluminium som är 50 % hårdare och starkare än original
- Ökar oljetryck, oljevolym och retursugning för att eliminera wet sumping och oljiga luftfilter
- Race Series hydrauliska lyftare med .200" fjädringsväg och långsammare bleed down-hastighet
- Sänker motortemperaturen med 25–35 grader och oljetemperaturen med 15–30 grader
- Ger 15–30 pund högre oljetryck, tystare motorgång samt ökar effekten med upp till 3 hk och 4 ft/lbs i vridmoment
- Kompatibel med original kamkedja eller eftermarknadssystem med kugghjulsdrift
Modeller från 1999–2001 med Magneti Marelli-tändning kräver bakre kamkedjehjul. Vid användning av kamaxlar med kugghjulsdrift krävs separat täckplattssats (artikelnr 566113 eller 0932-0036). Feuling x ARP bultsats för oljepump och kamplatta finns som tillval (artikelnr 2401-0993).
Passar: H-D 06-17
| Material | Aluminum |
| Färg | Aluminum- Red |
| Produkt-typ | Oil System |
| Tillverkarens Art. Nr. | 7075 |
Race Series Oil System Performance Pack
- Combine all the needed components to finish your T/C engine's oiling system
- Kit increases oil pressure, oil volume, engine oil flow and return oil scavenging, eliminating wet sumping and oily air cleaners; test results show 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more lbs of oil pressure and quieter smoother engine operation; results also show a substantial increase of oil pressure and 3 H.P. and 4 ft/lbs. of torque to the rear wheel
- Billet 7075 aluminum oil pump is 50% harder and stronger than the factory pump; holds tighter tolerances under temperature
- Includes full-travel hydraulic lifters
- Race Series full-travel hydraulic lifters have a full .200” of total travel designed with a slower bleed-down rate to handle very heavy valve spring pressures, increase engine rpm before valve float and have increased roller clearance for steep ramped camshafts
- The travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes
- '99-'01 models with Magneti Marelli ignition require rear cam sprocket.
- Optional Feuling x ARP oil pump/camplate bolt kit available PART #2401-0993.
- Compatible with stock chain or aftermarket gear drive cam systems
- With Standard Travel lifter set
- Kit include all to give your bottom end a fresh start
- Oil pump, cam plate, lifter assembly / tappet assembly and gasket set
- Great upgrade and a perfect base when installing a set of performance cams
- Note: Gear drive camshafts require separate purchase of block off plates part 566113
- Oil is the Life Blood of your Engine!
- FEULING increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the cam plate to the port holes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings. -HP+ SERIES Kits include a billet 6061 aluminum high volume oil pump, FEULING HIGH FLOW cam plate, HP+ Hydraulic roller lifters, gaskets and O-ring kit. -RACE SERIES Kits include a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature
- CONVERSION CAMPLATE Kits #566085 & #707396 utilize the early style '99-'06 camshafts and upgrade the cam chain system to use the late style '07-'17 hydraulic tensioner system. 'Factory' sprockets, tensioners, chain and hardware purchased separately. #707394 ² ’07–’12 Twin Cam + 2006 Dyna Models Race Series – Gear & Chain (Part #’s: 566126, 707361, 707384, 566081). ² Gear drive cams require block off plates see Feuling #566113
- Note: Special Order Product only
- To order please contact your MCS sales representative
Gear Drive cam systems require block-off plate kit PART #0932-0036.
Fits: 06-17 Dyna; 07-17 Softail; 07-16 Touring (NU)
