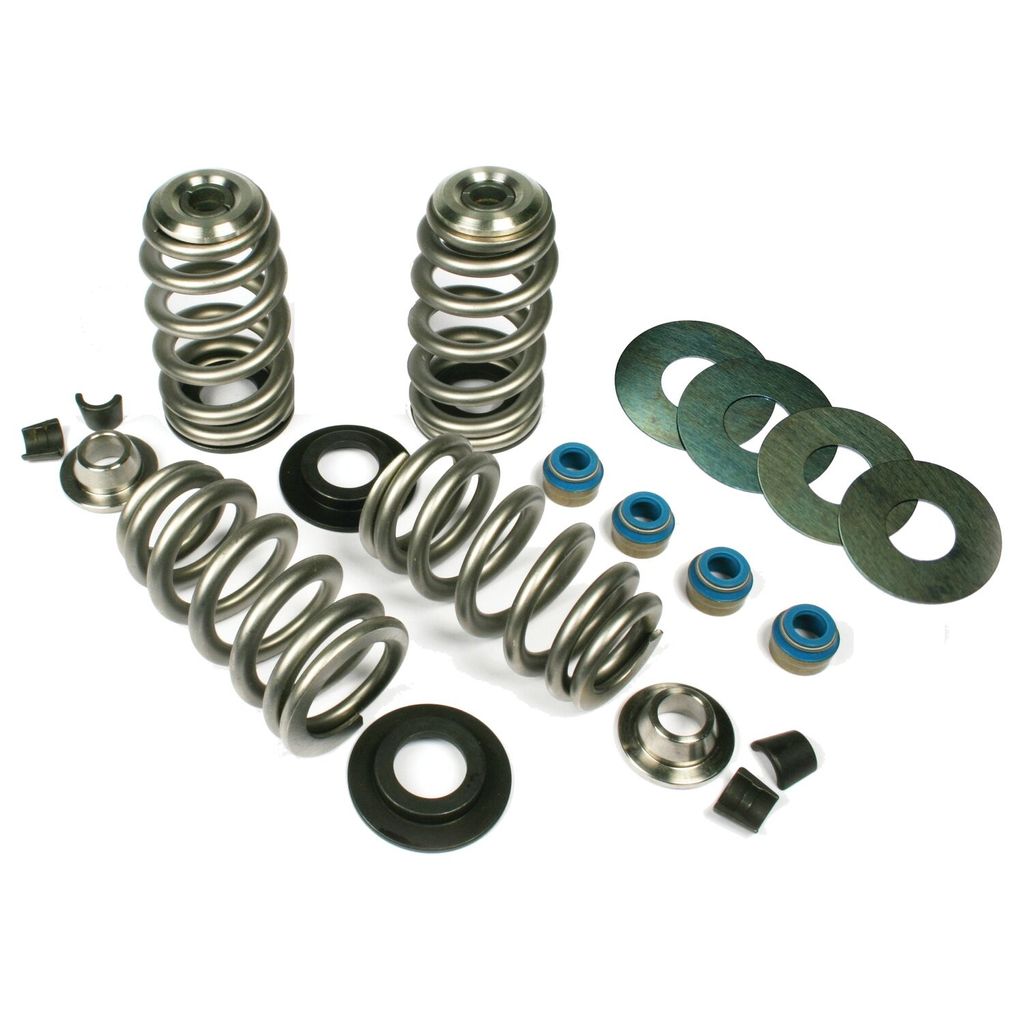

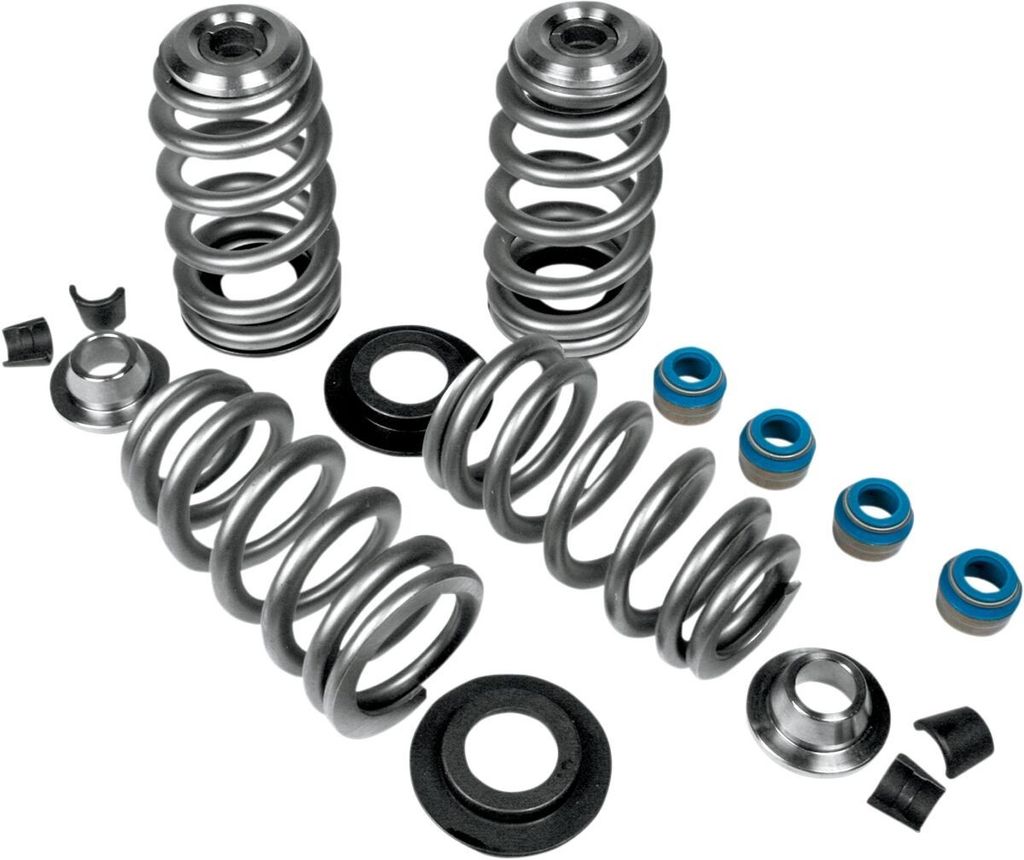

Ventilfjädersats Feuling Endurance Beehive titanbrickor .650″ H-D 03-20

5 300 kr

Feuling Endurance Beehive ventilfjädrar med titanretainers
Läs mer

09260852 Feuling
  • Tillverkade av höghållfast krom-kisellegerad konisk oval tråd
  • Kulbombade med särskild värmebehandling och NexTex-finish för maximal livslängd
  • Mindre och lättare retainers i 7° titan minskar ventilvikten för snabbare gasrespons och jämnare gång
  • Direkt ersättning utan bearbetning upp till 0.574" lyft (98-04 Big Twin, 86-03 XL) samt 0.650" lyft (05-17 Twin Cam)
  • Fjädertryck: 198 lb vid 1.685" (0.535" lyft), 185 lb vid 1.780" (0.630" lyft), 160 lb vid 1.800" (0.650" lyft)
  • Öppet tryck 375 lb vid 1.150", bottnar vid 1.100" (Coil Bind)
  • Innehåller fjädrar, titanretainers, fjädersäten, shims, knaster och Viton-ventiltätningar
  • Tillverkade i USA

Måste monteras på korrekt öppen höjd som matchar kammens maxlyft. Vid större kamaxlar krävs bearbetning av ventilstyrning för frigång mellan tätning och retainer. Passar inte RH Sportster.

Passar: H-D 03-20

Material Steel
Produkt-typ Spring Kit
Tillverkarens Art. Nr. 1105

Endurance Beehive Valve Springs with Titanium Retainers

  • Machined from premium-grade hi-tensile chrome silicon single-conical ovate wire
  • Shot-peened with specially processed thermal heat treat and super NexTex finish for fatigue life needed to exceed high demands of V-Twin engines
  • Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
  • Direct bolt-in replacement up to 0.650" cam lift; no machining or rocker box clearancing required
  • Kits include: Endurance BeeHive valve springs, lightweight 7° super Titanium heat-treated retainers, machined spring seats, seat shims, valve locks and a set of premium Viton valve seals equipped with spring-loaded valve stem wiper system
  • Made in the USA
  • Seat lb / installed height:
  • 198 lb @ 1.685" (0.535" lift)
  • 194 lb @ 1.703" (0.553" lift)
  • 190 lb @ 1.724" (0.574" lift)
  • 187 lb @ 1.754" (0.604" lift)
  • 185 lb @ 1.780" (0.630" lift)
  • 160 lb @ 1.800" (0.650" lift)
  • 375 lb @ 1.150" Open Height
  • Coil Bind @ 1.100"
  • Must be installed at the correct open height, matching max lift to the open height spec of the valve springs.
  • Feuling BeeHive valve spring kits are direct replacement with no machining or rocker box clearance required up to 0.574" lift for '98-'04 Big Twin and '86-'03 XL and up to 0.650" lift for '05-'17 Twin Cam. Larger camshafts require valve guide machining for seal to retainer clearance.
  • Kits include springs, lower collars, titanium upper collars, shims, keys and Viton seals

Not for RH Sportster.

Fits: 05-17 Twin Cam A/B (Excl. 16-17 110" Softail); 04-22 XL Sportster; 08-12 XR1200; 03-10 Buell XB (NU)
