Kolvringar Hastings 4-STROKE H-D 99-17

490 kr

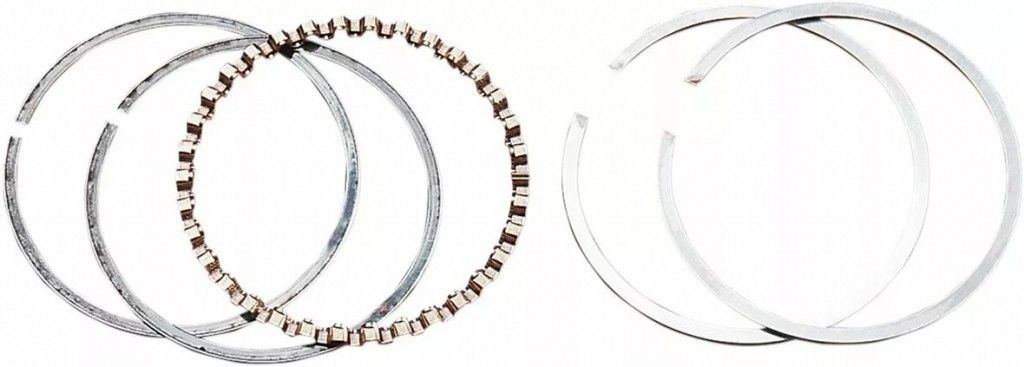

Hastings kolvringar för två kolvar
Läs mer

DS750692 Hastings
  • Innehåller övre kompressionsringar, andra kompressionsringar och oljeskrapringar
  • Övre kompressionsringar har tunnformad anliggningsyta (barrel face)
  • Hjälper värmeavledningen mellan kolv och cylindervägg samt tätar mot förbränningsgaser
  • Andra kompressionsringen är av Napier-typ med omvänd vridning och fasad yta för effektiv oljeavskrapning
  • Minskar oljeförbrukningen genom förbättrad tätning mot ringspårets sidor
  • Oljeskrapringar i tredelad Flex Vent-konstruktion för optimal anpassning till cylinderloppet
  • Ger ett jämnt tryck via fyra stålskenor och två expanderringar för säker oljekontroll
  • Tillverkade i USA

Satsen innehåller tillräckligt med ringar för två kolvar. Två ringar per spår, förutom oljeskrapringarna som har två skenor per expanderring.

Passar: H-D 99-17

Storlek Standard
Produkt-typ Piston Ring
Material Moly Coated
Tillverkarens Art. Nr. 2M4941

Replacement Piston Rings

  • Includes top compression rings, second compression rings, and oil control rings
  • Top Compression Rings are Barrel Face
  • Helps in the the heat transfer process between the piston and cylinder wall
  • Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
  • Second Compression Ring are Napier
  • Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
  • Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
  • Oil Control Rings are Three Piece Flex Vent
  • Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
  • Provides uniform pressure through four steel rails and two expanders assuring positive oil control
  • Made in the USA
  • Includes enough rings for two pistons (unless noted).
  • Two rings per groove, except for the rails that will be two rail rings per one expander ring.

Includes enough rings for two pistons.
