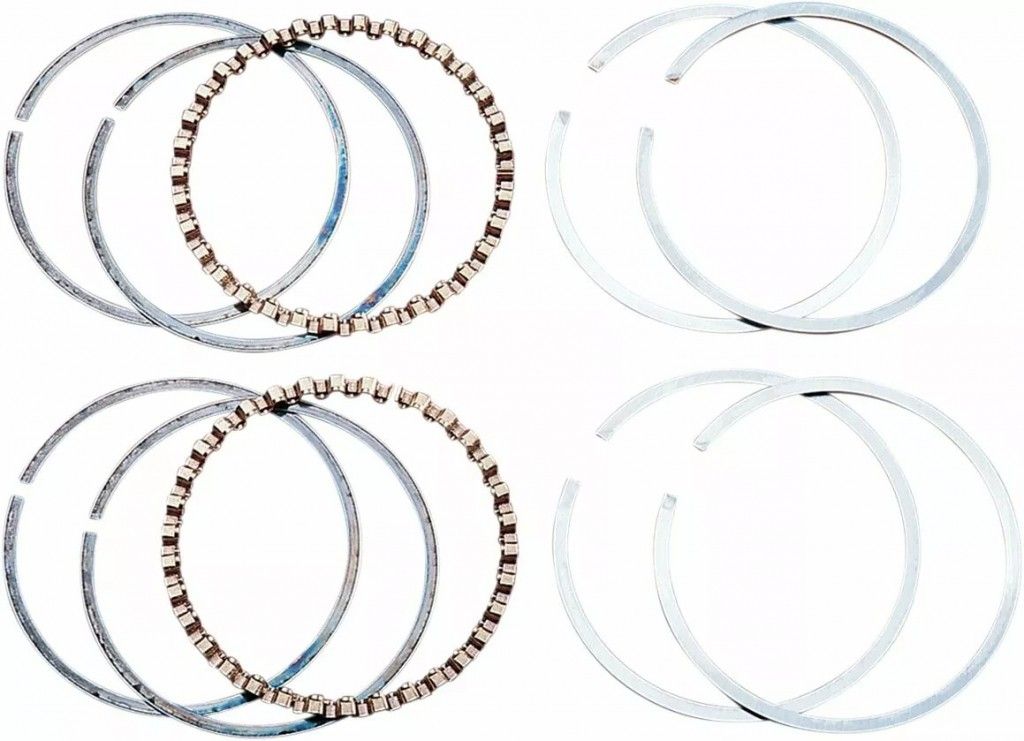

Kolvringar Hastings Sportster 86-03
Kolvringar i ersättningsutförande från Hastings
Läs mer
- Innehåller övre kompressionsringar, andra kompressionsringar och oljeskrapringar
- Övre kompressionsringar med tunnformad profil (Barrel Face)
- Hjälper till vid värmeöverföringen mellan kolv och cylindervägg samt kontrollerar förbränningsgaser
- Andra kompressionsring av Napier-typ med fasad yta som motverkar oljeläckage och förbättrar oljeekonomin
- Tredelade oljeskrapringar av Flex Vent-typ med stålskenor för jämn anliggning och effektiv oljekontroll
- Tillverkade i USA
För 86-03 883 cc XL Evolution. Satsen innehåller kolvringar för endast en kolv, beställ två satser för en komplett motor.
Passar: Sportster 86-03
| Storlek | Standard |
| Produkt-typ | Piston Ring |
| Material | Moly Coated |
| Tillverkarens Art. Nr. | 2M6198 |
Replacement Piston Rings
- Includes top compression rings, second compression rings, and oil control rings
- Top Compression Rings are Barrel Face
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second Compression Ring are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil Control Rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons (unless noted).
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
For '86-'03 883 cc XL Evolution applications. Sets include enough rings for one piston only. Must order two sets for complete motor.
