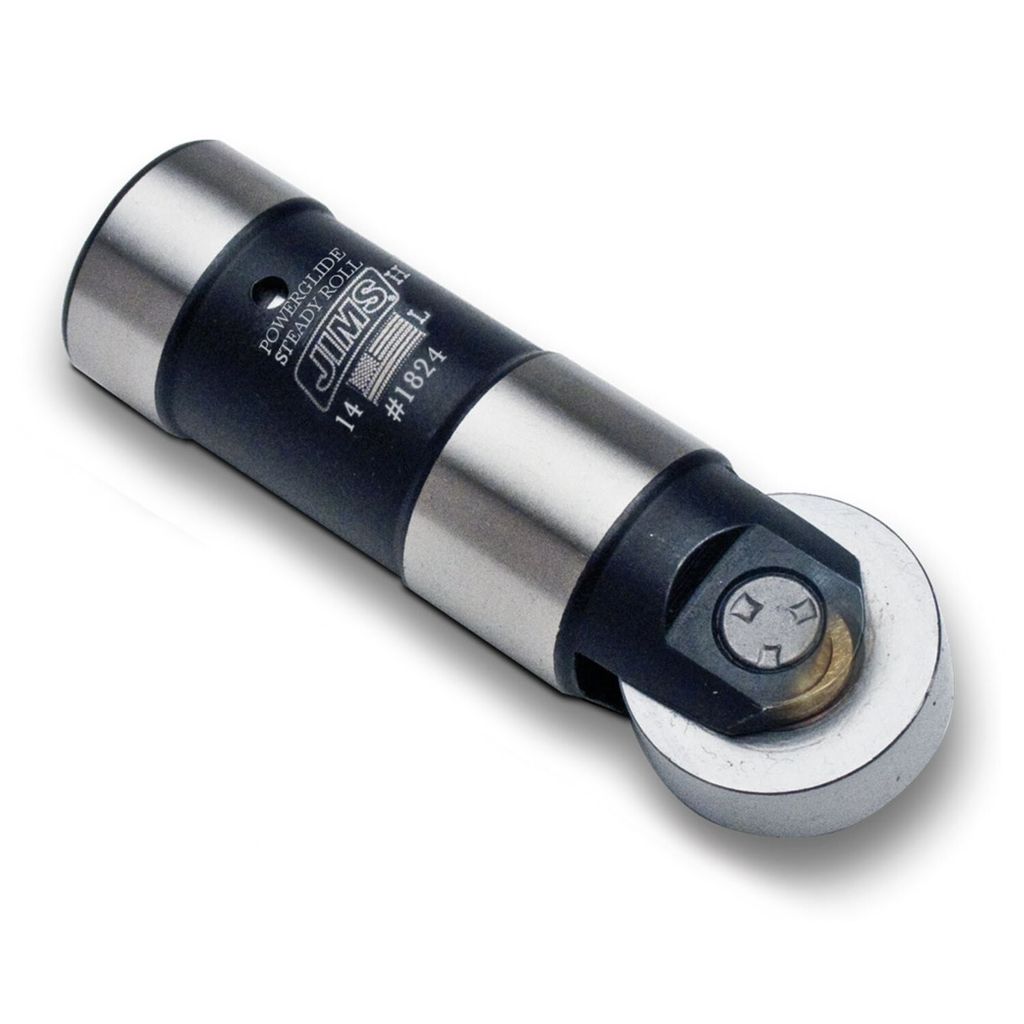

Ventillyftare Jims Powerglide Steady Roll H-D 84-00
Hydrauliska Powerglide Steady Roll-lyftare från Jims
Läs mer
- Steady Roll-bussning i bronslegering istället för nållager för haverisäker drift
- Kropp i billetstål med handhonad hålighet för hydraulenheten
- Oljematad axel och ökad rulledsbredd
- Rullens vinkelräthet hålls inom .0002"
- Över 30 % högre dynamisk belastningskapacitet
- 10 % ökad smörjning till hydraulenhet och toppsats samt 100 % ökad smörjning till rulle, kammar och kamlager
- Standardytterdiameter på .8425"
- Tillverkade i USA
Konstruktionen ger tystare gång, minimerar risken för att nålar sprids i motorn vid slitage och fungerar även med kamaxlar av solid typ.
Passar: Evo Big Twin 84-99
OEM-nr: 18523-86A
| Material | Steel |
| Storlek | Standard |
| Produkt-typ | Lifter |
| Tillverkarens Art. Nr. | 1824 |
-
Hämta1824-IS.pdf262.19 KB
Powerglide Steady Roll Tappets
- The same Powerglide advantage (oil-fed axle, billet steel body, precision fit hydraulics), but now incorporates a Steady Roll bronze bushing in place of the needle bearing roller
- These tappets have undergone extensive development to increase load, lubrication, hydraulic and life capacities
- Billet body
- Increased roller width
- Roller perpendicularity held to .0002"
- Hand-honed hydraulic unit cavity
- Dynamic load capacities increased over 30%
- Lubrication capacities for hydraulic unit and valve train (top end) increased 10%
- Lubrication capacities for the roller, cams and cam bearings have increased 100% for increased cooling
- Made in the U.S.A.
- Powerglide Steady Roll tappet. Standard .8425" O.D
- This is the Powerglide with a failsafe solid bronze alloy bushing instead of a regular roller bearing
- No other differences excist between the regular Powerglide and the Powerglide Steady Roll tappets
- Full bearing contact provides more stability, longer life and quieter operation due to the tighter tolerances this bushing design allows
- The major drawback of a worn needle bearing roller is they will eventually break, spilling steel needles throughout your engine
- Even when the Steady Roll bronze bushing wears out the design is failsafe
- Like the other Jims Powerglide tappets this Steady Roll version will give you a superior hydraulic function when compared with OEM style equipment, a billet steel body with hand-honed hydraulic unitcavity and an oil fed axle
- To get full power, you must have zero valve lash and eliminate collapsing of the hydraulic unit as is found in the OEM unit, also called 'the shock absorber syndrome'
- Failing to keep the valve open the full amount results in power loss
- The Jims Powerglide tappets come as close to a solid tappet as possible, but are still able to compensate for heat expansion
- They will even work well with solid style camshafts
- Fits as a direct replacement for 18523-86A
Fits: 84-99 Evo Big Twin; 86-90 XL Sportster; 87-90 Buell
