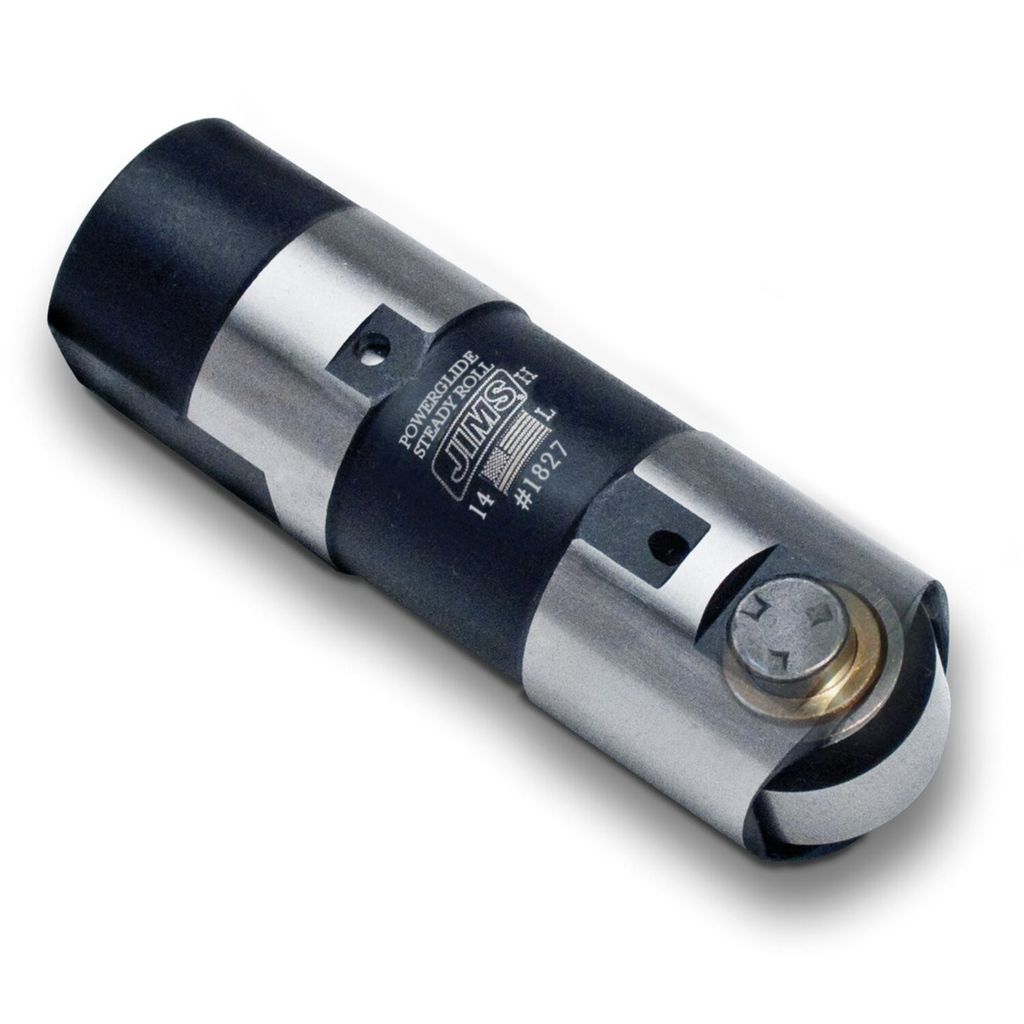

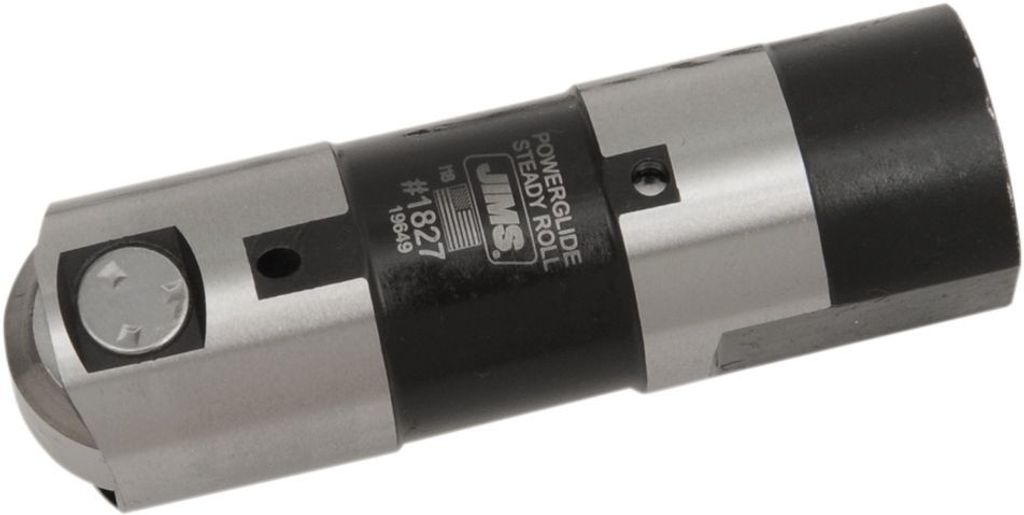

Ventillyftare Jims Powerglide Steady Roll Twin Cam 99-17

3 350 kr

Jims Powerglide Steady Roll lyftare
Läs mer

09290046 Jims
  • Tillverkade i billet-stål med oljematad axel och handhenad hydraulkammare
  • Steady Roll-bussning i bronslegering ersätter traditionellt nållager
  • Felsäker konstruktion som förhindrar att nålar sprids i motorn vid slitage
  • Dynamisk belastningskapacitet ökad med över 30 %
  • Smörjkapacitet för hydraulenhet och toppsats ökad med 10 %
  • Smörjkapacitet för rulle, kammar och kamlager ökad med 100 % för förbättrad kylning
  • Standard ytterdiameter på .8420" och rullens vinkelräthet hålls inom .0002"
  • Tillverkade i USA

Lyftarna fungerar som en direkt uppgraderad ersättning för standard- och högkapacitetslyftare i OEM-stil. Konstruktionen minimerar risken för att hydraulenheten säckar ihop och fungerar även bra tillsammans med kamaxlar av solid typ.

Passar: Twin Cam 99-17

OEM-nr: 18538-99C, 18538-99

Material Steel
Storlek Standard
Produkt-typ Lifter
Tillverkarens Art. Nr. 1827

Powerglide Steady Roll Tappets

  • The same Powerglide advantage (oil-fed axle, billet steel body, precision fit hydraulics), but now incorporates a Steady Roll bronze bushing in place of the needle bearing roller
  • These tappets have undergone extensive development to increase load, lubrication, hydraulic and life capacities
  • Billet body
  • Increased roller width
  • Roller perpendicularity held to .0002"
  • Hand-honed hydraulic unit cavity
  • Dynamic load capacities increased over 30%
  • Lubrication capacities for hydraulic unit and valve train (top end) increased 10%
  • Lubrication capacities for the roller, cams and cam bearings have increased 100% for increased cooling
  • Made in the U.S.A.
  • Powerglide Steady Roll tappet. Standard .8420" O.D
  • This is the Powerglide with a failsafe solid bronze alloy bushing instead of a regular roller bearing
  • No other differences excist between the regular Powerglide and the Powerglide Steady Roll tappets
  • Full bearing contact provides more stability, longer life and quieter operation due to the tighter tolerances this bushing design allows
  • The major drawback of a worn needle bearing roller is they will eventually break, spilling steel needles throughout your engine
  • Even when the Steady Roll bronze bushing wears out the design is failsafe
  • Like the other Jims Powerglide tappets this Steady Roll version will give you a superior hydraulic function when compared with OEM style equipment, a billet steel body with hand-honed hydraulic unitcavity and an oil fed axle
  • To get full power, you must have zero valve lash and eliminate collapsing of the hydraulic unit as is found in the OEM unit, also called 'the shock absorber syndrome'
  • Failing to keep the valve open the full amount results in power loss
  • The Jims Powerglide tappets come as close to a solid tappet as possible, but are still able to compensate for heat expansion
  • They will even work well with solid style camshafts
  • Fits as a direct upgraded replacement for OEM 18538-99C Standard and 17900022A High Capacity tappets

Fits: 99-17 (NU) Twin Cam; 17-26 M8; 00-22 (NU) XL Sportster; 08-12 (NU) XR1200; 00-10 (NU) Buell XB || Big Twin 1999→ , Sportster 2000-2020, Buell (exc. 1125)
