Kamaxelsats Feuling Camchest 103" 110" Twin Cam 99-06 7234P
Feuling Race Series kamaxelsats med 594-kamaxlar och One Piece-stötstänger
Läs mer
- Komplett kamaxelsats med matchade komponenter för maximal tillförlitlighet och prestanda
- Innehåller Feuling high volume-oljepump, high flow-kamplatta och REAPER Series 594-kamaxlar
- Inkluderar hydrauliska rulllyftare, One Piece-stötstänger, Timken-lager och avgaspackningar
- Levereras med packningar, O-ringar, ARP-fästelement, brickor, molypasta, Loctite och hårdvara
- Ger 25–35 grader lägre motortemperatur och 15–30 grader lägre oljetemperatur
- Ökar oljetrycket med 15–30 pund samt eliminerar wet sumping och vevhusventilerad olja i luftfilter
- 594-kamaxlar ger brett vridmomentband för 103", 110" och 124" (2 200–6 250 RPM) eller höga varvtal för 95" (2 500–6 800 RPM)
- Avsedd för mekaniska fjäderspännare
Kräver högpresterande ventilfjädrar, stötstänger, lyftare, modifiering av förgasare/spjällhus, prestandaavgassystem, insug och koppling. Motorer av årsmodell 1999 med kilspår på kamaxel/kedjedrev kräver separat inköp av bakre kamaxeldrev med splines (del #1093 eller #1094).
Passar: Twin Cam 99-06
Race Series Camchest Kit - One Piece Pushrods
- BULLETPROOF CAMCHESTS!
- NOTE: This camchest kit is the original fitment for mechanical spring tensioners, if looking to upgrade to hydraulic tensioners (recommended) see kit #’s 7225, 7225P, 7225ST FEULING complete camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #
- These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony
- These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable

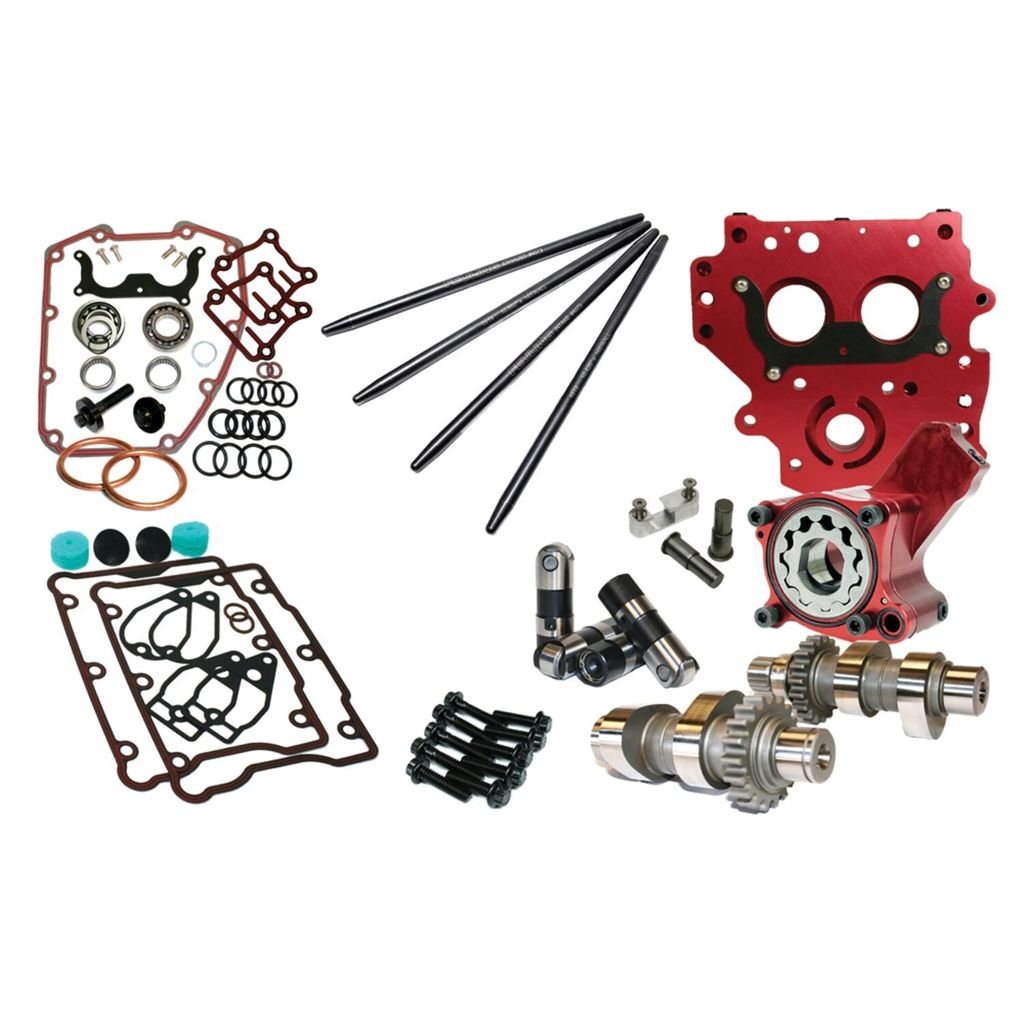

- Complete Camchest Kits include: FEULING high volume Oil pump, high flow Camplate, REAPER Series Camshafts, hydraulic roller Lifters, One Piece Pushrods, Timken Bearings, Gaskets, O-rings, Exhaust gaskets, ARP fasteners, washers, moly paste, Loctite, and hardware
- Camchest kits are available in FEULING HP+ and RACE SERIES combinations and with gear drive or chain drive REAPER camshafts
- Fitments available for '99-'17 Twin Cam engines
- 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more pounds of oil pressure, quieter and smoother engine operation, eliminate wet sumping, blow by and oily air cleaners
- 594 CAMS
- Fiercely performing camshaft for an array of engines sizes, large displacement 103", 110" & 124" engines looking for a superior torque band with excellent horsepower gains in heavy bikes (RPM 2,200
- 6,250.) Smaller high revving displacement 95" style engines in lighter bikes looking to twist the throttle and tap into some horsepower (RPM 2,500
- 6,800)
- Large displacements respond well to increased compression ratio and smaller displacements will require it
- 594 cams require high performance valve springs, pushrods, lifters, carburetor and or throttle body work, performance exhaust, intake and clutch
- Note: 1999 model engines using key way camshafts/sprocket will need to purchase new spline style rear cam sprocket separately
- Please see part #1093 or #1094
- Note: Special Order Product only
- To order please contact your MCS sales representative
Fits: 99-06 Twin Cam (Excl. 2006 Dyna), Chain Drive, Includes 594 Reaper Camshafts #1301, Cam Install kit #2059, RACE SERIES Lifters #4050, One Piece Pushrods #4072, RACE SERIES oil pump #7050, Anodized camplate #8010 and ARP Camplate/Oil Pump Fasteners #8020
