Kamaxelsats Feuling ST Twin Cam 99-06
Feuling Race Series ST kamkåpssats med kedjedrift
Läs mer
- Komplett kamkåpssats konstruerad för att ge maximal pålitlighet, topprestanda och svalare motortemperatur
- Ger 25–35 grader lägre motortemperatur, 15–30 grader lägre oljetemperatur och 15–30 pund högre oljetryck
- Motverkar wet sumping, blow-by och oljiga luftfilter samt ger tystare och jämnare motorgång
- Innehåller Reaper Series 594 kamaxlar, high volume oljepump och high flow kamplatta
- Korta hydrauliska rulllyftare (short travel) och Quick Install justerbara stötstänger med .134 godstjocklek
- Stötstångsrör i krom, Timken-lager, packningar, o-ringar och avgaspackningar
- ARP-fästelement, brickor, monteringsdetaljer, molypasta och Loctite ingår
- Reaper 594 passar för 103, 110 och 124 cylindervolym (2 200–6 250 RPM) samt högvarviga 95-motorer (2 500–6 800 RPM)
Konstruerad för användning med mekaniska originalkedjesträckare för 99-06. Kräver high performance ventilfjädrar, och arbete med förgasare/spjällhus, prestandaavgassystem, insug och koppling krävs eller rekommenderas. Årsmodell 1999 med kilspårskamaxel och kedjehjul behöver kompletteras med splines-drev 503575 (säljs separat).
Passar: Twin Cam 99-06

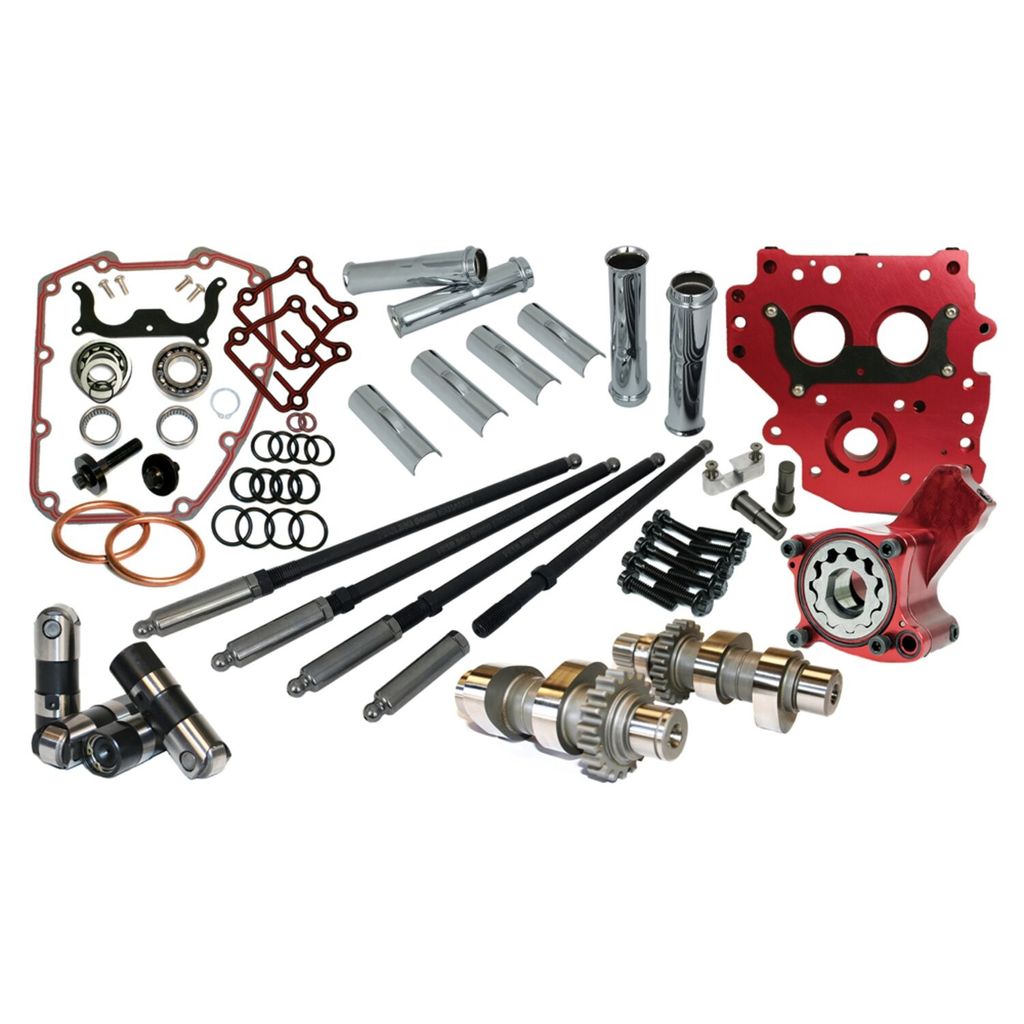

Race Series ST cam chest kit. Chain drive
- BULLETPROOF CAMCHESTS!
- Designed for use with the stock 99-06 mechanical spring tensioners, if looking to upgrade to hydraulic tensioners (recommended) see 938358, 707023, 707024
- This complete cam chest kit includes all necessary components
- Designed to work and function together in harmony offering maximum reliability, peak performance and the coolest engine and oil temperatures obtainable
- This kit includes: Feuling's high volume oil pump, high flow cam plate, pushrods, lifters
- The included Reaper Series 594 camshafts will additionally require high performance valve springs
- Carburetor and/or throttle body work, performance exhaust, intake and clutch is required/recommended
- Also includes short travel hydraulic roller lifters, Quick Install adjustable pushrods with .134 wall thickness, chrome pushrod tubes, Timken bearings, gaskets, O-rings, exhaust gaskets, ARP fasteners, washers, moly paste, Loctite, and hardware
- Camchest kit offers 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more pounds of oil pressure, quieter and smoother engine operation, eliminate wet sumping, blow by and oily air cleaners
- 594 CAMS
- Fiercely performing camshaft for an array of engines sizes, large displacement 103, 110 & 124 engines looking for a superior torque band with excellent horsepower gains in heavy bikes (RPM 2,200
- 6,250.) Smaller high revving displacement 95 style engines in lighter bikes looking to twist the throttle and tap into some horsepower (RPM 2,500
- 6,800)
- Large displacements respond well to increased compression ratio and smaller displacements will require it
- Note: 1999 model engines using key way camshafts/sprocket will need to purchase order 503575 spline style rear cam sprocket separately
Fits: 99-06 Twin Cam (excl. 2006 Dyna). With chain drive (NU)
