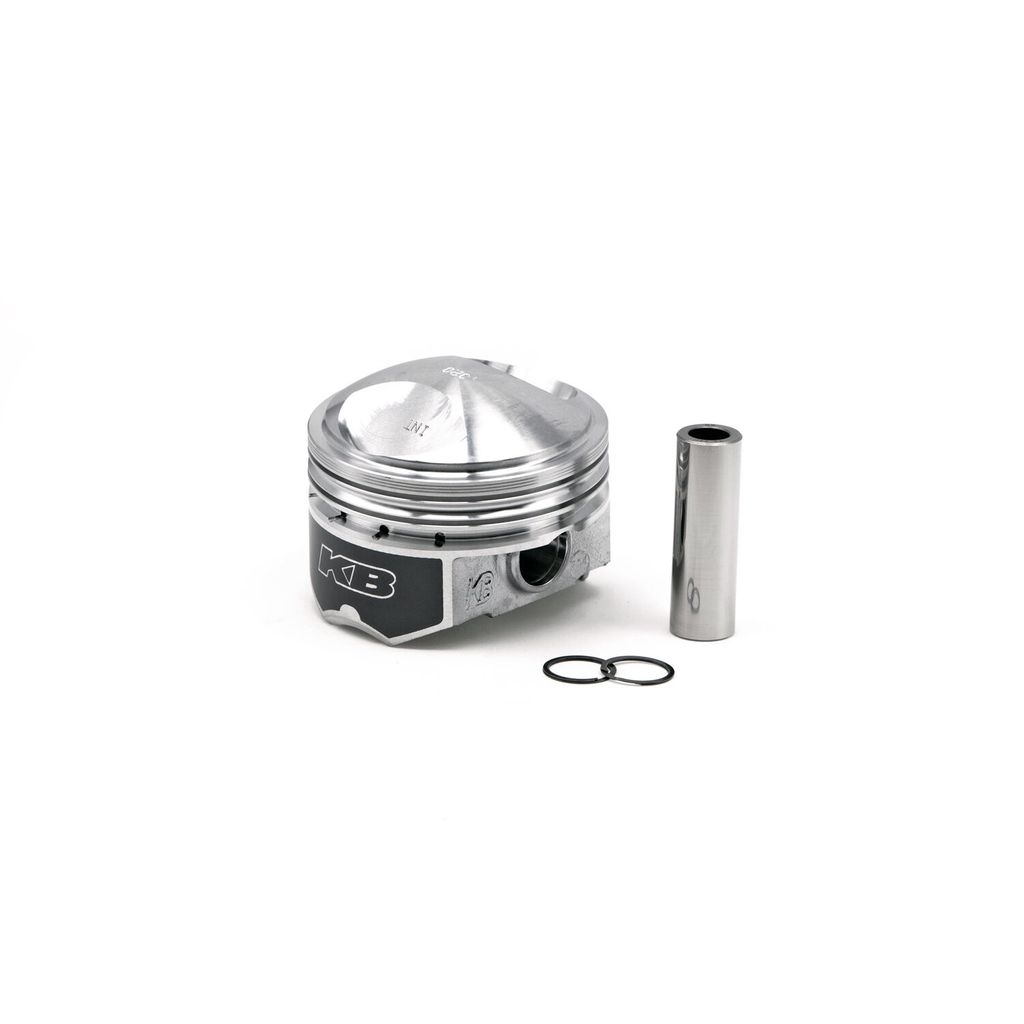

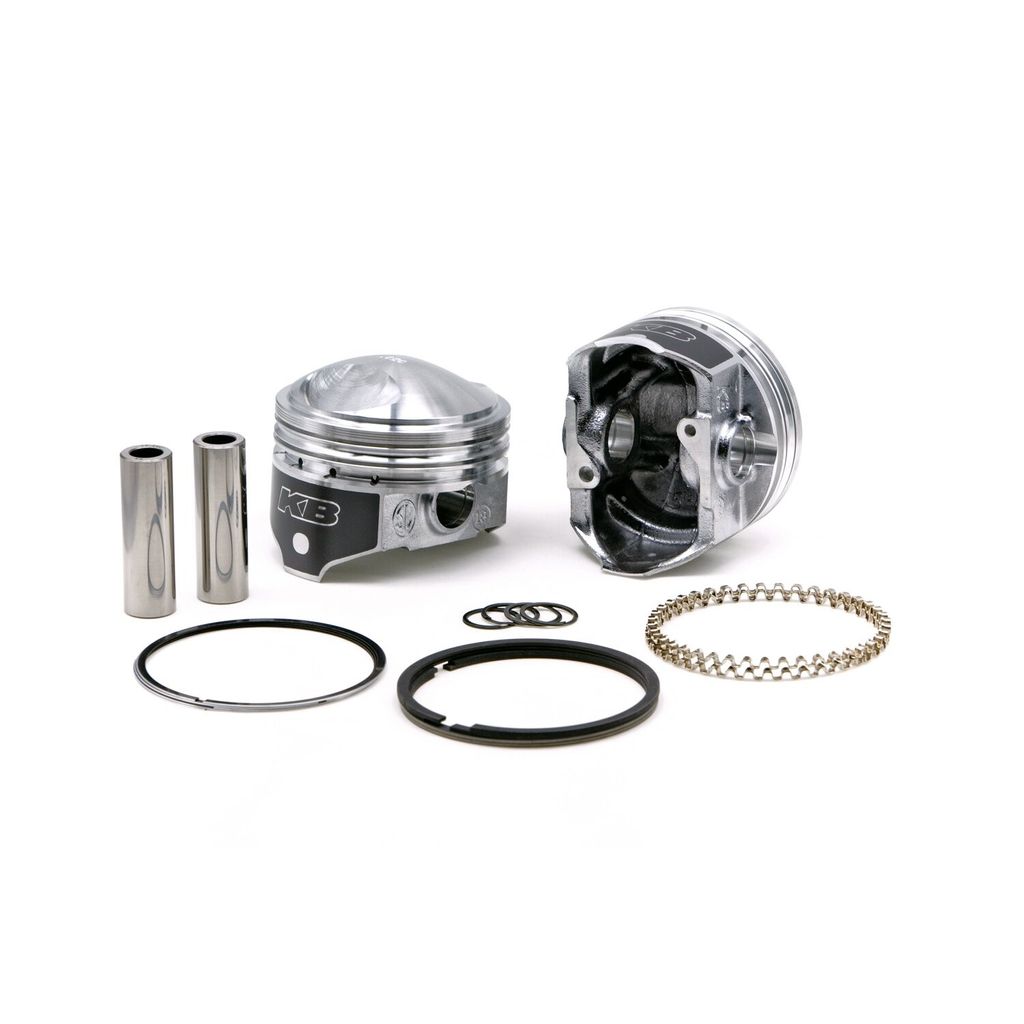

Kolvsats KB Performance Piston 3-5/8" +.010 Big Twin with 3-5/8 big bore
KB Performance 3-5/8" big bore kolvsats, +.010"
Läs mer
- Big bore-kolvsats för 3-5/8" (3.625") borrning, överdimension +.010"
- Kompressionsförhållande: 10.0:1
- Gjutna 390 hypereutektiska kolvar, T6-värmebehandlade med 16% silikon
- Möjliggör mycket snävt kolvspel för lång livslängd och minimalt kolvljud
- Huvudtyp: Dome / Dome -57cc
- Kolvvikt: 385 g, kolvbultsvikt: 97 g
- Kompressionshöjd: 1.285", vevstakslängd: 7.440"
- För cylindrar med längd 5.330" (original) till 5.530" (+.200")
Används med 4-1/4" originalslaglängd (88"), samt 4-1/2" (93"), 4-5/8" (96") och 4-3/4" (98") stroker-svänghjul. Längre slaglängd kräver cylindrar med rätt längd eller stroker-plattor för att uppnå önskat kompressionsförhållande. Övre kompressionsringen kräver extra spel, se medföljande instruktioner.
Passar: Big Twin med 3-5/8 big bore
| Kategori | Pistons and rings kits |
| Produkt-typ | Pistons and rings kits |
KB Performance, 3-5/8" big bore piston kit. +.010"
- Used with 3 5/8" big bore cylinders with 5.330" (stock) to 5.530" (+.200") length
- Use with 4-1/4" stock stroke (88"), 4-1/2" (93"), 4-5/8" (96") to 4-3/4" (98") stroker flywheels
- 10.0:1 CR
- Piston weight 385gr
- Piston pin weight 97gr
- Head type: Dome / Dome -57cc
- Compression height 1.285" / Bore 3.625" (3 5/8")
- Rod length 7.440" / Cyl. length 5.330" (Std) to 5.530" (+.200")
- Comes with T6 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise
- Note: Top compression ring will need additional clearance
- See instructions
- Longer strokes require correct length longer cylinders or stroker plates to achieve the desired compression ratio
- Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
Fits: 48-84 Big Twin with 3-5/8 big bore cylinders and strokes from 4-1/4" to 4-3/4" (88" to 98" engines)
