Ventilstyrning avgassystem Kibblewhite KPMI Manganese Evo Big Twin 84-99

220 kr

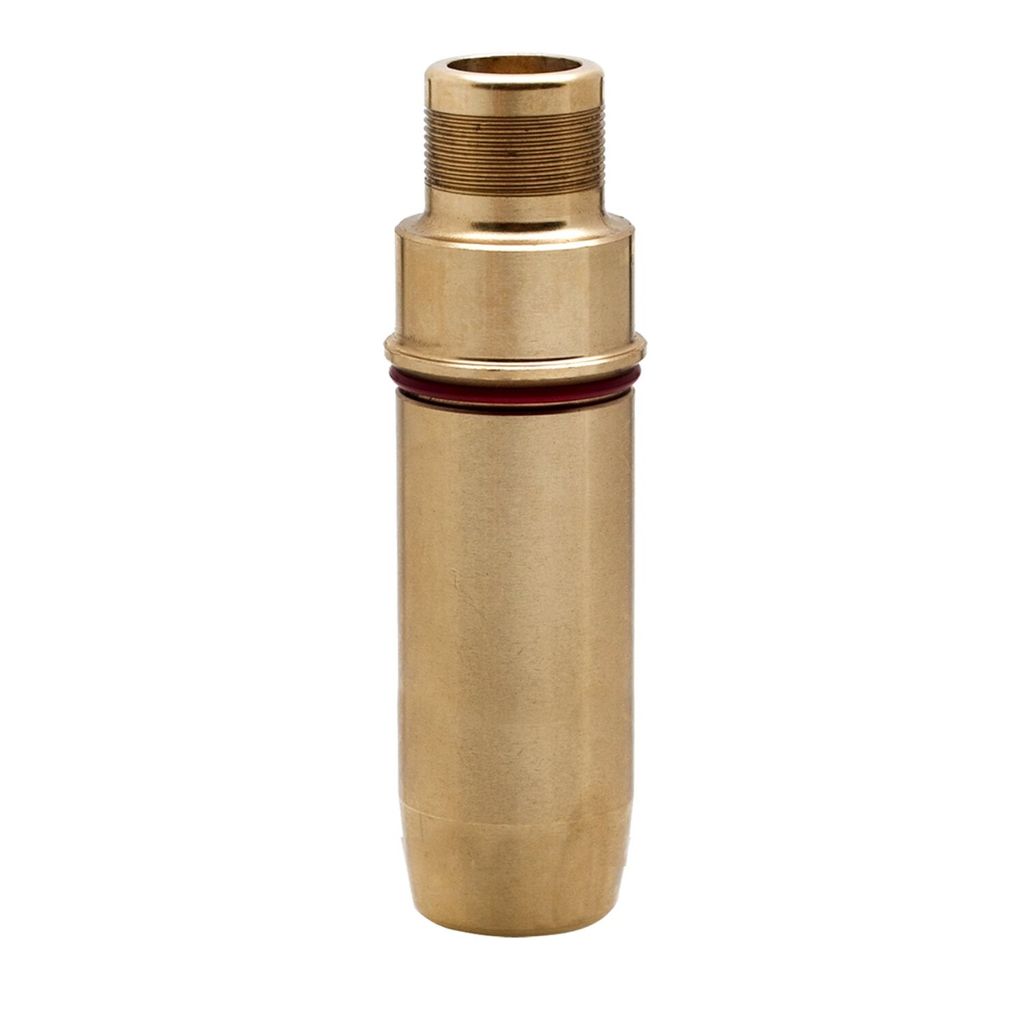

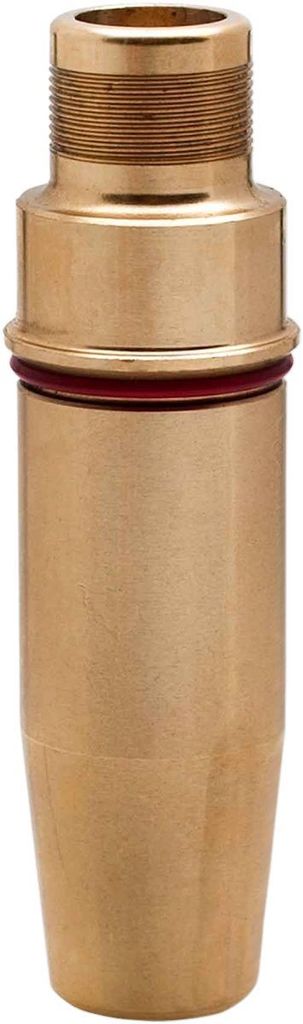

Ventilstyrning i manganbrons för avgasventil från Kibblewhite
Läs mer

09262307 Kibblewhite
  • Tillverkad i precisionsbearbetad manganbrons
  • För avgasventil, standardstorlek (STD)
  • Ytterdiameter: 0.5620" (14,27 mm)
  • Innerdiameter: 0.3090" (7,85 mm)
  • Totallängd: 2.00" (50,8 mm)
  • Krage (shoulder) för distinkt stopp och enkel montering
  • Kortad för att klara ventillyft upp till .600" (0.600")
  • Snabb värmeavledning och god smörjförmåga
  • Tillverkad i USA

Kan brotschas med batteridriven eller elektrisk borrmaskin och slutföras med heningsverktyg (ball hone). Används med ventiltätningar av OEM-stil på 0.420".

Passar: H-D 83-04

Storlek Standard
Material Bronze
Produkt-typ Valve Guide
Tillverkarens Art. Nr. 20-2130M

Shouldered Manganese Bronze Valve Guide

  • Precision-machined
  • Guides can be easily reamed with a battery-operated or electric drill and finished with a high-quality ball hone
  • Shouldered for a positive stop for easy installation and best performance
  • Made in the USA
  • KPMI, exhaust valve guide. Manganese. STD
  • Size: 0.5620" O.D. (14.27mm); 0.3090" I.D. (7.85mm); 2.00" OAL (50.8mm)
  • Comes with special shoulder for ease of installation
  • Shortened to accept valve lifts up to .600"
  • Softer and less durable then C630 bearing bronze but will allow a lower cost and reaming to size is quick and easy
  • Finish can be done with simple tools like a ball hone and an electric drill
  • Rapid heat transfer and excellent lubricity
  • Note: Special Manganese reamers & hones are available

Accepts up to 0.600" lift cams. Use OEM style 0.420" valve seals.

Fits: 84-99 Evo Big Twin; 99-04 Twin Cam; 86-03 XL Sportster (NU)
