Ventilstyrning avgassystem Kibblewhite KPMI C630 Intake +.003 0.3090 brons

580 kr

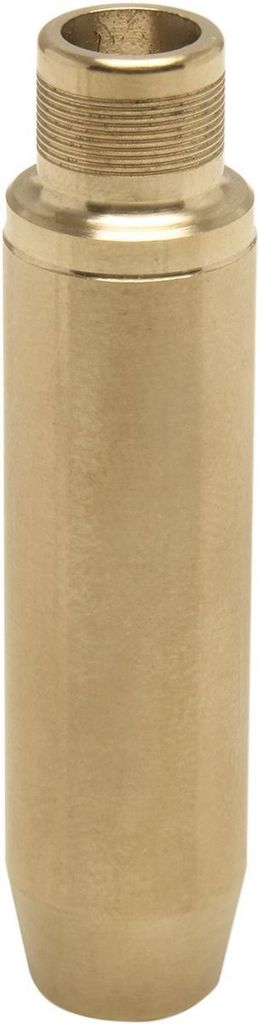

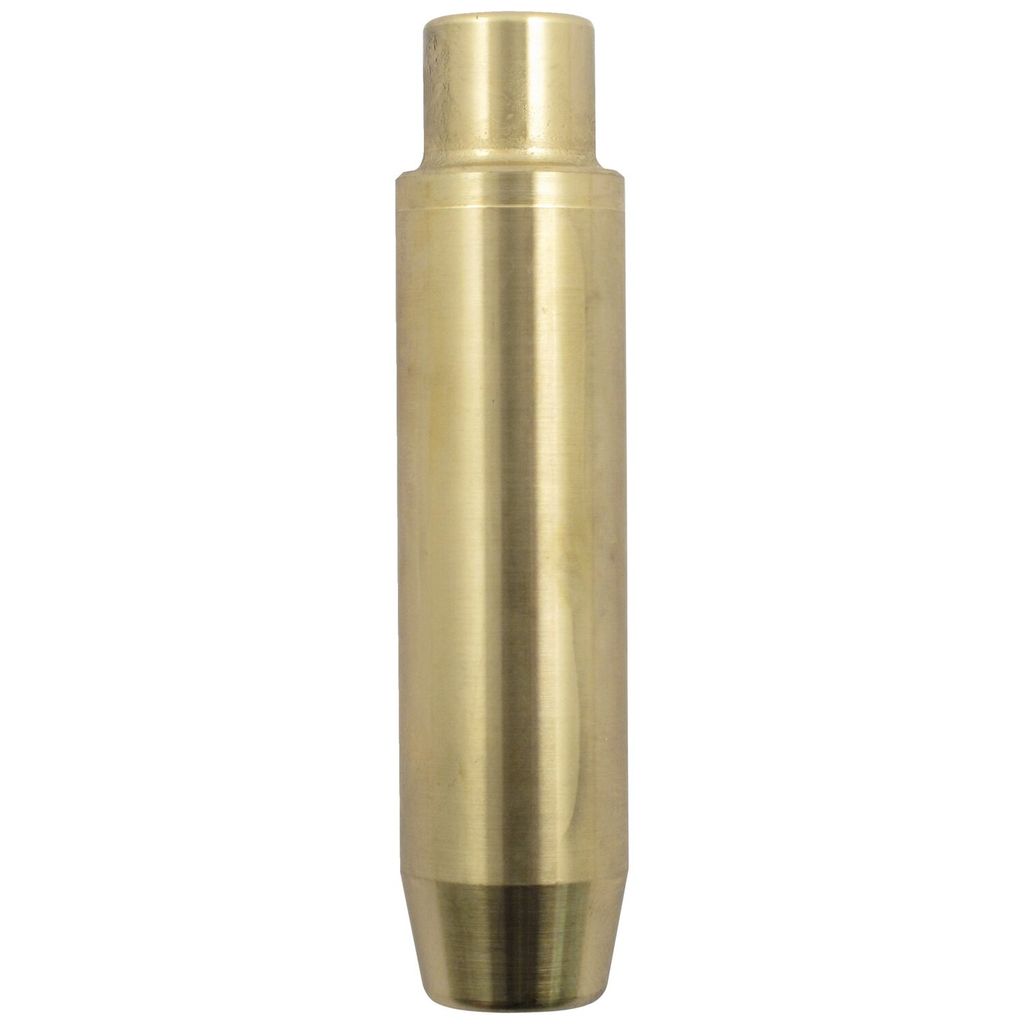

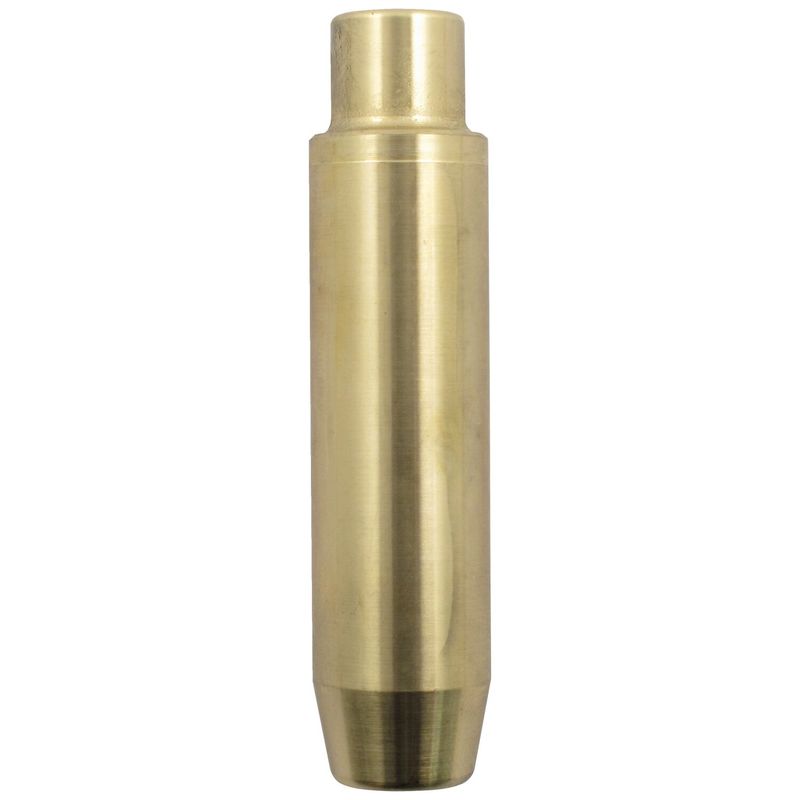

Kibblewhite C630 ventilstyrningar i nickel-aluminiumbrons
Läs mer

09260762 Kibblewhite
  • Tillverkade i kopparbaserad C63000 nickel-aluminiumbrons
  • Överstorlek +.003"
  • För insug och avgasventil
  • Totallängd 2.02" (även angiven som 2.40"), toppdiameter .560"
  • Konisk nosdesign för minimalt flödeshinder och förbättrat flöde
  • Kompatibel med blyfritt bränsle och alla typer av ventilskaftsmaterial
  • Ger maximal livslängd med ventilskaft i krom
  • Tillverkade i USA

Avsedda för högprestanda- och racingapplikationer där snabb värmeavledning från ventil till topplock krävs. Passar med OEM-stil top hat ventiltätningar (säljs separat), bearbetade för standard 0.420" tätning samt accepterar OEM nedre bricka.

Passar: H-D 83-13

Färg Brown
Material C630 Bronze
Produkt-typ Valve Guide
Storlek Oversize (+0,003 tum)
Tillverkarens Art. Nr. 20-4323

C630 Valve Guides

  • Precision-machined from copper based C63000 nickel-aluminum bronze
  • Compatible with no-lead fuel and accept any type of valve-stem material
  • Provide maximum service with chromed valve stems
  • Feature a tapered nose design for maximum bearing service and minimal port obstruction; improves flow characteristics
  • 2.02" overall length, .560" top diameter, accept OEM-style top hat valve seals (sold separately)
  • Accept OEM lower collar
  • Overall length is 2.40”
  • OEM style
  • Made in the USA
  • KPMI, intake/exhaust valve guide. C630 bronze. +.003"
  • It is not as durable as cast iron but typically used in high performance and racing applications where rapid heat transfer from the valve to head is important
  • Note: Standard non-oversize dimensions (for reference only) are 0.5620" O.D. (14.27mm); 0.3090" I.D. (7.85mm); 2.00" OAL (50.8mm)

Machined for standard 0.420" seal.

Fits: 84-99 Evo Big Twin; 99-04 Twin Cam; 86-03 XL Sportster (NU)
