Ventilstyrning Kibblewhite Shouldered Manganese Intake brons H-D 83-04
Ventilstyrning i manganbrons för insugsventil från Kibblewhite
Läs mer
- Tillverkad i manganbrons (Manganese Bronze)
- Precisionsbearbetad med krage (shouldered) för exakt stopp och enkel montering
- Kortad för att klara ventillyft upp till 0.600"
- Mått: 0.5620" Y.D. (14.27 mm), 0.3090" I.D. (7.85 mm), 2.00" total längd (50.8 mm)
- Standarddimension (STD)
- Snabb värmeavledning och utmärkt smörjförmåga
- Brotschas enkelt med borrmaskin och finishas med kulhenare
- Tillverkad i USA
Avsedd för insugsventil och kamaxlar med upp till 0.600" lyft. Används med ventiltätningar av OEM-stil i dimensionen 0.420".
Passar: H-D 83-04
| Storlek | Standard |
| Material | Bronze |
| Produkt-typ | Valve Guide |
| Tillverkarens Art. Nr. | 20-2120M |

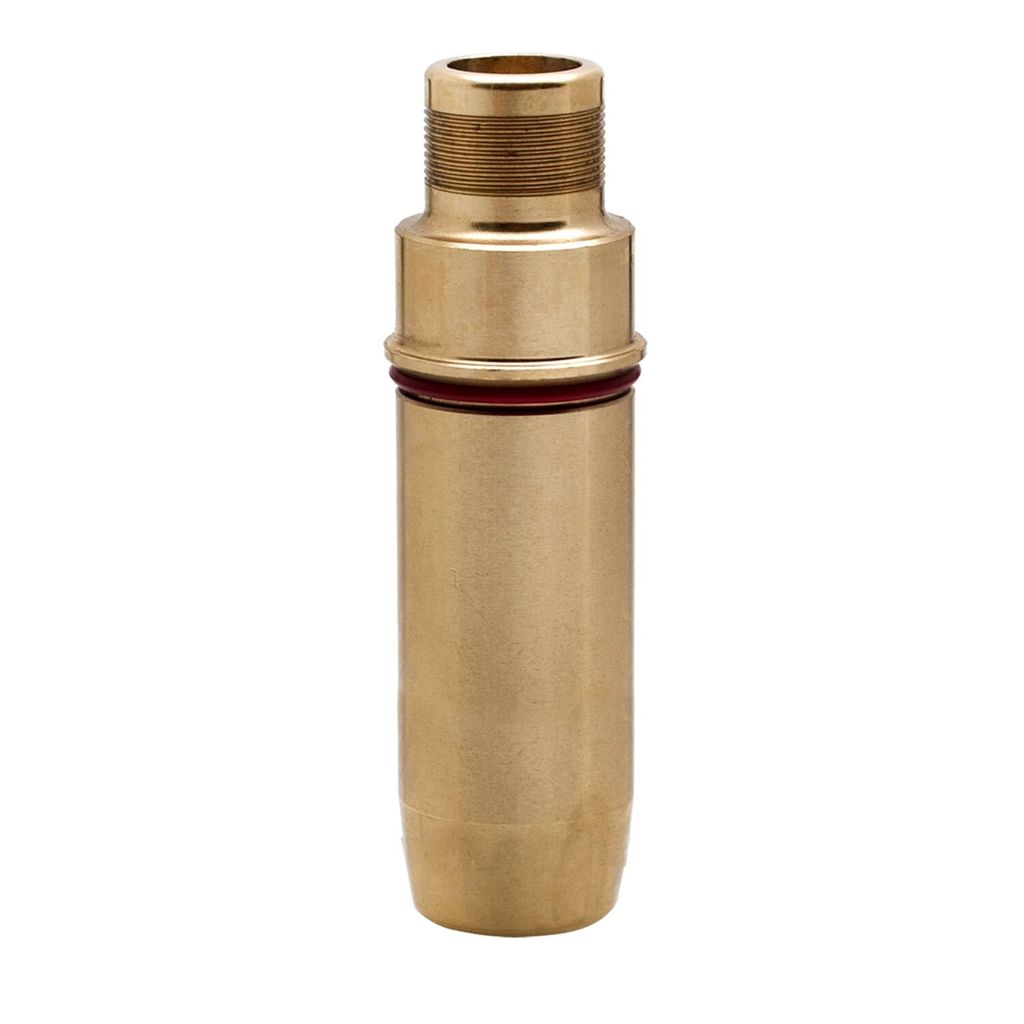

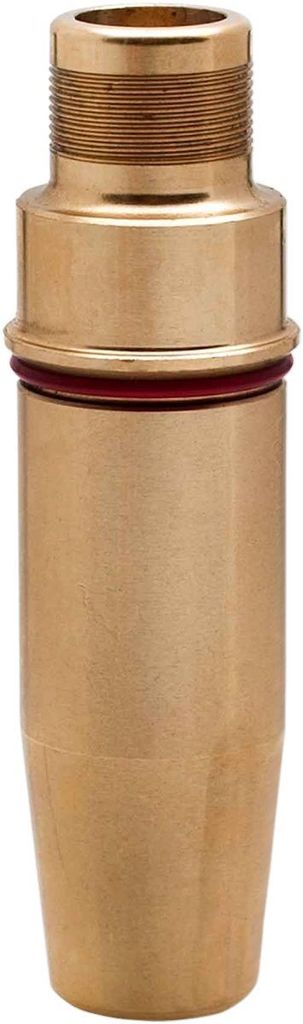

Shouldered Manganese Bronze Valve Guide
- Precision-machined
- Guides can be easily reamed with a battery-operated or electric drill and finished with a high-quality ball hone
- Shouldered for a positive stop for easy installation and best performance
- Made in the USA
- KPMI, intake valve guide. Manganese. STD
- Size: 0.5620" O.D. (14.27mm); 0.3090" I.D. (7.85mm); 2.00" OAL (50.8mm)
- Comes with special shoulder for ease of installation
- Shortened to accept valve lifts up to .600"
- Softer and less durable then C630 bearing bronze but will allow a lower cost and reaming to size is quick and easy
- Finish can be done with simple tools like a ball hone and an electric drill
- Rapid heat transfer and excellent lubricity
- Note: Special Manganese reamers & hones are available
Accepts up to 0.600" lift cams. Use OEM style 0.420" valve seals.
Fits: 84-99 Evo Big Twin; 99-04 Twin Cam; 86-03 XL Sportster (NU)
