Ventilstyrning Kibblewhite Shouldered Manganese Intake 004 brons H-D 83-04

210 kr

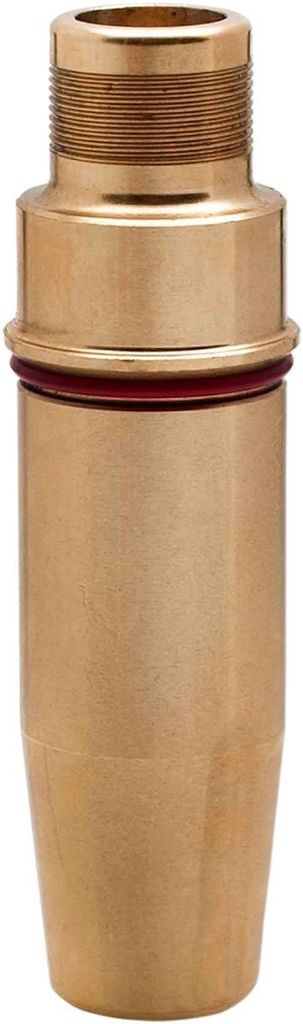

Kibblewhite ventilstyrning i manganbrons för insugsventil (+.004")
Läs mer

09262305 Kibblewhite
  • Tillverkad i manganbrons
  • Precisionsbearbetad med krage (shoulder) för enkel montering och fast stopp
  • Överstorlek: +.004"
  • Kortad för att klara ventillyft upp till .600" / 0.600"
  • Snabb värmeavledning och utmärkt smörjförmåga
  • Enkel och snabb att brotscha och hena till rätt mått
  • Tillverkad i USA

Använd ventiltätningar av OEM-stil på 0.420". Anpassade brotschar och heningsverktyg för manganbrons finns tillgängliga separat.

Passar: H-D 83-04

Material Bronze
Produkt-typ Valve Guide
Storlek Oversize (+0,004 tum)
Tillverkarens Art. Nr. 20-2124M

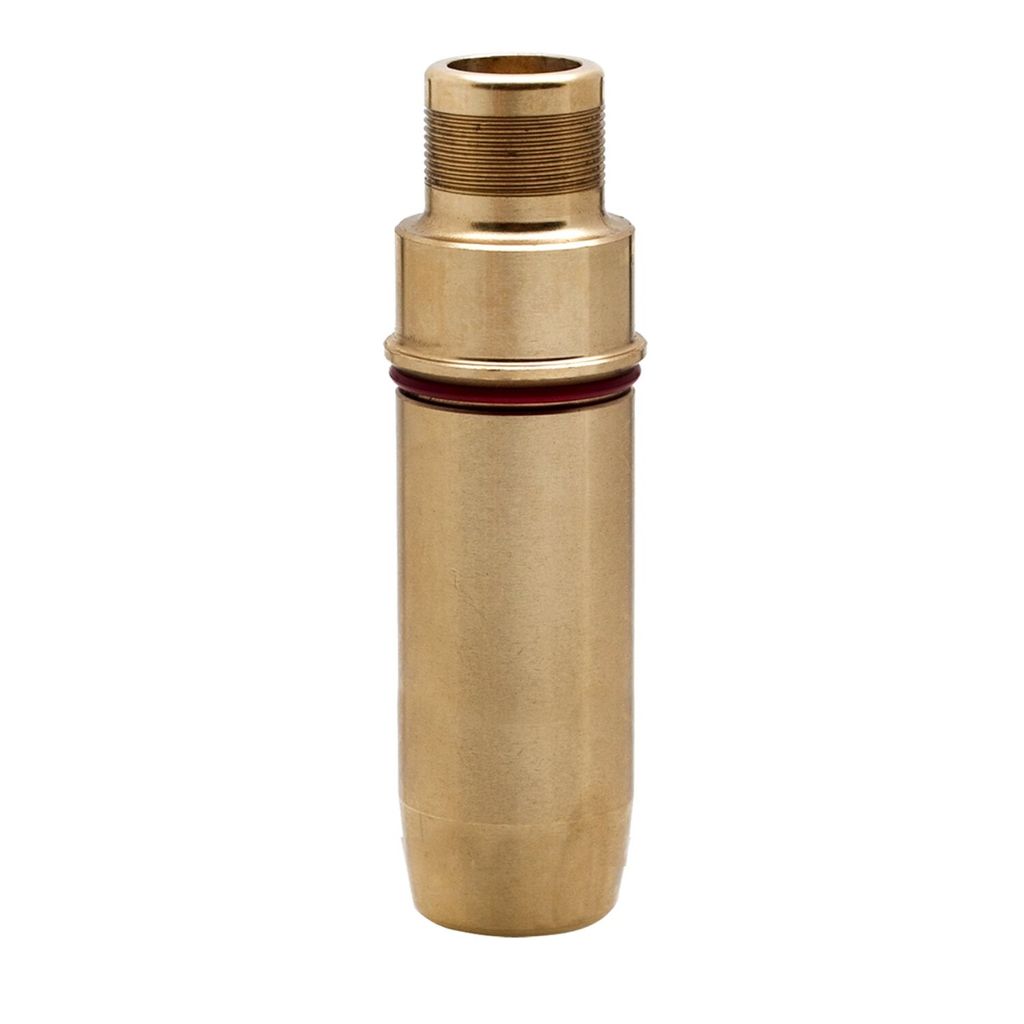

Shouldered Manganese Bronze Valve Guide

  • Precision-machined
  • Guides can be easily reamed with a battery-operated or electric drill and finished with a high-quality ball hone
  • Shouldered for a positive stop for easy installation and best performance
  • Made in the USA
  • KPMI, intake valve guide. Manganese. +.004"
  • Comes with special shoulder for ease of installation
  • Shortened to accept valve lifts up to .600"
  • Softer and less durable then C630 bearing bronze but will allow a lower cost and reaming to size is quick and easy
  • Finish can be done with simple tools like a ball hone and an electric drill
  • Rapid heat transfer and excellent lubricity
  • Note: Special Manganese reamers & hones are available
  • Note: Standard non-oversize dimensions (for reference only) are 0.5620" O.D. (14.27mm); .3085" I.D. (7.84mm); 2.100" OAL (53.34mm)

Accepts up to 0.600" lift cams. Use OEM style 0.420" valve seals.

Fits: 84-99 Evo Big Twin; 99-04 Twin Cam; 86-03 XL Sportster (NU)
