Kolvsats cylinder S&S 107" 124" 107" M8 17-24 910-0681A

23 450 kr

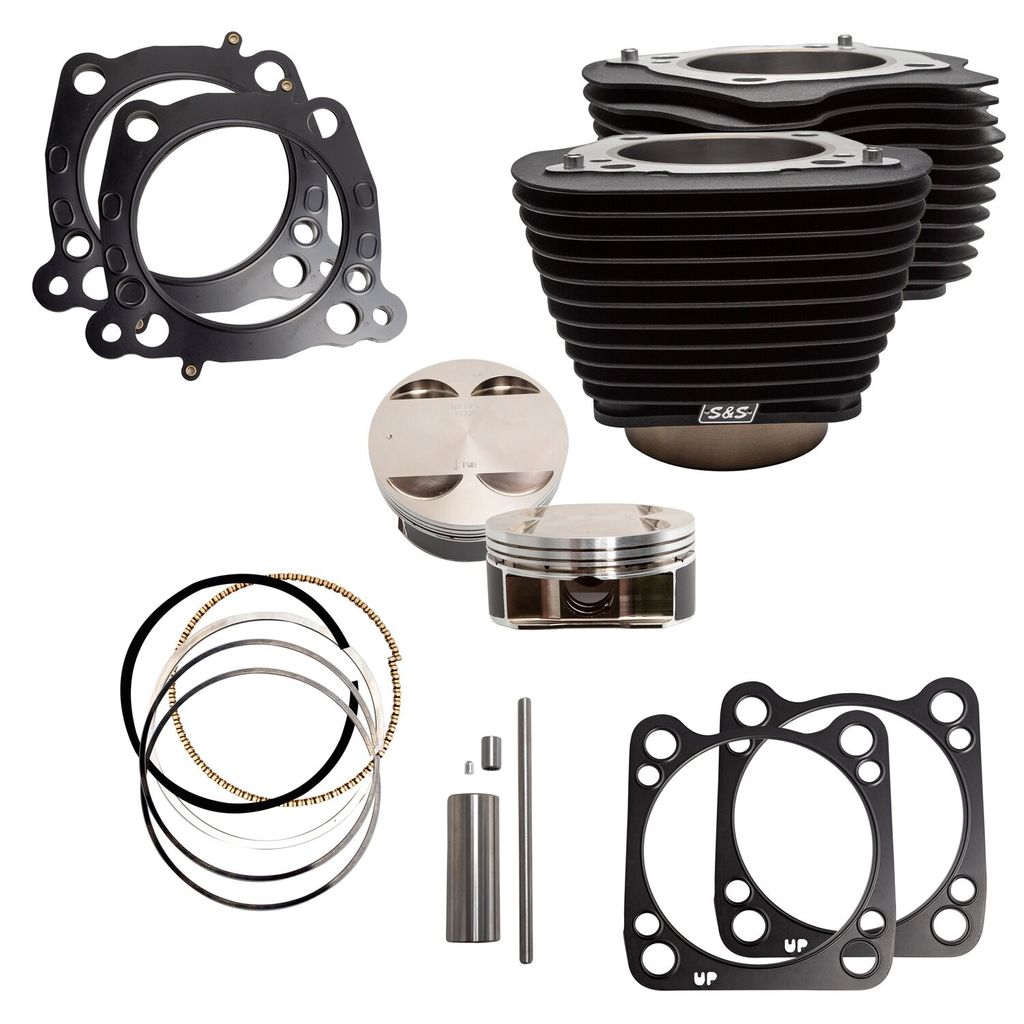

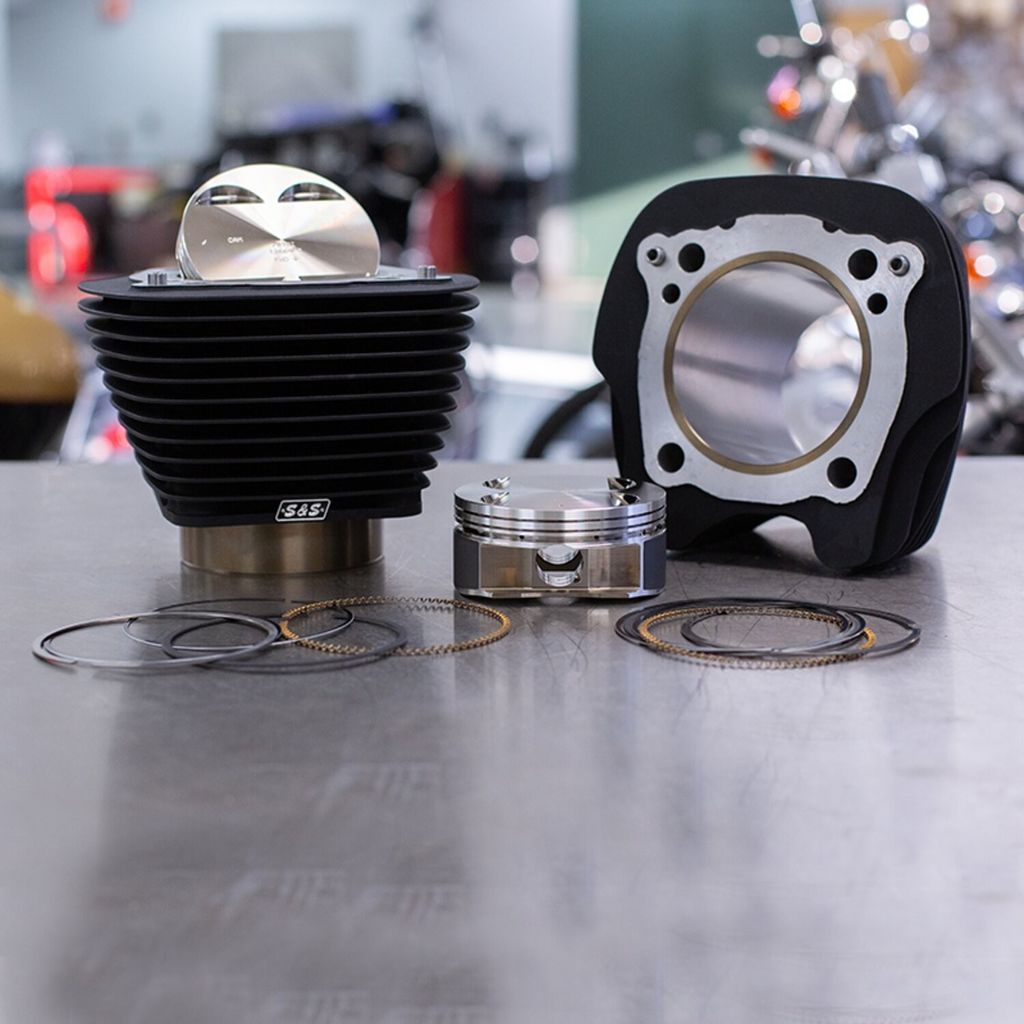

S&S 124" Big Bore cylindersats och kolvsats i svart utförande
Läs mer

574117 S&S
  • Konverterar 107"-motorer till 124" (2025cc)
  • Bultmonterad installation utan behov av vevhusbearbetning, topplocksarbete eller ombalansering av svänghjul
  • 4.250" cylinderdiameter och uppdaterad profil med 4.840" original bultmönster
  • Passar med original vevhus och kräver original 107"-slaglängd på 4.375"
  • Svart skrynkellackade cylindrar (utan framhävda flänsar)
  • Smidd kolvsats med 1.143" däckhöjd och -4.3 cc skålvolym (ger 11:1 kompressionsförhållande med original topplock)
  • Levereras komplett med topp- och cylinderfotsackningar samt monteringsdetaljer
  • Tillverkad i USA

Rekommenderas inte för FL Trike. Kompatibel med original topplocksbultar, men S&S rekommenderar topplocksbultsats 576972 som är 14 % starkare än original för alla Big Bore-applikationer.

Passar: 107" M8 17-24

Cylinder Kit

  • 4.250" bore
  • Updated profile with stock bolt pattern 4.840"
  • Made in the USA
  • Works with stock crankcases.
  • 107" to 124" big bore conversion cylinder & piston kit
  • Complete bolt-on 2025cc kit
  • Compatible with stock 107" engines, which have the required 4.375" stroke
  • Converts the 107" engine to 124"
  • Incl. black wrinkle cylinders and a forged 4.250" bore piston & ring kit with 1.143" deck height and -4.3 cc dish volume for an 11:1 CR with stock cylinder head combustion chamber volume
  • Incl. all required head & base gaskets and hardware
  • Provides a massive increase in capacity with bolt-on installation ease, no case boring, head work or flywheel re-balancing required
  • Note: Compatible with OEM head bolts but S&S advises the, 14% stronger than stock, 576972 S&S head bolt kit for all big bore applications
  • CYLINDER KIT 124" BIG BORE W/O HIGHLIGHTED FINS BLACK | CYLINDER KT 124 M8 BLK

Not recommended for FL Trike.

Fits: 17-24 107" M8 (NU)
