Kolvsats S&S Evo SuperStock 3-5/8" +.010

7 130 kr

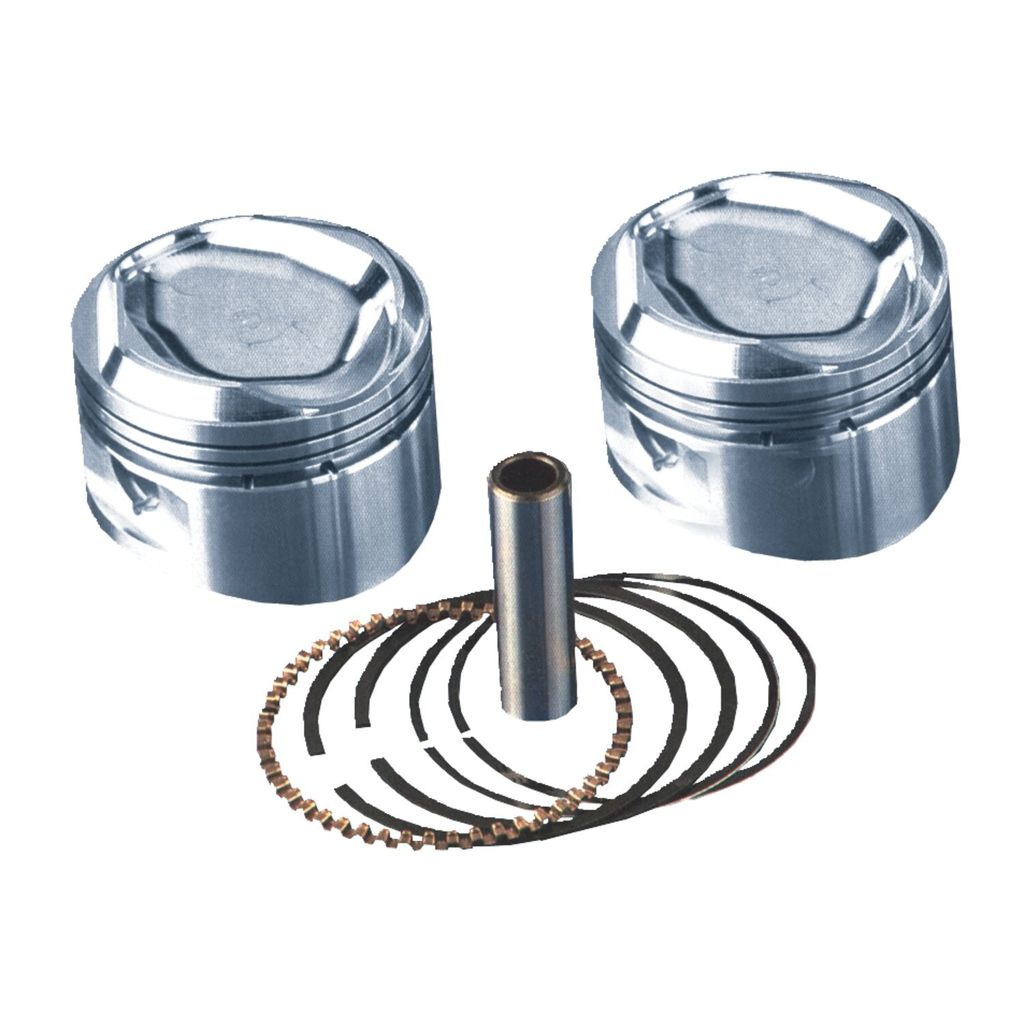

S&S SuperStock kolvsats med försänkt dome, 3-5/8" (+.010")
Läs mer

512423 S&S
  • Ersättningskolvar med försänkt dome för 3-5/8" Big Bore-applikationer
  • Överdimension: +.010"
  • Toleransrekommendationer: tät passform .0015" till .002", lös passform: .003" till .004"
  • Levereras kompletta med kolvbultar, kolvbultsklipps och kolvringar

Passar 84-99 Evolution Big Twin-modeller endast med S&S SuperStock-toppar och 3-5/8" cylindrar, i kombination med slaglängder på 4-1/4" (5.375" cylindrar, 9.4:1 CR), 4-1/2" (5.500" cylindrar, 9.8:1 CR) och 4-5/8" (5.565" cylindrar, 10.1:1 CR). Montering och justering ska utföras av kunnig mekaniker som kontrollerar komponenternas kompatibilitet före installation. Sedvanlig inkörning krävs efter montering.

Passar: 84-99 3-5/8" big bore Evo Big Twin med S&S SuperStock-toppar och 4-1/4" (std), 4-1/2" och 4-5/8" slaglängd vevpartier

3-5/8" repl. Evo SuperStock piston kit. +.010"

  • Replacement recessed dome pistons for 3-5/8" Big Bore applications
  • Will fit 84-99 Evolution Big Twin models with S&S SuperStock heads only and 3-5/8" bore cylinders in combination with 4-1/4" (5.375" cylinders, 9.4:1CR), 4-1/2" (5.500" cylinders, 9.8:1CR) and 4-5/8" (5.565" cylinders, 10.1:1CR) strokes
  • S&S tolerance recommendations: Close fit .0015" to .002"
  • Loose fit: .003" to .004"
  • All pistons include wrist pins, wrist pin clips and piston rings
  • Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
  • It is of importance that a knowledgeable mechanic will install & make adjustments as required
  • The rider must follow standard break-in and riding procedures for overhauled engines

Fits: 84-99 3-5/8" big bore Evo Big Twin with S&S SuperStock heads and 4-1/4" (std), 4-1/2" and 4-5/8" stroke flywheels (NU)
