Kopplingssats Barnett Scorpion FLT/Touring 21-26

16 970 kr

Barnett Scorpion Low-Profile koppling med lock-up
Läs mer

993484 Barnett
  • Justerbar lock-up tryckplatta i ett stycke fräst aluminium med tre tryckarmar som ökar trycket vid högre varvtal
  • Konstruerad med låg profil för att passa under original primärkåpa
  • Satsen innehåller stålkopplingsnav med lager, kopplingslameller i stål och friktion samt tryckplatta
  • Tre olika spiralfjädersatser ingår (lätt, medium, tung) för finjustering från original till över 200 hk
  • Hårdanodiserad för optimal hållbarhet
  • Ger avsevärt ökad kopplingskapacitet, minimal kopplingskraft och smidig, exakt växling
  • Kan köras våt eller torr
  • Tillverkad i USA

Distans till derbylock (#686-30-16100 / MCS 939319) krävs vid OEM smal primärkåpa. Distansplatta krävs inte vid användning av Barnett derbylock #343-30-43015/343-30-44015 (MCS 923387 krom / 923383 svart).

Passar: FLT/Touring 21-26

Scorpion Low-Profile Clutch Assembly With Lock-Up

  • Features a redesigned billet aluminum lock-up pressure plate designed to fit under the stock primary cover
  • Surface area is greatly increased and lever effort is kept to a minimum
  • Low profile design
  • Three different coil spring sets included to provide a wide variety of spring pressure options, allowing you to tune the clutch for stock to 200+ HP applications
  • Bolt on, no modifications required
  • Steel inner hub with bearing is also included to complete the unit
  • Billet aluminum pressure plate
  • Adjustable pressure arms increase spring pressure as rpm increase
  • Can be run wet or dry
  • Smooth, precise shifting
  • Comes assembled with bearing included
  • Made in the USA
  • Derby cover spacer #686-30-16100 is required. The spacer plate is NOT required if using Barnett derby cover #343-30-43015/343-30-44015.

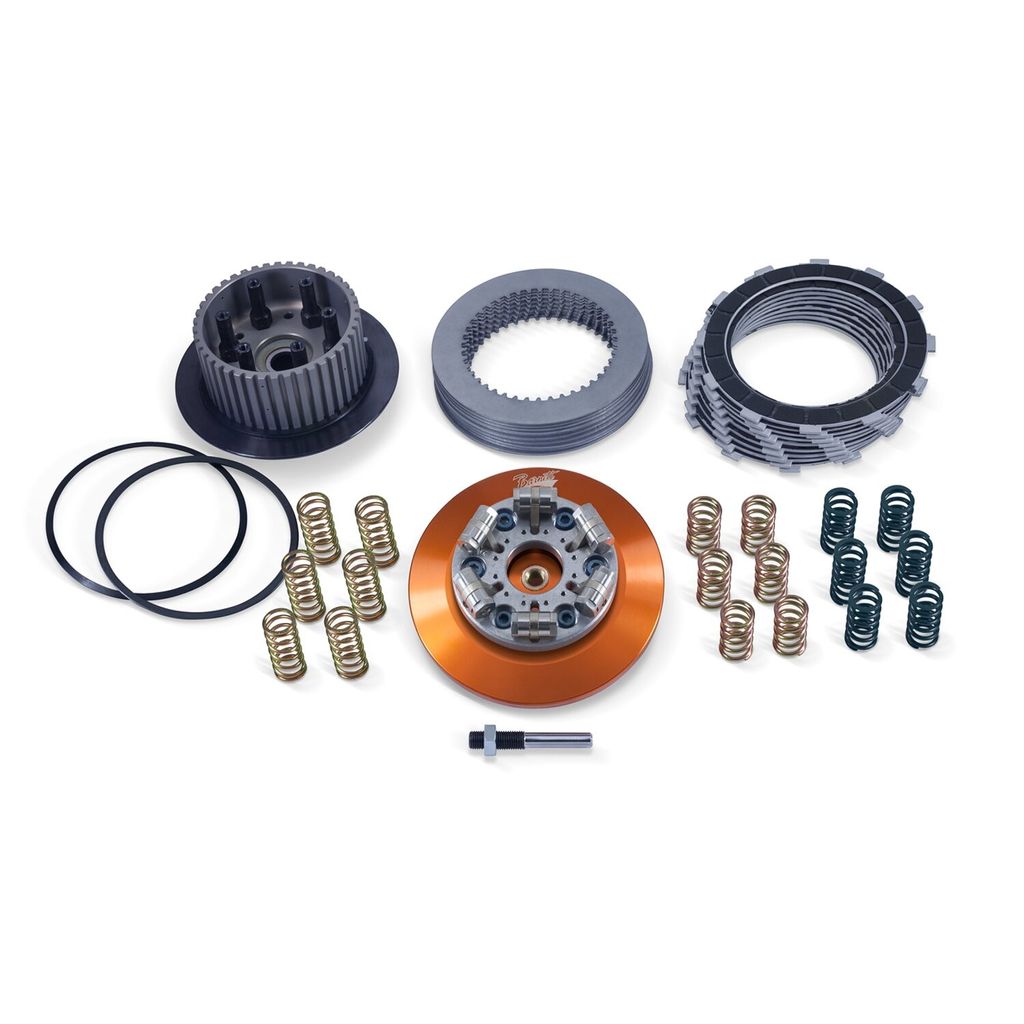

  • Kit includes a steel clutch hub, steel & friction clutch plates combined with an adjustable lock-up one-piece billet aluminum pressure plate
  • It has 3 pressure arms, the more RPM the harder the clutch bites
  • Works with 3 coil style springs
  • Greatly increases clutch capacity
  • Provides smoother shifting and offers multiple spring pressure options
  • Ideal for stock to highly modified applications
  • Progressive pressure as RPM’s increase, right there where it counts
  • Hard anodized for optimal durability
  • With 3 spring sets (light, medium, heavy) for optimal tuning
  • Easy bolt-in installation
  • Note: Derby cover spacer MCS 939319 is required on OEM narrow primary cover
  • The spacer plate is NOT required when using the Barnett derby cover 923387 (chrome), 923383 (black)

Fits: 21-26 FLT/Touring (with stock cable operated clutch)
