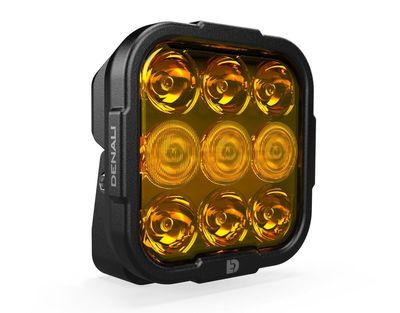

Lampa Denali DL9 Hybrid
Denali DL9 Hybrid Driving LED-extraljus
Läs mer
- HiDrive Cree XPL HI-LED-lampor på 8 watt per styck i ett fyrkantigt 9-LED-format
- TIR-optik med Hybrid Driving-ljusbild för optimal räckvidd och bredd
- DrySeal-konstruktion med robotförseglad lins och invändig gjutmassa som gör lampan 100 % vattentät
- DataDim-kompatibel 3-tråds DT-kontakt för plug-and-play-anslutning till kablage, DialDim och CANsmart Controllers
- 4 mm pulverlackerade stålfästen, kraftig kylfläns och UV-härdade polykarbonatlinser
- Vibrationstålighet klassad till 21grms
- Ljusflöde: 7 650 råa lumen (styck) / 15 300 råa lumen (par)
- Effekt och förbrukning: 72W / 6A (styck) respektive 144W / 12A (par) vid 9-32 VDC
Mått: 4.5" x 4.5" x 2" djup med färgtemperatur på 6000K. Endast avsedd för terrängkörning (off road use only).

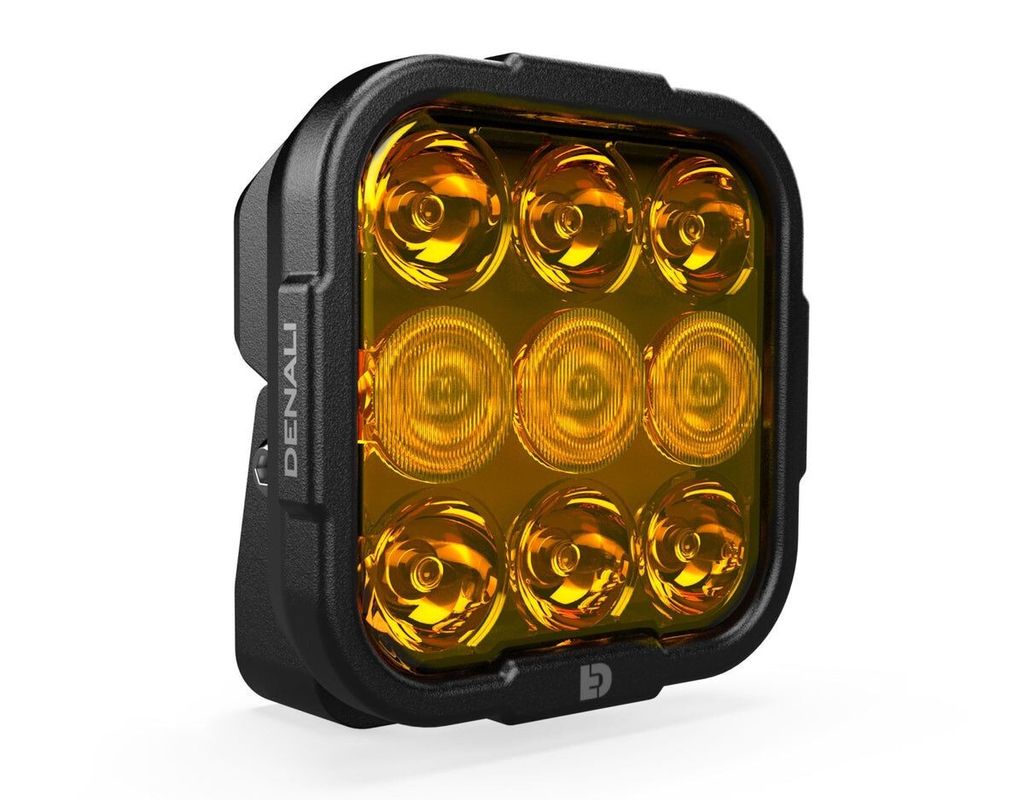

DL9 Hybrid Driving
- HiDrive LEDs 15,300 Lumens Per Pair – Top-bin CREE LEDs driven at 8 watts each deliver a remarkably powerful beam in a beefy 9-LED square package.
- Oversized TIR Optics - Perfected Hybrid Driving Beam – Our proprietary TIR optics distribute the beam of light more efficiently than traditional reflector optics, giving our driving beam unmatched distance and width from the most compact housing possible.
- DataDim Plug-&-Play Dimming – Our signature 3-wire design uses dedicated dimming wiring for maximum reliability and plug-&-play connection to all DENALI light harnesses, DialDim, and CANsmart Controllers.
- DrySeal Sealed Beam Construction – Our patented technique robotically seals the lens and uses internal potting at the cable entry to guarantee 100% waterproof submersible performance even when connectors are removed.
- Overbuilt Not Overpriced – Our 4mm thick powder-coated steel brackets & robust heatsink enable an impressive 21grms vibration rating, while our Polycarbonate lenses are reinforced with UV hard coating.
- Specifications (Single | Pair):
- LED's: Cree XPL HI (8W each)
- Watts: 72W | 144W
- Amp Draw: 6A | 12A
- Raw Lumens: 7,650 | 15,300
- Beam Distance: 1380' (421m) | 1835' (560m)
- Beam Width: 360' (110m) | 478' (146m)
- Connector: DataDim Compatible 3-wire DT
- Color Temperature: 6000K
- Operating Voltage: 9-32 VDC
- Pod Size: 4.5" x 4.5" Rectangle x 2" Deep
OFF ROAD USE ONLY
