Luftfjädring Legend Suspension Air-A FL justerbar svart Touring 96-upp

32 000 kr

Legend Suspension Air-A justerbar luftfjädring för FL-modeller
Läs mer

13110153 Legend Suspension
  • Exklusiv luftfjäderteknik i aramidfiber med justerbar fjäderhastighet
  • Justerbar returdämpning i 6 lägen via ett externt vred
  • Maximerar fjädringsväg och kan anpassas till önskad körhöjd (motsvarar 12" och 13")
  • Stötdämparhus i maskinbearbetad aluminium med hårdanodiserad svart Type III-finish
  • Sfäriska lager i både övre och nedre fästen för enkel montering och linjering
  • Tätningssystem med låg friktion samt High Flow-kolv och självjusterande Deflective Disc-ventiler
  • Inkluderar förkopplad kompressor med modellspecifikt underredsfäste
  • Komplett kabelhärva med 3 Deutsch-kontakter och svart styrströmbrytare medföljer

Handmonterad i Sturgis, SD USA. Kompatibel med fabrikslåga (sänkta) modeller. Ej kompatibel med centralstöd. Passar inte '23-'25 FLHXSE, '24-'25 FLHX, '23-'24 FLTRXSE eller '24 FLTRX.

Passar: Touring 96-upp

Tillverkarens Art. Nr. 1311-0153
Produkt-typ Suspension Kit

Air-A Adjustable FL Air Suspension

  • Legend AIR Suspensions systems sets the high mark in ultimate ride quality
  • Exclusive Aramid Fiber air spring technology provides spring rate adjustability
  • Air springs maximize wheel travel and adjust to any desired ride height
  • Fitment accommodates 12" and 13" needs
  • Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
  • Type III hard-coat black anodized machined aluminum bodies
  • Low friction sealing system and sliding bearings for improved performance and feel
  • High flow piston reacts quickly for improved fluid flow management
  • Deflective disc valving self-adjusts to frequency and ensures controlled performance
  • All the benefits of the standard AIR suspension system, plus six external knob adjustments allow fine-tuning of rebound
  • Provides optimum rebound performance for any given rider weight, personal ride quality preference, or personal riding style
  • Light to heavy riders can fine-tune ride preference
  • Aggressive to casual riding styles can tune to desired quality or personal preference
  • Includes prewired air compressor with model specific mounting
  • Complete wire harness installs with three easy Deutsch connections
  • Includes black handlebar mounted control for easy "on-the-go" adjustability
  • Assembled by hand in Sturgis, SD USA
  • Identical to the regular 'Air' air suspension but with a 6-stage rebound dampening, adjustable with an external knob

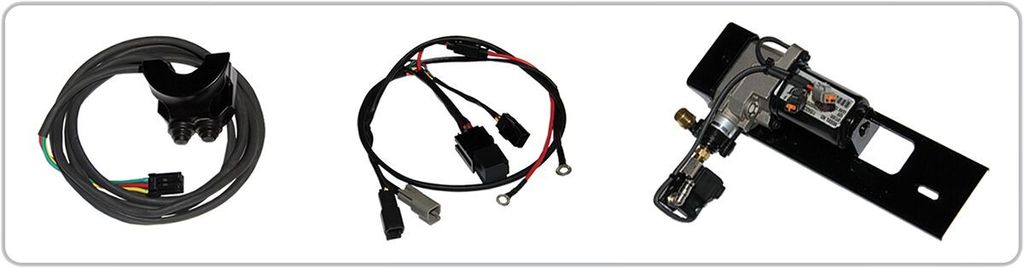

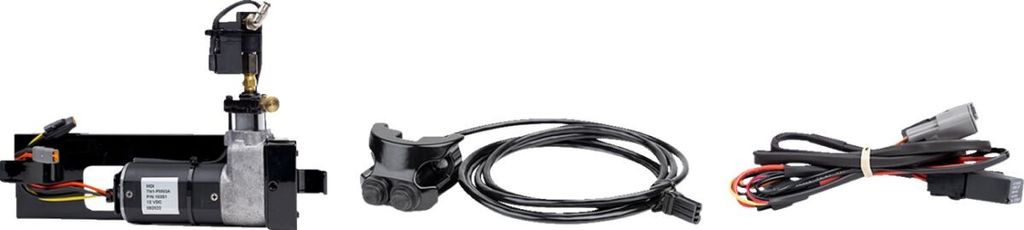

  • Includes the pre-wired air compressor, with a model specific under chassis mount, a plug-in wiring harness with 3 Deutsch connectors and a black handlebar switch
  • The latest developments in air suspension for H-D models, offering one of the best possible rides man could wish for
  • Perfect adjust suspension for changing applications, heavy or light rider, riding single, two-up or with gear an a long trip
  • It's like having 12" and 13" shocks in one
  • Smooth no-stick damping due to low friction seals and quick reactions on fluid flow management with High Flow fluid pistons
  • Air suspension offers a number of benefits over coil springs, particularly with adjustability
  • Lower your seat height while parked
  • Quick switch between 1-up and 2-up riding
  • Get that cool, low look
  • Air suspension handles it with the push of a button Note: Compatible with stock low (lowered) models

• Not compatible with center stands. • Does not fit '23-'25 FLHXSE or '24-'25 FLHX models. • Does not fit '23-'24 FLTRXSE or '24 FLTRX models.

Fits: 99-25 FLT/Touring (excl. 99-14 FLTRX; 23-25 Gen2 Touring with the Skyline OS infotainment system) (NU)
