Luftfjädring Legend Suspension Air-A justerbar svart V-Rod 04-17

32 000 kr

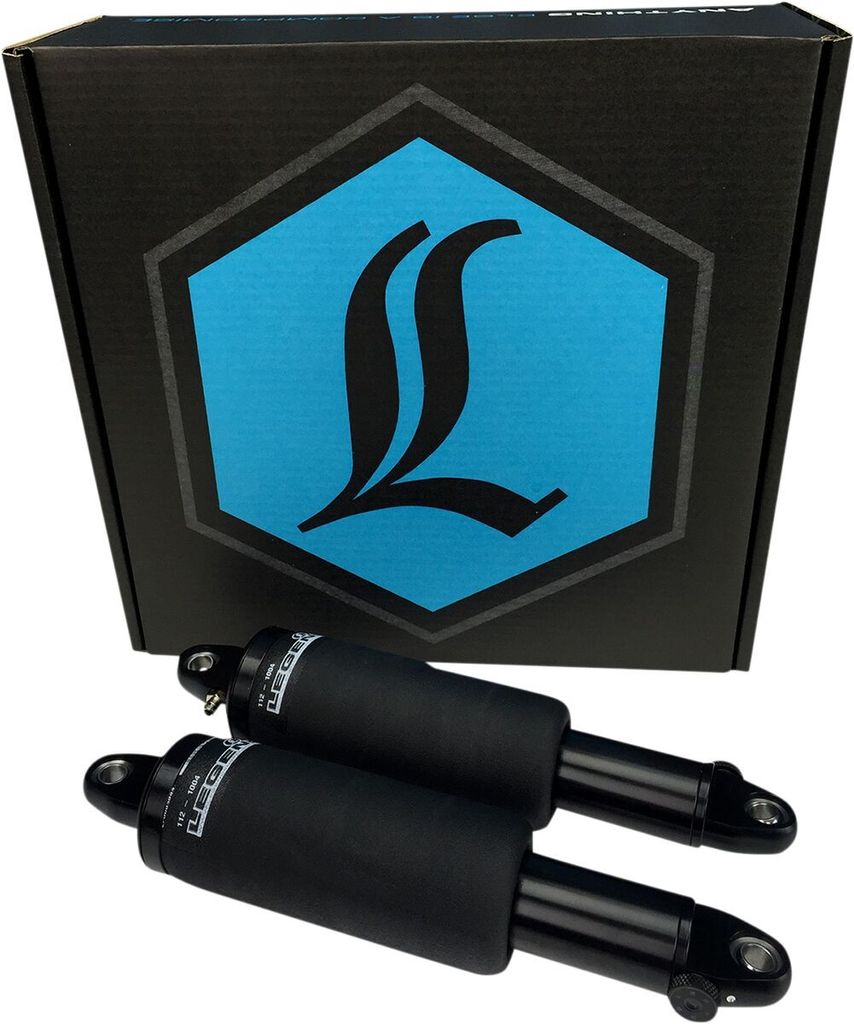

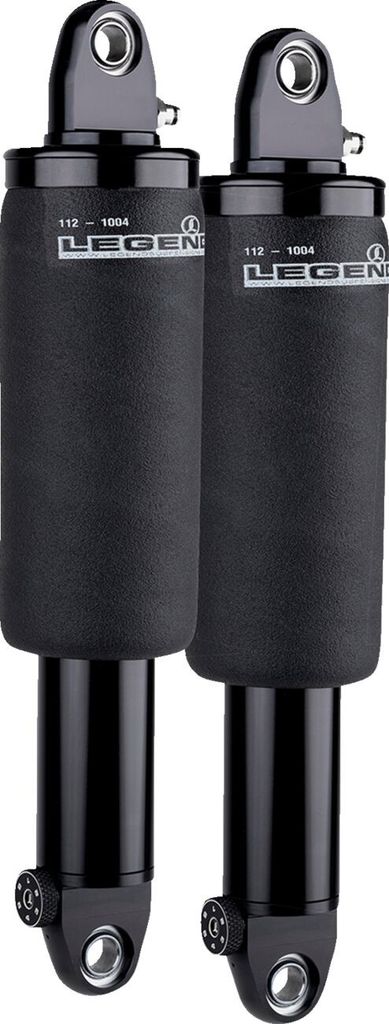

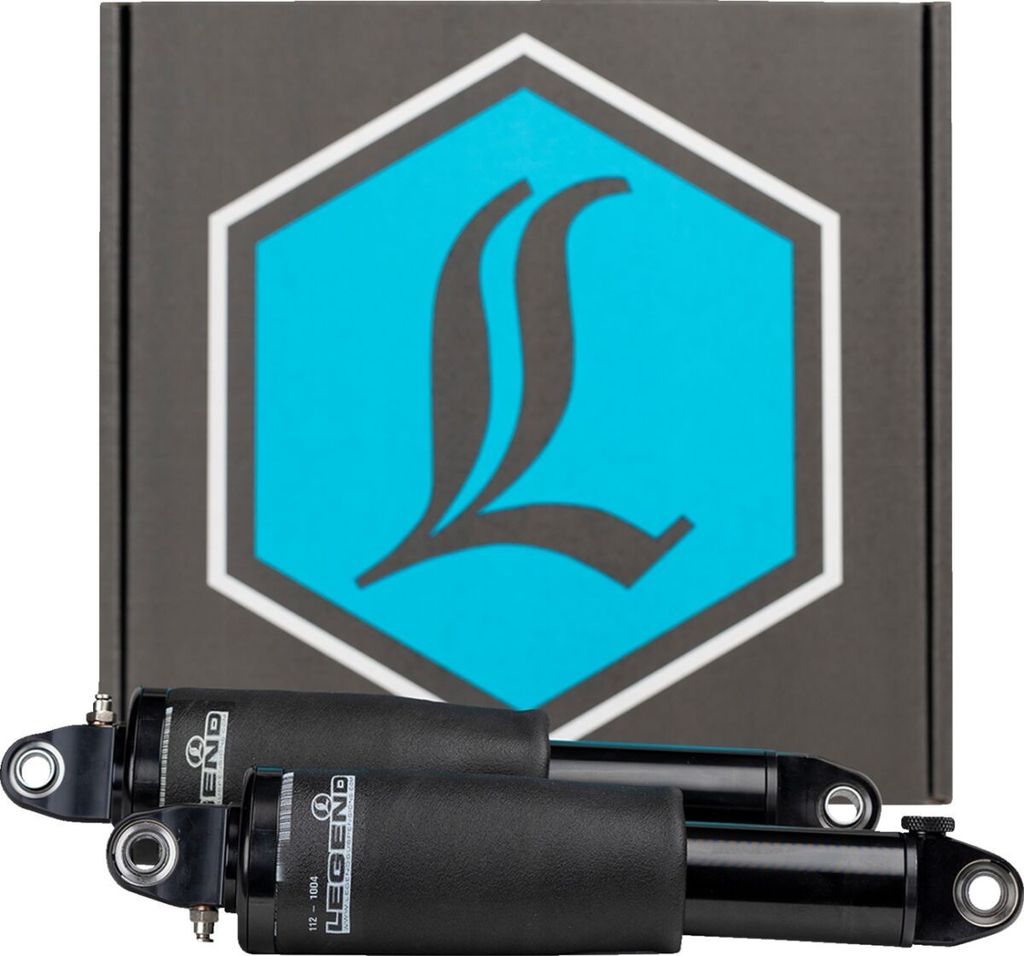

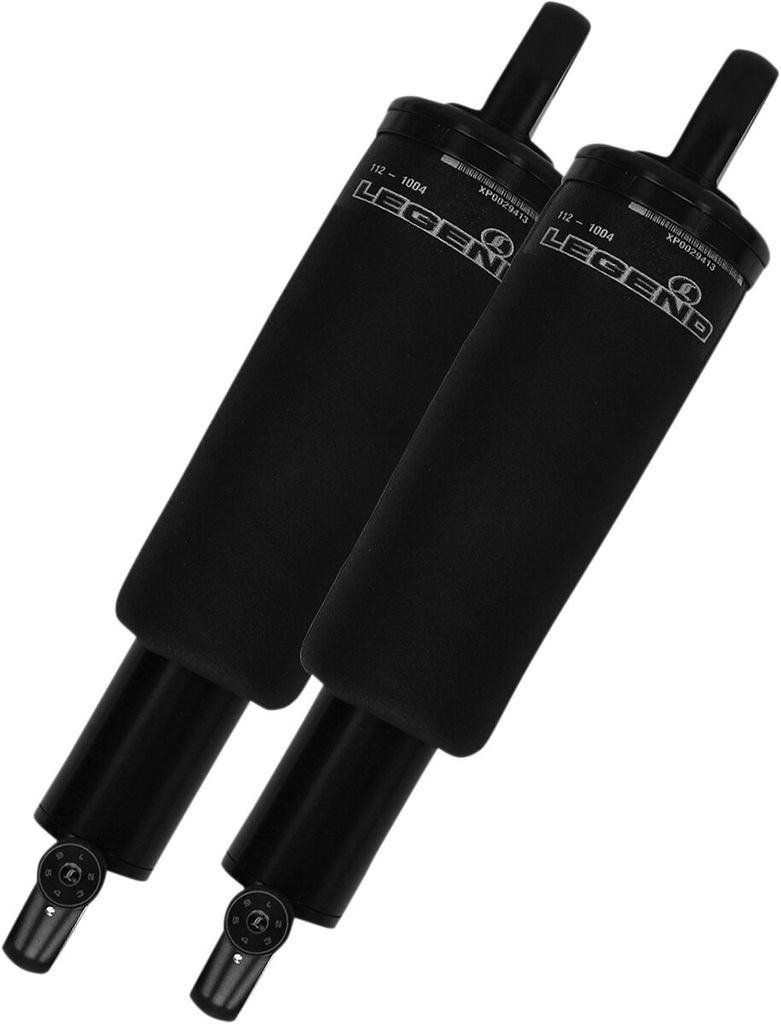

Legend AIR-A justerbar luftfjädring för V-Rod
Läs mer

13110109 Legend Suspension
  • Luftfjädring med exklusiv teknik i aramidfiber för justerbar fjäderhastighet
  • Justerbar returdämpning i sex lägen via externt vred
  • Kroppar i maskinbearbetad aluminium med hårdanodiserad svart Type III-finish
  • Tätningssystem och glidlager med låg friktion samt High Flow-kolv för slät dämpning
  • Självjusterande deflektordiskventiler för kontrollerad prestanda
  • Sfäriska lager i övre och nedre fästen för enkel montering och inriktning
  • Motsvarar både 12" och 13" stötdämpare och maximerar fjädringsväg

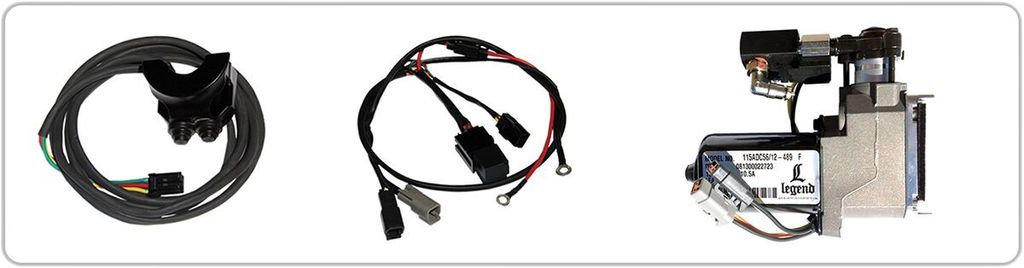

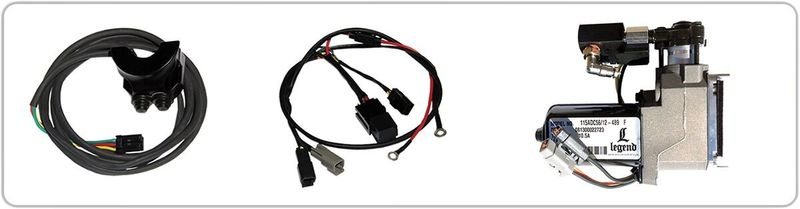

  • Levereras med förkopplad kompressor för montering under chassit, kabelhärva med tre Deutsch-kontakter samt svart styrströmbrytare

Kompatibel med fabrikslåga (sänkta) modeller. Förkromat styrreglage säljs separat (art.nr 0616-0207). Tillverkad för hand i Sturgis, South Dakota, USA.

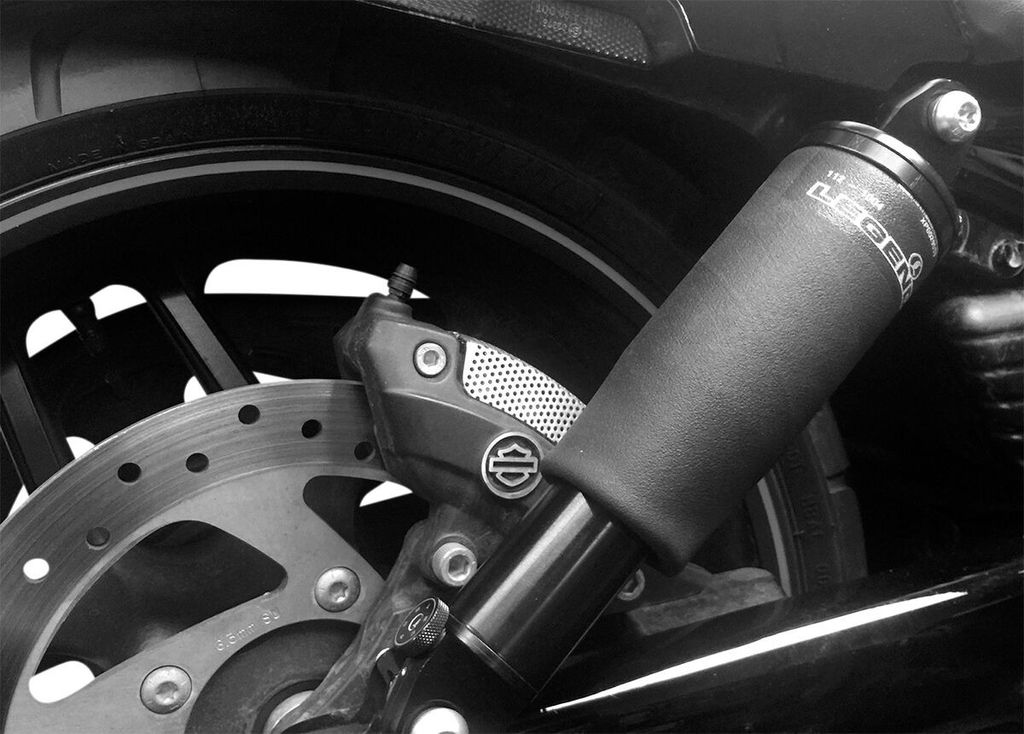

Passar: V-Rod 04-17

Produkt-typ Shock Absorber
Tillverkarens Art. Nr. 1311-0109

Air-A V-Rod Adjustable Air Suspension

  • Legend AIR Suspensions systems sets the high mark in ultimate ride quality
  • Exclusive Aramid Fiber air spring technology provides spring rate adjustability
  • Air springs maximize wheel travel and adjust to any desired ride height
  • Fitment accommodates 12" and 13" needs
  • Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
  • Type III hard-coat black anodized machined aluminum bodies
  • Low friction sealing system and sliding bearings for improved performance and feel
  • High flow piston reacts quickly for improved fluid flow management
  • Deflective disc valving self-adjusts to frequency and ensures controlled performance
  • All the benefits of the standard AIR suspension system, plus six external knob adjustments allow fine-tuning of rebound
  • Provides optimum rebound performance for any given rider weight, personal ride quality preference, or personal riding style
  • Light to heavy riders can fine-tune ride preference
  • Aggressive to casual riding styles can tune to desired quality or personal preference
  • Includes prewired air compressor with model specific mounting
  • Complete wire harness installs with three easy Deutsch connections
  • Includes OEM-looking black handlebar mounted control for easy "on-the-go" adjustability
  • Optional chrome handlebar mounted control sold separately (Part # 0616-0207)
  • Made by hand in Sturgis, South Dakota, USA
  • Identical to the regular 'Air' air suspension but with a 6-stage rebound dampening, adjustable with an external knob
  • Includes the pre-wired air compressor, with a model specific under chassis mount, a plug-in wiring harness with 3 Deutsch connectors and a black handlebar switch
  • The latest developments in air suspension for H-D models, offering one of the best possible rides man could wish for
  • Perfect adjust suspension for changing applications, heavy or light rider, riding single, two-up or with gear an a long trip
  • It's like having 12" and 13" shocks in one
  • Smooth no-stick damping due to low friction seals and quick reactions on fluid flow management with High Flow fluid pistons
  • Air suspension offers a number of benefits over coil springs, particularly with adjustability
  • Lower your seat height while parked
  • Quick switch between 1-up and 2-up riding
  • Get that cool, low look
  • Air suspension handles it with the push of a button Note: Compatible with stock low (lowered) models

Fits: 07-17 V-Rod (NU)
