Luftfjädring Legend Suspension Air-A M-Eight svart Softail 18-24

27 610 kr

Legend Air-A luftfjädringskit för Softail Milwaukee-Eight
Läs mer

13110156 Legend Suspension
  • Exklusiv luftfjädring med aramidfiber som ger justerbar fjäderhastighet och åkhöjd
  • Returdämpning justerbar i sex lägen via extern ratt med nålventilteknik
  • Maskinbearbetade stommar i aluminium med svart hårdanodiserad Type III-finish
  • Invändig flytande kvävekolv och 'deflective disc'-ventiler för konsekvent dämpning
  • Original åkhöjd på 13" och sänks till 11.25" vid parkering, med 3.50" fjädringsväg
  • Monteras under sadeln som ersättning för originaldämpare utan modifieringar
  • Förkopplad kompressor med modellspecifikt fäste under motorcykeln framför svingen
  • Inkluderar svart styromkopplare i OEM-stil för 1"-styre och färgkodat kablage

Passar inte FXDRS. Passar fysiskt alla Softail (utom FXDRS), men är endast kompatibel med original åkhöjd på Fat Bob FXFB/S och Heritage Classic FLHC/S. Valfri styromkopplare i krom säljs separat (art.nr 0616-0207).

Passar: Softail 18-24

Produkt-typ Shock Absorber
Tillverkarens Art. Nr. 1311-0156

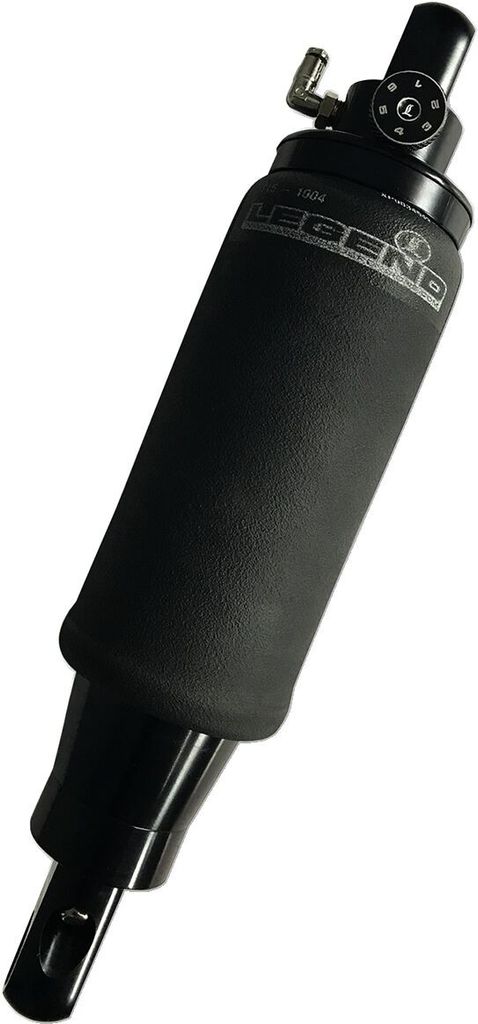

Air-A M-Eight Softail Air Suspension

  • Legend AIR Suspensions systems sets the high mark in ultimate ride quality
  • Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
  • Six external knob adjustments allow fine-tuning of rebound utilizing needle valve technology
  • Provides optimum rebound performance for any given rider weight, personal ride quality preference, or personal riding style
  • Light to heavy riders can fine-tune ride preference
  • Aggressive to casual riding styles can tune to desired quality or personal preference
  • Exclusive Aramid Fiber air spring technology provides spring rate adjustability
  • Air spring maximizes wheel travel and adjusts to any desired ride height
  • Type III hard-coat black anodized machined aluminum bodies
  • Low friction sealing system and sliding bearings for improved performance and feel
  • High flow piston reacts quickly for improved fluid flow management
  • Deflective disc valving self-adjusts to frequency and ensures controlled performance
  • Internal floating nitrogen piston ensures consistent damping performance
  • Rider experiences a plush compliant ride with higher bottoming resistance

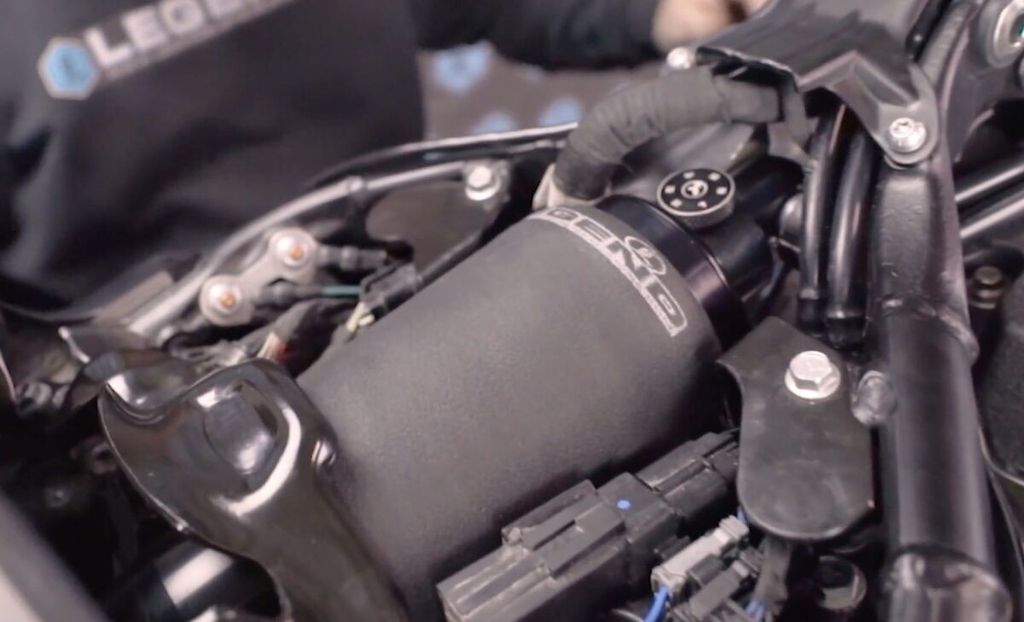

  • Easy installation – shock mounts under the seat, replacing stock shock

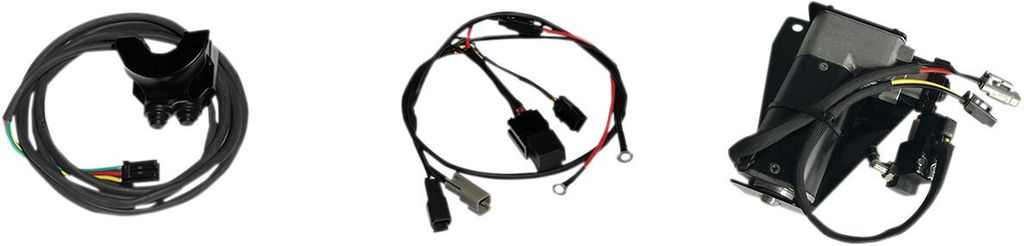

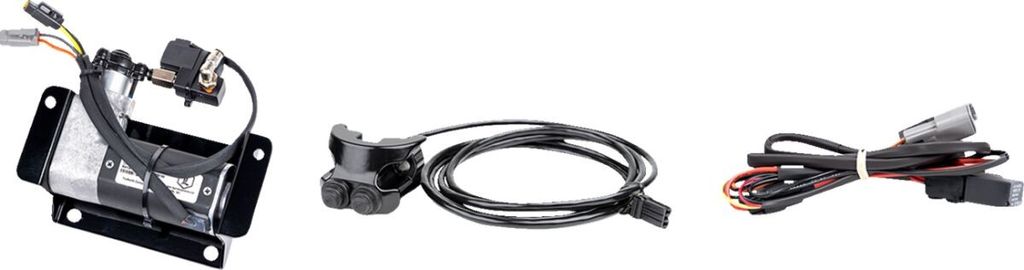

  • Includes prewired air compressor with model specific mounting
  • Complete wire harness installs with three easy Deutsch connections
  • Includes OEM-looking black handlebar mounted control for easy "on-the-go" adjustability
  • Optional chrome handlebar mounted control sold separately (Part # 0616-0207)
  • Made by hand in Sturgis, South Dakota, USA
  • Offers stock ride height of 13" and slams to 11.25" when parked
  • Wheel travel 3.50"
  • The air compressor is pre-wired and mounts under the bike in front of swingarm
  • Rebound is 6-step knob adjustable
  • Fits as stock replacement without modifications
  • Includes air compressor with On-The-Fly adjustability pressure with a 1" diameter handlebar pushbutton switch
  • Damping is not separately adjustable nor required in regular street use
  • Color coded Plug & Play wiring for quick & easy installation
  • Note: Will physically fit all Softail (excl
  • FXDRS) but is compatible with the stock ride height of Fat Bob FXFB/S and Heritage Classic FLHC/S models only
  • Note product length: Mentioned lengths are center to center distance between mounting eyes
  • Shock lengths are measured from center of mounting eye to face of shock or nut
  • Lengths do not include compression bumpers

Does not fit FXDRS.

Fits: 18-24 Softail: 18-24 FXFB/S Fat Bob; 18-21 FLHC Heritage Classic 107; 18-24 FLHCS Heritage Classic 114 (NU)
