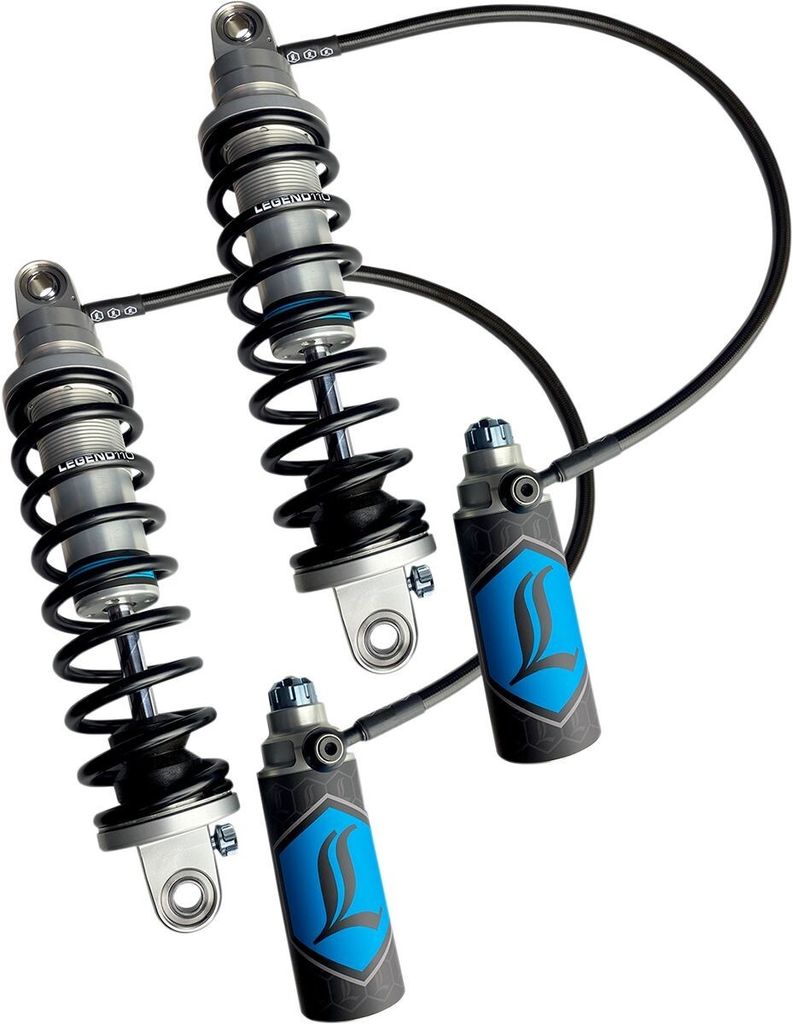

Stötdämpare Legend Suspension REVO ARC FL 13 bak Touring 14-upp 1310-1935
REVO ARC bakre stötdämpare med separat behållare
Läs mer
Clear Type III hard coat anodized finish.
With remote reservoir. 7 levels of hand adjustable compression & rebound dampening. No tools needed. Light to heavy riders with an either aggressive to casual riding style can fine-tune both compression & rebound dampening to to personal preference or just adjust for a changing load (passenger), with the turn of a knob. Legend’s touring-specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all-day comfort.
- 7-position compression & rebound dampening, adjustable by hand
- 35 mm monotube construction
- Deflective disc valve stacks
- Balanced/Matched piston and base-valve design specific for motorcycle applications
- Low friction sealing system and sliding bearings for improved performance and feel
- Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
- Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
- Remote reservoirs are installed in stock place behind bags.
Note: Standard duty is recommended for a rider/passenger/gear total weight below 500lbs. (227kg). Heavy Duty application is recommended for over 500lb. (227kg) rider and passenger total weight.
| Produkt-typ | Shock Absorber |
| Tillverkarens Art. Nr. | 1310-1935 |
REVO ARC Remote Reservoir FL Coil Suspension
- Available in Black, Gold and Clear Type III hard coat anodize
- Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
- Adjusts by hand, no tools needed
- Available in 13" and 14", standard or heavy-duty applications
- Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
- 35 mm monotube construction
- Deflective disc valve stacks
- Balanced/Matched piston and base-valve design specific for motorcycle applications
- Low friction sealing system and sliding bearings for improved performance and feel
- Features independent compression and rebound damping adjusters that are specifically designed to make fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob
- Provides optimum rebound and compression performance for any given rider weight, personal ride preference, or personal riding style
- Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
- Light to heavy riders can fine-tune ride preference
- Aggressive to casual riding styles can tune to desired quality or personal preference
- Made by hand in Sturgis, SD USA
FL Models: Heavy Duty application is recommended for 500 lb+ rider and passenger total weight.
