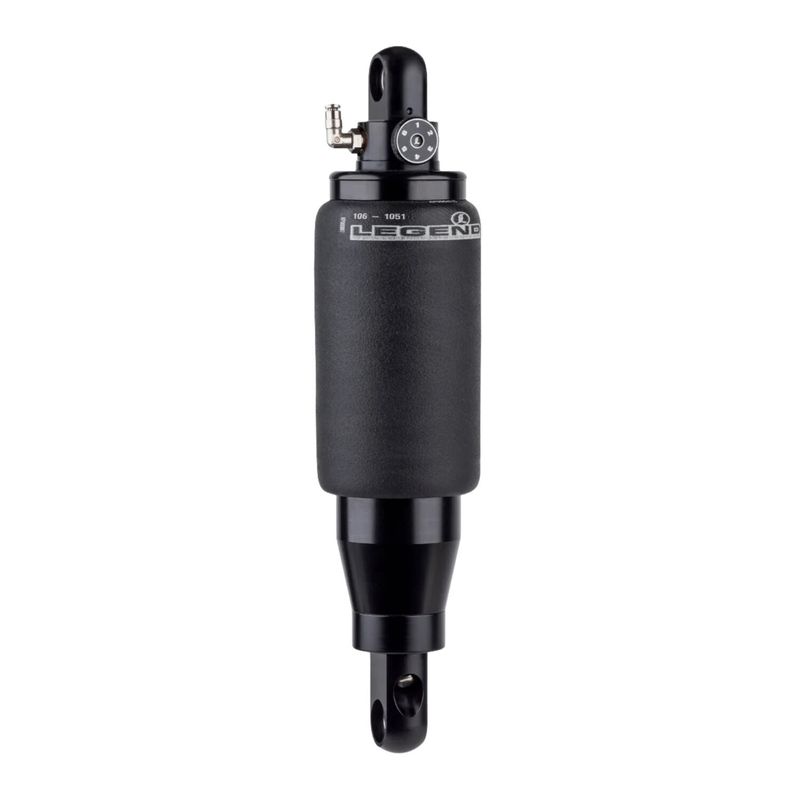

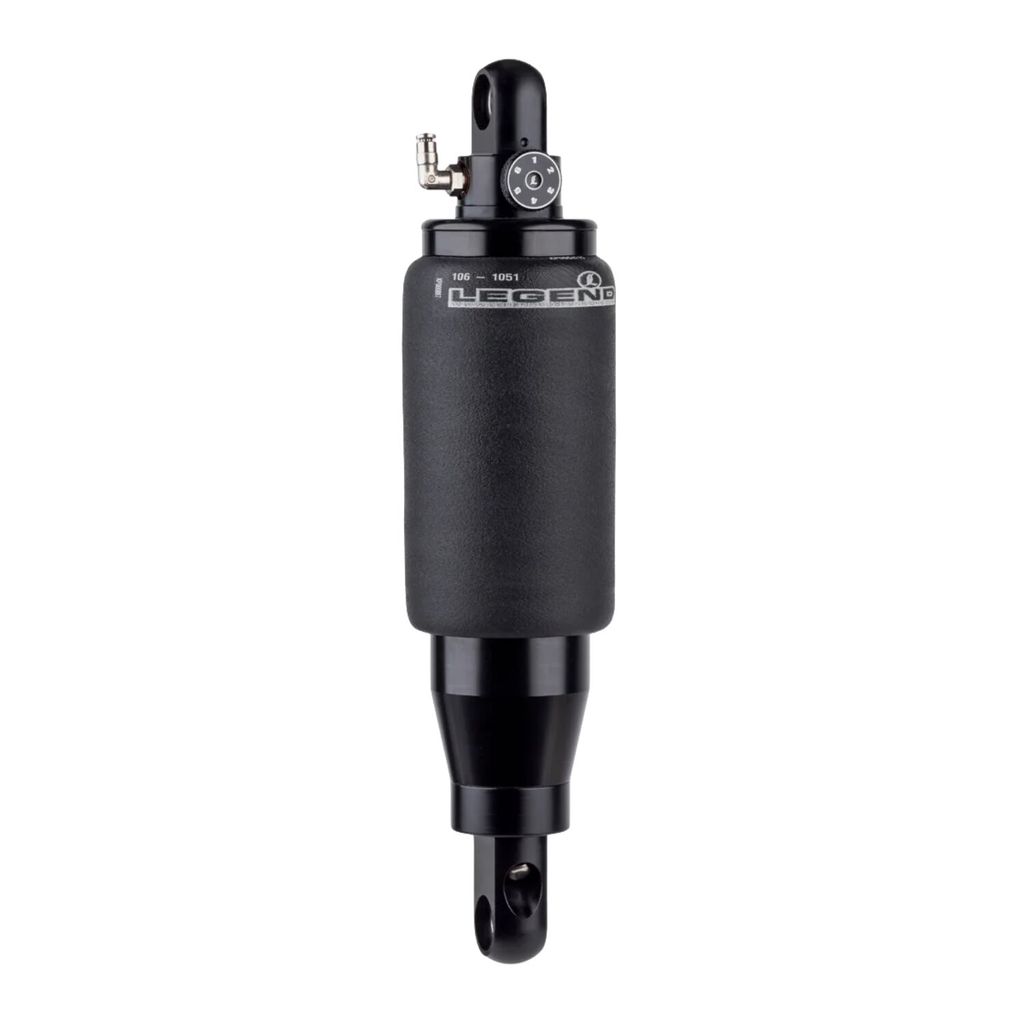

Luftfjädring Legend Air Suspension Air-A svart Softail 25-26
Legend Air-A luftfjädringssystem för Softail
Läs mer
- Justerbar luftfjäder med aramidfiber-teknologi för anpassning av fjäderhastighet och körhöjd
- Returdämpning justerbar i sex lägen med utvändigt vred och nålventil-teknik
- Hus i maskinbearbetad aluminium med hårdanodiserad svart Type III-finish
- Invändig flytande kvävekolv och självjusterande ventiler för jämn dämpning
- Sänker från 13" original körhöjd ner till 11.25" vid parkering, fjädringsväg 3.50"
- Sitter under sadeln som ersättning för originalstötdämpare och monteras med sfäriska lager
- Förkopplad kompressor för montering framför svingen med modellspecifikt fäste
- Komplett kablage med färgkodade Deutsch-kontakter samt svart 1" styromkopplare ingår
Passar fysiskt alla Softail-modeller men är kompatibel med original körhöjd på FLHC, FXLRS, FXLRST samt andra modeller som kräver en 13" lång stötdämpare. Angivna längder mäts centrum-till-centrum mellan fästögonen och inkluderar inte genomslagsgummin.
Passar: Softail 25-26
Air-A Softail Suspension
- Legend AIR Suspensions systems sets the high mark in ultimate ride quality

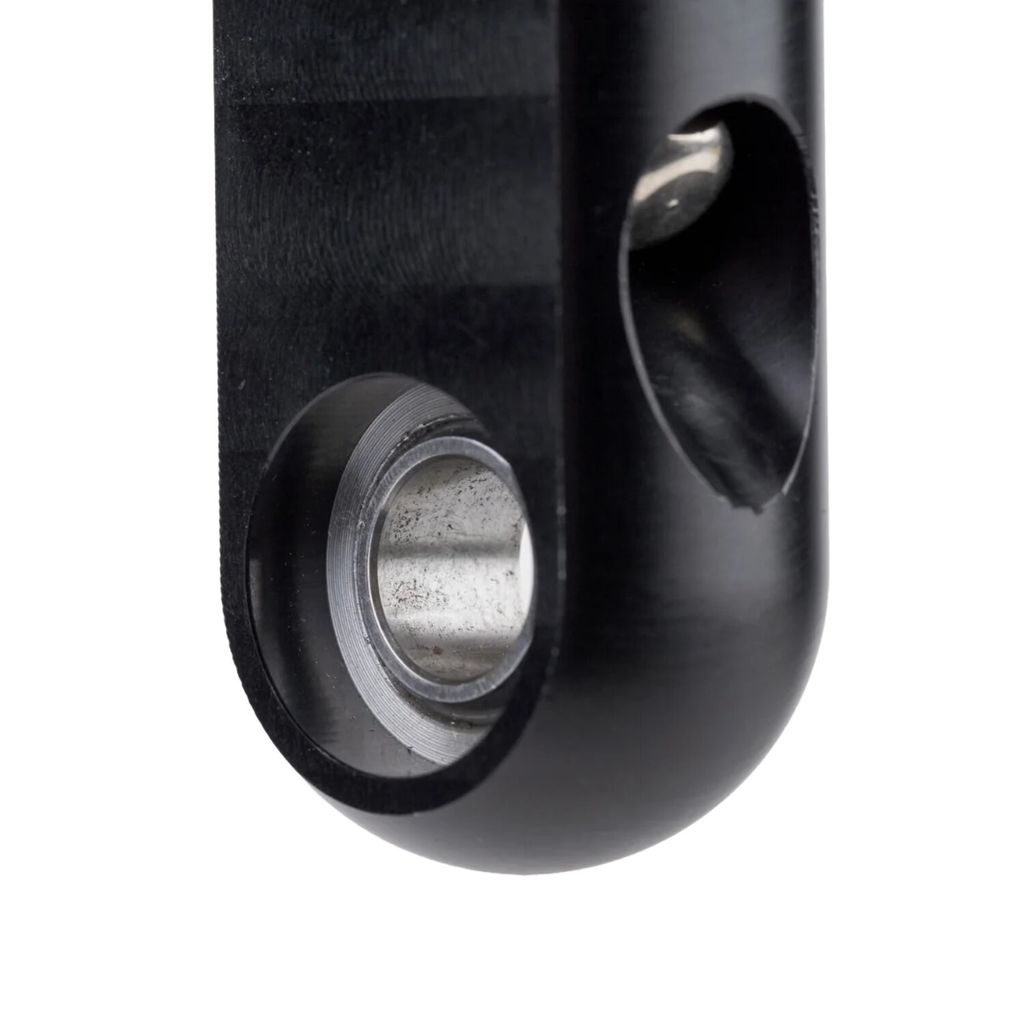

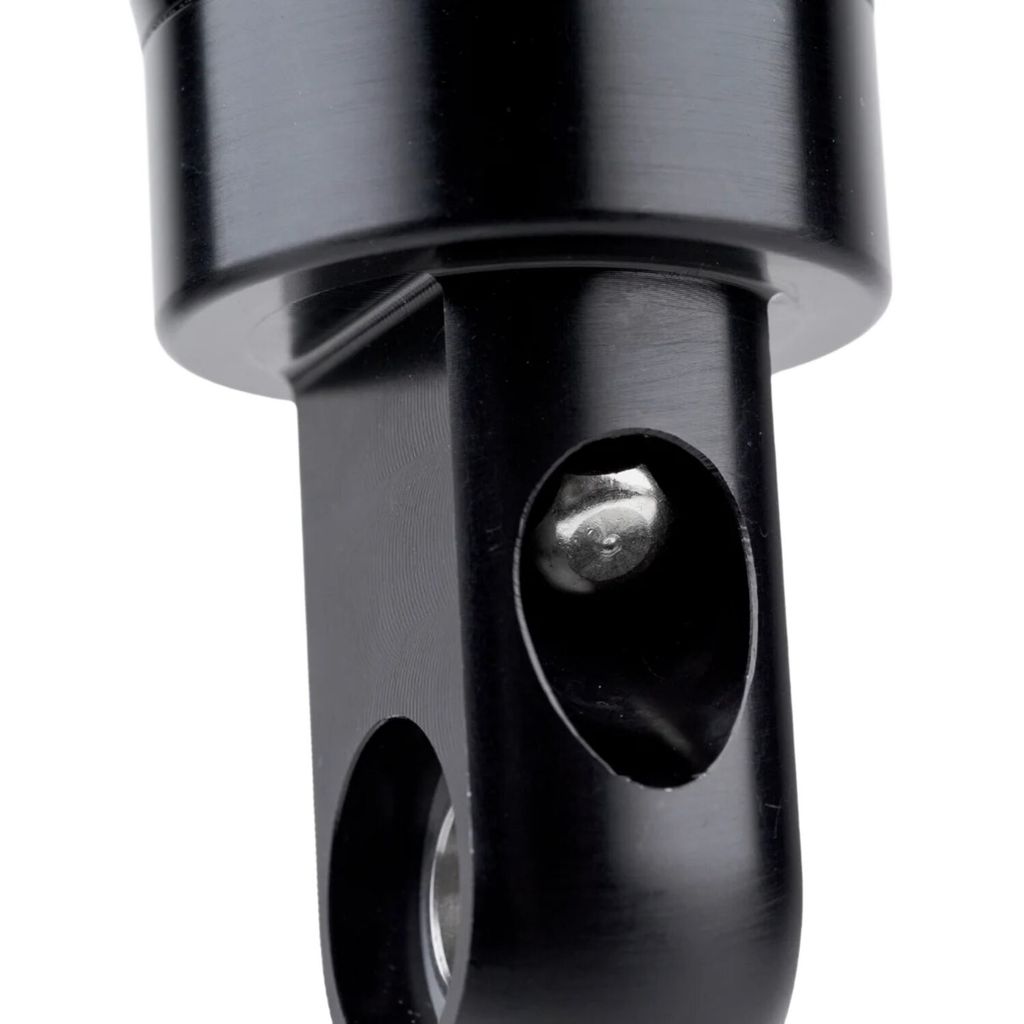

- Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points

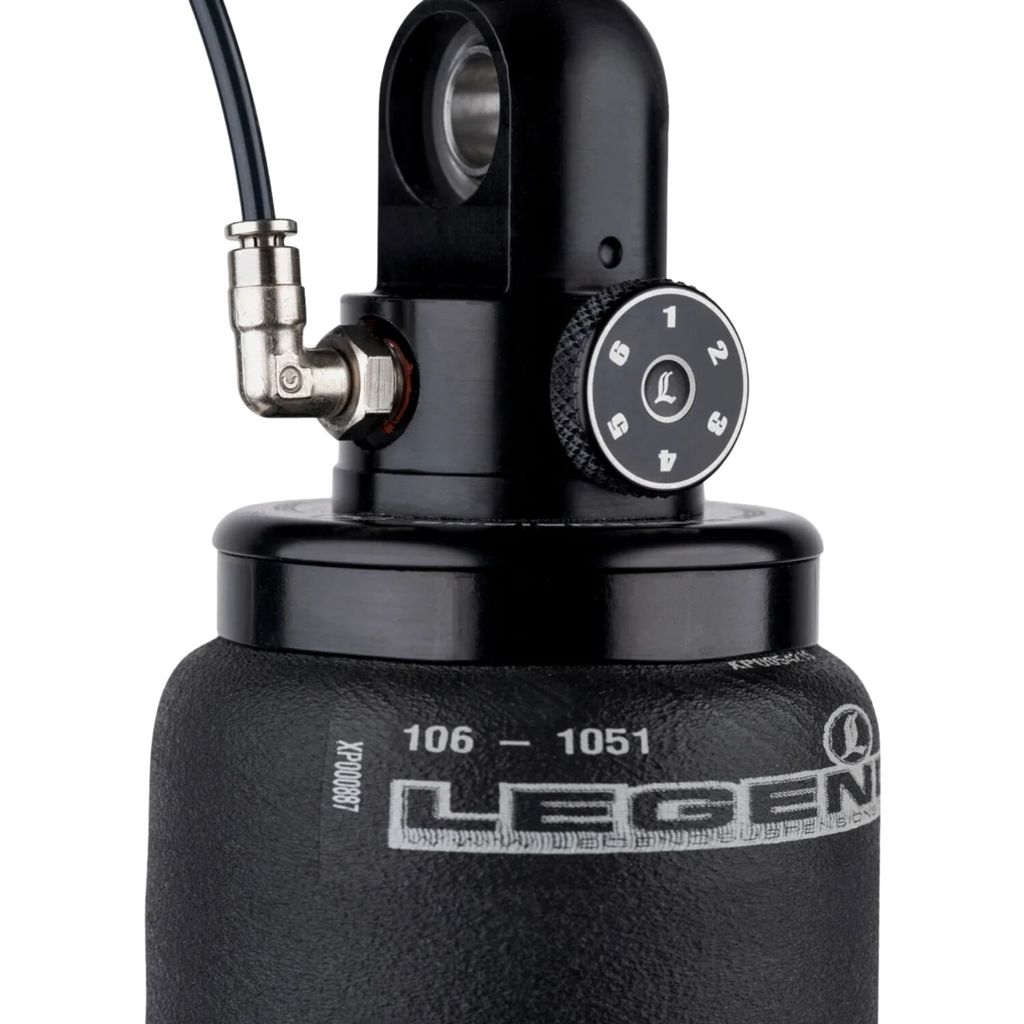

- Six external knob adjustments allow fine-tuning of rebound utilizing needle valve technology
- Provides optimum rebound performance for any given rider weight, personal ride quality preference, or personal riding style
- Light to heavy riders can fine-tune ride preference
- Aggressive to casual riding styles can tune to desired quality or personal preference
- Exclusive Aramid Fiber air spring technology provides spring rate adjustability
- Air spring maximizes wheel travel and adjusts to any desired ride height
- Type III hard-coat black anodized machined aluminum bodies
- Low friction sealing system and sliding bearings for improved performance and feel
- High flow piston reacts quickly for improved fluid flow management
- Deflective disc valving self-adjusts to frequency and ensures controlled performance
- Internal floating nitrogen piston ensures consistent damping performance
- Rider experiences a plush compliant ride with higher bottoming resistance
- Easy installation – shock mounts under the seat, replacing stock shock

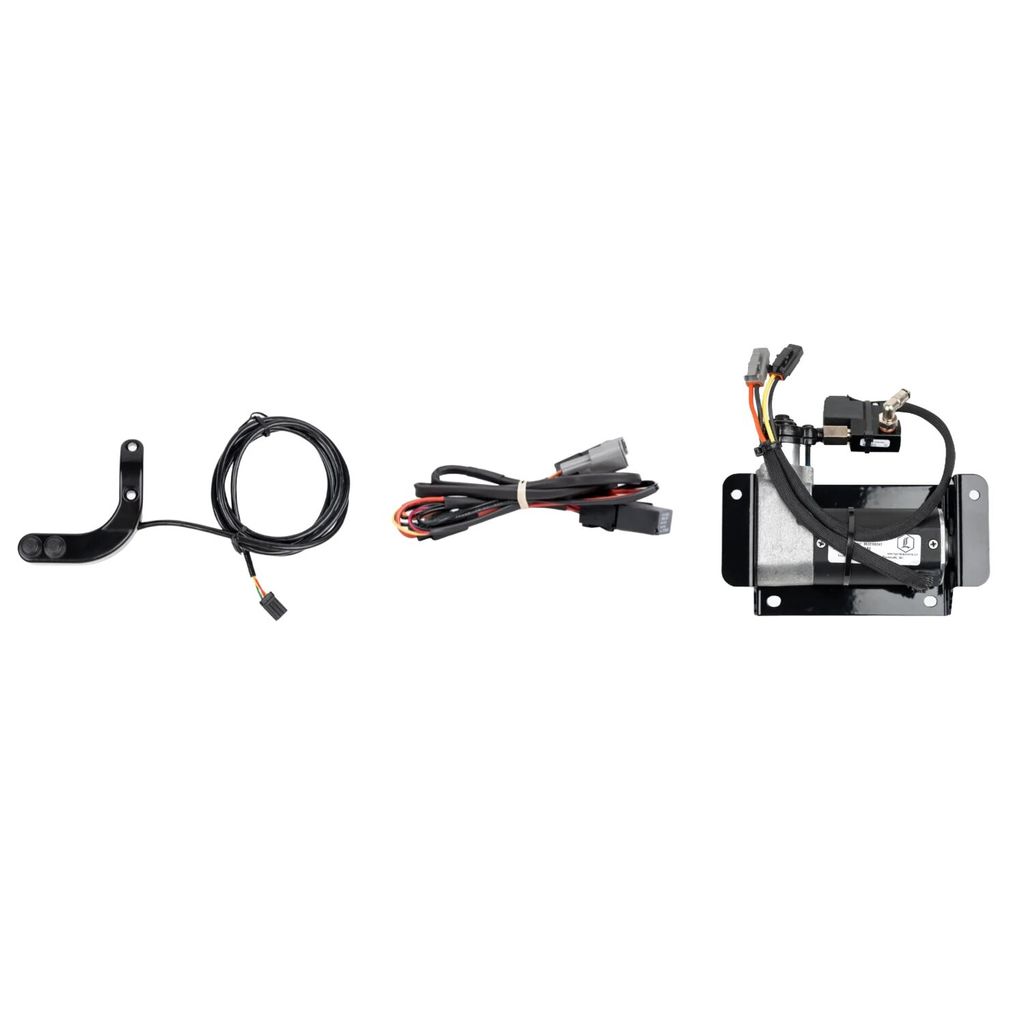

- Includes prewired air compressor with model specific mounting
- Complete wire harness installs with three easy Deutsch connections
- Includes OEM-looking black handlebar mounted control for easy "on-the-go" adjustability
- Assembled by hand in Sturgis, SD USA
- P65 WARNING: Cancer and Reproductive Harm
- Offers stock ride height of 13" and slams to 11.25" when parked
- Wheel travel 3.50"
- The air compressor is pre-wired and mounts under the bike in front of swingarm
- Rebound is 6-step knob adjustable
- Fits as stock replacement without modifications

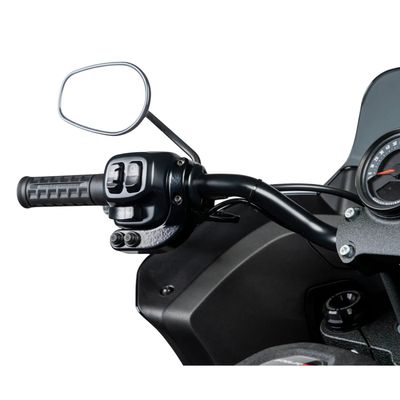

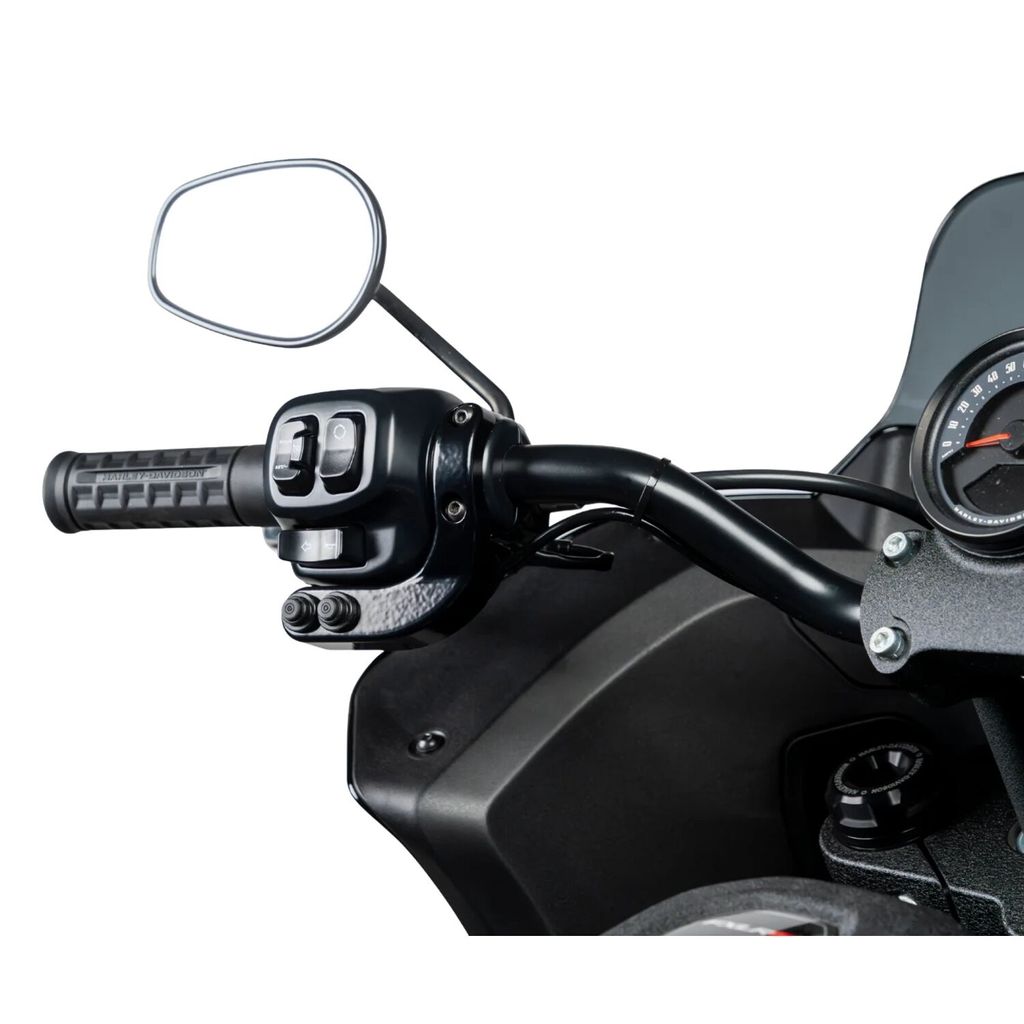

- Includes air compressor with On-The-Fly adjustability pressure with a 1" diameter handlebar pushbutton switch
- Damping is not separately adjustable nor required in regular street use
- Color coded Plug & Play wiring for quick & easy installation
- Note: Will physically fit all Softail but is compatible with the stock ride height of FLHC, FXLRS, FXLRST models and others requiring a 13" long shock
- Note product length: Mentioned lengths are center to center distance between mounting eyes
- Shock lengths are measured from center of mounting eye to face of shock or nut
- Lengths do not include compression bumpers
Fits: 25-26 Softail
